0-52 — OIL AND VACUUM PIPING; ENGINE (#130487) — 41 parça

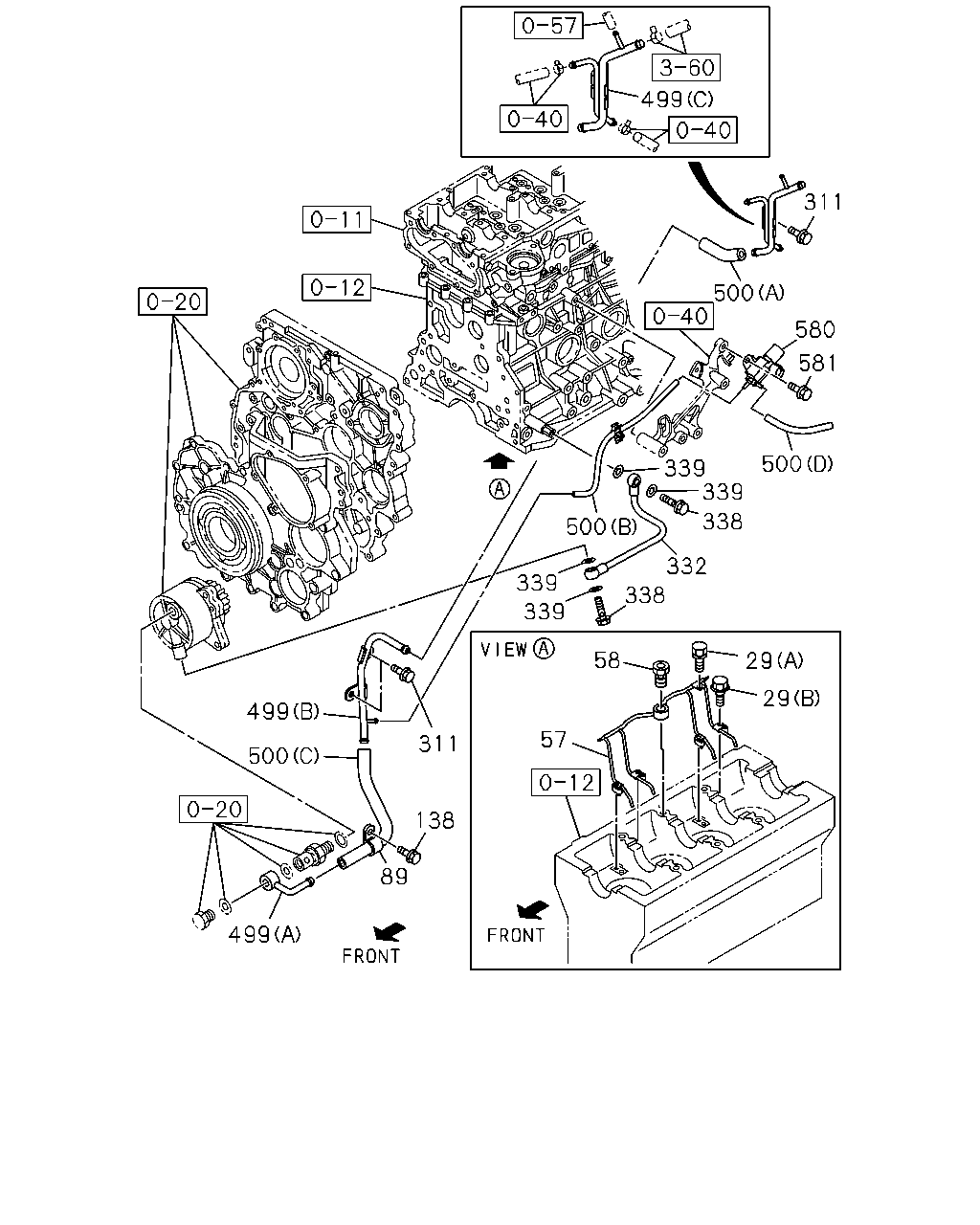

çizim 385229
500 581 580 311 339 500 339 338 332 338 339 339 29 29 58 57 311 500 499 138 89 499 500 499
BalonParca AdiParca NoAdetTipApplied Date
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1310-
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 FLANGE 		8-97380-673-1 04 1 1310-
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1310-
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1310-
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 1310-
138 01.531 BOLT; CLIP FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1310-
311 01.531 BOLT; PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1310-
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-98233-768-0 01 1 1310-
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 1310-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1310-
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 1310-
499 04.681 PIPE; VACUUM
(C) 		8-98132-058-2 01 1 1310-
499 04.681 PIPE; VACUUM
(B) 		8-98228-436-0 01 1 1310-
500 04.681 HOSE; VACUUM
(A) 		0-08508-090-0 01 1 1310-
500 04.681 HOSE; VACUUM
(D) 		8-98228-430-0 01 1 1310-
500 04.681 HOSE; VACUUM
(C) 		8-98228-437-0 01 1 1310-
500 04.681 HOSE; VACUUM
(B) 		8-98228-438-0 01 1 1310-
580 01.531 VALVE; VAC SW
03.670 		8-97352-145-0 01 1 1310-
581 01.531 BOLT; VSV
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1310-

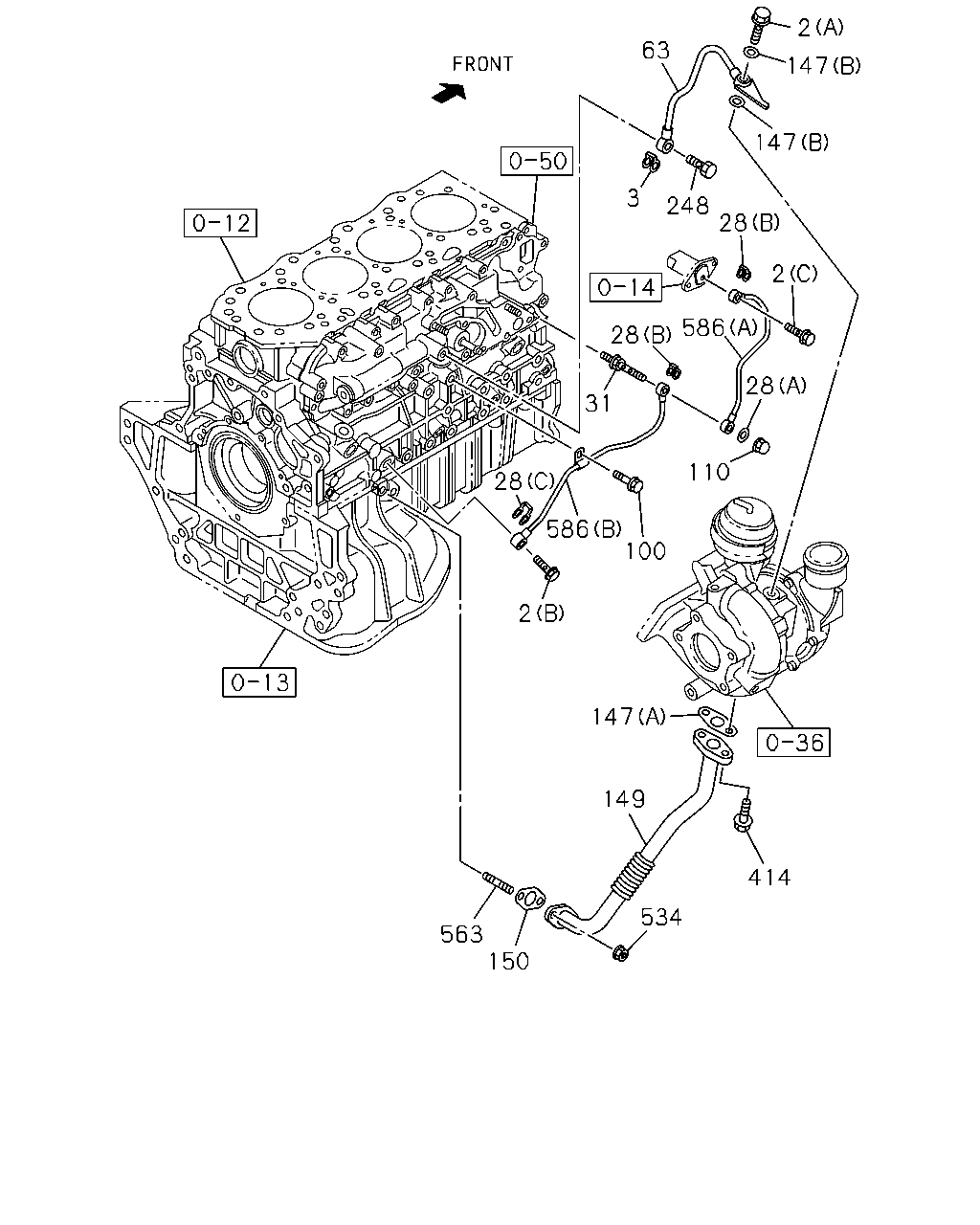

çizim 385230
2 147 147 63 3 248 28 2 586 28 28 110 31 28 586 100 2 147 149 414 534 150 563
BalonParca AdiParca NoAdetTipApplied Date
2 01.531 BOLT; EYE,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 1310-
2 01.531 BOLT; EYE,OIL PIPE
(C) M8X23 FLANGE 		8-98108-689-0 01 1 1310-
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE 		8-98151-063-1 01 1 1310-
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 		8-98136-142-0 01 1 1310-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1310-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 1310-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1310-
31 01.540 NIPPLE; OIL PIPE 8-98186-104-0 01 1 1310-
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98132-014-1 01 1 1310-
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1310-
110 01.531 NUT; CAP OIL PIPE
00.349 M8 CAP NUT FLANGE 		8-97372-242-0 01 1 1310-1403
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1404-
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98132-017-0 01 1 1310-
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1310-
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98156-381-0 01 1 1310-
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98132-018-1 01 1 1310-
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1310-
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1310-
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1310-
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1310-
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98251-165-0 01 1 1310-
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98228-274-0 01 1 1310-
