0-25 — INLET MANIFOLD (#130476) — 23 parça

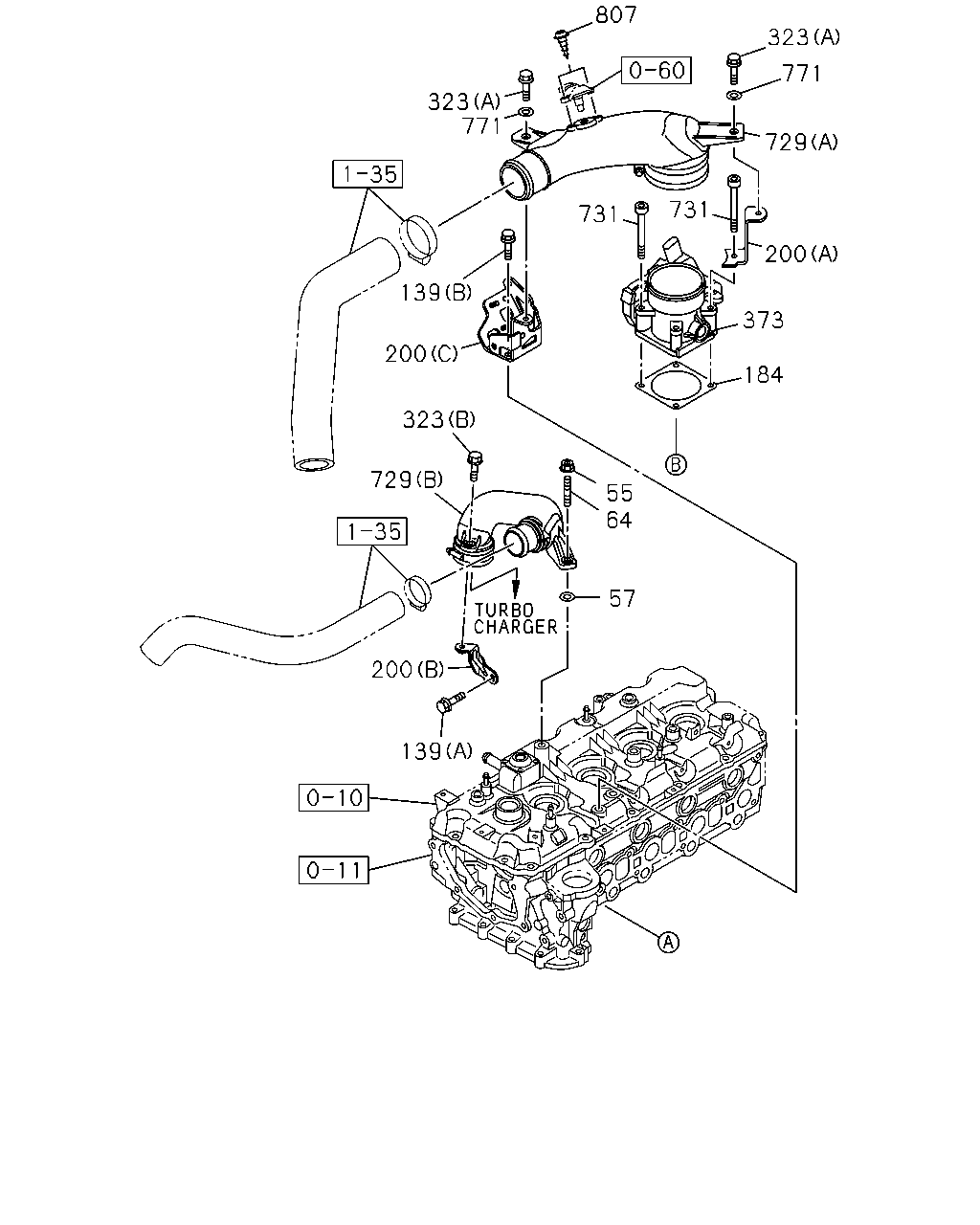

139 200 57 64 55 729 323 200 139 771 323 807 323 729 771 200 373 184 731 731

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	03.407 NUT; INL PIPE 01.540 M8 FLANGE	0-91180-208-0	01	1	1310-
57	03.275 WASHER; PL 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	1310-
64	03.275 STUD; INL PIPE 02.042 M8X30 L=41	0-41010-830-0	01	1	1310-
139	03.162 BOLT; BRKT FIX 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1310-
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1310-
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1310-
200	03.407 BRACKET; AIR DUCT (A)	8-98154-158-2	01	1	1310-
200	03.407 BRACKET; AIR DUCT (B)	8-98228-262-0	01	1	1310-
200	03.407 BRACKET; AIR DUCT (C)	8-98239-288-1	01	1	1310-
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1310-
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	01	1	1310-
373	03.265 THROTTLE ASM; INT	8-98131-738-3	01	1	1310-
729	03.265 DUCT; INLET (A)	8-98117-651-1	01	1	1310-
729	03.265 DUCT; INLET (B)	8-98228-260-1	01	1	1310-
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1310-
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	1310-
807	03.278 SCREW; SENSOR 02.510 M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1310-

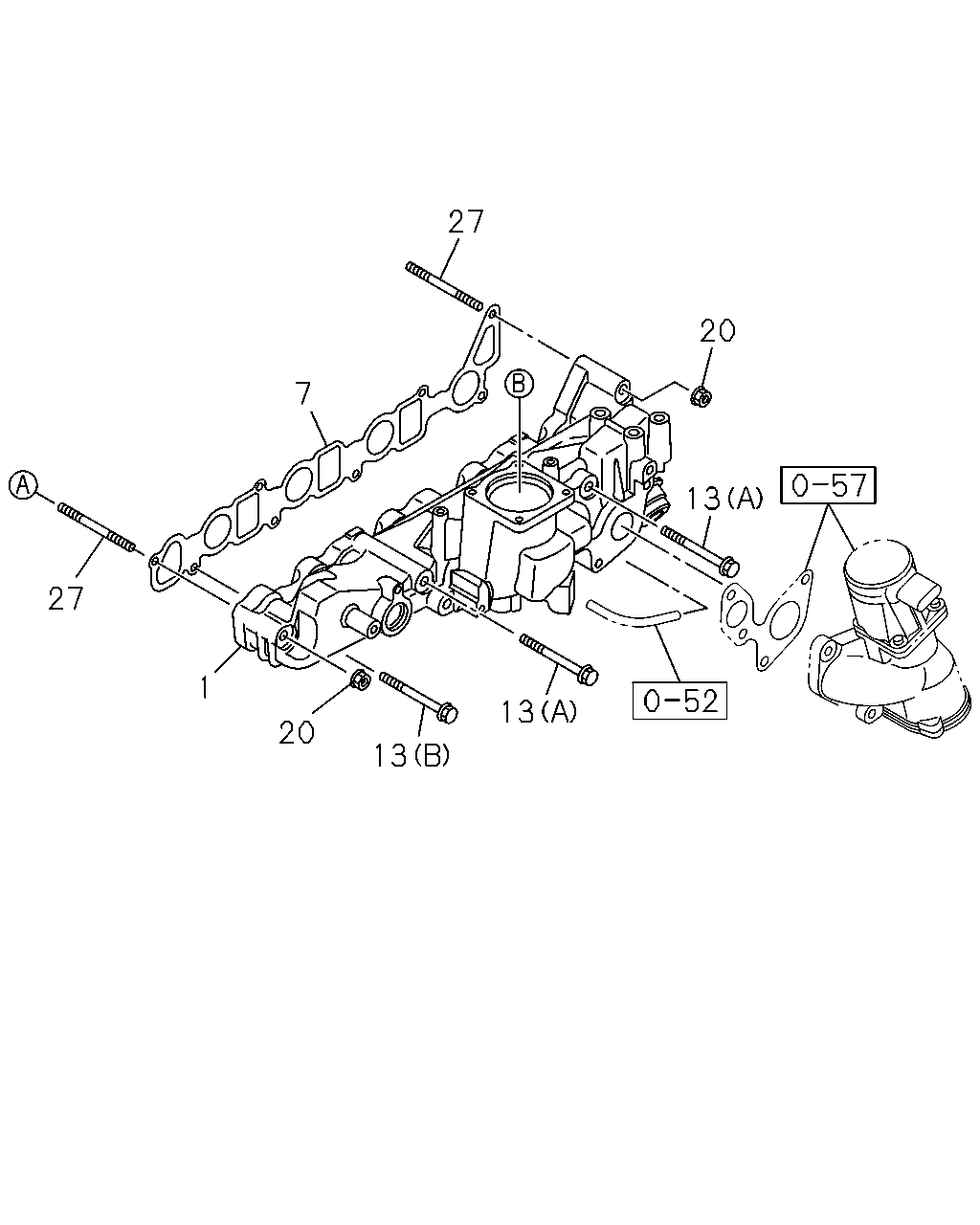

7 27 20 13 13 13 20 1 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.265 MANIFOLD; INL	8-98228-251-0	01	1	1310-
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1310-
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1310-
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1310-
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1310-
27	03.275 STUD; INL MANIF M8X71 L=83	8-97367-083-0	02	1	1310-
