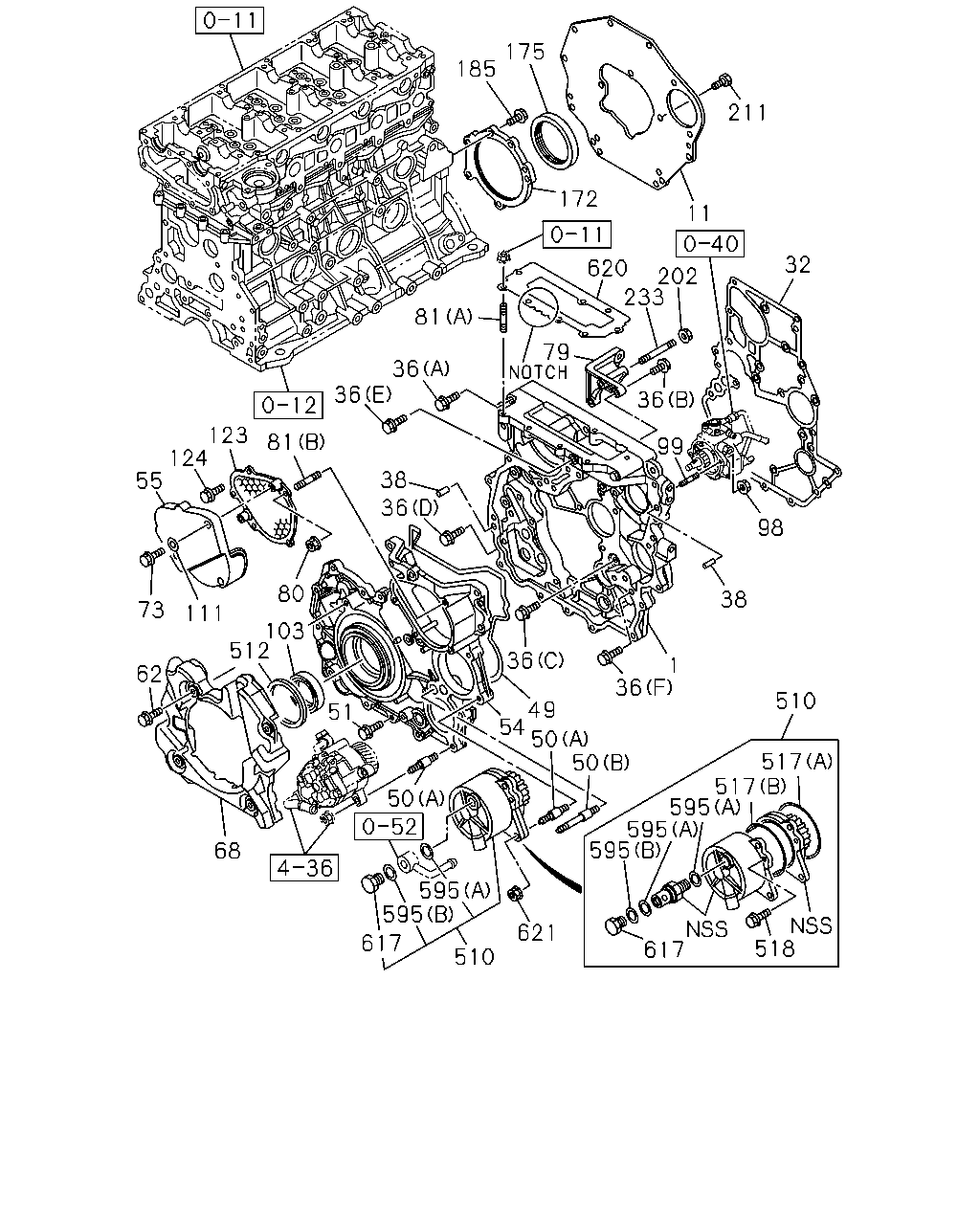

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#130474) — 49 parça

185 175 211 172 11 32 202 233 620 79 36 99 98 38 510 517 517 595 595 595 36 36 1 49 54 50 50 621 595 595 617 68 512 80 111 73 62 55 124 123 36 81 38 36 36 81 51 50 510 617 518 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.206 CASE; TIMING GEAR	8-98217-735-0	01	1	1310-
11	00.683 PLATE; RR,C/BL	8-98132-021-0	01	1	1310-
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98228-292-0	01	1	1310-
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1310-
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	1310-
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1310-
36	00.206 BOLT; GEAR CASE 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1310-
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	16	1	1310-
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1310-
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	1310-
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1310-
50	00.206 STUD (A) M8X27,M8X14 L=64.5	8-97354-808-2	05	1	1310-
50	00.206 STUD (B) M8X70,M8X14 L=107.5	8-98134-221-0	01	1	1310-
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1310-
54	00.206 COVER; GEAR CASE	8-98228-336-1	01	1	1310-
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	1310-
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	1310-
68	00.206 COVER ASM; GEAR CASE COVER	8-98228-636-0	01	1	1310-
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1310-
79	00.219 BRACKET; GEAR CASE COVER	8-98107-106-0	01	1	1310-
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	1310-
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1310-
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1310-
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1310-
99	00.206 STUD; INJ PUMP 00.413 M8X30 L=48	0-49140-830-0	02	1	1310-
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	1310-
111	00.206 WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	1310-
123	00.206 COVER; TIMING,LWR	8-97371-720-1	01	1	1310-
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1310-
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1310-
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1310-
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1310-
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1310-
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	1310-
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-97367-083-0	01	1	1310-
510	04.895 PUMP ASM; VACUUM	8-98211-157-0	01	1	1310-1312
510	04.895 PUMP ASM; VACUUM	8-98251-765-0	01	1	1401-
512	04.895 RUBBER; SPACE	8-97373-716-0	01	1	1310-
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	1310-
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	1310-1312
517	04.895 GASKET; VAC PUMP (B)	8-98251-768-0	01	1	1401-
518	04.895 BOLT; VAC PUMP	8-97184-180-0	03	1	1310-
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24	5-19679-002-0	02	1	1310-
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24	5-19679-003-0	01	1	1310-
617	00.206 BOLT; CHECK VLV	8-97376-402-0	01	1	1310-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.40 1-NOTCH	8-97328-828-2	01	1	1310-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.45 2-NOTCH	8-97331-631-2	01	1	1310-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.50 3-NOTCH	8-97331-632-2	01	1	1310-
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1310-
