◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#130471) — 28 parça

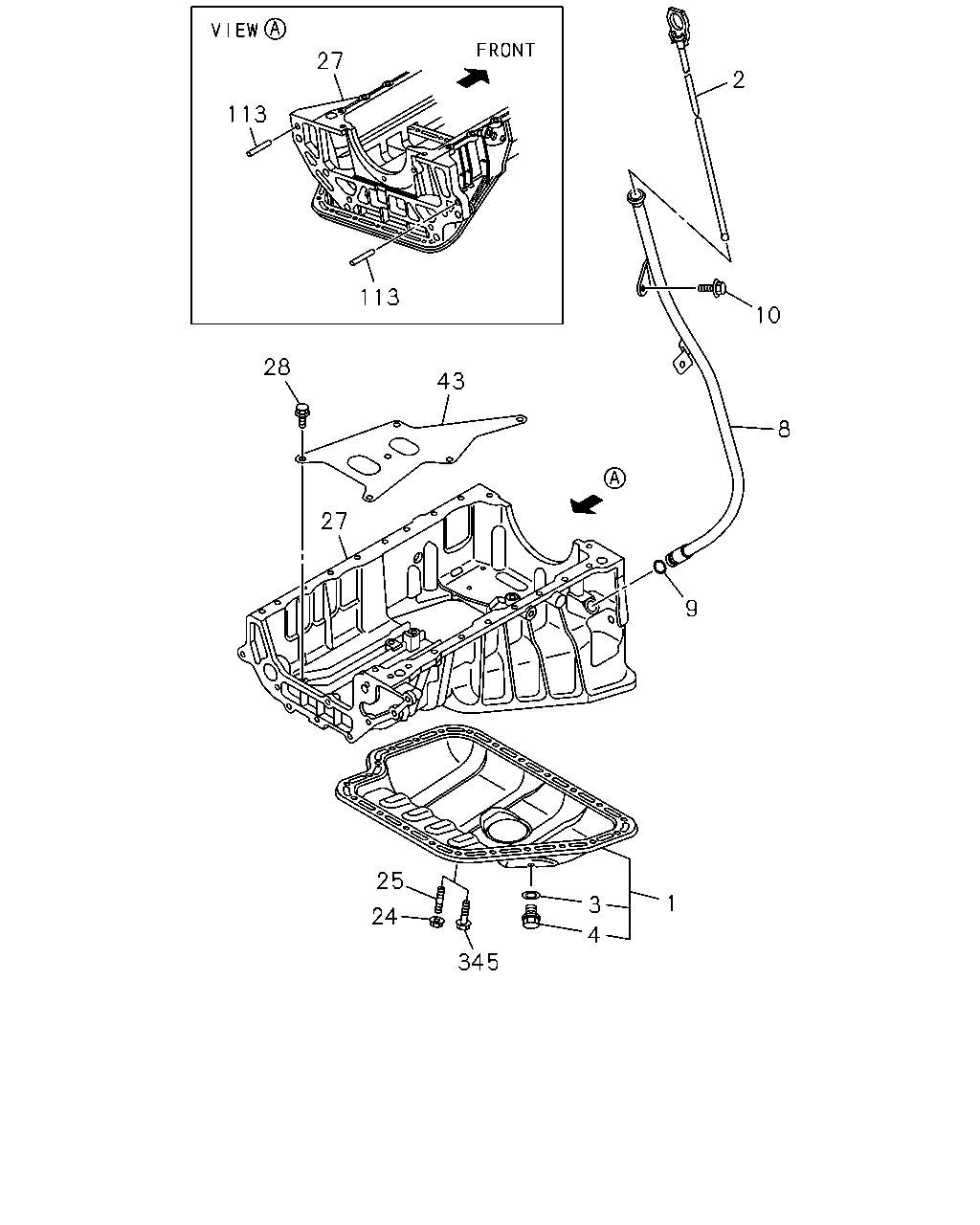

çizim 385036
8 10 2 27 113 113 43 27 28 25 24 345 4 3 1 9
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-98132-001-2 01 1 1310-
2 01.516 GAUGE; OIL LEVEL 8-98228-328-2 01 1 1310-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1310-
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1310-
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98228-277-2 01 1 1310-
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8 		8-98034-629-0 01 1 1310-
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1310-
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 1310-
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1310-
27 01.426 CRANKCASE 8-98225-710-2 01 1 1310-
28 01.780 BOLT; CRANKCASE TO C/BL
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1310-
43 01.780 PLATE; CRANKCASE 8-98225-711-0 01 1 1310-
113 01.453 PIN; STRAIGHT
08.939 OD=10 L=32 		9-08161-032-0 02 1 1310-
345 01.516 BOLT; SENSOR,OIL LEVEL
02.343 M8X12 FLANGE 		0-28050-812-0 14 1 1310-

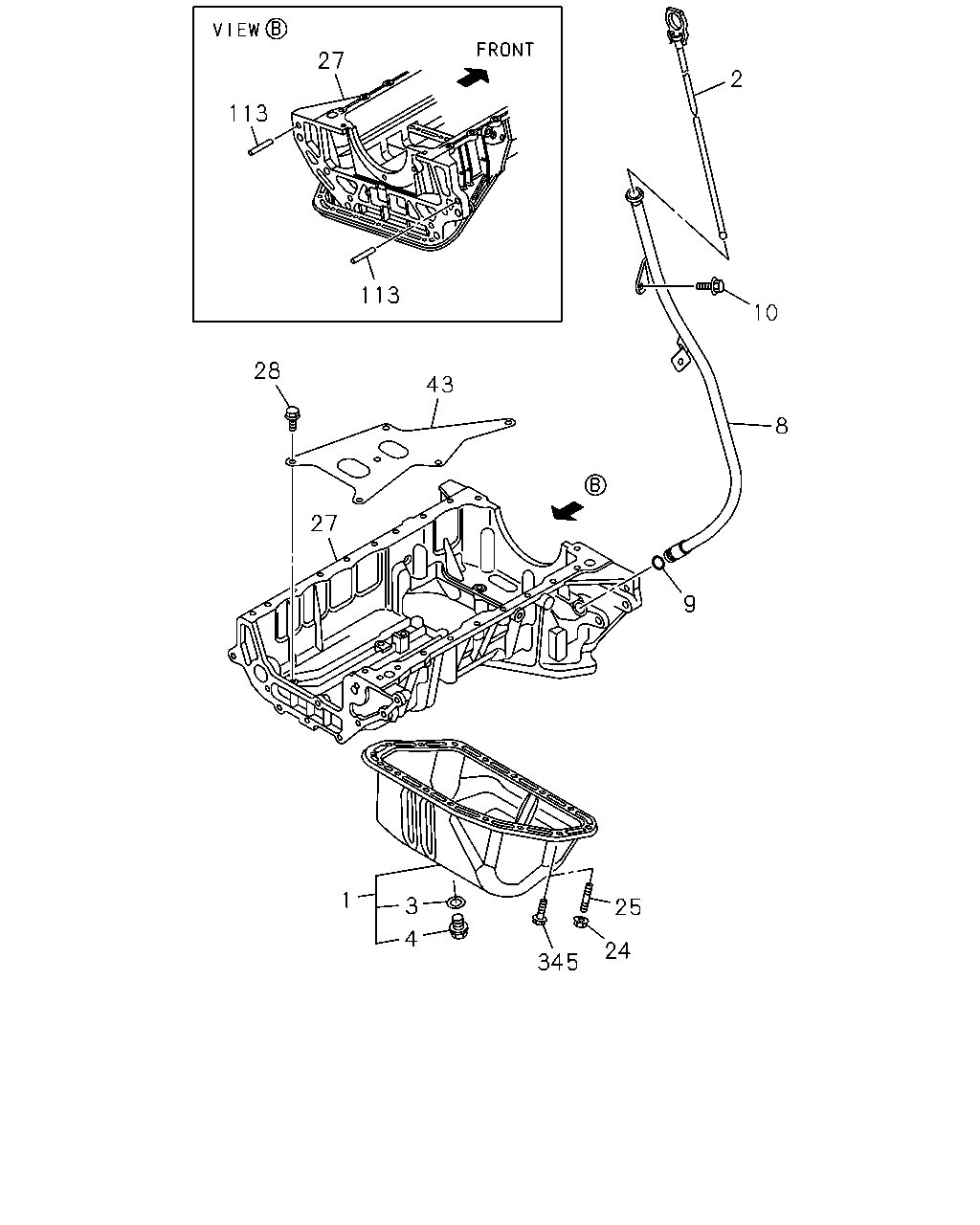

çizim 386477
8 10 2 113 113 27 43 27 28 1 3 4 25 24 345 9
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-98132-001-2 01 1 1310-
2 01.516 GAUGE; OIL LEVEL 8-98228-328-2 01 1 1310-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1310-
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1310-
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98228-277-2 01 1 1310-
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8 		8-98034-629-0 01 1 1310-
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1310-
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 1310-
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1310-
27 01.426 CRANKCASE 8-98225-710-2 01 1 1310-
28 01.780 BOLT; CRANKCASE TO C/BL
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1310-
43 01.780 PLATE; CRANKCASE 8-98225-711-0 01 1 1310-
113 01.453 PIN; STRAIGHT
08.939 OD=10 L=32 		9-08161-032-0 02 1 1310-
345 01.516 BOLT; SENSOR,OIL LEVEL
02.343 M8X12 FLANGE 		0-28050-812-0 14 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
