◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11562 - LT434-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#130463) — 28 parça
çizim 386630
24 127 26 25 30 36 36 40 36 39 36 36 39
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER
WINDSHIELD WASHER<C11> 		1-83330-033-0 01 1 1311-
25 BRACKET; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-926-0 01 1 1311-
26 HANGER; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-925-0 01 1 1311-
30 MOTOR ASM; FRT WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-208-0 01 1 1311-
36 HOSE; WASHER
WINDSHIELD WASHER<C11> SERVICED BY L=10000 		9-09914-906-0 01 1 1311-
39 NOZZLE; WINDSHIELD WASHER
WINDSHIELD WASHER<C11> 		1-83334-012-0 02 1 1311-
40 JOINT; WASHER HOSE
WINDSHIELD WASHER<C11> 		9-83565-006-0 01 1 1311-
127 BAND; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-928-0 01 1 1311-

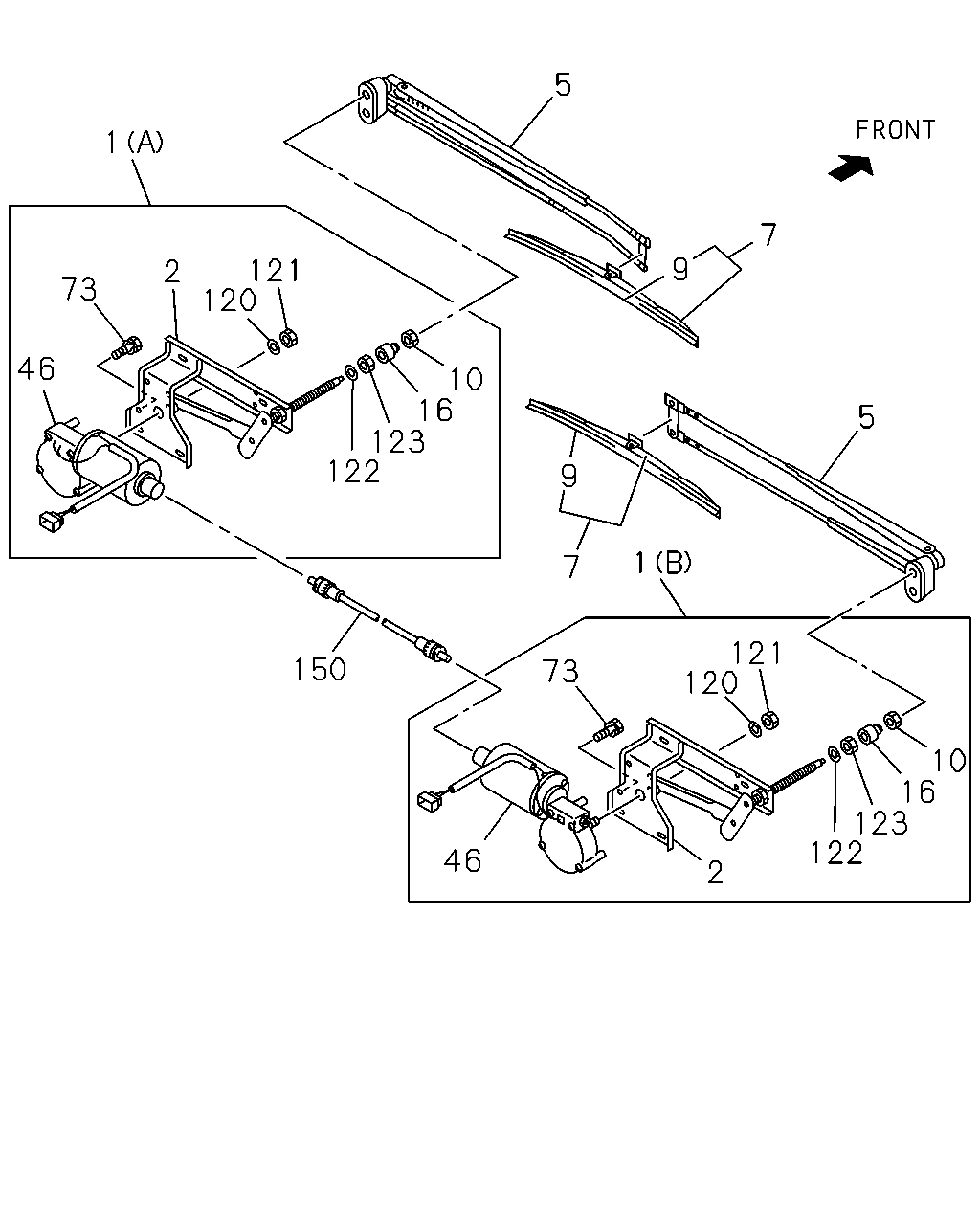

çizim 386871
1 73 46 2 121 120 5 7 5 9 9 1 7 73 120 2 122 10 16 123 121 46 150 122 123 16 10
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> (A) 		1-83310-071-0 01 1 1311-
1 LINK ASM; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> (B) 		1-83310-114-0 01 1 1311-
2 LINK; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83314-117-0 01 1 1311-
2 LINK; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83312-082-0 01 1 1311-
5 ARM; WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83314-120-0 01 1 1311-
5 ARM; WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83314-121-0 01 1 1311-
7 BLADE; WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83315-039-0 02 1 1311-
9 RUBBER; FRT WIPER BLADE
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> L=563 		1-83355-009-0 02 1 1311-
10 NUT; WIPER ARM TO WIPER PIVOT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-049-0 02 1 1311-
16 SEAL; BALL JOINT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-048-0 02 1 1311-
46 MOTOR ASM; FRT WINDSHIELD WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83311-059-0 01 1 1311-
46 MOTOR ASM; FRT WINDSHIELD WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83311-065-0 01 1 1311-
73 BOLT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-079-0 06 1 1311-
120 WASHER; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-045-0 01 1 1311-
120 WASHER; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-077-0 01 1 1311-
121 NUT; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-044-0 01 1 1311-
121 NUT; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-078-0 01 1 1311-
122 WASHER; PIVOT FIX,FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-046-0 02 1 1311-
123 NUT; PIVOT FIX,FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-050-0 02 1 1311-
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83124-080-0 01 1 1311-
