◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11562 - LT434-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#130460) — 16 parça

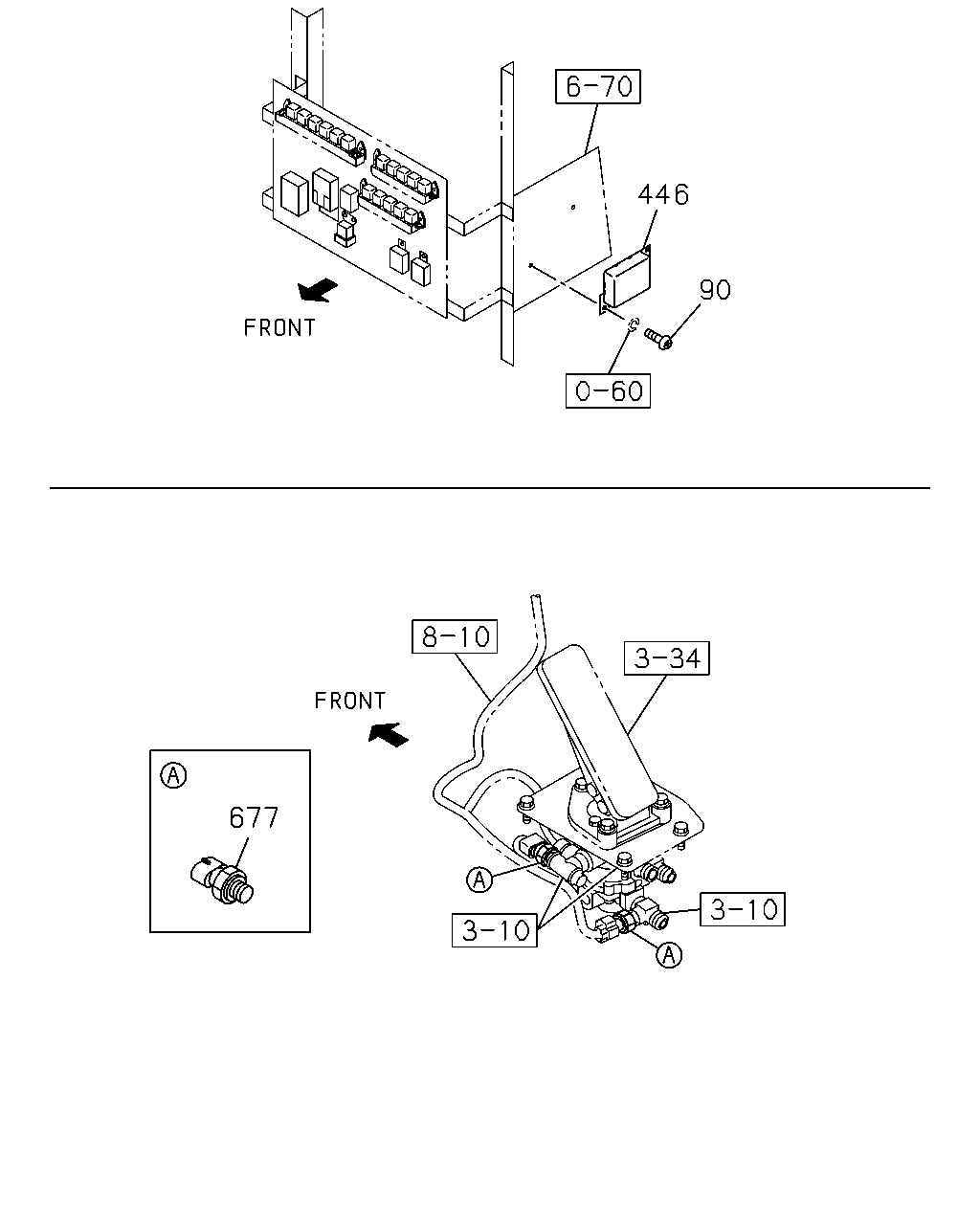

çizim 386819
446 90 677
BalonParca AdiParca NoAdetTipApplied Date
90 BOLT; QOS CONTROLLER
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE 		0-28650-616-0 04 1 1311-
90 BOLT; QOS CONTROLLER
H.S.A SYSTEM<6EP> M5X16 		9-93490-516-0 02 1 1311-1407
90 BOLT; QOS CONTROLLER
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M5X16 		9-93490-516-0 02 1 1408-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-199-1 01 1 1311-1407
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-80111-199-1 01 1 1408-
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 1311-
çizim 386862
466 305 158 90 737 507 138 138
BalonParca AdiParca NoAdetTipApplied Date
90 BOLT; QOS CONTROLLER
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE 		0-28650-616-0 04 1 1311-
90 BOLT; QOS CONTROLLER
H.S.A SYSTEM<6EP> M5X16 		9-93490-516-0 02 1 1311-1407
90 BOLT; QOS CONTROLLER
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M5X16 		9-93490-516-0 02 1 1408-
138 NUT; BRKT
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> (B) M8 FLANGE 		0-91180-108-0 02 1 1311-
138 NUT; BRKT
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> (A) M5 FLANGE 		1-09984-170-0 04 1 1311-
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM<BFA> 		8-98232-609-0 01 1 1311-
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER<8GF> M6 FLANGE 		0-91180-106-0 04 1 1408-
466 NUT; CLIP
ANTILOCK BRAKE SYSTEM<BFA> M6 FLANGE 		0-91180-106-0 04 1 1311-
507 CONNECTOR 1-82690-974-0 01 1 1311-
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98242-263-0 01 1 1408-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
