8-21 — METER ASM (#130458) — 25 parça

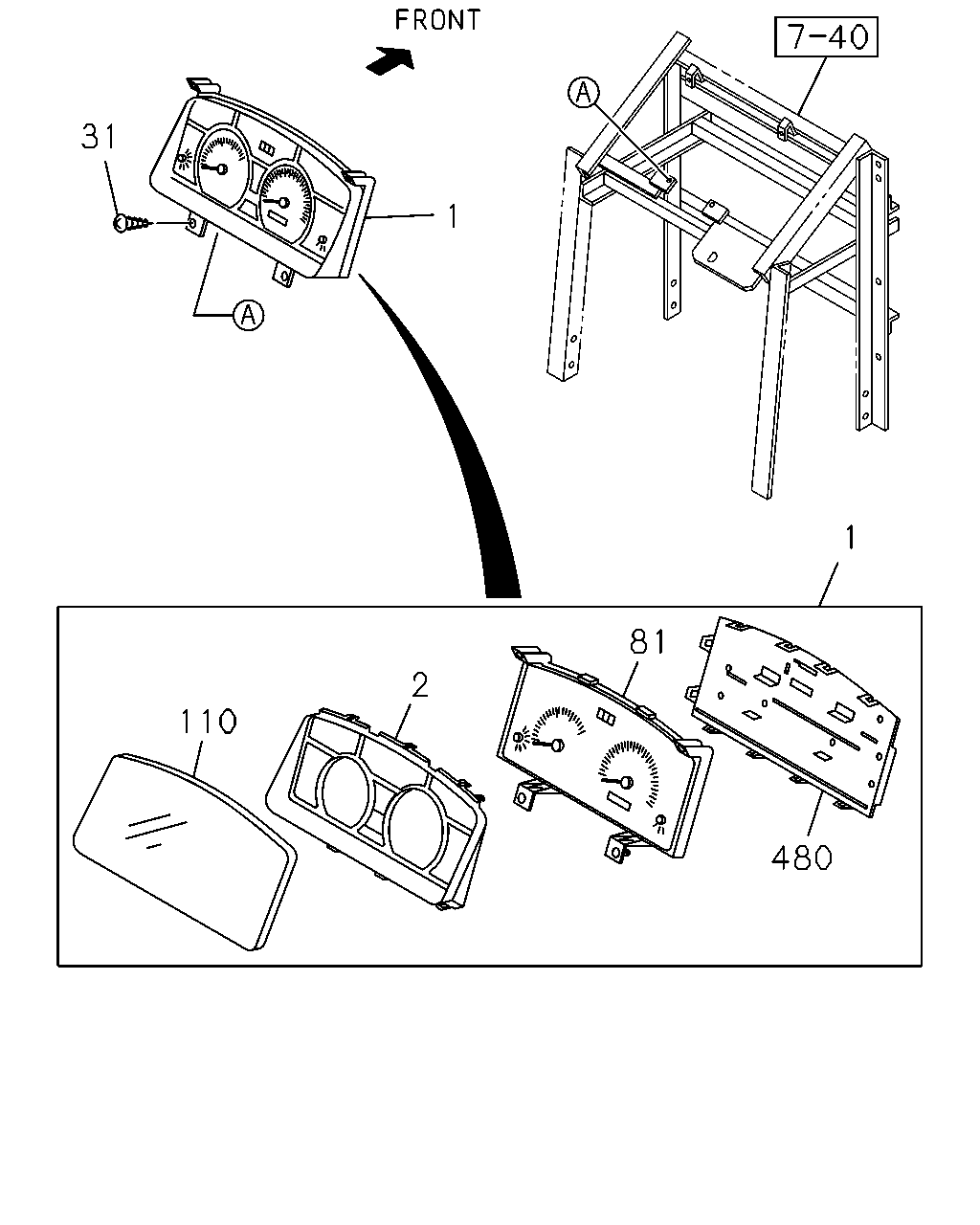

çizim 386100
31 1 1 480 81 2 110
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRAKE REGULATION ADR<TDU> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98300-683-0 01 1 1502-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98195-735-0 01 1 1408-1501
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. BRAKE REGULATION ADR<TDU> 		8-98195-735-0 01 1 1502-
1 METER COMPL; CLUSTER 8-98195-734-1 01 1 1311-1407
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98195-734-1 01 1 1408-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1311-
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		0-36230-620-0 04 1 1311-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M4X16 TAPPING 		0-71040-416-0 01 1 1311-
31 SCREW; METER,INST PANEL
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1311-
81 METER SUB ASM
BRAKE REGULATION ADR<TDU> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98300-685-0 01 1 1502-
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98272-794-0 01 1 1408-1501
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. BRAKE REGULATION ADR<TDU> 		8-98272-794-0 01 1 1502-
81 METER SUB ASM 8-98233-273-0 01 1 1311-1407
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98233-273-0 01 1 1408-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1311-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1311-

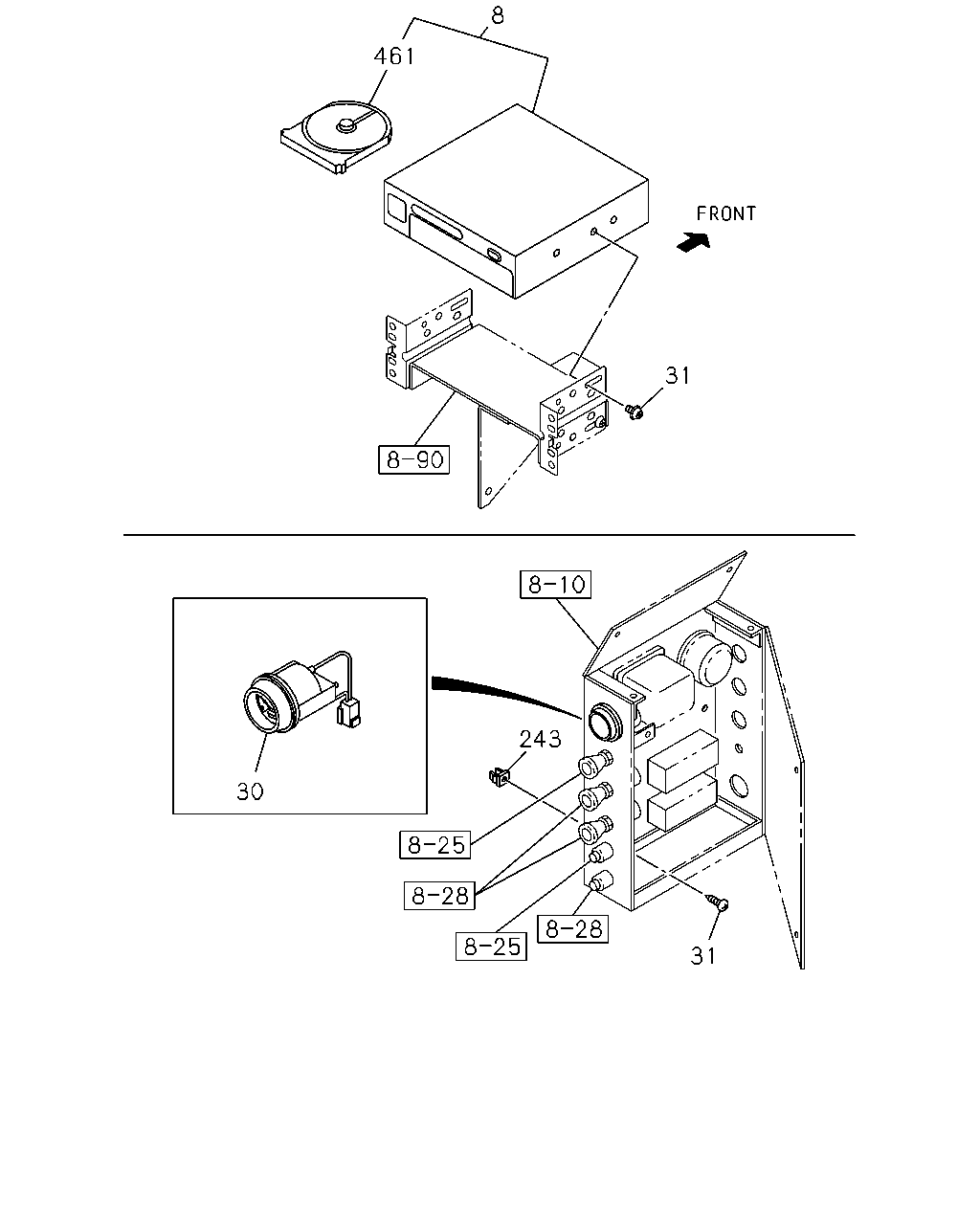

çizim 386901
8 31 461 30 243 31
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 1DAY<SCX> 		1-83120-889-2 01 1 1311-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-840-3 01 1 1311-
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 1311-
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		0-36230-620-0 04 1 1311-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M4X16 TAPPING 		0-71040-416-0 01 1 1311-
31 SCREW; METER,INST PANEL
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1311-
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 1311-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H 1DAY<SCX> 		1-83129-432-0 01 1 1311-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1311-
