Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#130456) — 539 parça

38 38 38 304 242 38 304 38 173 38 169 139 313 139 371 242 38 313 139 38 139 313 242 313 219 219 47 294 340 297 515 55 423

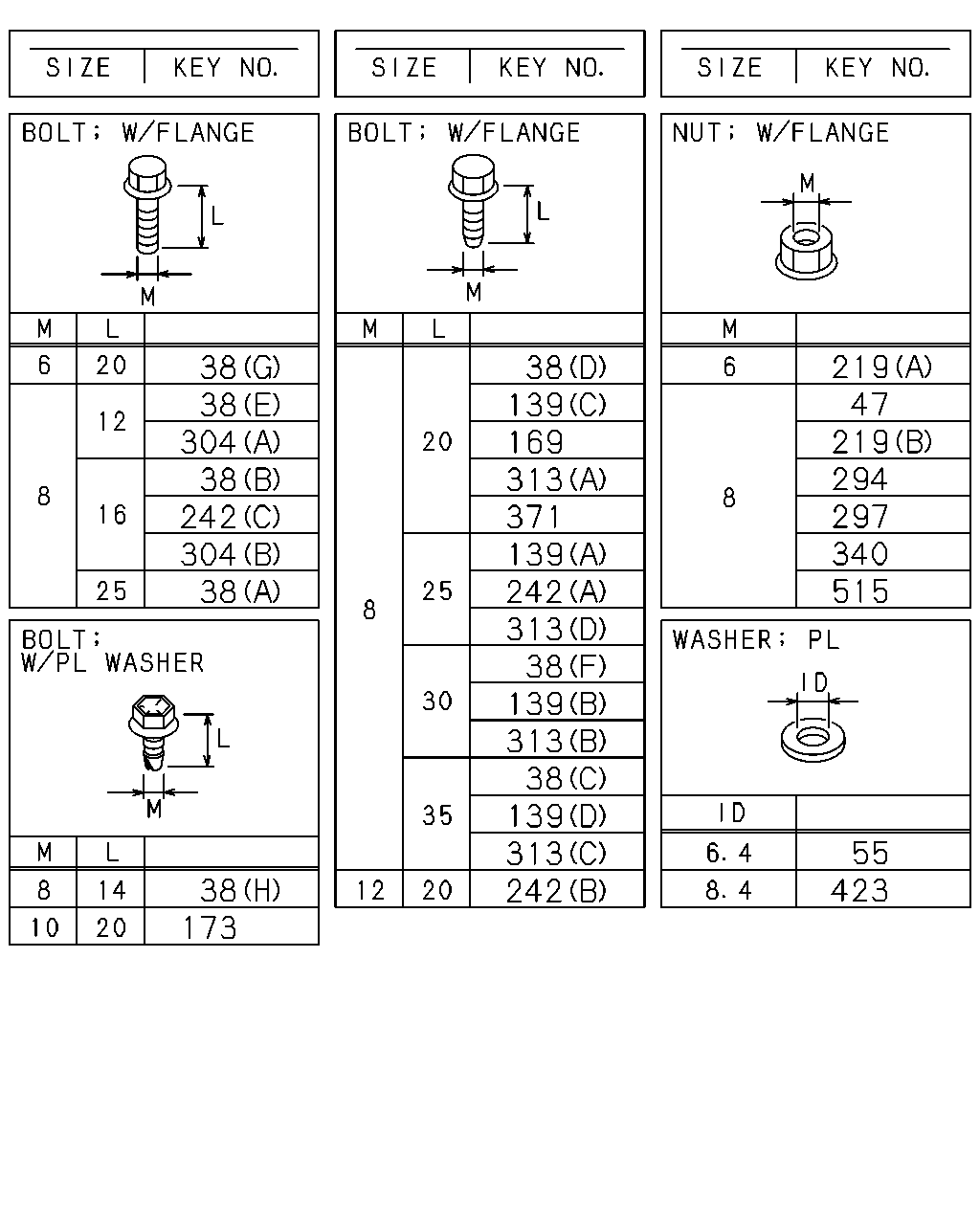

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE	0-28650-825-0	02	1	1408-
38	BOLT; CLIP,HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE	0-28650-825-0	23	1	1408-1410
38	BOLT; CLIP,HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE	0-28650-825-0	22	1	1411-
38	BOLT; CLIP,HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (H) M8X14 W/PL WASHER	8-98164-837-0	02	1	1408-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	17	1	1405-1407
38	BOLT; CLIP,HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE	0-28650-825-0	17	1	1408-
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28050-812-0	01	1	1311-
38	BOLT; CLIP,HARNESS (B) M8X16 FLANGE	0-28050-816-0	02	1	1311-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28050-825-0	01	1	1311-
38	BOLT; CLIP,HARNESS (G) M6X20 FLANGE	0-28650-620-0	02	1	1311-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1311-
38	BOLT; CLIP,HARNESS TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> (D) M8X20 FLANGE	0-28650-820-0	01	1	1311-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	03	1	1311-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	28	1	1311-1404
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28650-825-0	11	1	1405-
38	BOLT; CLIP,HARNESS (F) M8X30 FLANGE	0-28650-830-0	03	1	1311-1403
38	BOLT; CLIP,HARNESS (F) M8X30 FLANGE	0-28650-830-0	07	1	1404-
38	BOLT; CLIP,HARNESS (C) M8X35 FLANGE	0-28650-835-0	02	1	1311-
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	02	1	1311-1407
38	BOLT; CLIP,HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (H) M8X14 W/PL WASHER	8-98164-837-0	04	1	1408-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE	0-28650-820-0	03	1	1311-1407
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	1311-1407
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE	0-28650-820-0	03	1	1408-
38	BOLT; CLIP,HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X20 FLANGE	0-28650-820-0	03	1	1408-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (C) M8X35 FLANGE	0-28650-835-0	01	1	1311-
47	NUT; GEN TERMINAL M8 FLANGE	0-91180-108-0	03	1	1311-
55	WASHER; PL,CLIP ID=6.4	0-91610-606-0	02	1	1311-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M8X20 FLANGE	0-28650-820-0	01	1	1408-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE	0-28650-825-0	04	1	1408-1410
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE	0-28650-825-0	05	1	1411-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M8X35 FLANGE	0-28650-835-0	02	1	1408-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1404-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1405-1407
139	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE	0-28650-825-0	02	1	1408-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1311-1404
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1405-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (B) M8X30 FLANGE	0-28650-830-0	04	1	1311-
169	BOLT; ELEC HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1311-
173	BOLT; STARTER EARTH M10X20 W/PL WASHER	8-98164-838-0	01	1	1311-
219	NUT TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE	0-91180-108-0	21	1	1408-1410
219	NUT TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE	0-91180-108-0	20	1	1411-
219	NUT (B) M8 FLANGE	0-91180-108-0	19	1	1405-
219	NUT (A) M6 FLANGE	0-91180-106-0	02	1	1311-
219	NUT (B) M8 FLANGE	0-91180-108-0	03	1	1311-1407
219	NUT ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE	0-91180-108-0	03	1	1311-1407
219	NUT (B) M8 FLANGE	0-91180-108-0	03	1	1311-1407
219	NUT (B) M8 FLANGE	0-91180-108-0	03	1	1408-
219	NUT ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE	0-91180-108-0	03	1	1408-
219	NUT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE	0-91180-108-0	03	1	1408-
219	NUT (B) M8 FLANGE	0-91180-108-0	39	1	1311-1312
219	NUT (B) M8 FLANGE	0-91180-108-0	32	1	1401-1403
219	NUT (B) M8 FLANGE	0-91180-108-0	34	1	1404-1404
219	NUT (B) M8 FLANGE	0-91180-108-0	15	1	1405-1407
219	NUT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE	0-91180-108-0	15	1	1408-
219	NUT TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> (B) M8 FLANGE	0-91180-108-0	01	1	1311-1407
219	NUT TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> (B) M8 FLANGE	0-91180-108-0	01	1	1408-
219	NUT TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE	0-91180-108-0	01	1	1408-
242	BOLT; BRKT,HARNESS (C) M8X16 FLANGE	0-28050-816-0	01	1	1311-
242	BOLT; BRKT,HARNESS (B) M12X20 FLANGE	0-28151-220-0	01	1	1311-
242	BOLT; BRKT,HARNESS (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
294	NUT TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	01	1	1408-
294	NUT M8 FLANGE	0-91180-108-0	05	1	1311-
294	NUT ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE	0-91180-108-0	04	1	1311-
297	NUT; HARNESS ELEC PANEL M8 FLANGE	0-91180-108-0	01	1	1311-
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	1311-
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	1311-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1407
313	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X20 FLANGE	0-28650-820-0	02	1	1408-
313	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	04	1	1311-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1311-
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1311-
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1311-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	01	1	1311-
371	BOLT; GEN HARNESS M8X20 FLANGE	0-28650-820-0	04	1	1311-
423	WASHER; HARNESS,EARTH EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.4	1-09503-264-0	02	1	1408-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	02	1	1311-1407
423	WASHER; HARNESS,EARTH TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.4	1-09503-264-0	04	1	1408-
515	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	04	1	1408-1410
515	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	05	1	1411-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1405-1407
515	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	02	1	1408-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1311-1312
515	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1401-1404
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1405-

16 102 170 373 194 162 163 1 1 1 1 178 178 178 178 170 14 16 162 48 165 166 171 208 212 251 305 14 16 102 170 206 218 264 231 264 489 48 14 16 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

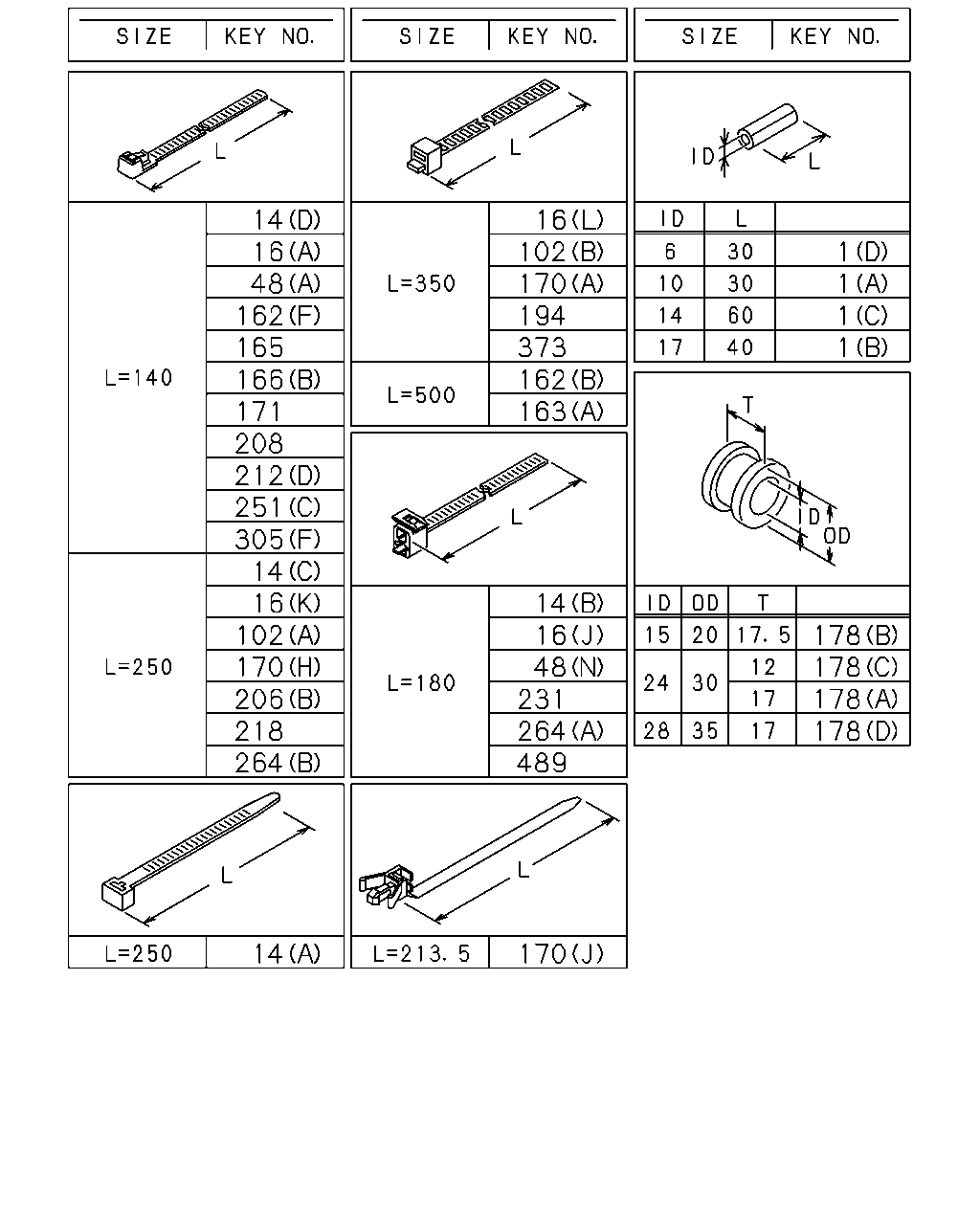

1	SLEEVE; RUBBER (B) ID=17 OD=21 L=40	1-09337-012-0	03	1	1311-
1	SLEEVE; RUBBER (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	1311-
1	SLEEVE; RUBBER (D) ID=6 L=30	5-09360-352-0	01	1	1311-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	02	1	1311-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	1311-
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	01	1	1311-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	17	1	1311-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER<RE2> (D) L=140	5-09707-031-1	01	1	1311-1407
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=140	5-09707-031-1	01	1	1408-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1408-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	20	1	1311-
16	CLIP; HARNESS (M) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1311-1407
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (M) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1408-
16	CLIP; HARNESS (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1311-
16	CLIP; HARNESS (I) ID=40 L=90	1-09701-290-0	02	1	1311-
16	CLIP; HARNESS (J) L=180	1-09707-162-1	01	1	1311-
16	CLIP; HARNESS (L) L=350	1-09707-183-0	05	1	1311-1403
16	CLIP; HARNESS (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1311-1407
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1408-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1311-
16	CLIP; HARNESS H.S.A SYSTEM<6EP> (K) L=250	5-09707-030-1	01	1	1311-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1311-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	1311-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	1311-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (E) ID=11 L=16	0-95235-025-0	02	1	1311-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	0-95325-035-0	01	1	1311-

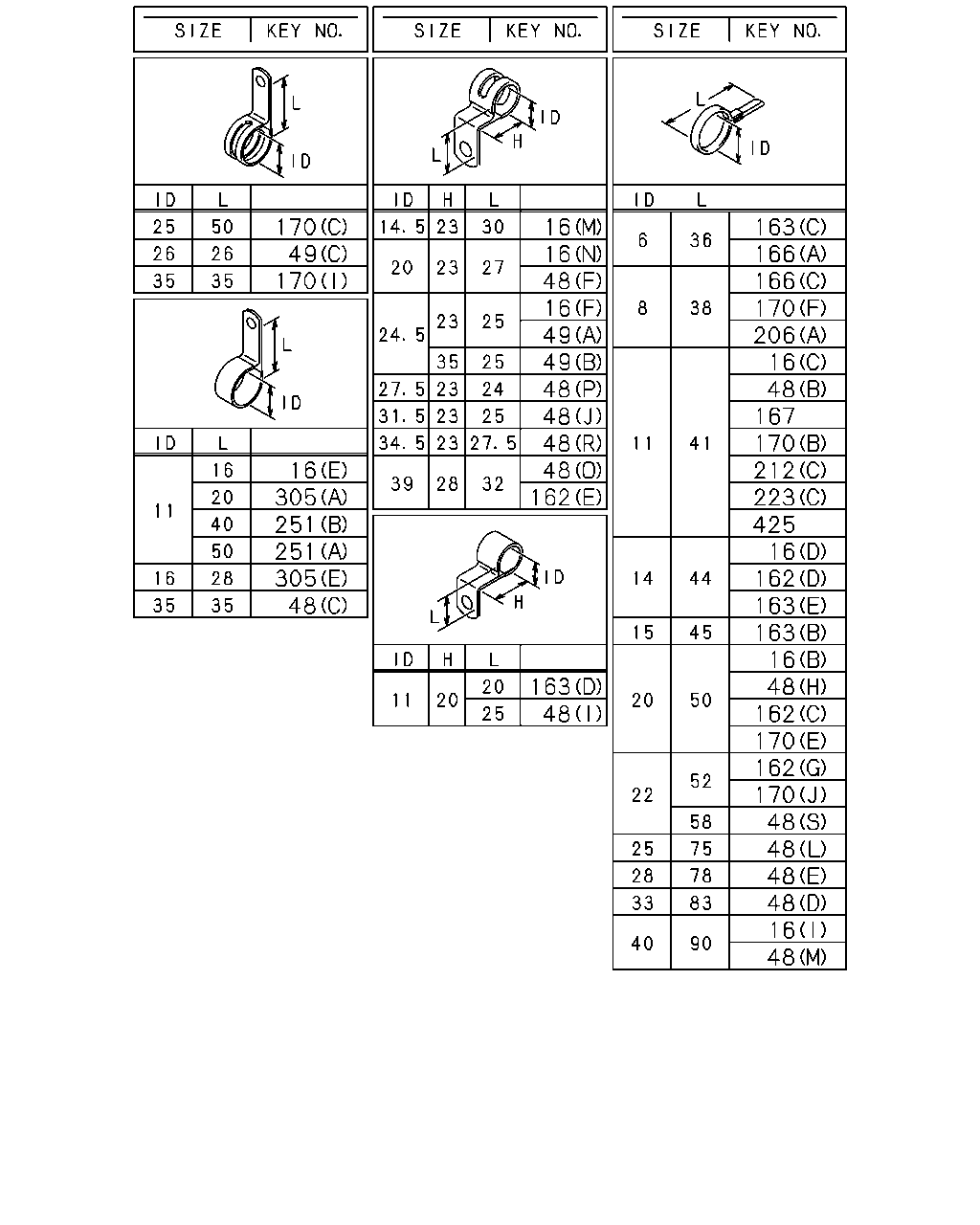

48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (S) ID=28 L=58	1-09700-400-0	02	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (O) ID=39 H=28 L=32	1-09701-263-0	02	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (M) ID=40 L=90	1-09701-290-0	23	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=350	1-09707-183-0	01	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=350	1-09707-183-0	02	1	1411-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (P) ID=27.5 H=23 L=24	1-09700-863-0	05	1	1408-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (L) ID=25 L=75	1-09701-275-0	03	1	1408-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=33 L=83	1-09701-291-0	27	1	1408-
48	CLIP; FRAME HARNESS (Q) ID=5-12 L=14.5	1-09987-221-0	01	1	1404-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	1311-
48	CLIP; FRAME HARNESS (C) ID=35 L=35	1-09700-684-0	02	1	1311-1403
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1404-1407
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (R) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1408-
48	CLIP; FRAME HARNESS (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1311-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1311-1410
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1411-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=28 L=78	1-09700-858-0	02	1	1411-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	03	1	1311-
48	CLIP; FRAME HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	05	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (P) ID=27.5 H=23 L=24	1-09700-863-0	06	1	1408-
48	CLIP; FRAME HARNESS (G) ID=35 L=33	1-09700-945-0	03	1	1311-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1311-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	02	1	1311-
48	CLIP; FRAME HARNESS (O) ID=39 H=28 L=32	1-09701-263-0	10	1	1311-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	03	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (L) ID=25 L=75	1-09701-275-0	01	1	1408-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	02	1	1311-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	27	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=33 L=83	1-09701-291-0	04	1	1408-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	1311-1407
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (N) L=180	1-09707-162-1	01	1	1408-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	02	1	1311-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	1311-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	1311-1407
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=140	5-09707-031-1	01	1	1408-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	1311-
102	CLIP; BAND (B) L=350	1-09707-183-0	03	1	1311-
102	CLIP; BAND (A) L=250	5-09707-030-1	01	1	1311-1407
102	CLIP; BAND EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=250	5-09707-030-1	01	1	1408-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F) L=140	5-09707-031-1	01	1	1408-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=22 L=52	9-09917-431-0	01	1	1408-
162	CLIP; SW HARNESS EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	01	1	1311-1407
162	CLIP; SW HARNESS EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=500	1-09707-082-1	01	1	1408-
162	CLIP; SW HARNESS (A) ID=28 L=40	1-09701-261-0	01	1	1311-1401
162	CLIP; SW HARNESS (E) ID=39 H=28 L=32	1-09701-263-0	01	1	1402-
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC> (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G) (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) EXC. H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G),H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) EXC. H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G),H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1311-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	1311-1407
162	CLIP; SW HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=20 L=50	9-09917-430-0	01	1	1408-
163	CLIP; METER HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=14 L=44	9-09917-427-0	01	1	1408-
163	CLIP; METER HARNESS (B) ID=15 L=45	1-09700-402-0	01	1	1311-
163	CLIP; METER HARNESS (A) L=500	1-09707-082-1	02	1	1311-
163	CLIP; METER HARNESS (C) ID=6 L=36	9-09917-423-0	01	1	1311-1407
163	CLIP; METER HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=6 L=36	9-09917-423-0	01	1	1408-
163	CLIP; METER HARNESS TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> (D) ID=11 H=20 L=20	8-98033-780-0	01	1	1311-
165	CLIP; BAND COMB SW L=140	5-09707-031-1	01	1	1311-
166	CLIP; HARNESS CLU SW (B) L=140	5-09707-031-1	01	1	1311-1407
166	CLIP; HARNESS CLU SW H.S.A SYSTEM<6EP> (B) L=140	5-09707-031-1	01	1	1311-1407
166	CLIP; HARNESS CLU SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=140	5-09707-031-1	01	1	1408-
166	CLIP; HARNESS CLU SW H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=140	5-09707-031-1	01	1	1408-
166	CLIP; HARNESS CLU SW (A) ID=6 L=36	9-09917-423-0	02	1	1311-1407
166	CLIP; HARNESS CLU SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=6 L=36	9-09917-423-0	02	1	1408-
166	CLIP; HARNESS CLU SW (C) ID=8 L=38	9-09917-424-0	01	1	1311-1407
166	CLIP; HARNESS CLU SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=8 L=38	9-09917-424-0	01	1	1408-
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (J) L=213.5	8-98000-506-1	03	1	1408-1410
170	CLIP; ELEC HARNESS (J) L=213.5	8-98000-506-1	02	1	1411-
170	CLIP; ELEC HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=11 L=41	1-09700-403-0	05	1	1408-1410
170	CLIP; ELEC HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1408-1410
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	05	1	1311-1407
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=11 L=41	1-09700-403-0	04	1	1408-1410
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	04	1	1411-
170	CLIP; ELEC HARNESS (C) ID=25 L=50	1-09701-019-0	01	1	1311-1401
170	CLIP; ELEC HARNESS (I) ID=35 L=35	1-09700-895-0	01	1	1402-
170	CLIP; ELEC HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1311-1407
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1408-1410
170	CLIP; ELEC HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-
170	CLIP; ELEC HARNESS (F) ID=8 L=38	9-09917-424-0	01	1	1311-
170	CLIP; ELEC HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	1311-1401
170	CLIP; ELEC HARNESS (J) ID=22 L=52	9-09917-431-0	02	1	1402-
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	03	1	1311-1407
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=350	1-09707-183-0	03	1	1408-1410
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> (G) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-1407
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=13-18 L=14.5	1-09709-290-0	01	1	1408-
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> (H) L=250	5-09707-030-1	01	1	1311-1407
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (H) L=250	5-09707-030-1	01	1	1408-
171	CLIP; STARTER HARNESS L=140	5-09707-031-1	05	1	1311-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=17	9-09956-256-2	01	1	1404-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	02	1	1311-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=12	9-09956-093-1	01	1	1311-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=24 OD=30 T=17	9-09956-092-1	02	1	1311-
194	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER<8GF> L=350	1-09707-183-0	03	1	1408-
206	CLIP; FUEL TANK HARNESS (A) ID=8 L=38	9-09917-424-0	02	1	1311-
206	CLIP; FUEL TANK HARNESS FUEL TANK 200L FRAME SIDE<N20> (B) L=250	5-09707-030-1	03	1	1311-
206	CLIP; FUEL TANK HARNESS FUEL TANK 280L<RF4> (B) L=250	5-09707-030-1	02	1	1311-
208	CLIP; HARNESS,MAG VLV L=140	5-09707-031-1	01	1	1311-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1311-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	1311-
212	CLIP; HORN HARNESS ELECTRICAL HORN(WB7) (C) ID=11 L=41	1-09700-403-0	01	1	1311-
212	CLIP; HORN HARNESS ELECTRICAL HORN(WB7) (D) L=140	5-09707-031-1	01	1	1311-
218	CLIP; BAND,RR COMB L=250	5-09707-030-1	02	1	1311-
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> L=180	1-09707-162-1	01	1	1311-1407
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> L=180	1-09707-162-1	01	1	1408-
251	CLIP; WATER LEVEL HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	1311-
251	CLIP; WATER LEVEL HARNESS (A) ID=11 L=50	0-95235-085-0	02	1	1311-
251	CLIP; WATER LEVEL HARNESS (C) L=140	5-09707-031-1	01	1	1311-
264	CLIP; HARNESS,HEADLAMP (A) L=180	1-09707-162-1	02	1	1311-
264	CLIP; HARNESS,HEADLAMP (B) L=250	5-09707-030-1	02	1	1311-
305	CLIP; ENG HARNESS (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1311-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	1311-
305	CLIP; ENG HARNESS (E) ID=16 L=28	0-95235-556-0	03	1	1311-
305	CLIP; ENG HARNESS (F) L=140	5-09707-031-1	01	1	1311-
305	CLIP; ENG HARNESS (B) ID=21 L=47.5	8-94178-108-0	01	1	1311-
305	CLIP; ENG HARNESS (G) L=140	8-97122-360-0	01	1	1311-
305	CLIP; ENG HARNESS (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1311-
305	CLIP; ENG HARNESS (D) ID=18 L=44	8-97367-985-1	04	1	1311-
373	CLIP; BAND,GEN HARNESS L=350	1-09707-183-0	01	1	1311-
489	CLIP; HARNESS,OIL PRESS SW L=180	1-09707-162-1	01	1	1311-

53 53 53 53 137 137 279 308 308 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

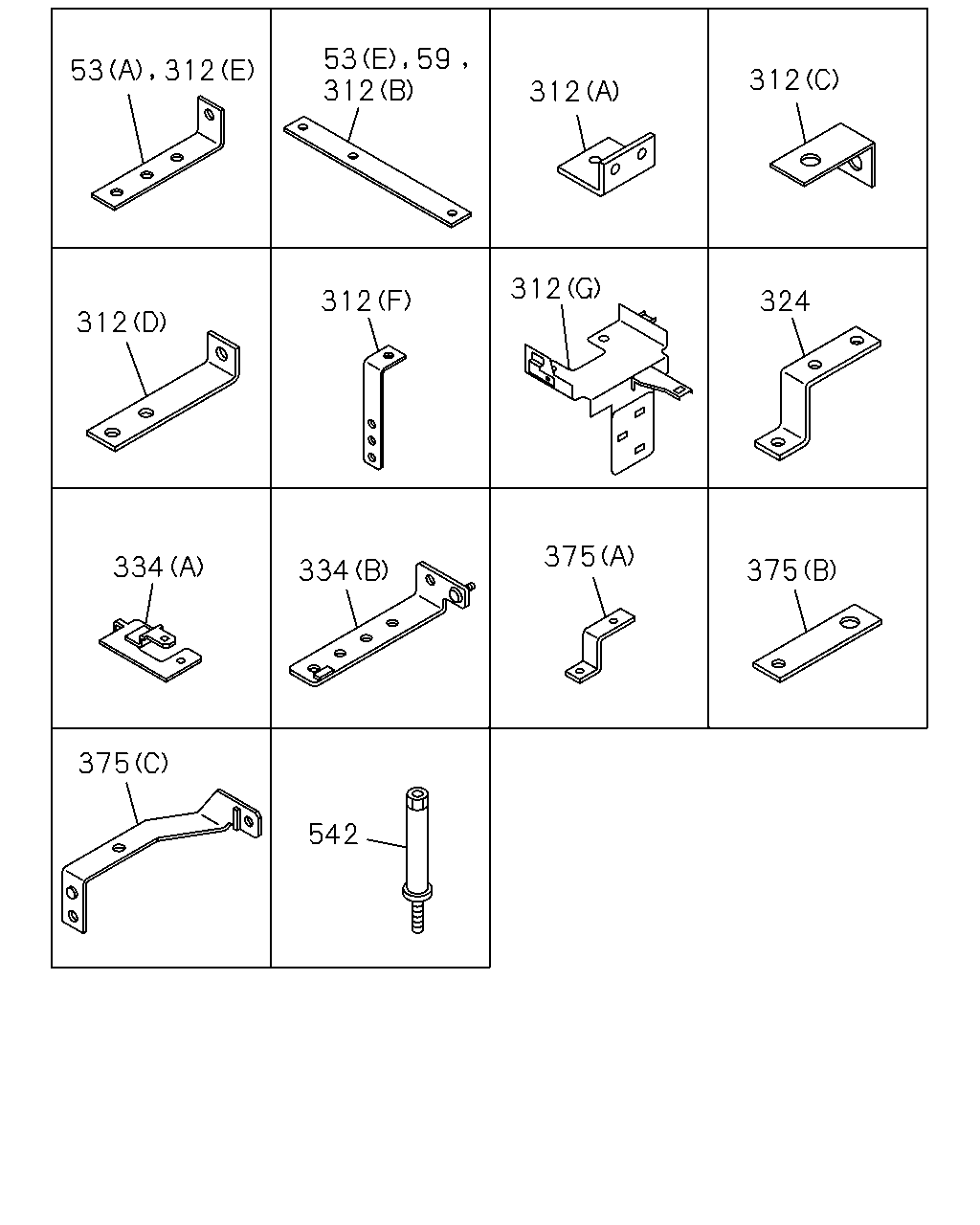

53	BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F)	1-47477-552-0	01	1	1411-
53	BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (E) L=229	1-47478-993-0	02	1	1408-
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	02	1	1405-1407
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	03	1	1408-
53	BRACKET; HARNESS (A) L=135	1-47478-729-0	03	1	1311-
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	03	1	1311-1404
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	01	1	1405-1407
53	BRACKET; HARNESS (C) L=120	1-82699-963-0	02	1	1311-
53	BRACKET; HARNESS (D)	8-98216-369-0	01	1	1311-
137	BRACKET; HARNESS CLAMP ANTILOCK BRAKE SYSTEM<BFA> TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98242-277-0	02	1	1408-1409
137	BRACKET; HARNESS CLAMP (B)	8-98242-277-0	02	1	1410-
137	BRACKET; HARNESS CLAMP ANTILOCK BRAKE SYSTEM<BFA> (A)	1-47479-430-0	02	1	1311-1407
137	BRACKET; HARNESS CLAMP ANTILOCK BRAKE SYSTEM<BFA> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	1-47479-430-0	02	1	1408-1409
279	STAY; HARNESS	1-82699-873-0	02	1	1311-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	01	1	1311-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97612-280-1	01	1	1311-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1311-

170 49 170 16 305 251 251 305 48 16 16 48 16 49 49 48 48 48 48 162 163 48 163 166 166 170 206 16 48 167 170 212 223 425 16 162 163 163 16 48 162 170 162 170 48 48 48 48 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1408-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	20	1	1311-
16	CLIP; HARNESS (M) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1311-1407
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (M) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1408-
16	CLIP; HARNESS (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1311-
16	CLIP; HARNESS (I) ID=40 L=90	1-09701-290-0	02	1	1311-
16	CLIP; HARNESS (J) L=180	1-09707-162-1	01	1	1311-
16	CLIP; HARNESS (L) L=350	1-09707-183-0	05	1	1311-1403
16	CLIP; HARNESS (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1311-1407
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1408-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1311-
16	CLIP; HARNESS H.S.A SYSTEM<6EP> (K) L=250	5-09707-030-1	01	1	1311-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1311-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	1311-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	1311-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (E) ID=11 L=16	0-95235-025-0	02	1	1311-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	0-95325-035-0	01	1	1311-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (S) ID=28 L=58	1-09700-400-0	02	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (O) ID=39 H=28 L=32	1-09701-263-0	02	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (M) ID=40 L=90	1-09701-290-0	23	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=350	1-09707-183-0	01	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=350	1-09707-183-0	02	1	1411-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (P) ID=27.5 H=23 L=24	1-09700-863-0	05	1	1408-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (L) ID=25 L=75	1-09701-275-0	03	1	1408-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=33 L=83	1-09701-291-0	27	1	1408-
48	CLIP; FRAME HARNESS (Q) ID=5-12 L=14.5	1-09987-221-0	01	1	1404-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	1311-
48	CLIP; FRAME HARNESS (C) ID=35 L=35	1-09700-684-0	02	1	1311-1403
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1404-1407
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (R) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1408-
48	CLIP; FRAME HARNESS (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1311-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1311-1410
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1411-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=28 L=78	1-09700-858-0	02	1	1411-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	03	1	1311-
48	CLIP; FRAME HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	05	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (P) ID=27.5 H=23 L=24	1-09700-863-0	06	1	1408-
48	CLIP; FRAME HARNESS (G) ID=35 L=33	1-09700-945-0	03	1	1311-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1311-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	02	1	1311-
48	CLIP; FRAME HARNESS (O) ID=39 H=28 L=32	1-09701-263-0	10	1	1311-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	03	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (L) ID=25 L=75	1-09701-275-0	01	1	1408-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	02	1	1311-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	27	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=33 L=83	1-09701-291-0	04	1	1408-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	1311-1407
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (N) L=180	1-09707-162-1	01	1	1408-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	02	1	1311-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	1311-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	1311-1407
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=140	5-09707-031-1	01	1	1408-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	1311-
49	CLIP; GEN HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1311-
49	CLIP; GEN HARNESS (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	1311-
49	CLIP; GEN HARNESS (C) ID=26 L=26	1-09701-236-0	02	1	1311-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F) L=140	5-09707-031-1	01	1	1408-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=22 L=52	9-09917-431-0	01	1	1408-
162	CLIP; SW HARNESS EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	01	1	1311-1407
162	CLIP; SW HARNESS EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=500	1-09707-082-1	01	1	1408-
162	CLIP; SW HARNESS (A) ID=28 L=40	1-09701-261-0	01	1	1311-1401
162	CLIP; SW HARNESS (E) ID=39 H=28 L=32	1-09701-263-0	01	1	1402-
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC> (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G) (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) EXC. H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G),H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) EXC. H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G),H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1311-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	1311-1407
162	CLIP; SW HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=20 L=50	9-09917-430-0	01	1	1408-
163	CLIP; METER HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=14 L=44	9-09917-427-0	01	1	1408-
163	CLIP; METER HARNESS (B) ID=15 L=45	1-09700-402-0	01	1	1311-
163	CLIP; METER HARNESS (A) L=500	1-09707-082-1	02	1	1311-
163	CLIP; METER HARNESS (C) ID=6 L=36	9-09917-423-0	01	1	1311-1407
163	CLIP; METER HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=6 L=36	9-09917-423-0	01	1	1408-
163	CLIP; METER HARNESS TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> (D) ID=11 H=20 L=20	8-98033-780-0	01	1	1311-
166	CLIP; HARNESS CLU SW (B) L=140	5-09707-031-1	01	1	1311-1407
166	CLIP; HARNESS CLU SW H.S.A SYSTEM<6EP> (B) L=140	5-09707-031-1	01	1	1311-1407
166	CLIP; HARNESS CLU SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=140	5-09707-031-1	01	1	1408-
166	CLIP; HARNESS CLU SW H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=140	5-09707-031-1	01	1	1408-
166	CLIP; HARNESS CLU SW (A) ID=6 L=36	9-09917-423-0	02	1	1311-1407
166	CLIP; HARNESS CLU SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=6 L=36	9-09917-423-0	02	1	1408-
166	CLIP; HARNESS CLU SW (C) ID=8 L=38	9-09917-424-0	01	1	1311-1407
166	CLIP; HARNESS CLU SW EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=8 L=38	9-09917-424-0	01	1	1408-
167	CLIP; HARNESS ACCEL & STOP ID=11 L=41	1-09700-403-0	02	1	1311-
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (J) L=213.5	8-98000-506-1	03	1	1408-1410
170	CLIP; ELEC HARNESS (J) L=213.5	8-98000-506-1	02	1	1411-
170	CLIP; ELEC HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=11 L=41	1-09700-403-0	05	1	1408-1410
170	CLIP; ELEC HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1408-1410
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	05	1	1311-1407
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=11 L=41	1-09700-403-0	04	1	1408-1410
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	04	1	1411-
170	CLIP; ELEC HARNESS (C) ID=25 L=50	1-09701-019-0	01	1	1311-1401
170	CLIP; ELEC HARNESS (I) ID=35 L=35	1-09700-895-0	01	1	1402-
170	CLIP; ELEC HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1311-1407
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1408-1410
170	CLIP; ELEC HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-
170	CLIP; ELEC HARNESS (F) ID=8 L=38	9-09917-424-0	01	1	1311-
170	CLIP; ELEC HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	1311-1401
170	CLIP; ELEC HARNESS (J) ID=22 L=52	9-09917-431-0	02	1	1402-
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	03	1	1311-1407
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=350	1-09707-183-0	03	1	1408-1410
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> (G) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-1407
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=13-18 L=14.5	1-09709-290-0	01	1	1408-
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> (H) L=250	5-09707-030-1	01	1	1311-1407
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (H) L=250	5-09707-030-1	01	1	1408-
206	CLIP; FUEL TANK HARNESS (A) ID=8 L=38	9-09917-424-0	02	1	1311-
206	CLIP; FUEL TANK HARNESS FUEL TANK 200L FRAME SIDE<N20> (B) L=250	5-09707-030-1	03	1	1311-
206	CLIP; FUEL TANK HARNESS FUEL TANK 280L<RF4> (B) L=250	5-09707-030-1	02	1	1311-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1311-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	1311-
212	CLIP; HORN HARNESS ELECTRICAL HORN(WB7) (C) ID=11 L=41	1-09700-403-0	01	1	1311-
212	CLIP; HORN HARNESS ELECTRICAL HORN(WB7) (D) L=140	5-09707-031-1	01	1	1311-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1311-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	1311-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	03	1	1311-
251	CLIP; WATER LEVEL HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	1311-
251	CLIP; WATER LEVEL HARNESS (A) ID=11 L=50	0-95235-085-0	02	1	1311-
251	CLIP; WATER LEVEL HARNESS (C) L=140	5-09707-031-1	01	1	1311-
305	CLIP; ENG HARNESS (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1311-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	1311-
305	CLIP; ENG HARNESS (E) ID=16 L=28	0-95235-556-0	03	1	1311-
305	CLIP; ENG HARNESS (F) L=140	5-09707-031-1	01	1	1311-
305	CLIP; ENG HARNESS (B) ID=21 L=47.5	8-94178-108-0	01	1	1311-
305	CLIP; ENG HARNESS (G) L=140	8-97122-360-0	01	1	1311-
305	CLIP; ENG HARNESS (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1311-
305	CLIP; ENG HARNESS (D) ID=18 L=44	8-97367-985-1	04	1	1311-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> ID=11 L=41	1-09700-403-0	03	1	1311-

305 48 162 48 16 305 16 235 170 205 223 235 235 223 212 235 212 170 48 305 305 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1408-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	20	1	1311-
16	CLIP; HARNESS (M) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1311-1407
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (M) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1408-
16	CLIP; HARNESS (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1311-
16	CLIP; HARNESS (I) ID=40 L=90	1-09701-290-0	02	1	1311-
16	CLIP; HARNESS (J) L=180	1-09707-162-1	01	1	1311-
16	CLIP; HARNESS (L) L=350	1-09707-183-0	05	1	1311-1403
16	CLIP; HARNESS (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1311-1407
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1408-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1311-
16	CLIP; HARNESS H.S.A SYSTEM<6EP> (K) L=250	5-09707-030-1	01	1	1311-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1311-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	1311-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	1311-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (E) ID=11 L=16	0-95235-025-0	02	1	1311-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	0-95325-035-0	01	1	1311-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (S) ID=28 L=58	1-09700-400-0	02	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (O) ID=39 H=28 L=32	1-09701-263-0	02	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (M) ID=40 L=90	1-09701-290-0	23	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=350	1-09707-183-0	01	1	1408-1410
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=350	1-09707-183-0	02	1	1411-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (P) ID=27.5 H=23 L=24	1-09700-863-0	05	1	1408-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (L) ID=25 L=75	1-09701-275-0	03	1	1408-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=33 L=83	1-09701-291-0	27	1	1408-
48	CLIP; FRAME HARNESS (Q) ID=5-12 L=14.5	1-09987-221-0	01	1	1404-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	1311-
48	CLIP; FRAME HARNESS (C) ID=35 L=35	1-09700-684-0	02	1	1311-1403
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1404-1407
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (R) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1408-
48	CLIP; FRAME HARNESS (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1311-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1311-1410
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	02	1	1411-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=28 L=78	1-09700-858-0	02	1	1411-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	03	1	1311-
48	CLIP; FRAME HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	05	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (P) ID=27.5 H=23 L=24	1-09700-863-0	06	1	1408-
48	CLIP; FRAME HARNESS (G) ID=35 L=33	1-09700-945-0	03	1	1311-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1311-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	02	1	1311-
48	CLIP; FRAME HARNESS (O) ID=39 H=28 L=32	1-09701-263-0	10	1	1311-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	03	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (L) ID=25 L=75	1-09701-275-0	01	1	1408-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	02	1	1311-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	27	1	1311-1407
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=33 L=83	1-09701-291-0	04	1	1408-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	1311-1407
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (N) L=180	1-09707-162-1	01	1	1408-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	02	1	1311-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	1311-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	1311-1407
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	1408-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=140	5-09707-031-1	01	1	1408-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	1311-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F) L=140	5-09707-031-1	01	1	1408-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=22 L=52	9-09917-431-0	01	1	1408-
162	CLIP; SW HARNESS EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	01	1	1311-1407
162	CLIP; SW HARNESS EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=500	1-09707-082-1	01	1	1408-
162	CLIP; SW HARNESS (A) ID=28 L=40	1-09701-261-0	01	1	1311-1401
162	CLIP; SW HARNESS (E) ID=39 H=28 L=32	1-09701-263-0	01	1	1402-
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC> (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G) (B) L=500	1-09707-082-1	02	1	1311-1404
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) EXC. H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G),H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1405-1407
162	CLIP; SW HARNESS H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS AUTO ENG SHUT DOWN(Q3G) EXC. H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS LIGHTING SYSTEM ECE<SLC> EXC. AUTO ENG SHUT DOWN(Q3G),H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. AUTO ENG SHUT DOWN(Q3G),LIGHTING SYSTEM ECE<SLC>,H.S.A SYSTEM<6EP> (B) L=500	1-09707-082-1	02	1	1408-
162	CLIP; SW HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1311-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	1311-1407
162	CLIP; SW HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=20 L=50	9-09917-430-0	01	1	1408-
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (J) L=213.5	8-98000-506-1	03	1	1408-1410
170	CLIP; ELEC HARNESS (J) L=213.5	8-98000-506-1	02	1	1411-
170	CLIP; ELEC HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=11 L=41	1-09700-403-0	05	1	1408-1410
170	CLIP; ELEC HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1408-1410
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	05	1	1311-1407
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=11 L=41	1-09700-403-0	04	1	1408-1410
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	04	1	1411-
170	CLIP; ELEC HARNESS (C) ID=25 L=50	1-09701-019-0	01	1	1311-1401
170	CLIP; ELEC HARNESS (I) ID=35 L=35	1-09700-895-0	01	1	1402-
170	CLIP; ELEC HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1311-1407
170	CLIP; ELEC HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1408-1410
170	CLIP; ELEC HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-
170	CLIP; ELEC HARNESS (F) ID=8 L=38	9-09917-424-0	01	1	1311-
170	CLIP; ELEC HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	1311-1401
170	CLIP; ELEC HARNESS (J) ID=22 L=52	9-09917-431-0	02	1	1402-
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	03	1	1311-1407
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=350	1-09707-183-0	03	1	1408-1410
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> (G) ID=13-18 L=14.5	1-09709-290-0	01	1	1311-1407
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=13-18 L=14.5	1-09709-290-0	01	1	1408-
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> (H) L=250	5-09707-030-1	01	1	1311-1407
170	CLIP; ELEC HARNESS H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (H) L=250	5-09707-030-1	01	1	1408-
205	CLIP; BACK LAMP HARNESS OD=9 H=6	8-97368-793-0	02	1	1311-1407
205	CLIP; BACK LAMP HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> OD=9 H=6	8-97368-793-0	02	1	1408-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1311-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	1311-
212	CLIP; HORN HARNESS ELECTRICAL HORN(WB7) (C) ID=11 L=41	1-09700-403-0	01	1	1311-
212	CLIP; HORN HARNESS ELECTRICAL HORN(WB7) (D) L=140	5-09707-031-1	01	1	1311-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	1311-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	1311-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	03	1	1311-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) ID=11 L=35	9-09917-036-1	01	1	1311-1407
235	CLIP; HARNESS,SPD SENSOR,SSPS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=11 L=35	9-09917-036-1	01	1	1408-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTILOCK BRAKE SYSTEM<BFA> (A) OD=9 H=6	1-09709-178-0	02	1	1311-1403
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTILOCK BRAKE SYSTEM<BFA> (C) OD=9 H=17.5	1-09709-181-0	02	1	1311-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTILOCK BRAKE SYSTEM<BFA> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1311-
253	CLIP; CABLE FIX ID=11 & 13 H=26 L=48	1-09701-270-0	05	1	1311-1403
253	CLIP; CABLE FIX ID=11 & 13 H=26 L=48	1-09701-270-0	09	1	1404-
305	CLIP; ENG HARNESS (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1311-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	1311-
305	CLIP; ENG HARNESS (E) ID=16 L=28	0-95235-556-0	03	1	1311-
305	CLIP; ENG HARNESS (F) L=140	5-09707-031-1	01	1	1311-
305	CLIP; ENG HARNESS (B) ID=21 L=47.5	8-94178-108-0	01	1	1311-
305	CLIP; ENG HARNESS (G) L=140	8-97122-360-0	01	1	1311-
305	CLIP; ENG HARNESS (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1311-
305	CLIP; ENG HARNESS (D) ID=18 L=44	8-97367-985-1	04	1	1311-

312 53 53 59 312 312 312 312 312 312 324 334 334 375 375 375 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F)	1-47477-552-0	01	1	1411-
53	BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (E) L=229	1-47478-993-0	02	1	1408-
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	02	1	1405-1407
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	03	1	1408-
53	BRACKET; HARNESS (A) L=135	1-47478-729-0	03	1	1311-
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	03	1	1311-1404
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	01	1	1405-1407
53	BRACKET; HARNESS (C) L=120	1-82699-963-0	02	1	1311-
53	BRACKET; HARNESS (D)	8-98216-369-0	01	1	1311-
59	BRACKET; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> L=160 H=30	1-47479-759-0	01	1	1408-
312	BRACKET; CLIP HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (F) L=95	1-82699-085-0	01	1	1408-
312	BRACKET; CLIP HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> (G)	8-97610-090-3	01	1	1408-
312	BRACKET; CLIP HARNESS (C) L=40	1-47478-410-0	01	1	1311-1407
312	BRACKET; CLIP HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=40	1-47478-410-0	01	1	1408-
312	BRACKET; CLIP HARNESS (D) L=82 B=20	1-47478-420-0	01	1	1311-1404
312	BRACKET; CLIP HARNESS (D) L=82 B=20	8-98259-390-0	01	1	1405-1407
312	BRACKET; CLIP HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=82 B=20	8-98259-390-0	01	1	1408-
312	BRACKET; CLIP HARNESS (A)	1-47478-919-0	01	1	1311-
312	BRACKET; CLIP HARNESS (B) L=229	1-47478-993-0	01	1	1311-
312	BRACKET; CLIP HARNESS (E) L=120 H=35	1-82698-088-0	01	1	1311-1407
312	BRACKET; CLIP HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (E) L=120 H=35	1-82698-088-0	01	1	1408-
324	BRACKET; CLIP	8-98124-778-0	01	1	1404-
334	BRACKET EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	1-82698-495-2	02	1	1408-
334	BRACKET (A)	1-82698-495-2	02	1	1311-1407
334	BRACKET TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	1-82698-495-2	03	1	1408-
334	BRACKET ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98216-370-0	01	1	1311-
375	BRACKET; AC GEN HARNESS CLIP (A)	1-47475-702-0	01	1	1311-
375	BRACKET; AC GEN HARNESS CLIP (B)	8-98056-647-0	01	1	1311-
375	BRACKET; AC GEN HARNESS CLIP (C)	8-98218-988-1	01	1	1311-
542	TUBE; DISTANCE,FUEL	8-97377-804-0	01	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
