Isuzu WW
▶
BUSES
▶
LT
▶
11562 - LT434-RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#130455) — 76 parça
◀

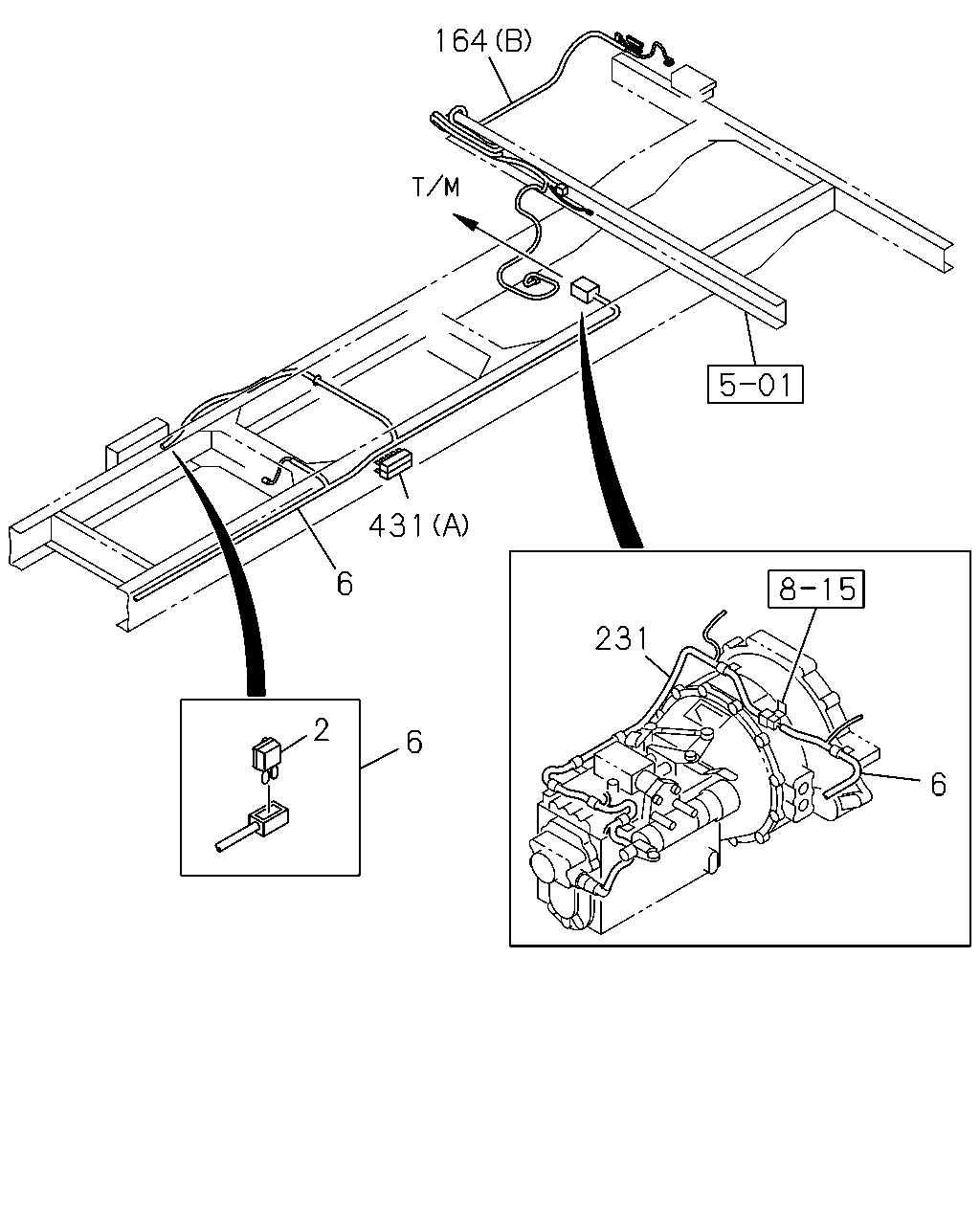

[810A] NO.3 (19 parça)

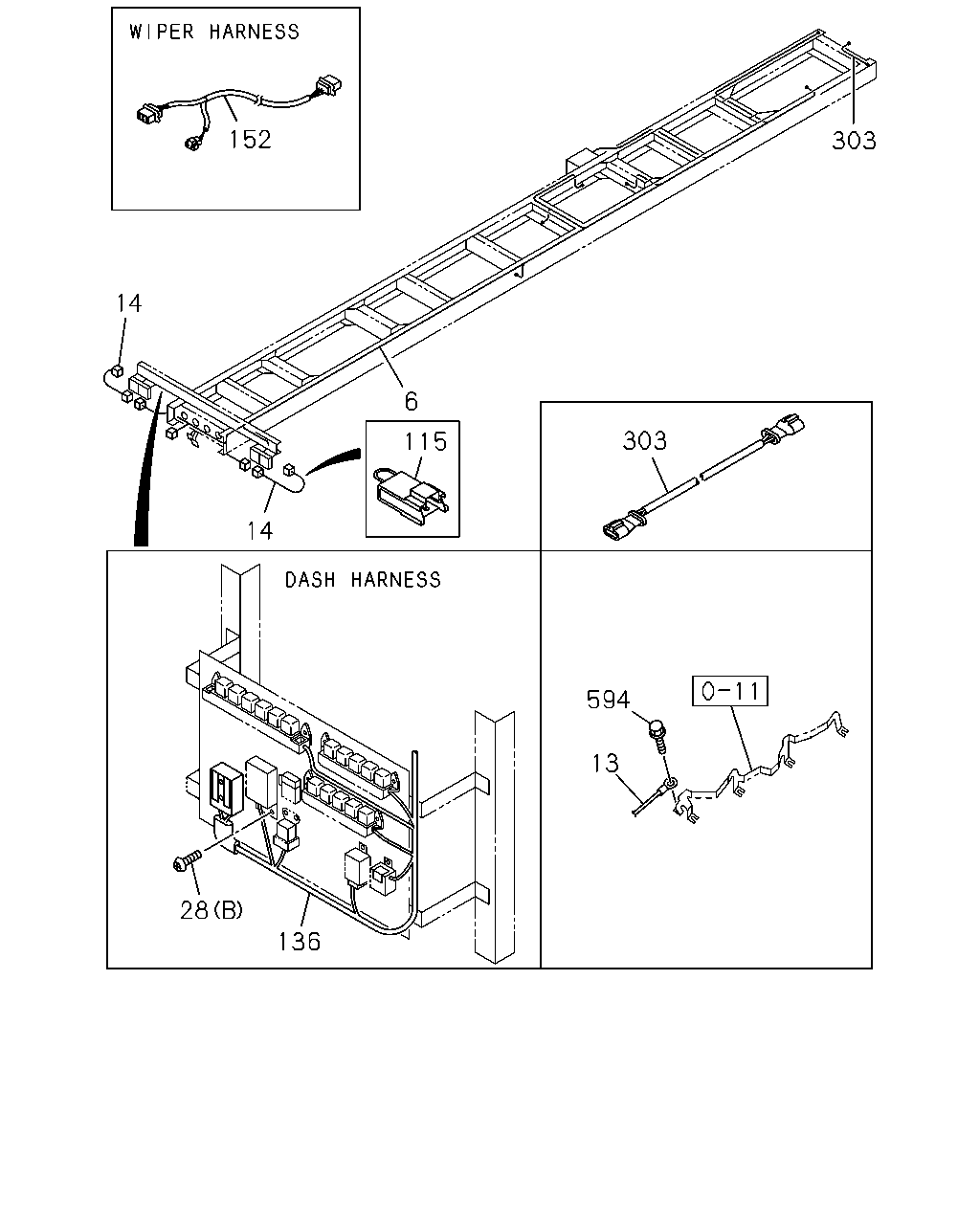

[810A] NO.2 (26 parça)

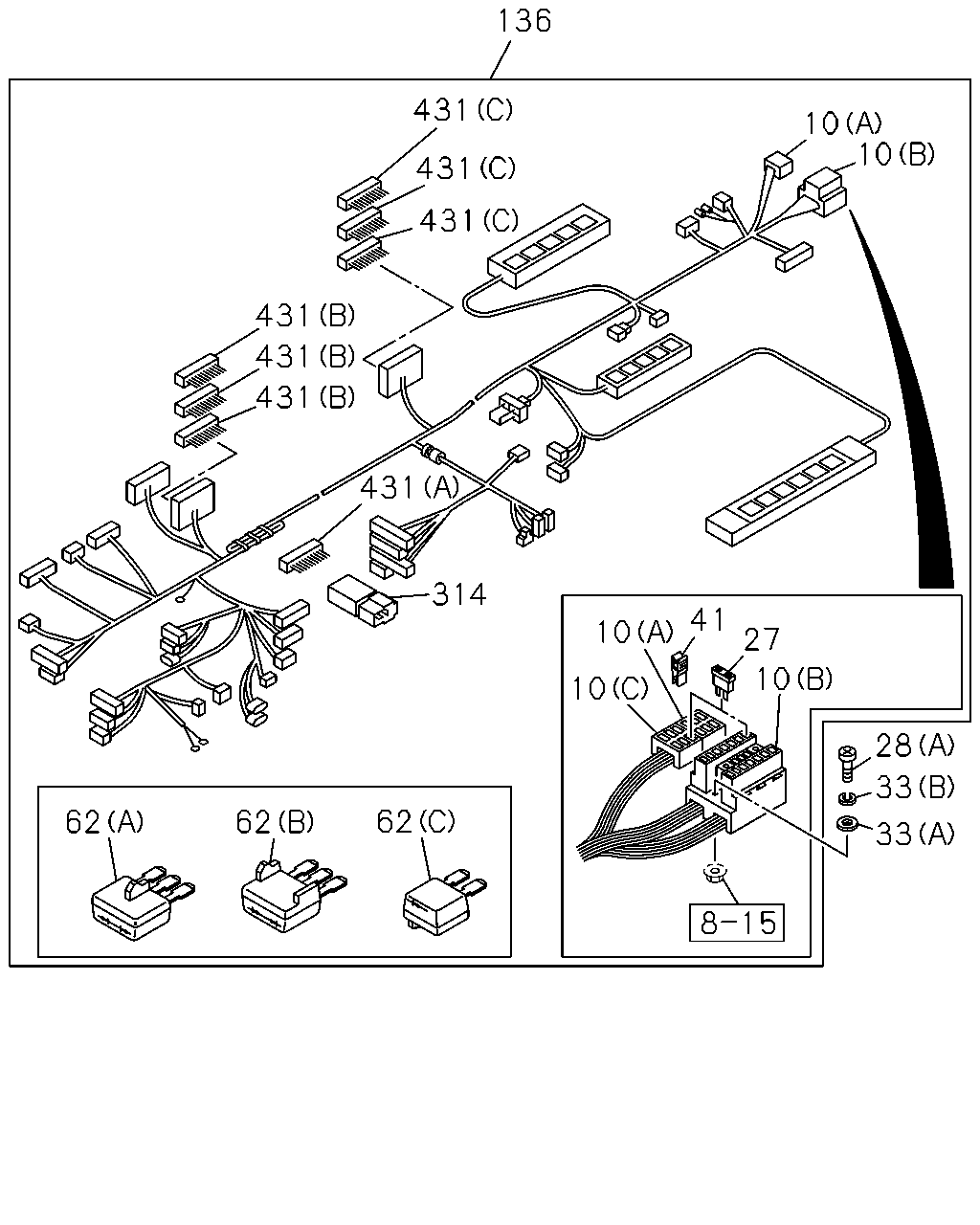

[810A] NO.4 (10 parça)
[810A] NO.1 (21 parça)
▶
164
431
6
6
2
231
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DIODE; CABLE HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
1311-
6
HARNESS; FRAME
BRAKE REGULATION ADR<TDU> TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98303-451-1
01
1
1502-
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98273-973-0
01
1
1408-1410
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98292-452-0
01
1
1411-1501
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. BRAKE REGULATION ADR<TDU>
8-98292-452-0
01
1
1502-
6
HARNESS; FRAME
8-98234-199-2
01
1
1311-1403
6
HARNESS; FRAME
8-98268-636-1
01
1
1404-1407
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98268-636-1
01
1
1408-1501
6
HARNESS; FRAME
EXC. BRAKE REGULATION ADR<TDU>,TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98268-636-1
01
1
1502-
164
HARNESS; ELEC
TRANSMISSION CONTROL-SMOOTHER<8GF> (B)
8-98273-975-0
01
1
1408-1410
164
HARNESS; ELEC
TRANSMISSION CONTROL-SMOOTHER<8GF> (B)
8-98292-447-0
01
1
1411-
164
HARNESS; ELEC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)
1-82678-307-0
01
1
1311-
231
HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98292-448-0
01
1
1411-
231
HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98234-229-1
01
1
1408-
231
HARNESS; TRANS
8-98105-672-0
01
1
1311-1407
231
HARNESS; TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98105-672-0
01
1
1408-
431
CONNECTOR; JOINT
(A) 3P & 3P
1-82698-170-0
02
1
1311-
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
03
1
1311-
431
CONNECTOR; JOINT
(B) 10P BROWN
1-82699-601-0
04
1
1311-
136
10
431
431
431
10
431
431
431
431
314
10
41
10
10
28
27
33
33
62
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOX; FUSE,HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (C)
1-82510-670-0
01
1
1408-
10
BOX; FUSE,HARNESS
(B)
1-82510-665-0
01
1
1311-
10
BOX; FUSE,HARNESS
(A)
1-82510-667-0
01
1
1311-
27
FUSE UNIT
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 10A RED
5-82516-002-0
16
1
1408-
27
FUSE UNIT
10A RED
5-82516-002-0
16
1
1311-1407
27
FUSE UNIT
TRANSMISSION CONTROL-SMOOTHER<8GF> 10A RED
5-82516-002-0
19
1
1408-
27
FUSE UNIT
15A BLUE
5-82516-003-0
05
1
1311-
27
FUSE UNIT
25A CLEAR
5-82516-005-0
04
1
1311-
27
FUSE UNIT
30A GREEN
8-94159-008-0
01
1
1311-
28
SCREW; FUSE BOX
(A) M6X42
8-97811-324-0
02
1
1311-
28
SCREW; FUSE BOX
(B) M5X12
9-93490-512-0
02
1
1311-
33
WASHER; LK,FUSE BOX FIX
(A) ID=6.1
0-91510-606-0
02
1
1311-
33
WASHER; LK,FUSE BOX FIX
(B) ID=6.4
0-91614-506-0
02
1
1311-
41
PULLER; FUSE
L=31.0 B=10.0
8-94369-144-0
01
1
1311-
62
DIODE; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) BLACK 2P-1.5A
8-94422-639-1
01
1
1408-
62
DIODE; HARNESS
(B) BLACK 3P-1.5A
8-94416-438-1
02
1
1311-
62
DIODE; HARNESS
(A) BLACK 3P-1.5A
8-94422-640-1
03
1
1311-
136
HARNESS; DASH
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98273-972-1
01
1
1408-
136
HARNESS; DASH
H.S.A SYSTEM<6EP>
8-98234-197-4
01
1
1311-1407
136
HARNESS; DASH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98234-197-4
01
1
1408-
136
HARNESS; DASH
EXC. H.S.A SYSTEM<6EP>
8-98234-198-4
01
1
1311-1407
136
HARNESS; DASH
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98234-198-4
01
1
1408-
314
RESISTOR; HARNESS
BLUE
1-82691-204-0
01
1
1311-
431
CONNECTOR; JOINT
(A) 3P & 3P
1-82698-170-0
02
1
1311-
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
03
1
1311-
431
CONNECTOR; JOINT
(B) 10P BROWN
1-82699-601-0
04
1
1311-
277
277
277
267
290
399
280
560
164
560
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
HARNESS; ELEC
TRANSMISSION CONTROL-SMOOTHER<8GF> (B)
8-98273-975-0
01
1
1408-1410
164
HARNESS; ELEC
TRANSMISSION CONTROL-SMOOTHER<8GF> (B)
8-98292-447-0
01
1
1411-
164
HARNESS; ELEC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)
1-82678-307-0
01
1
1311-
267
BOLT; BRKT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE
0-28650-825-0
04
1
1311-
277
BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X20 FLANGE
0-28650-820-0
04
1
1311-
277
BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING
1-09064-006-0
02
1
1311-
280
NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE
0-91180-108-0
04
1
1311-
290
NUT; BRKT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE
0-91180-108-0
04
1
1311-
399
BRACKET; BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
1-48495-200-2
02
1
1311-
560
BOX; ELECTRIC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
1-82698-163-1
01
1
1311-
152
303
303
115
14
14
28
136
594
13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
BRAKE REGULATION ADR<TDU> TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98303-451-1
01
1
1502-
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98273-973-0
01
1
1408-1410
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98292-452-0
01
1
1411-1501
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. BRAKE REGULATION ADR<TDU>
8-98292-452-0
01
1
1502-
6
HARNESS; FRAME
8-98234-199-2
01
1
1311-1403
6
HARNESS; FRAME
8-98268-636-1
01
1
1404-1407
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98268-636-1
01
1
1408-1501
6
HARNESS; FRAME
EXC. BRAKE REGULATION ADR<TDU>,TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98268-636-1
01
1
1502-
13
HARNESS; ENG
8-98219-896-0
01
1
1311-
14
HARNESS; HEADLAMP
8-98221-141-0
02
1
1311-
28
SCREW; FUSE BOX
(A) M6X42
8-97811-324-0
02
1
1311-
28
SCREW; FUSE BOX
(B) M5X12
9-93490-512-0
02
1
1311-
115
HARNESS; FOG LAMP
LIGHTING SYSTEM ECE<SLC> FOG LAMP<T96>
1-82625-451-0
01
1
1311-
136
HARNESS; DASH
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98273-972-1
01
1
1408-
136
HARNESS; DASH
H.S.A SYSTEM<6EP>
8-98234-197-4
01
1
1311-1407
136
HARNESS; DASH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98234-197-4
01
1
1408-
136
HARNESS; DASH
EXC. H.S.A SYSTEM<6EP>
8-98234-198-4
01
1
1311-1407
136
HARNESS; DASH
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98234-198-4
01
1
1408-
152
HARNESS; WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7>
1-82625-630-0
01
1
1311-
303
HARNESS; WATER LEVEL
1-82670-567-0
01
1
1311-
594
BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER
0-36230-410-0
01
1
1311-
