◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11562 - LT434-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#130445) — 12 parça

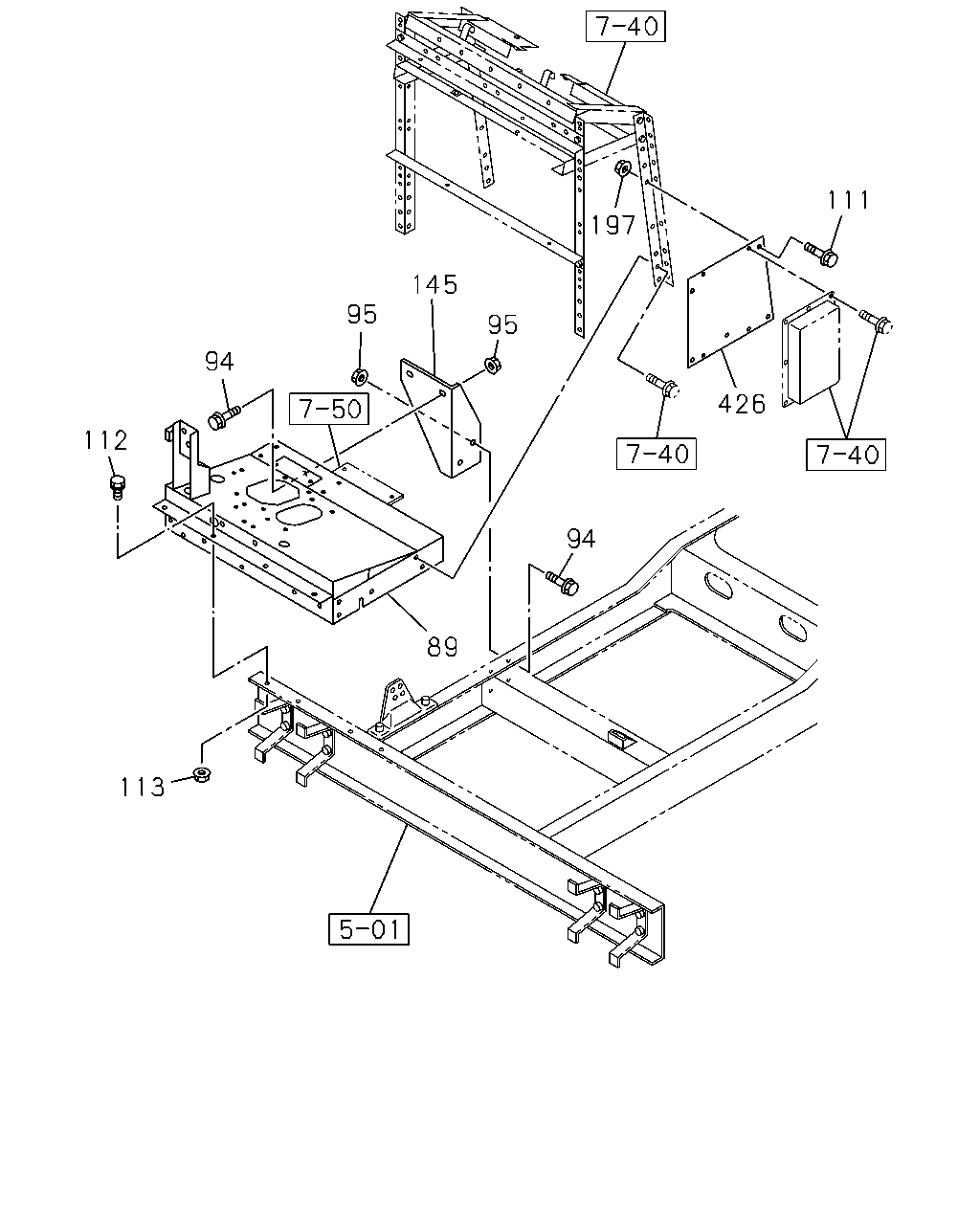

çizim 386603
112 94 95 145 95 113 89 94 426 111 197
BalonParca AdiParca NoAdetTipApplied Date
89 BOARD ASM; PEDAL 8-98232-614-0 01 1 1311-
94 BOLT; BRKT,PEDAL BOARD
M10X35 FLANGE 		0-28651-035-0 04 1 1311-
95 NUT; BRKT,PEDAL BOARD
M10 FLANGE 		0-91180-210-0 04 1 1311-
111 BOLT; PANEL
H.S.A SYSTEM<6EP> M10X30 FLANGE 		0-28651-030-0 04 1 1311-1407
111 BOLT; PANEL
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10X30 FLANGE 		0-28651-030-0 04 1 1408-
112 BOLT; PEDAL BOARD
M12X35 FLANGE 		0-28651-235-0 06 1 1311-
113 NUT; PEDAL BOARD
M12 FLANGE 		0-91180-212-0 06 1 1311-
145 BRACKET; PEDAL BOARD 1-47478-509-2 01 1 1311-
197 NUT; EXT PANEL
H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 04 1 1311-1407
197 NUT; EXT PANEL
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE 		0-91180-210-0 04 1 1408-
426 PANEL; PEDAL
H.S.A SYSTEM<6EP> 		8-98217-658-0 01 1 1311-1407
426 PANEL; PEDAL
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98217-658-0 01 1 1408-
