Isuzu WW
▶
BUSES
▶
LT
▶
11562 - LT434-RHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

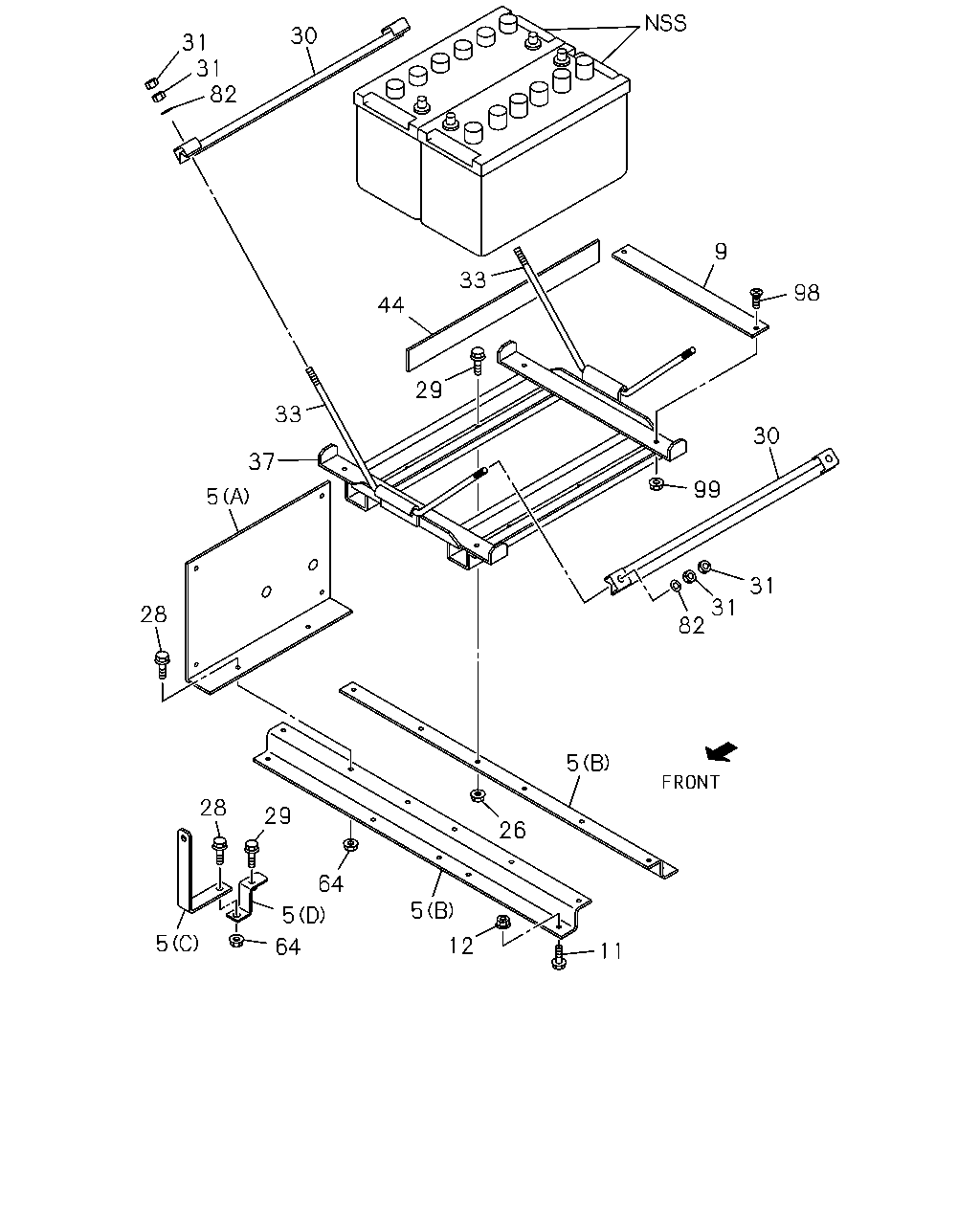

5-20 — BATTERY CARRIER
(#130441) — 24 parça
31
31
82
30
44
33
9
98
30
99
29
33
37
5
28
28
29
5
64
5
64
5
12
11
26
5
82
31
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
BRACKET; BATTERY RELAY
(A)
8-98072-634-1
01
1
1311-1403
5
BRACKET; BATTERY RELAY
(C)
8-98268-589-0
02
1
1404-
5
BRACKET; BATTERY RELAY
(B)
8-98191-555-0
02
1
1311-1403
5
BRACKET; BATTERY RELAY
(D)
1-47478-981-0
02
1
1404-
9
SEAT; BATTERY
9-53613-535-0
02
1
1311-
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1311-1403
12
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
1311-1403
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1311-1403
26
NUT; BRKT
M14 FLANGE
8-97245-635-0
04
1
1404-
28
BOLT; BRKT,BATTERY CARRIER
M10X30 FLANGE
0-28651-030-0
02
1
1311-1403
28
BOLT; BRKT,BATTERY CARRIER
M8X25 FLANGE
0-28650-825-0
04
1
1404-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1311-1403
29
BOLT; BRKT TO FRAME
M14X40 FLANGE
0-28861-440-0
04
1
1404-
30
PLATE; BATTERY
9-53616-119-0
02
1
1311-
31
NUT; PLATE
M10
0-91110-510-0
08
1
1311-
33
BOLT; PLATE TO BRKT
9-53616-214-1
02
1
1311-
37
BRACKET; BATTERY
9-53613-534-0
01
1
1311-1403
37
BRACKET; BATTERY
8-98057-509-0
01
1
1404-
44
SPACER; BATTERY
1-53619-010-0
01
1
1311-
64
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
02
1
1311-1403
64
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
1404-
82
WASHER; PL CENTER PEACE
ID=10.5
0-91614-510-0
04
1
1311-
98
SCREW; SEAT
M6X25 CK-HEAD
9-03090-625-0
04
1
1311-
99
NUT; SEAT
M6 FLANGE
0-91180-106-0
04
1
1311-
