◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11562 - LT434-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-67 - REAR LEVELING VALVE ▶
4-67 — REAR LEVELING VALVE (#130436) — 29 parça

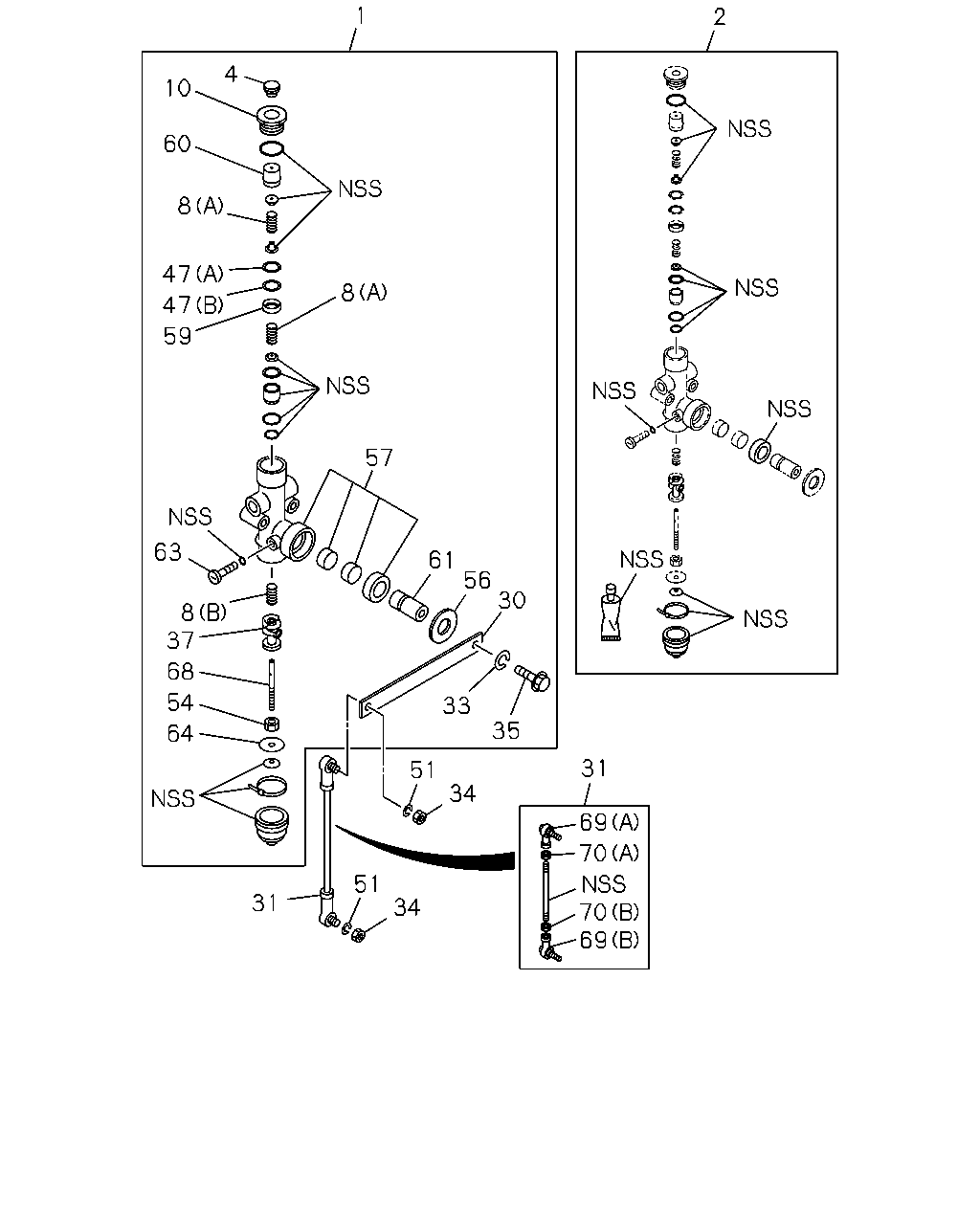

çizim 385661
1 4 10 60 8 47 47 59 63 8 37 68 54 64 31 51 34 51 34 35 33 30 2 31 69 70 70 69 56 61 57 8
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LEVELING 1-52130-107-1 01 1 1311-
1 VALVE ASM; LEVELING 1-52130-108-1 01 1 1311-
2 REPAIR KIT; LEVELING VALVE 1-85573-009-0 02 1 1311-
4 FILTER; AIR,LEVELING VALVE 1-53457-081-0 02 1 1311-
8 SPRING; LEVELING VALVE
(A) 		1-52139-053-0 04 1 1311-
8 SPRING; LEVELING VALVE
(B) 		1-52139-057-0 02 1 1311-
10 PLUG; BODY 1-52139-055-0 02 1 1311-
30 LEVER; LEVELING VALVE 1-52137-047-0 02 1 1311-
31 ROD ASM; JOINT 1-52137-046-0 02 1 1311-
33 WASHER; LK 1-52139-061-0 02 1 1311-
34 NUT; LK,LEVER
M8 		0-91110-508-0 02 1 1311-
35 BOLT; LOCK,LEVER 1-52139-060-0 02 1 1311-
37 PISTON; LEVELING VLV 1-52135-011-0 02 1 1311-
47 SHIM; LEVELING VLV
(A) T=0.2 		1-52139-067-0 AR 1 1311-
47 SHIM; LEVELING VLV
(B) T=0.1 		1-52139-068-0 AR 1 1311-
51 WASHER; LEVELING VLV
ID=8.2 		0-91510-808-0 02 1 1311-
54 NUT; LEVELING VLV 1-52139-058-0 02 1 1311-
56 WASHER; LEVELING VLV 1-52139-059-0 02 1 1311-
57 BODY ASM; LEVELING VALVE 1-52139-046-0 02 1 1311-
59 SPACER; LEVELING VALVE 1-52139-050-0 02 1 1311-
60 SEAT; VALVE,LEVELING VALVE 1-52132-003-0 02 1 1311-
61 SHAFT; LEVELING VALVE 1-52135-009-0 02 1 1311-
63 BOLT; STOPPER,LEVELING VALVE 1-52139-069-0 02 1 1311-
64 PLATE; LEVELING VALVE 1-52139-091-0 02 1 1311-
68 SPOOL; LEVELING VALVE 1-52139-092-0 02 1 1311-
69 JOINT ASM; BALL
(A) RH THREAD 		1-09760-119-1 02 1 1311-
69 JOINT ASM; BALL
(B) LH THREAD 		8-94178-868-1 02 1 1311-
70 NUT
(A) M10 		0-91111-510-0 02 1 1311-
70 NUT
(B) M10 LH THREAD 		9-09840-167-0 02 1 1311-
