4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#130426) — 181 parça

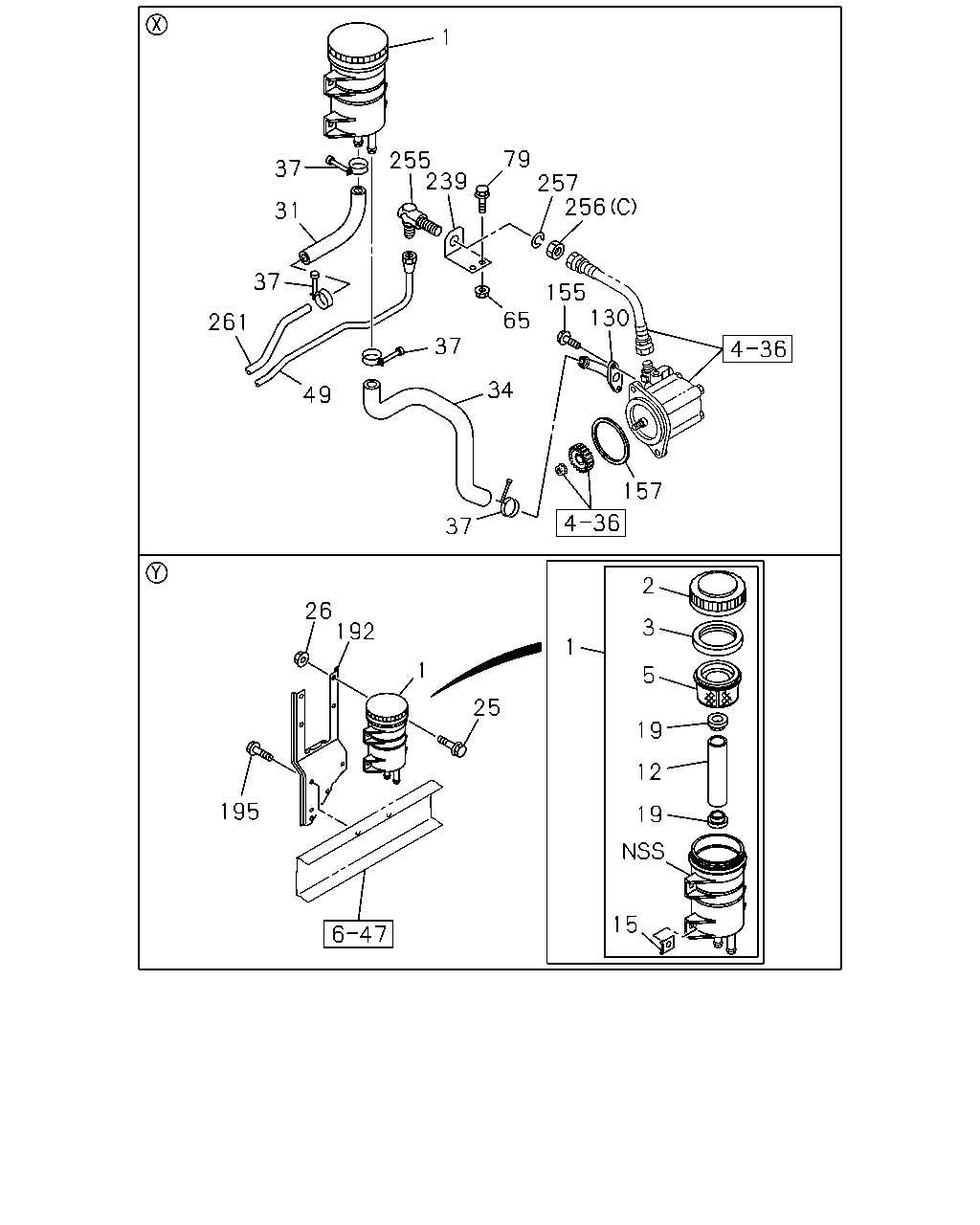

1 37 31 37 261 49 255 239 79 257 256 155 65 37 34 37 130 157 26 192 1 25 195 1 2 3 5 19 12 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-927-0	01	1	1311-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1311-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1311-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1311-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1311-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1311-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1311-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1311-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1311-
31	HOSE; P/S OIL TANK,INL	1-21115-101-0	01	1	1311-
34	HOSE; P/S OIL TANK,OUTLET	8-98217-576-1	01	1	1311-
37	CLIP; HOSE,P/S ID=32	1-09704-085-0	04	1	1311-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98216-572-0	01	1	1311-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1311-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1311-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	1311-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	1311-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1311-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	1311-
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	03	1	1311-
239	BRACKET; FLEX HOSE	8-98217-892-0	01	1	1311-
255	UNION; FLEX HOSE M20 & M22 ELBOW	1-09654-154-1	01	1	1311-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1311-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1311-
256	NUT; UNION (C) M22	0-91111-522-0	02	1	1311-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1311-
261	PIPE; OIL,UNION TO HOSE L=660	8-98216-591-0	01	1	1311-

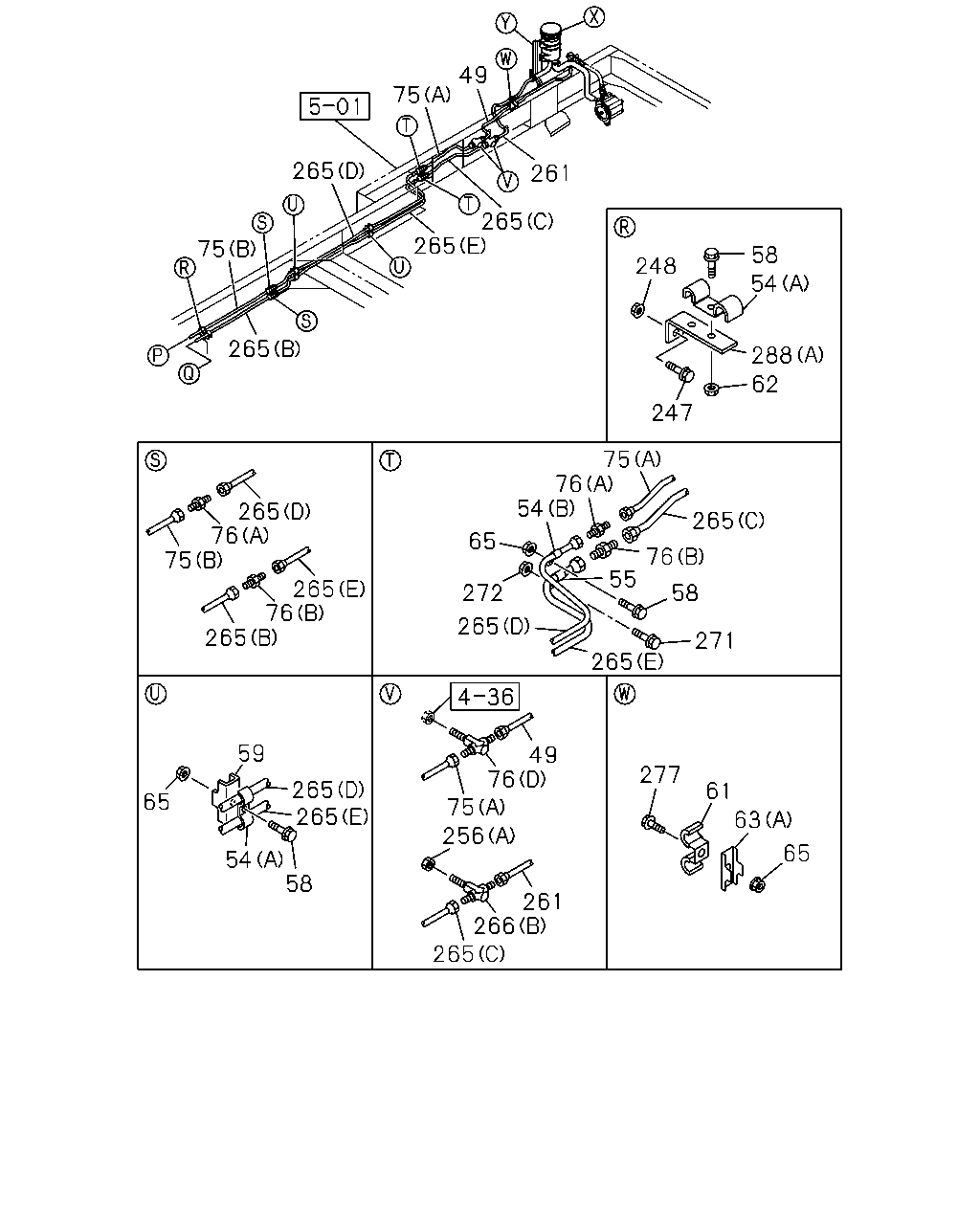

49 75 265 75 265 265 265 261 248 58 54 288 62 247 265 76 75 265 76 265 59 265 265 65 54 58 75 76 54 65 272 265 265 271 58 55 76 265 49 76 75 256 261 266 265 277 61 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98216-572-0	01	1	1311-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	07	1	1311-
54	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1311-
55	CLIP; P/S RUBBER HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	1311-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1311-
58	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1311-1311
58	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1312-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	03	1	1311-1311
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	09	1	1312-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	1311-1311
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	1312-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	04	1	1311-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1311-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	08	1	1311-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	05	1	1311-
63	BRACKET; CLIP,P/S (B) L=90 B=25	1-47475-530-0	01	1	1311-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (B)	8-98257-442-0	01	1	1311-1510
75	PIPE; OIL,P/S,UNION TO UNION (B)	8-98283-006-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (A)	8-98216-573-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98216-576-1	01	1	1311-1409
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98292-538-0	01	1	1410-1410
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98294-121-0	01	1	1410-
75	PIPE; OIL,P/S,UNION TO UNION (D)	8-98216-584-1	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (E)	8-98216-587-1	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (F)	8-98246-636-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (G)	8-98246-637-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (H)	8-98248-720-0	01	1	1311-
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	04	1	1311-
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	04	1	1311-
76	UNION; OIL PIPE (C) M20	0-92135-212-0	01	1	1311-
76	UNION; OIL PIPE (D) M20 2WAY	1-09654-138-1	03	1	1311-
76	UNION; OIL PIPE (E) M22 2WAY	1-09654-212-1	02	1	1311-
247	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1402-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	03	1	1311-1401
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	02	1	1402-
248	NUT; BRKT,CLIP M8 FLANGE	0-91180-108-0	03	1	1311-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1311-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1311-
256	NUT; UNION (C) M22	0-91111-522-0	02	1	1311-
261	PIPE; OIL,UNION TO HOSE L=660	8-98216-591-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (B)	8-98257-443-0	01	1	1311-1510
265	PIPE; OIL,UNION TO UNION (B)	8-98283-007-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (A)	8-98216-579-1	01	1	1311-
265	PIPE; OIL,UNION TO UNION (C)	8-98216-590-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (D)	8-98247-583-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (E)	8-98247-584-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (F)	8-98248-719-0	01	1	1311-
266	UNION; OIL PIPE,P/S (A) M22X2 ELBOW	0-92135-215-0	01	1	1311-
266	UNION; OIL PIPE,P/S (B) M22 2WAY	1-09654-212-1	01	1	1311-
271	BOLT; P/S OIL PIPE FIX M8X20 FLANGE	0-28050-820-0	01	1	1311-1311
271	BOLT; P/S OIL PIPE FIX M8X30 FLANGE	0-28650-830-0	01	1	1312-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	1311-
277	BOLT; HOSE CLIP M8X45 FLANGE	0-28050-845-0	01	1	1311-
288	BRACKET; CLIP,P/S (A)	1-47475-730-0	01	1	1311-
288	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	1311-

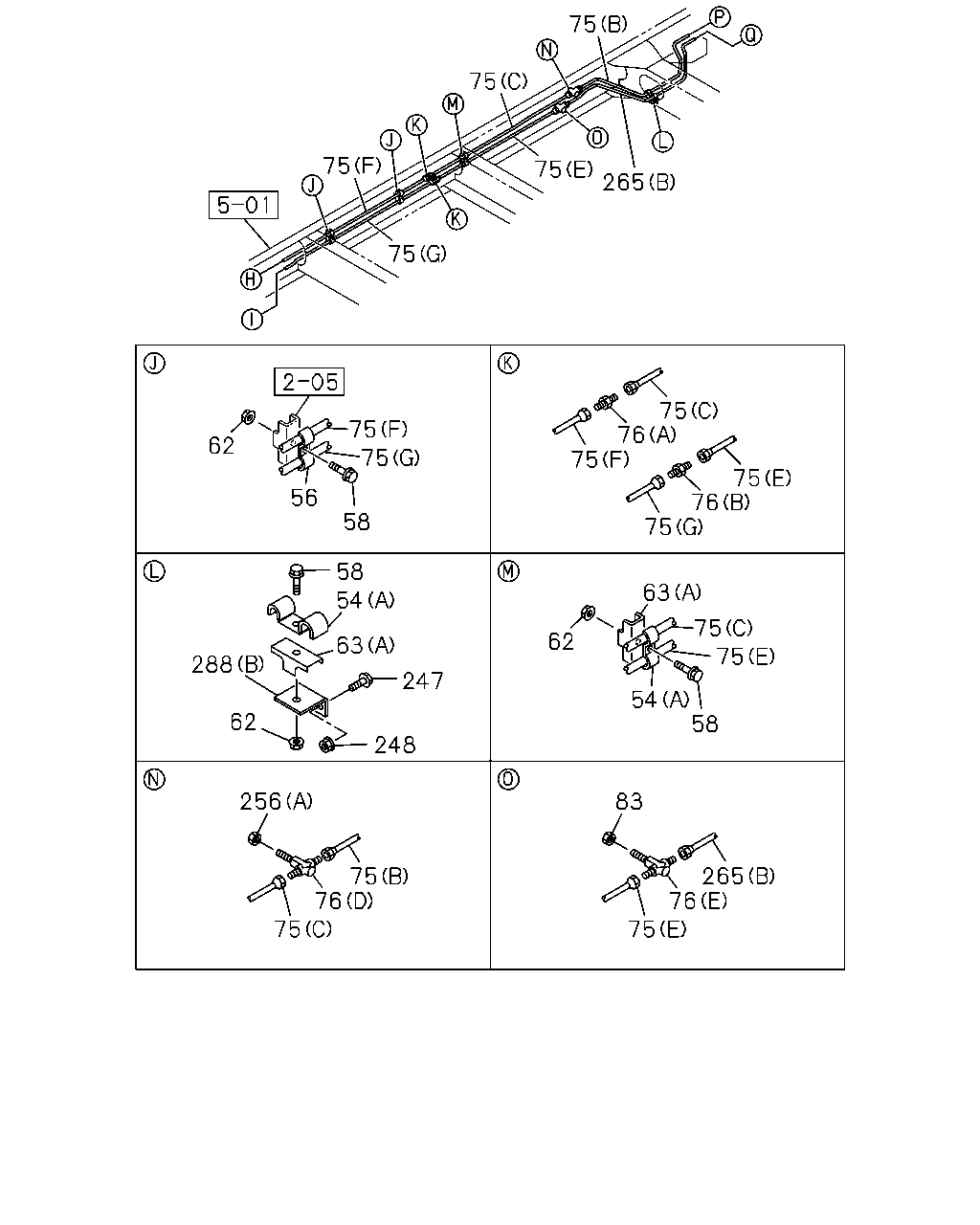

75 75 75 75 75 62 75 75 56 58 75 76 75 75 76 75 75 75 54 58 62 83 75 76 265 256 75 76 75 62 248 247 63 54 58 288 265 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	07	1	1311-
54	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1311-
56	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1311-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1311-
58	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1311-1311
58	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1312-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	03	1	1311-1311
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	09	1	1312-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	1311-1311
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	1312-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	08	1	1311-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	05	1	1311-
63	BRACKET; CLIP,P/S (B) L=90 B=25	1-47475-530-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (B)	8-98257-442-0	01	1	1311-1510
75	PIPE; OIL,P/S,UNION TO UNION (B)	8-98283-006-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (A)	8-98216-573-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98216-576-1	01	1	1311-1409
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98292-538-0	01	1	1410-1410
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98294-121-0	01	1	1410-
75	PIPE; OIL,P/S,UNION TO UNION (D)	8-98216-584-1	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (E)	8-98216-587-1	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (F)	8-98246-636-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (G)	8-98246-637-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (H)	8-98248-720-0	01	1	1311-
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	04	1	1311-
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	04	1	1311-
76	UNION; OIL PIPE (C) M20	0-92135-212-0	01	1	1311-
76	UNION; OIL PIPE (D) M20 2WAY	1-09654-138-1	03	1	1311-
76	UNION; OIL PIPE (E) M22 2WAY	1-09654-212-1	02	1	1311-
83	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	1311-
247	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1402-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	03	1	1311-1401
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	02	1	1402-
248	NUT; BRKT,CLIP M8 FLANGE	0-91180-108-0	03	1	1311-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1311-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1311-
256	NUT; UNION (C) M22	0-91111-522-0	02	1	1311-
265	PIPE; OIL,UNION TO UNION (B)	8-98257-443-0	01	1	1311-1510
265	PIPE; OIL,UNION TO UNION (B)	8-98283-007-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (A)	8-98216-579-1	01	1	1311-
265	PIPE; OIL,UNION TO UNION (C)	8-98216-590-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (D)	8-98247-583-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (E)	8-98247-584-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (F)	8-98248-719-0	01	1	1311-
288	BRACKET; CLIP,P/S (A)	1-47475-730-0	01	1	1311-
288	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	1311-

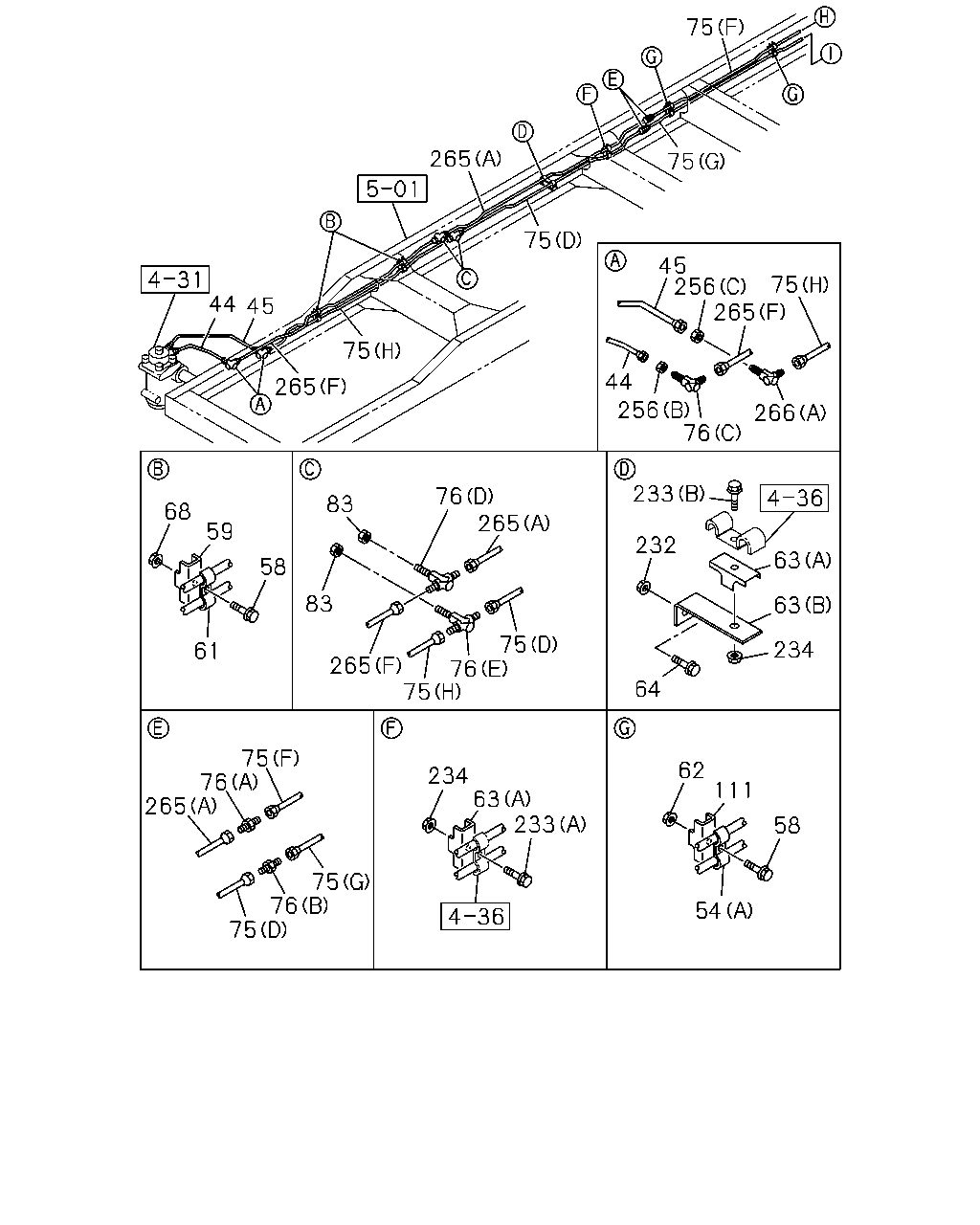

75 75 265 44 45 75 265 75 45 256 265 75 44 256 76 266 68 59 58 61 83 83 265 75 76 265 76 233 232 64 75 63 63 234 75 76 265 75 76 75 234 63 233 62 111 58 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98216-581-1	01	1	1311-
45	PIPE; OIL,P/S UNIT TO UNION	8-98216-582-1	01	1	1311-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	07	1	1311-
54	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1311-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1311-
58	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1311-1311
58	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1312-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	03	1	1311-1311
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	09	1	1312-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	1311-1311
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	1312-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	04	1	1311-
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1311-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	08	1	1311-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	05	1	1311-
63	BRACKET; CLIP,P/S (B) L=90 B=25	1-47475-530-0	01	1	1311-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1311-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (B)	8-98257-442-0	01	1	1311-1510
75	PIPE; OIL,P/S,UNION TO UNION (B)	8-98283-006-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (A)	8-98216-573-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98216-576-1	01	1	1311-1409
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98292-538-0	01	1	1410-1410
75	PIPE; OIL,P/S,UNION TO UNION (C)	8-98294-121-0	01	1	1410-
75	PIPE; OIL,P/S,UNION TO UNION (D)	8-98216-584-1	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (E)	8-98216-587-1	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (F)	8-98246-636-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (G)	8-98246-637-0	01	1	1311-
75	PIPE; OIL,P/S,UNION TO UNION (H)	8-98248-720-0	01	1	1311-
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	04	1	1311-
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	04	1	1311-
76	UNION; OIL PIPE (C) M20	0-92135-212-0	01	1	1311-
76	UNION; OIL PIPE (D) M20 2WAY	1-09654-138-1	03	1	1311-
76	UNION; OIL PIPE (E) M22 2WAY	1-09654-212-1	02	1	1311-
83	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	1311-
111	BRACKET; OIL PIPE	1-47475-427-1	02	1	1311-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1311-
233	BOLT; PIPE CLIP,P/S (A) M8X45 FLANGE	0-28050-845-0	01	1	1311-
233	BOLT; PIPE CLIP,P/S (B) M8X40 FLANGE	0-28650-840-0	01	1	1311-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	1311-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1311-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1311-
256	NUT; UNION (C) M22	0-91111-522-0	02	1	1311-
265	PIPE; OIL,UNION TO UNION (B)	8-98257-443-0	01	1	1311-1510
265	PIPE; OIL,UNION TO UNION (B)	8-98283-007-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (A)	8-98216-579-1	01	1	1311-
265	PIPE; OIL,UNION TO UNION (C)	8-98216-590-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (D)	8-98247-583-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (E)	8-98247-584-0	01	1	1311-
265	PIPE; OIL,UNION TO UNION (F)	8-98248-719-0	01	1	1311-
266	UNION; OIL PIPE,P/S (A) M22X2 ELBOW	0-92135-215-0	01	1	1311-
266	UNION; OIL PIPE,P/S (B) M22 2WAY	1-09654-212-1	01	1	1311-
