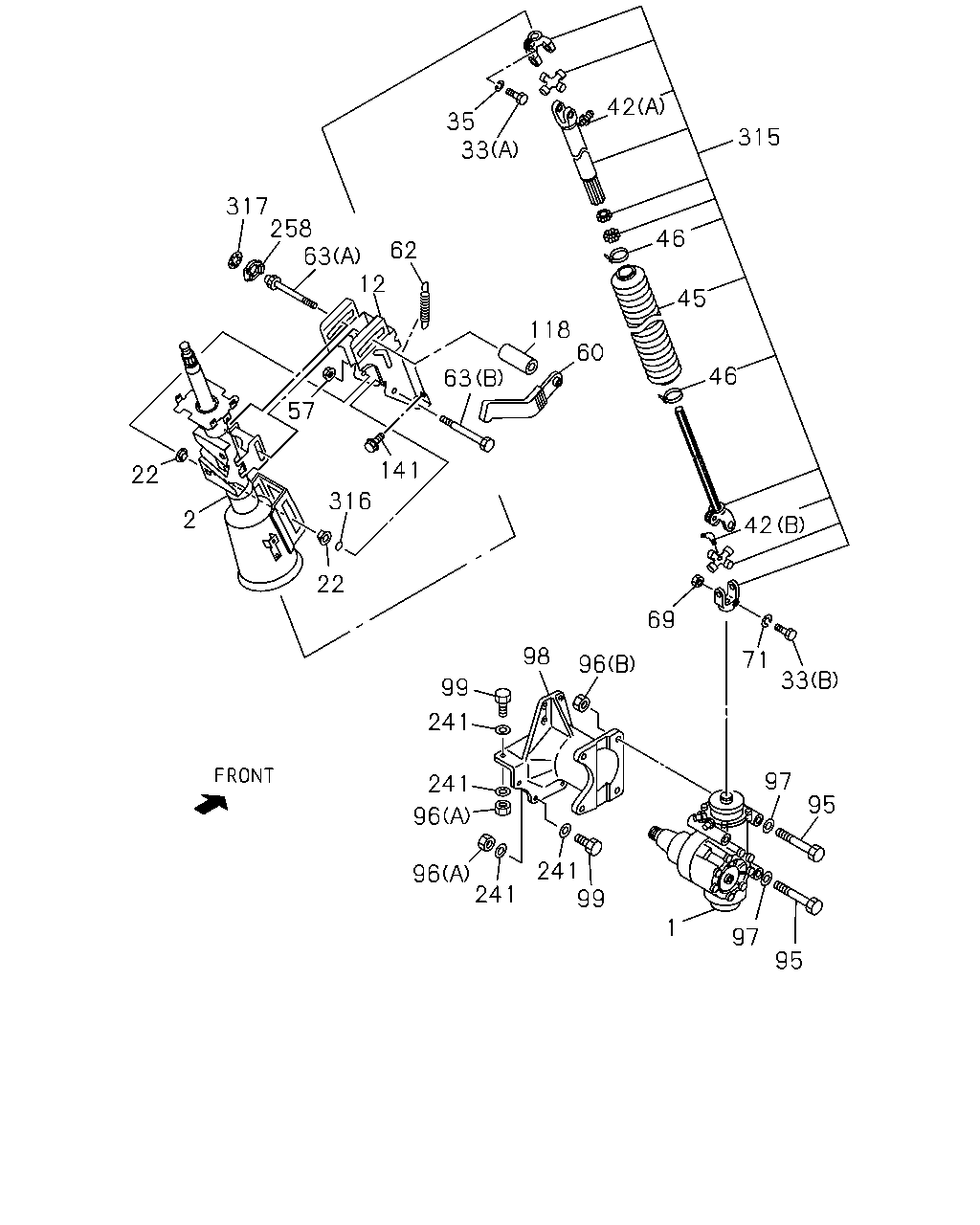

4-31 — STEERING COLUMN AND SHAFT
(#130424) — 32 parça
315
42
35
62
33
63
258
317
12
63
118
60
46
45
46
42
33
71
97
95
95
7
1
99
241
241
96
96
241
98
96
69
141
316
22
2
22
57
241
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-832-3
01
1
1311-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
1311-
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
1311-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
1311-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
1311-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
1311-
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
1311-
42
NIPPLE; GREASE,SLEEVE YOKE
(A)
1-44135-375-0
01
1
1311-
42
NIPPLE; GREASE,SLEEVE YOKE
(B)
1-44135-376-0
01
1
1311-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
1311-
46
CLIP; BOOT
1-44139-156-0
02
1
1311-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
1311-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
1311-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
1311-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
1311-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
1311-
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
1311-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
1311-
95
BOLT; STRG UNIT
M16X177
1-09000-426-0
02
1
1311-
95
BOLT; STRG UNIT
M16X163
1-09040-078-0
02
1
1311-
96
NUT; STRG UNIT
(A) M14
0-91110-514-0
06
1
1311-
96
NUT; STRG UNIT
(B) M16
0-91110-516-0
02
1
1311-
97
WASHER; PL,STRG UNIT
ID=16.2
1-09503-316-0
06
1
1311-
98
BRACKET; STRG GEAR BOX
1-44226-131-1
01
1
1311-
99
BOLT; BRKT TO FRAME
M14X50
0-20951-450-0
06
1
1311-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
1311-
141
BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE
0-28050-816-0
04
1
1311-
241
WASHER; PL
ID=15
8-98010-627-1
12
1
1311-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
1311-
315
JOINT; SPLINE
1-44135-341-1
01
1
1311-
316
RING
1-44227-152-0
01
1
1311-
317
NUT; PUSH
1-44227-148-0
01
1
1311-
