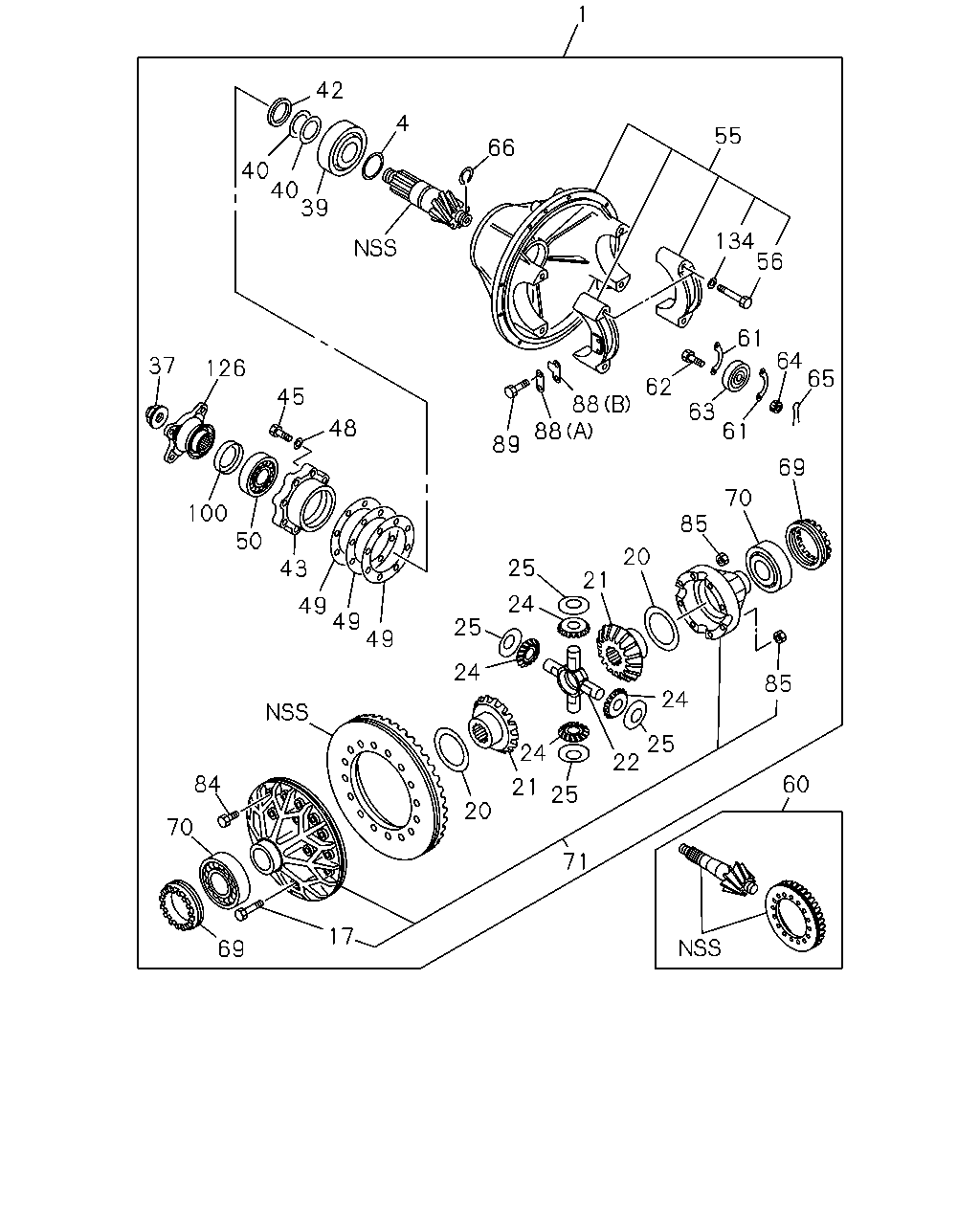

4-25 — REAR FINAL DRIVE (#130422) — 74 parça

1 55 66 4 42 40 40 39 134 56 61 64 65 69 61 63 62 88 88 89 70 85 20 21 25 24 25 24 24 25 22 85 60 25 24 21 20 71 17 84 70 69 49 49 49 43 50 100 126 45 48 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 39/7	1-41003-366-0	01	1	1311-	●
1	DRIVE ASM; FINAL,RR 41/7	1-41003-554-0	01	1	1311-		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1311-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	1311-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	1311-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-159-1	02	1	1311-	●	●
22	SPIDER; DIFF PINION	1-41521-061-0	01	1	1311-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-051-0	04	1	1311-	●	●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	1311-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1311-	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1311-	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1311-	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1311-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1311-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1311-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1311-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1311-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1311-	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1311-	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1311-	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1311-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1311-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1311-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1311-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1311-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1311-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1311-	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1311-	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1311-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1311-	●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	1311-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1311-	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1311-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1311-	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1311-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1311-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1311-	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1311-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1311-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1311-	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1311-	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1311-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1311-	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1311-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1311-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1311-	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1311-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1311-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1311-	●	●
126	COUPLING; DRIVING PINION	1-37245-391-0	01	1	1311-	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1311-	●	●
