Isuzu WW
▶
BUSES
▶
LT
▶
11562 - LT434-RHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

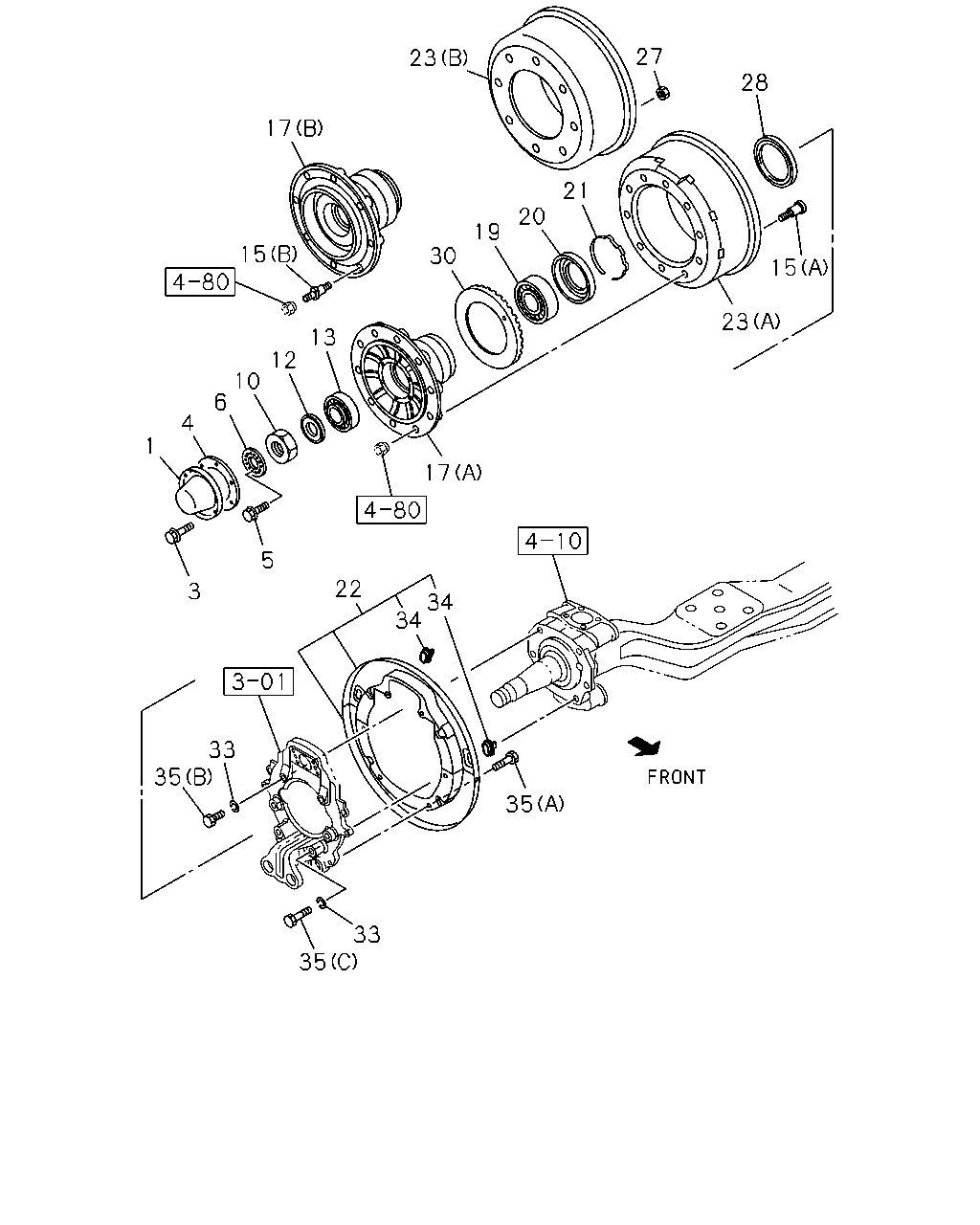

4-11 — FRONT HUB AND DRUM OR ROTOR
(#130420) — 27 parça
35
33
35
35
33
3
5
22
34
34
17
1
4
6
10
12
13
15
17
23
30
19
20
21
27
28
15
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1311-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
1311-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1311-
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1311-
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
1311-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1311-
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
1311-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1311-
15
PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X82 RH THREAD
1-42337-093-1
20
1
1311-
15
PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5,M22X57.5 RH THREAD
1-42331-109-1
08
1
1311-
15
PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24X37.5 LH THREAD,M22X57.5 RH THREAD
1-42332-109-1
08
1
1311-
17
HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)
8-98132-507-2
02
1
1311-
17
HUB; FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)
1-42312-151-3
02
1
1311-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
1311-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
1311-
21
RING; SNAP,HUB
1-09587-017-0
02
1
1311-
22
COVER SET; FRT BRK DRUM
1-87831-225-0
02
1
1311-
23
DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)
8-98119-482-1
02
1
1311-
23
DRUM; BRK,FRT
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)
1-42315-397-0
02
1
1311-
27
NUT; WHEEL PIN,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE
1-09440-065-0
16
1
1311-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
1311-
30
RING; EXCITER,FRT HUB
1-42319-203-0
02
1
1311-
33
WASHER; LK,DRUM COVER
ID=18.2
0-91510-818-0
12
1
1311-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1311-
35
BOLT; DRUM COVER
(C) M18X65
1-09000-789-0
04
1
1311-
35
BOLT; DRUM COVER
(B) M18X45
1-09000-790-0
08
1
1311-
35
BOLT; DRUM COVER
(A) M10X12
1-47159-187-0
12
1
1311-
