Isuzu WW
▶
BUSES
▶
LT
▶
11562 - LT434-RHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

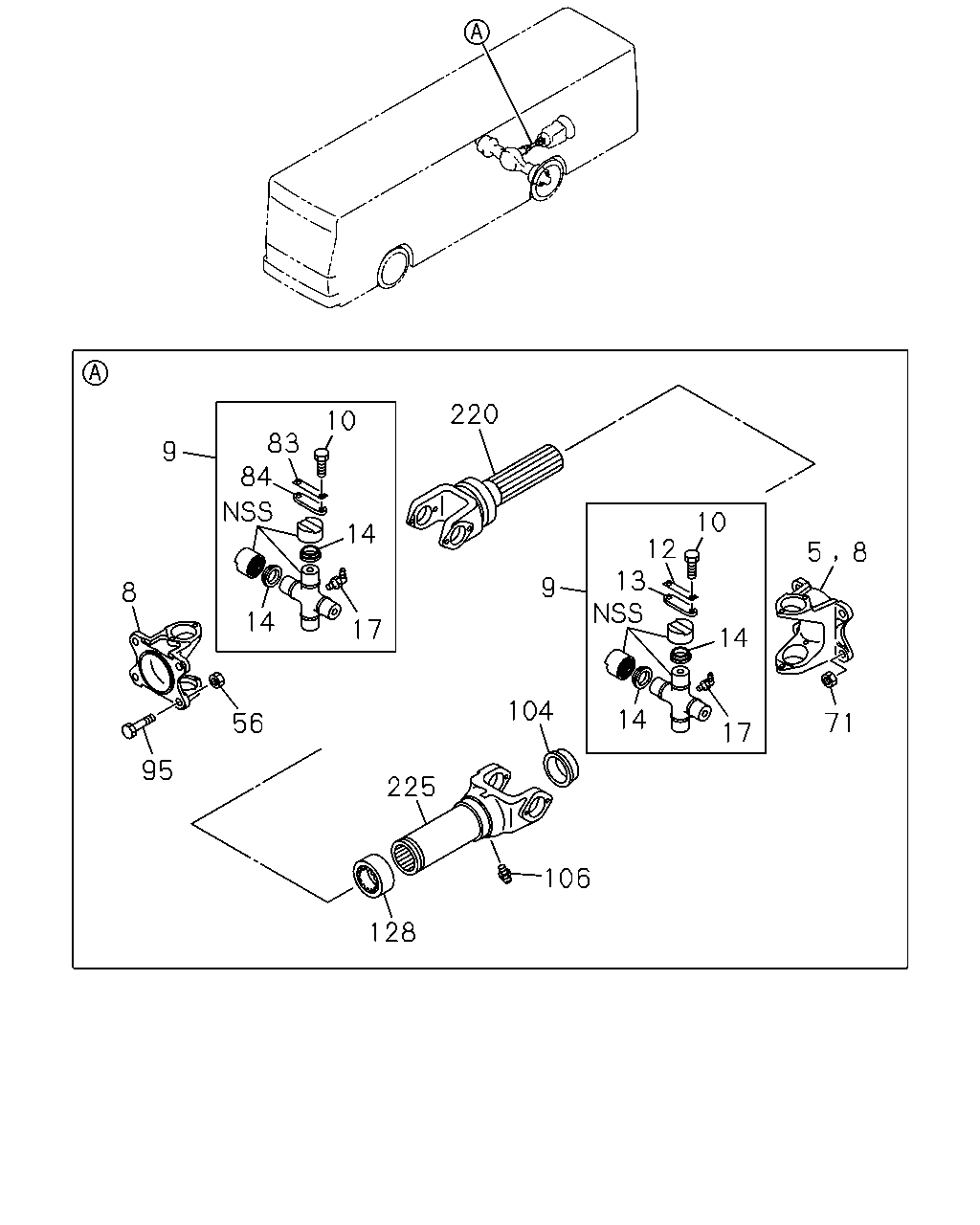

4-01 — PROPELLER SHAFT
(#130418) — 24 parça
5
8
71
17
14
14
10
12
13
9
104
106
128
225
56
95
8
9
220
10
14
17
14
83
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
YOKE; STUB,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98242-323-0
01
1
1408-
8
YOKE; FLANGE,PROP SHAFT
1-37211-072-1
02
1
1311-
8
YOKE; FLANGE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>
1-37211-072-1
-
1
1408-
9
JOURNAL ASM; PROP SHAFT
1-37300-094-1
01
1
1311-
10
BOLT; UJT
TRANSMISSION CONTROL-SMOOTHER<8GF> M10X20
0-20951-020-0
16
1
1408-
10
BOLT; UJT
M10X20
9-02061-020-0
16
1
1311-
12
PLATE; LK,FRT UJT,PROP SHAFT
1-37356-010-0
04
1
1311-
13
COVER; FRT UJT,PROP SHAFT
T=6
1-37355-022-0
04
1
1311-
14
COVER; DUST,SPIDER
9-37352-023-0
08
1
1311-
17
NIPPLE; GREASE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER<8GF> PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1408-
17
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
02
1
1311-
56
NUT; YOKE
M16 FLANGE
1-09449-065-0
04
1
1311-
71
NUT; YOKE
M16 FLANGE
1-09449-065-0
04
1
1311-
83
PLATE; LK,UJT,PROP SHAFT
1-37356-010-0
04
1
1311-
84
COVER; UJT,PROP SHAFT
T=6
1-37355-022-0
04
1
1311-
95
BOLT; YOKE,FINAL
M16X48
1-09000-383-0
04
1
1311-
104
PLUG; SLEEVE YOKE
1-09600-067-0
01
1
1311-
106
NIPPLE; GREASE,YOKE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER<8GF> PT1/8 STRAIGHT
0-90301-410-0
01
1
1408-
106
NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT
9-09031-010-0
01
1
1311-
128
SEAL; SLEEVE
TRANSMISSION CONTROL-SMOOTHER<8GF>
1-37247-021-0
01
1
1408-
128
SEAL; SLEEVE
1-37247-010-0
01
1
1311-
220
YOKE; SPLINED
L=338
1-37171-135-0
01
1
1311-
225
YOKE; SLEEVE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98242-409-0
01
1
1408-
225
YOKE; SLEEVE,PROP SHAFT
L=232
1-37241-127-0
01
1
1311-
