3-70 — BRAKE PIPING; AIR,AIR MASTER (#130414) — 100 parça

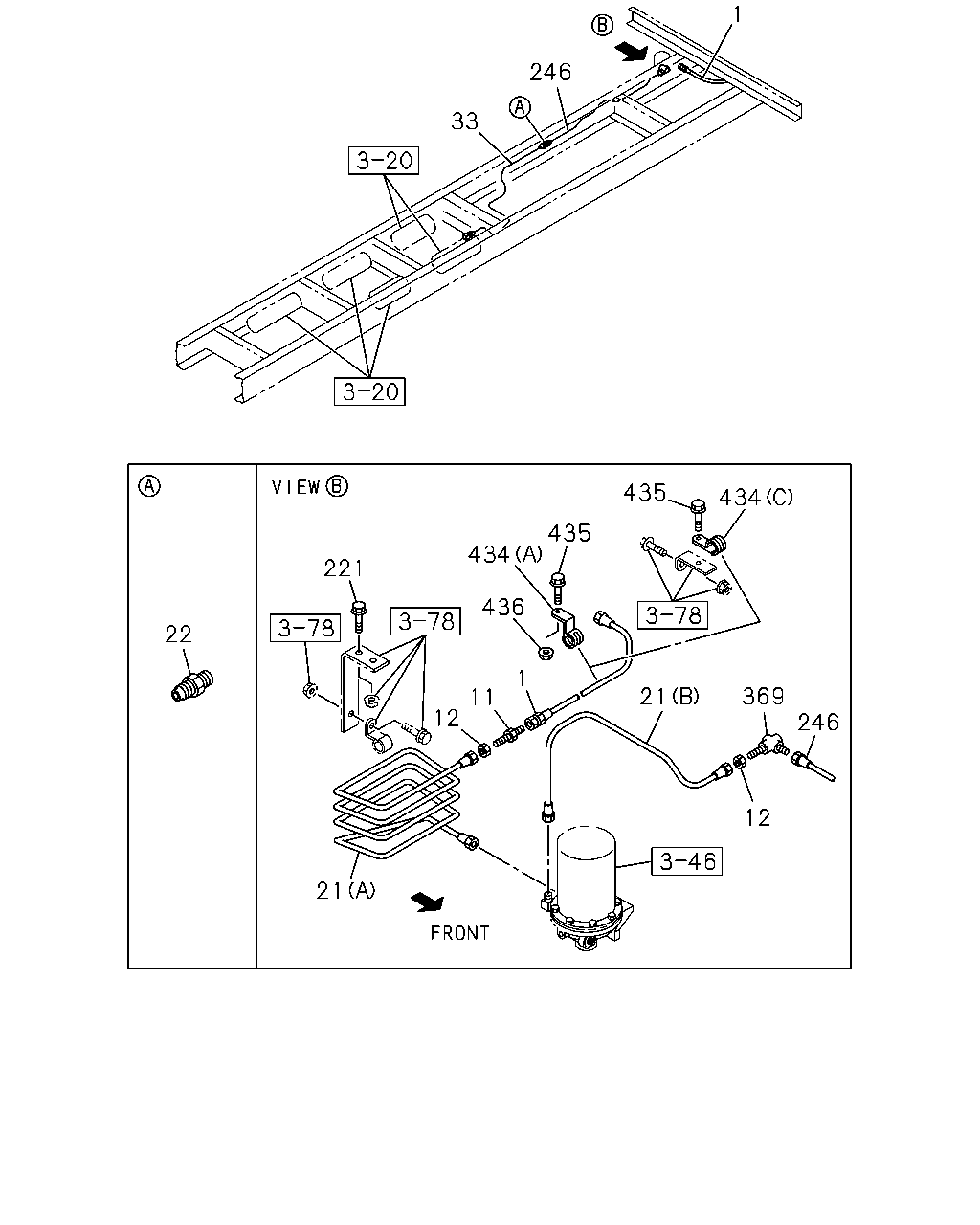

çizim 385578
1 246 33 434 435 435 434 436 221 22 12 11 1 21 369 246 12 21
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 1311-
11 UNION; AIR PIPE
M22 L=77 STRAIGHT 		0-92123-115-0 01 1 1311-
12 NUT; UNION
M22 		0-91111-522-0 02 1 1311-
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-98217-544-0 01 1 1311-
21 PIPE; AIR,UNION TO AIR DRYER
(B) 		8-98217-545-0 01 1 1311-
22 NIPPLE; AIR PIPE
M22 L=51 		0-92123-015-0 01 1 1311-
33 PIPE; AIR,UNION TO AIR TANK
L=1736 		8-98246-745-0 01 1 1311-
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1311-
246 PIPE; AIR,UNION TO UNION
L=970 		8-98217-546-1 01 1 1311-
369 UNION; AIR PIPE
M22X2 ELBOW 		0-92135-215-0 01 1 1311-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=350 		1-09707-183-0 03 1 1408-1501
434 CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=350 		1-09707-183-0 03 1 1502-
434 CLIP
NEW ZEALAND EQUIPMENT(E13) (B) L=350 		1-09707-183-0 03 1 1502-
434 CLIP
(A) ID=25 H=60 L=35 		1-09701-103-0 01 1 1311-1410
434 CLIP
(C) ID=26 L=27 		1-09701-006-0 01 1 1411-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> (B) L=350 		1-09707-183-0 03 1 1311-1407
434 CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=350 		1-09707-183-0 02 1 1408-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1311-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311-1410

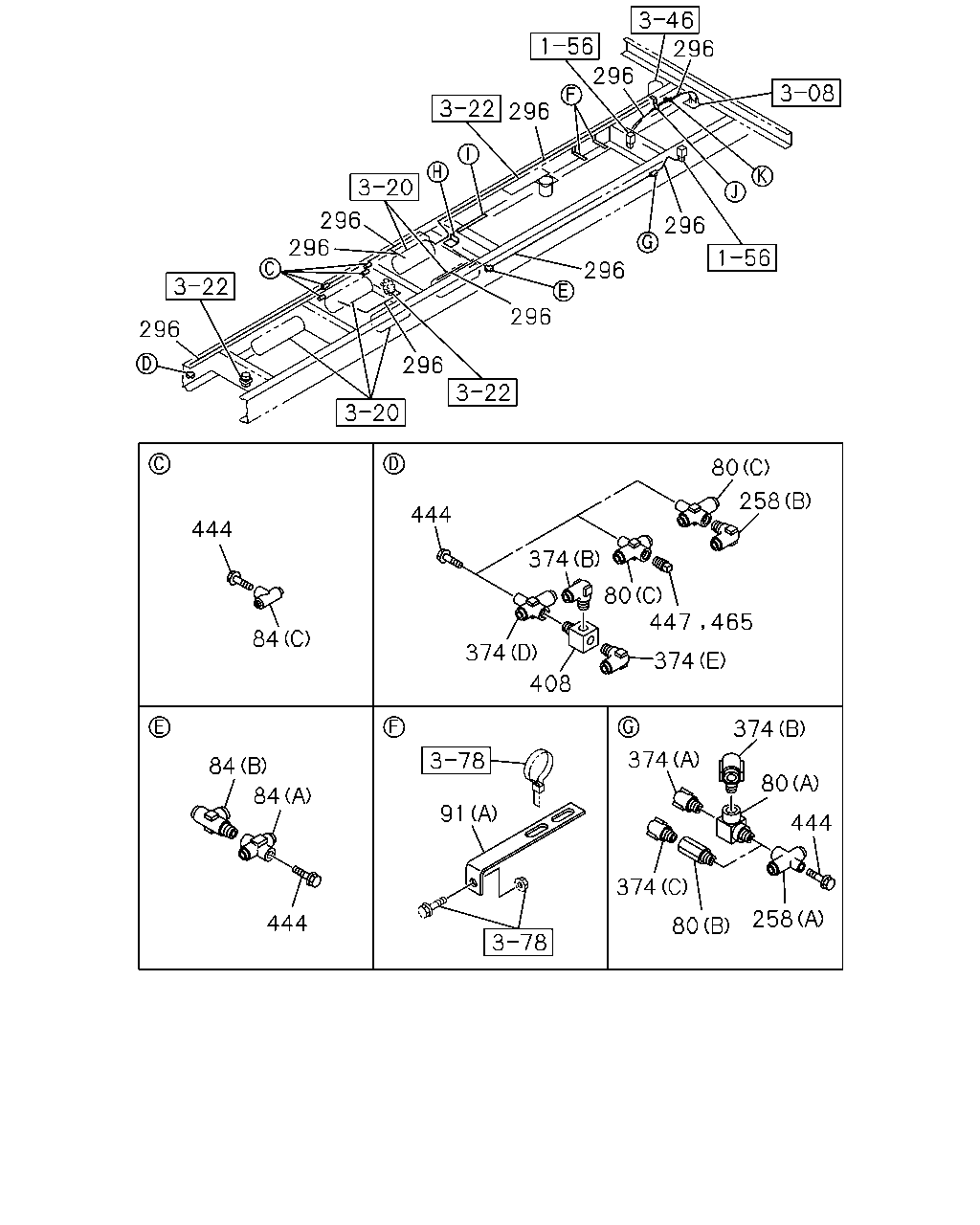

çizim 385639
296 296 296 296 296 296 296 296 296 296 444 84 444 374 374 80 408 447 465 80 258 374 84 84 444 91 374 374 80 444 374 80 258
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
AIR HORN(WB8) EXC. H.S.A SYSTEM<6EP> (C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1311-1407
80 UNION; 3 WAY
ELECTRICAL HORN(WB7) (C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1311-1407
80 UNION; 3 WAY
AIR HORN(WB8) EXC. H.S.A SYSTEM<6EP> (C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1408-
80 UNION; 3 WAY
ELECTRICAL HORN(WB7) (C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1408-
80 UNION; 3 WAY
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1408-
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> (A) R3/8 & RC1/4 & RC3/8 3WAY 		8-98181-830-0 01 1 1311-1407
80 UNION; 3 WAY
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) R3/8 & RC1/4 & RC3/8 3WAY 		8-98181-830-0 01 1 1408-
80 UNION; 3 WAY
EXC. BRAKE SYSTEM RETARDER<RE2> (B) PT3/8 		1-48319-058-0 01 1 1311-1407
80 UNION; 3 WAY
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. BRAKE SYSTEM RETARDER<RE2> (B) PT3/8 		1-48319-058-0 01 1 1408-
84 UNION; NYLON TUBE
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1311-
84 UNION; NYLON TUBE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 04 1 1311-
84 UNION; NYLON TUBE
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1311-
91 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 1311-
91 BRACKET; TUBE CLIP
(B) 		1-47478-408-0 01 1 1311-
91 BRACKET; TUBE CLIP
(C) L=229 		1-47478-993-0 01 1 1311-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1311-1407
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1408-
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1311-1407
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1408-
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1408-
258 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> ELECTRICAL HORN(WB7) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1311-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1311-
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1311-1407
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1408-
374 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1311-1407
374 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1408-
374 CONNECTOR
H.S.A SYSTEM<6EP> AIR HORN(WB8) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1311-1407
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1311-1407
374 CONNECTOR
H.S.A SYSTEM<6EP> AIR HORN(WB8) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1408-
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1408-
374 CONNECTOR
H.S.A SYSTEM<6EP> AIR HORN(WB8) (D) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1311-
374 CONNECTOR
H.S.A SYSTEM<6EP> AIR HORN(WB8) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1311-
408 UNION; 3 WAY,NYLON TUBE
H.S.A SYSTEM<6EP> AIR HORN(WB8) PT3/8 3WAY 		1-09661-300-0 01 1 1311-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 07 1 1311-
447 PLUG; UNION
ELECTRICAL HORN(WB7) EXC. H.S.A SYSTEM<6EP> PT3/8 		9-09204-517-0 01 1 1311-
465 PLUG
TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. BRAKE SYSTEM RETARDER<RE2> PT3/8 		9-09204-517-0 01 1 1408-
çizim 385657
89 91 90 428 377 434 450 467 149 90 91 89
BalonParca AdiParca NoAdetTipApplied Date
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1311-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1311-
91 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 1311-
91 BRACKET; TUBE CLIP
(B) 		1-47478-408-0 01 1 1311-
91 BRACKET; TUBE CLIP
(C) L=229 		1-47478-993-0 01 1 1311-
149 BOLT; TUBE CLIP
BRAKE SYSTEM RETARDER<RE2> M8X35 FLANGE 		0-28650-835-0 01 1 1311-1407
149 BOLT; TUBE CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X35 FLANGE 		0-28650-835-0 01 1 1408-
377 BOLT; BRKT FIX
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28650-825-0 01 1 1311-1407
377 BOLT; BRKT FIX
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X25 FLANGE 		0-28650-825-0 01 1 1408-
428 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 1311-1407
428 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE 		0-91180-108-0 01 1 1408-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=350 		1-09707-183-0 03 1 1408-1501
434 CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=350 		1-09707-183-0 03 1 1502-
434 CLIP
NEW ZEALAND EQUIPMENT(E13) (B) L=350 		1-09707-183-0 03 1 1502-
434 CLIP
(A) ID=25 H=60 L=35 		1-09701-103-0 01 1 1311-1410
434 CLIP
(C) ID=26 L=27 		1-09701-006-0 01 1 1411-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> (B) L=350 		1-09707-183-0 03 1 1311-1407
434 CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=350 		1-09707-183-0 02 1 1408-
450 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> 		1-47477-626-0 01 1 1311-1407
450 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-47477-626-0 01 1 1408-
467 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> ID=18 L=25 H=50 		1-09701-096-0 01 1 1311-1407
467 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=18 L=25 H=50 		1-09701-096-0 01 1 1408-
çizim 386170
296 296 296 367
BalonParca AdiParca NoAdetTipApplied Date
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1311-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1311-
