3-41 — REAR BRAKE POWER CHAMBER
(#130410) — 20 parça
◀

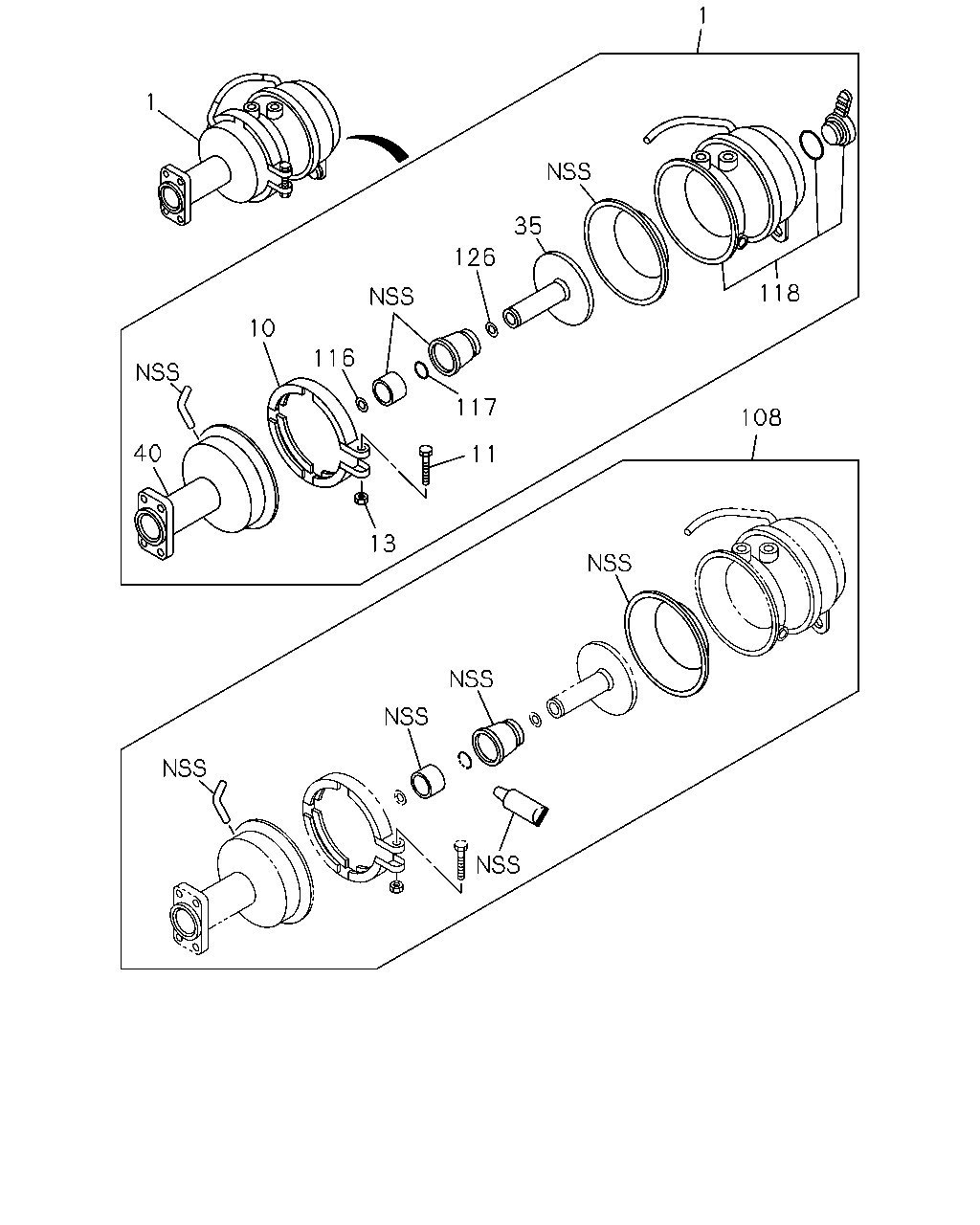

[341A] WHEEL BRAKE (14 parça)

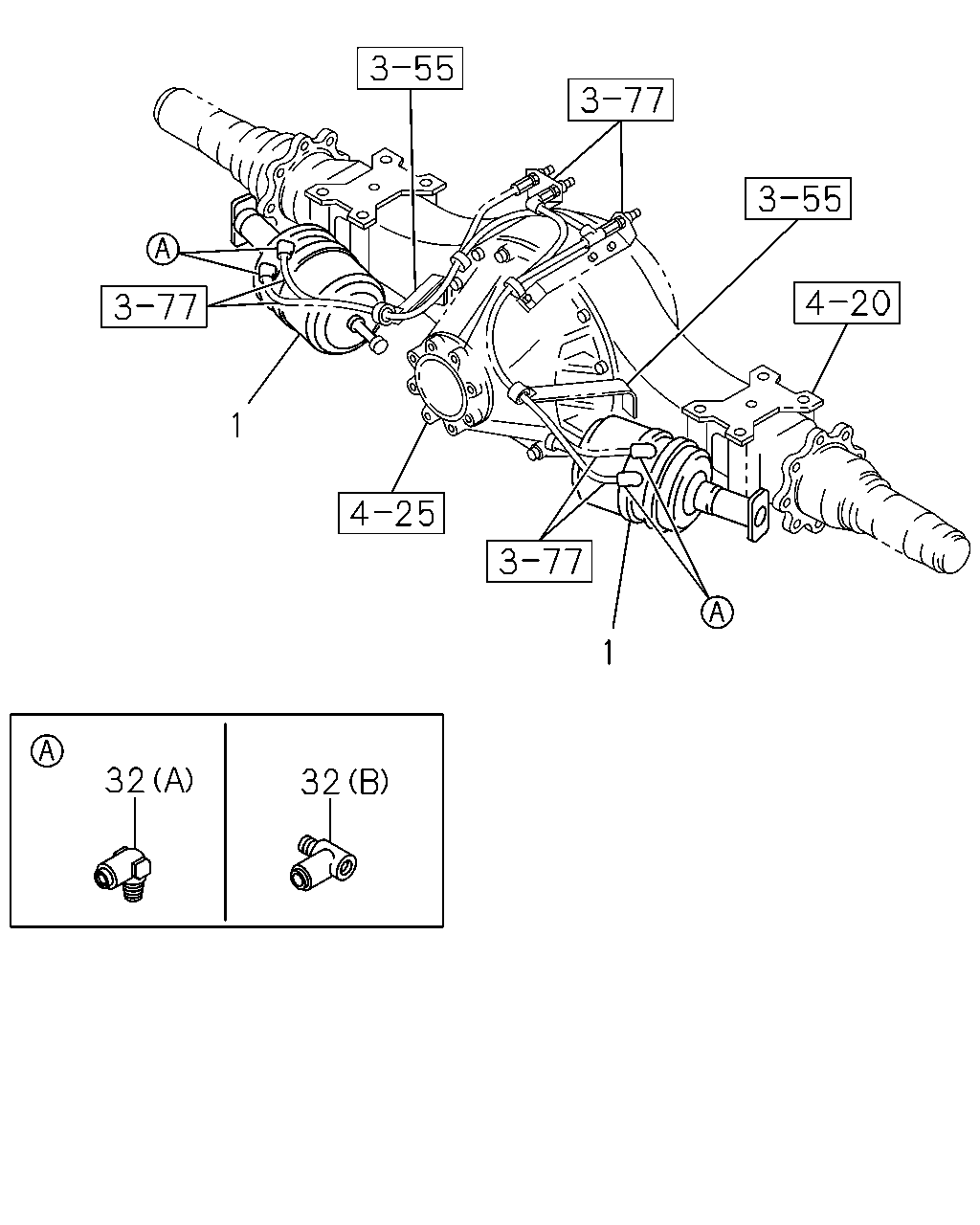

[341A] CONNECTOR (6 parça)
▶
108
13
11
117
126
35
1
1
40
10
116
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-093-0
01
1
1311-
1
CHAMBER ASM; SPRING
1-87412-094-0
01
1
1311-
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1311-
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1311-
13
NUT; CLAMP RING
1-48269-147-0
02
1
1311-
35
PLATE; ROD END,SPR CHAMBER
8-98183-639-0
02
1
1311-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-148-1
01
1
1311-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-149-1
01
1
1311-
108
REPAIR KIT; SPR CHAMBER
8-98146-980-0
02
1
1311-
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1311-
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1311-
118
CHAMBER; PIGGY BACK
1-87412-111-0
01
1
1311-
118
CHAMBER; PIGGY BACK
1-87412-112-0
01
1
1311-
126
SHIM
8-98146-965-0
AR
1
1311-
32
32
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-093-0
01
1
1311-
1
CHAMBER ASM; SPRING
1-87412-094-0
01
1
1311-
32
CONNECTOR; SPR CHAMBER
ANTILOCK BRAKE SYSTEM<BFA> BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1502-
32
CONNECTOR; SPR CHAMBER
ANTILOCK BRAKE SYSTEM<BFA> BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 & RC1/4 3WAY
1-09661-776-1
01
1
1502-
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1311-1501
32
CONNECTOR; SPR CHAMBER
ANTILOCK BRAKE SYSTEM<BFA> EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1502-
