3-34 — BRAKE VALVE; AIR
(#130408) — 24 parça
◀

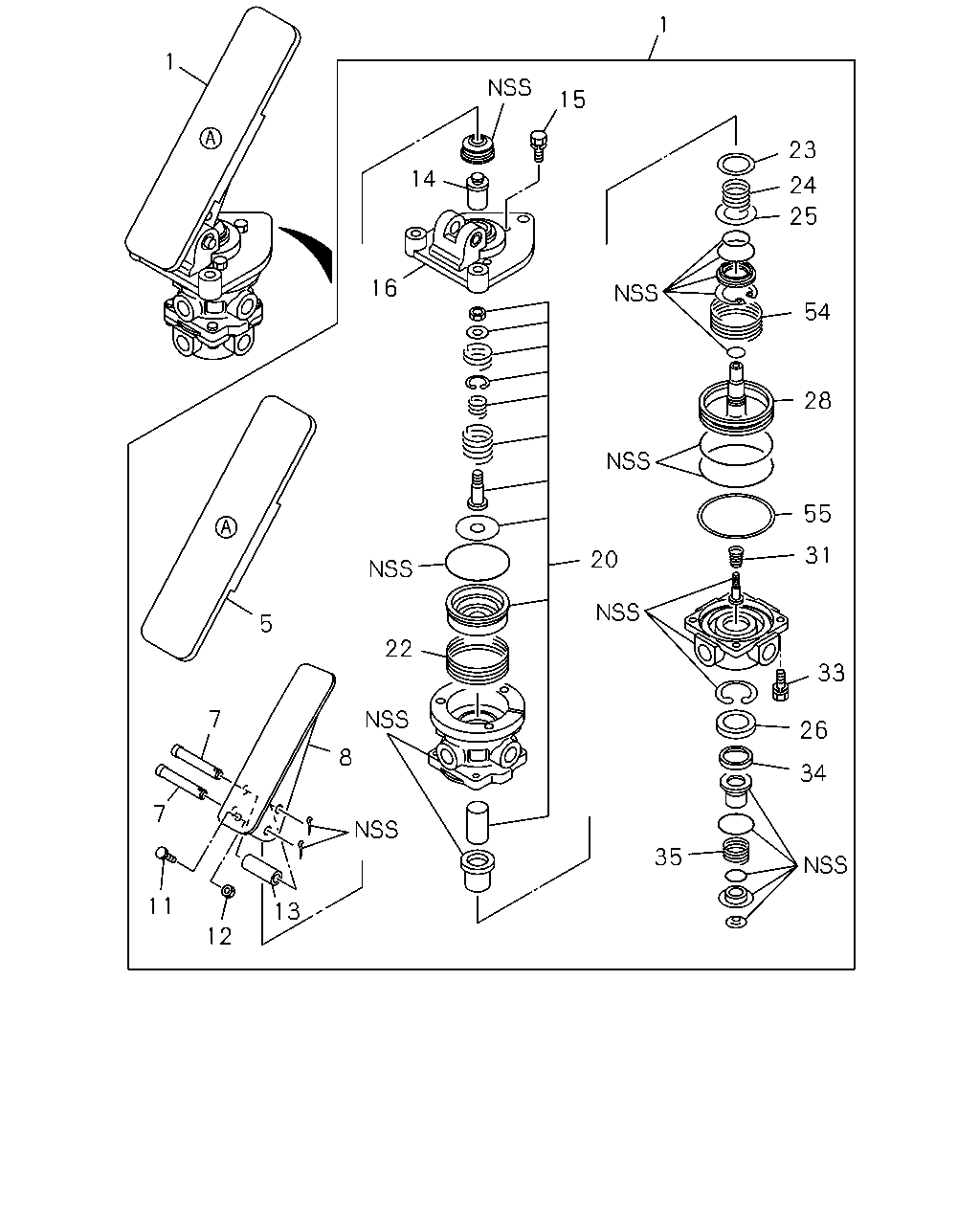

[334A] COMPONENT (23 parça)
[334A] REPAIR KIT (1 parça)
▶
1
1
15
14
16
5
7
7
11
12
13
8
22
20
35
34
33
26
31
55
28
54
25
24
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
8-98222-801-0
01
1
1311-
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
1311-
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
1311-
8
PEDAL; BRK VLV
1-48119-429-0
01
1
1311-
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
1311-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
1311-
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
1311-
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
1311-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
1311-
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
1311-
20
PISTON; UPR,BRK VLV
1-48119-592-0
01
1
1311-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
1311-
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
1311-
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
1311-
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
1311-
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
1311-
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
1311-
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
1311-
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
1311-
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
1311-
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
1311-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
1311-
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
1311-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
8-98222-817-0
01
1
1311-
