◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11562 - LT434-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#130407) — 95 parça
çizim 385615
200 197 201 203 202 198 199 196 200 197 201 203 205 198 204 190 192 189 201 195 106 196 199 205
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1311-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1311-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1311-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1311-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1311-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1311-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1311-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1311-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1311-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1311-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1311-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1311-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1311-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1311-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1311-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1311-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1311-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (C) 		8-98217-573-0 01 1 1311-

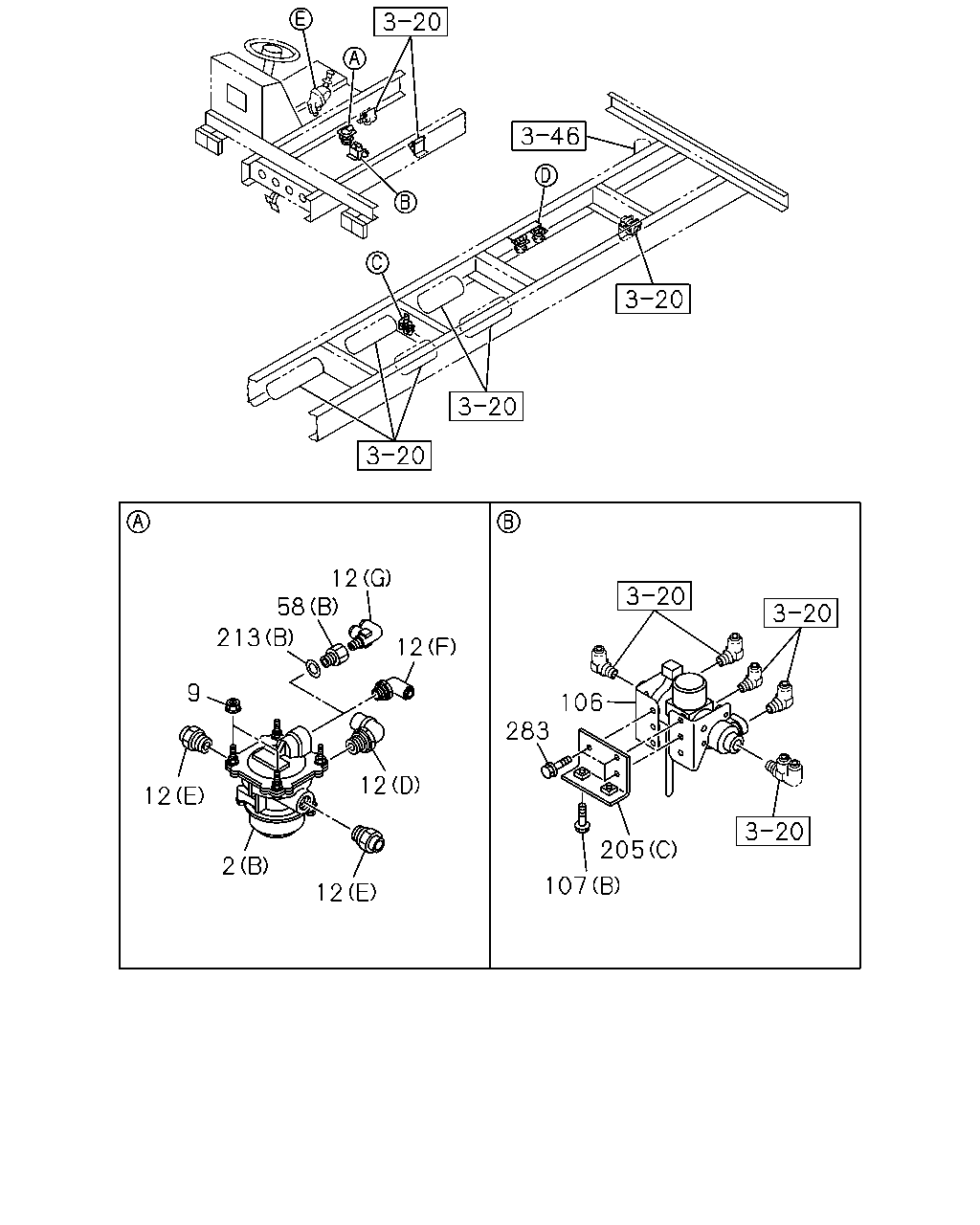

çizim 385784
205 107 283 106 12 2 12 12 9 213 12 58 12
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
(A) 		8-98091-528-0 01 1 1311-
2 VALVE; RELAY
(B) 		8-98091-529-0 02 1 1311-
9 NUT
M8 FLANGE 		0-91180-108-0 02 1 1311-
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(E) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(E) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1311-
12 CONNECTOR; RELAY VLV
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(D) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(D) DIN12 & M22 ELBOW 		1-09661-497-0 05 1 1311-
12 CONNECTOR; RELAY VLV
(F) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 1311-
12 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (F) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(A) R3/8 & RC1/4 & RC3/8 3WAY 		8-98181-830-0 01 1 1311-
12 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1311-
58 ADAPTER
(A) PT3/8 		1-09664-210-0 01 1 1311-
58 ADAPTER
EXC. H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1311-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1311-
107 BOLT; VLV
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1311-
107 BOLT; VLV
H.S.A SYSTEM<6EP> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1311-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1311-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1311-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (C) 		8-98217-573-0 01 1 1311-
213 GASKET
(A) ID=22.5 		9-09571-422-0 01 1 1311-
213 GASKET
EXC. H.S.A SYSTEM<6EP> (B) ID=16.2 OD=24 		9-09571-416-0 01 1 1311-
283 BOLT; HSA VLV
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 03 1 1311-

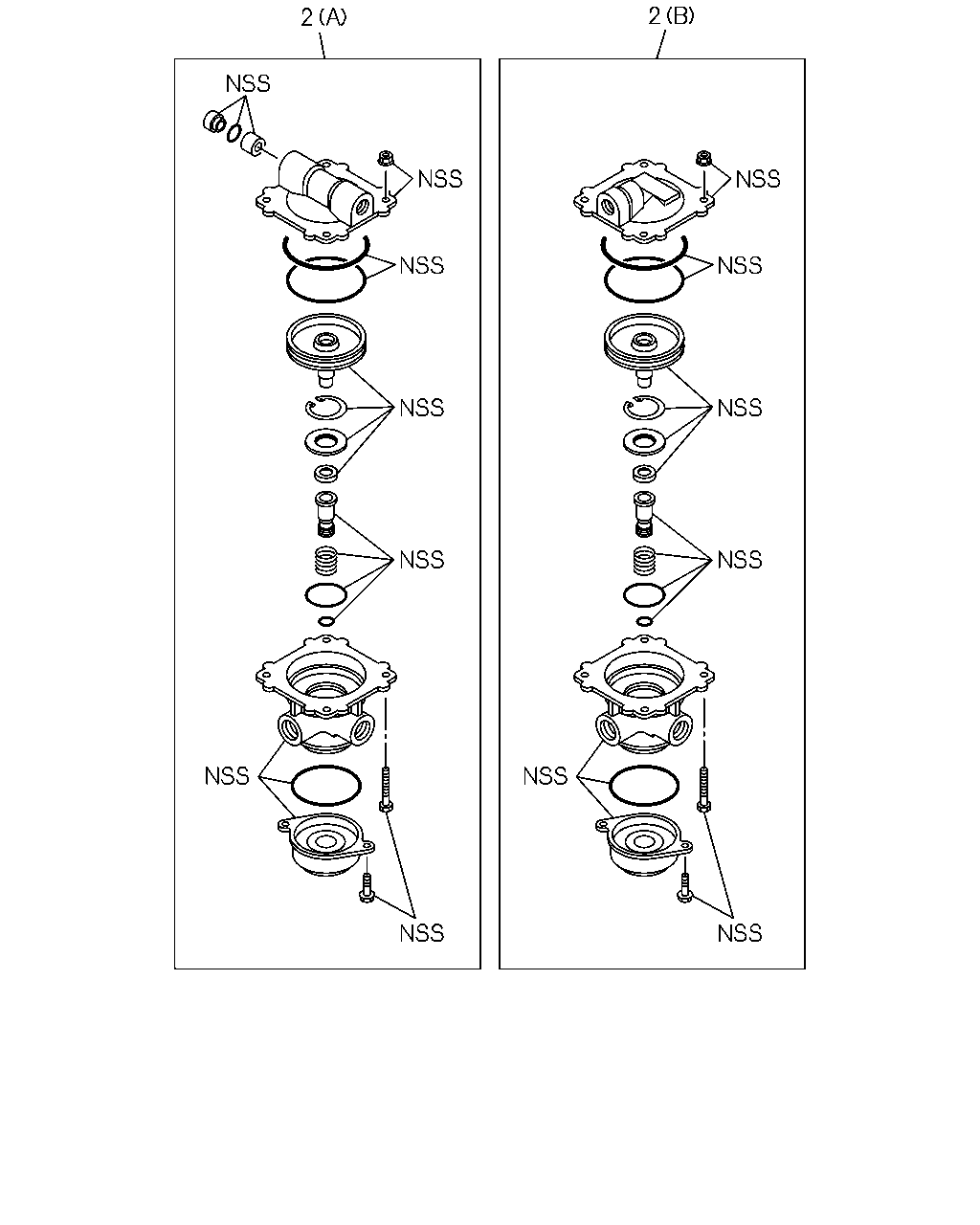

çizim 385785
2 2
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
(A) 		8-98091-528-0 01 1 1311-
2 VALVE; RELAY
(B) 		8-98091-529-0 02 1 1311-
çizim 385949
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1311-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1311-

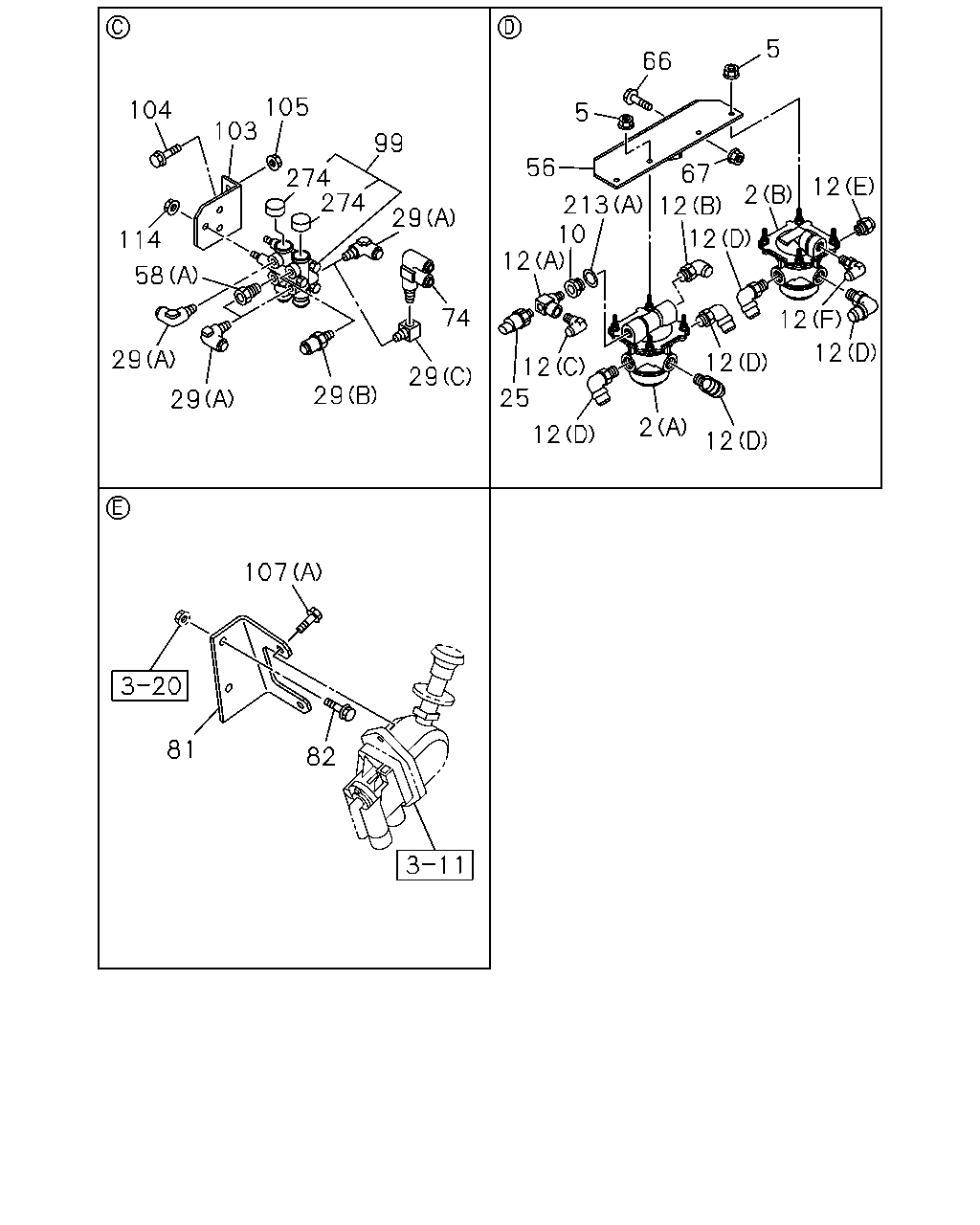

çizim 386050
105 104 114 58 29 29 29 29 74 29 274 99 274 103 107 81 82 56 5 66 5 67 12 12 2 12 12 12 12 12 2 12 25 12 12 10 213
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
(A) 		8-98091-528-0 01 1 1311-
2 VALVE; RELAY
(B) 		8-98091-529-0 02 1 1311-
5 NUT
M8 FLANGE 		0-91180-108-0 04 1 1311-
10 CONNECTOR
INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1311-
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(E) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(E) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1311-
12 CONNECTOR; RELAY VLV
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(D) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(D) DIN12 & M22 ELBOW 		1-09661-497-0 05 1 1311-
12 CONNECTOR; RELAY VLV
(F) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 1311-
12 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (F) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 1311-
12 CONNECTOR; RELAY VLV
(A) R3/8 & RC1/4 & RC3/8 3WAY 		8-98181-830-0 01 1 1311-
12 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1311-
25 SWITCH; PRESSURE
STAMP 2.0 		8-98010-856-2 01 1 1311-
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (C) PT3/8 ELBOW 		1-09660-696-0 01 1 1502-
29 CONNECTOR; AIR VLV
EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1502-
29 CONNECTOR; AIR VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1311-1501
29 CONNECTOR; AIR VLV
BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1502-
29 CONNECTOR; AIR VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1311-
56 BRACKET; RELAY VLV 8-98191-528-0 01 1 1311-
58 ADAPTER
(A) PT3/8 		1-09664-210-0 01 1 1311-
58 ADAPTER
EXC. H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1311-
66 BOLT; BRKT,RELAY VLV RR
M8X35 FLANGE 		0-28650-835-0 04 1 1311-
67 NUT; BRKT,RELAY VLV RR
M8 FLANGE 		0-91180-108-0 04 1 1311-
74 CONNECTOR; 3WAY
BRAKE REGULATION ADR<TDU> DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1502-
81 BRACKET; RELAY VLV,PARKING BRK 8-98217-572-1 01 1 1311-
82 BOLT; BRKT,RELAY VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1311-
99 VALVE; PROTECTION
BRAKE REGULATION ADR<TDU> 		8-98191-889-0 01 1 1502-
99 VALVE; PROTECTION 1-48110-193-1 01 1 1311-1501
99 VALVE; PROTECTION
EXC. BRAKE REGULATION ADR<TDU> 		1-48110-193-1 01 1 1502-
103 BRACKET; PROTECTION VALVE 1-47477-860-0 01 1 1311-
104 BOLT; BRKT,VALVE
M8X30 FLANGE 		0-28650-830-0 02 1 1311-
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 1311-
107 BOLT; VLV
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1311-
107 BOLT; VLV
H.S.A SYSTEM<6EP> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1311-
114 NUT; VLV
M8 FLANGE 		0-91180-208-0 03 1 1311-
213 GASKET
(A) ID=22.5 		9-09571-422-0 01 1 1311-
213 GASKET
EXC. H.S.A SYSTEM<6EP> (B) ID=16.2 OD=24 		9-09571-416-0 01 1 1311-
274 COVER; DUST 1-48119-450-0 02 1 1311-1501
274 COVER; DUST
EXC. BRAKE REGULATION ADR<TDU> 		1-48119-450-0 02 1 1502-

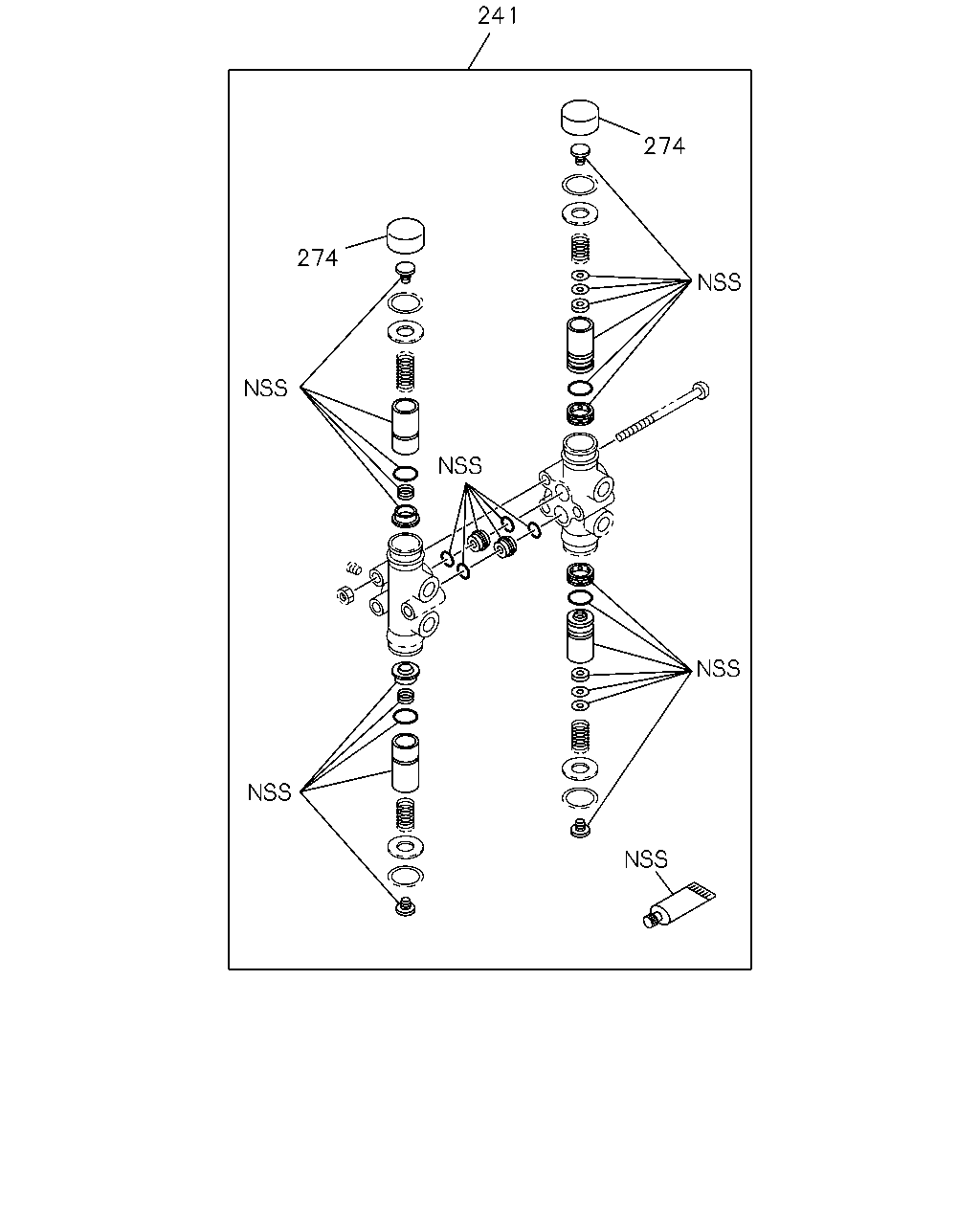

çizim 386403
241 274 274
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 1311-1501
241 REPAIR KIT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR<TDU> 		1-85576-224-0 01 1 1502-
274 COVER; DUST 1-48119-450-0 02 1 1311-1501
274 COVER; DUST
EXC. BRAKE REGULATION ADR<TDU> 		1-48119-450-0 02 1 1502-

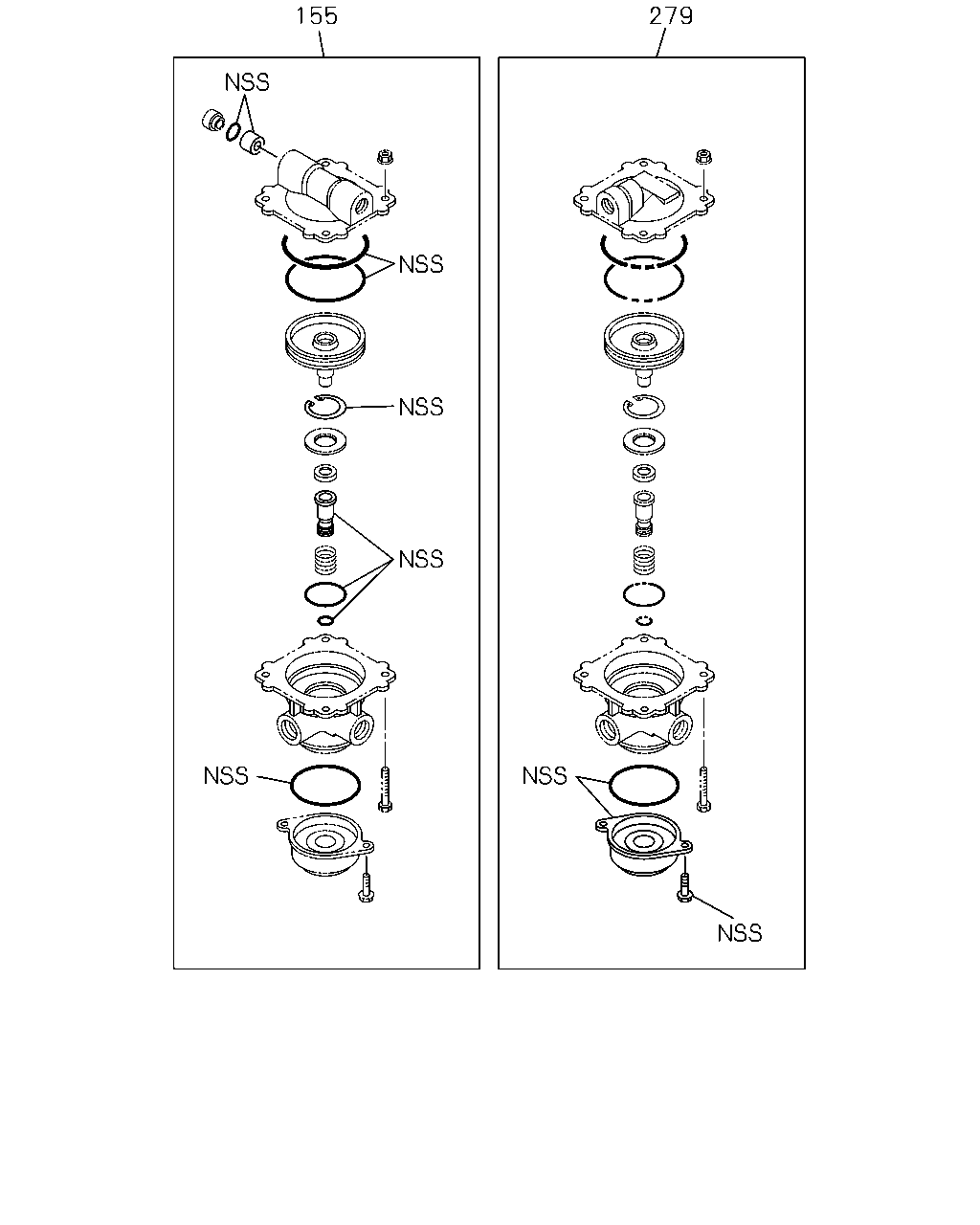

çizim 386432
155 279
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE 8-98165-977-0 01 1 1311-
155 REPAIR KIT; RELAY VALVE 8-98165-977-0 02 1 1311-
279 REPAIR KIT; SILENCER 8-98165-978-0 01 1 1311-
279 REPAIR KIT; SILENCER 8-98165-978-0 02 1 1311-
