Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#130406) — 270 parça

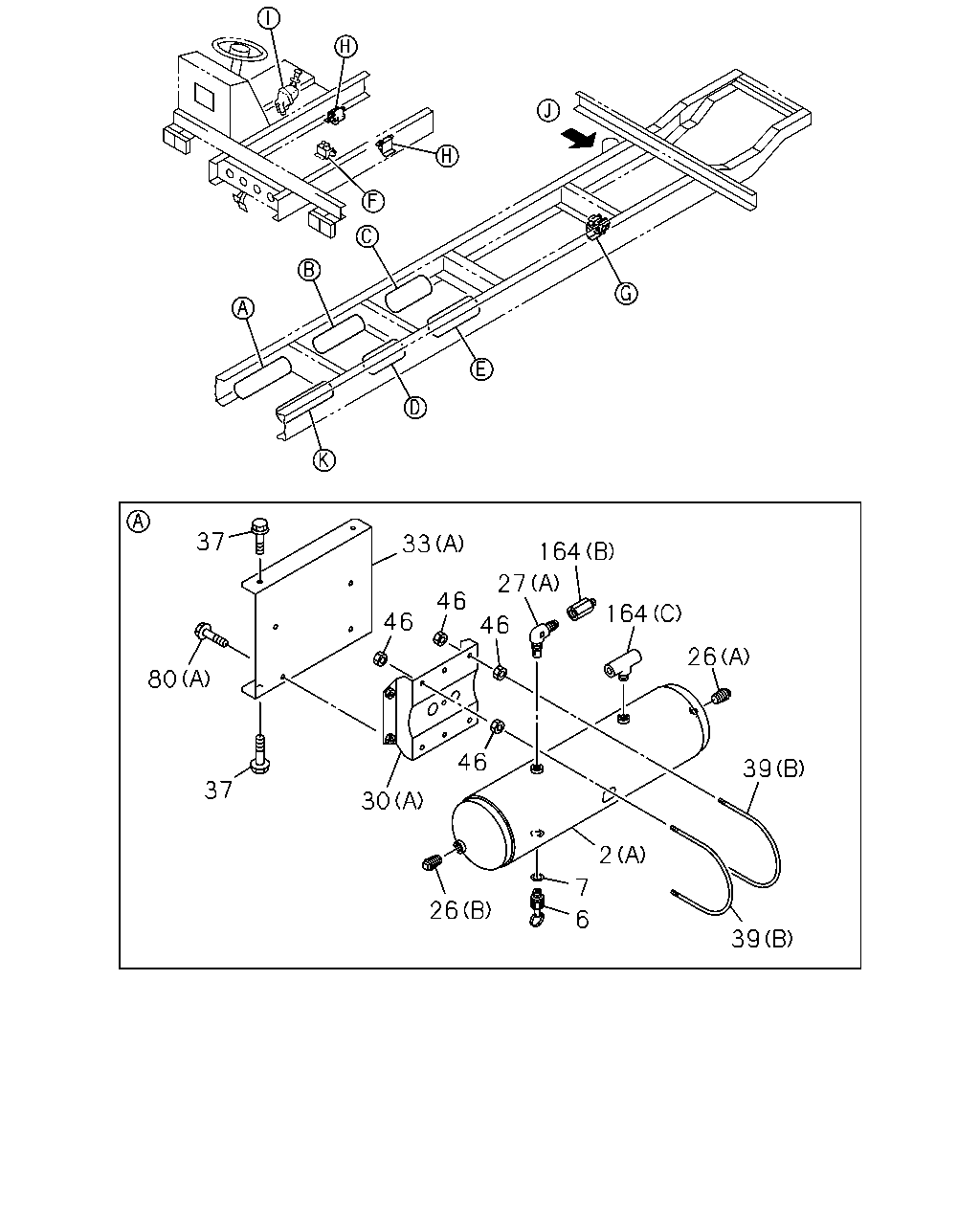

39 39 26 164 164 27 46 46 46 33 37 80 37 30 26 6 7 2 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48370-153-0	01	1	1311-
2	TANK; AIR (B)	1-48371-108-0	01	1	1311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK NEW ZEALAND EQUIPMENT(E13)	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	06	1	1311-1501
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK NEW ZEALAND EQUIPMENT(E13) ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1311-1501
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1502-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	1502-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	03	1	1311-1501
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	01	1	1502-
26	PLUG; SUB AIR TANK (A) PT1/4	9-99204-513-0	01	1	1311-
27	UNION; ELBOW,AIR TANK (A) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	1311-1501
27	UNION; ELBOW,AIR TANK (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1502-
27	UNION; ELBOW,AIR TANK (B) PT1/4 2WAY	1-09660-693-0	01	1	1311-1501
27	UNION; ELBOW,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	01	1	1502-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	1311-
30	BRACKET; AIR TANK,SUB (A)	1-48317-473-2	01	1	1311-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	1311-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	1311-
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	02	1	1311-1501
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	1502-
33	BRACKET; BRKT,AIR TANK NEW ZEALAND EQUIPMENT(E13) (A)	1-48316-081-0	01	1	1502-
37	BOLT; AIR TANK M12X30 FLANGE	0-28651-230-0	04	1	1311-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1311-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1311-1501
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1502-
39	U-BOLT; AIR TANK NEW ZEALAND EQUIPMENT(E13) (B) L=210	1-48317-458-1	02	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT NEW ZEALAND EQUIPMENT(E13) M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	40	1	1311-1501
46	NUT; U-BOLT M8	0-91110-508-0	32	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT NEW ZEALAND EQUIPMENT(E13) (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	08	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	12	1	1502-
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	16	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	04	1	1502-
164	CONNECTOR; SUB AIR TANK BRAKE REGULATION ADR<TDU> (D) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1502-
164	CONNECTOR; SUB AIR TANK (A) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1311-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	1311-1501
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1502-
164	CONNECTOR; SUB AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1311-

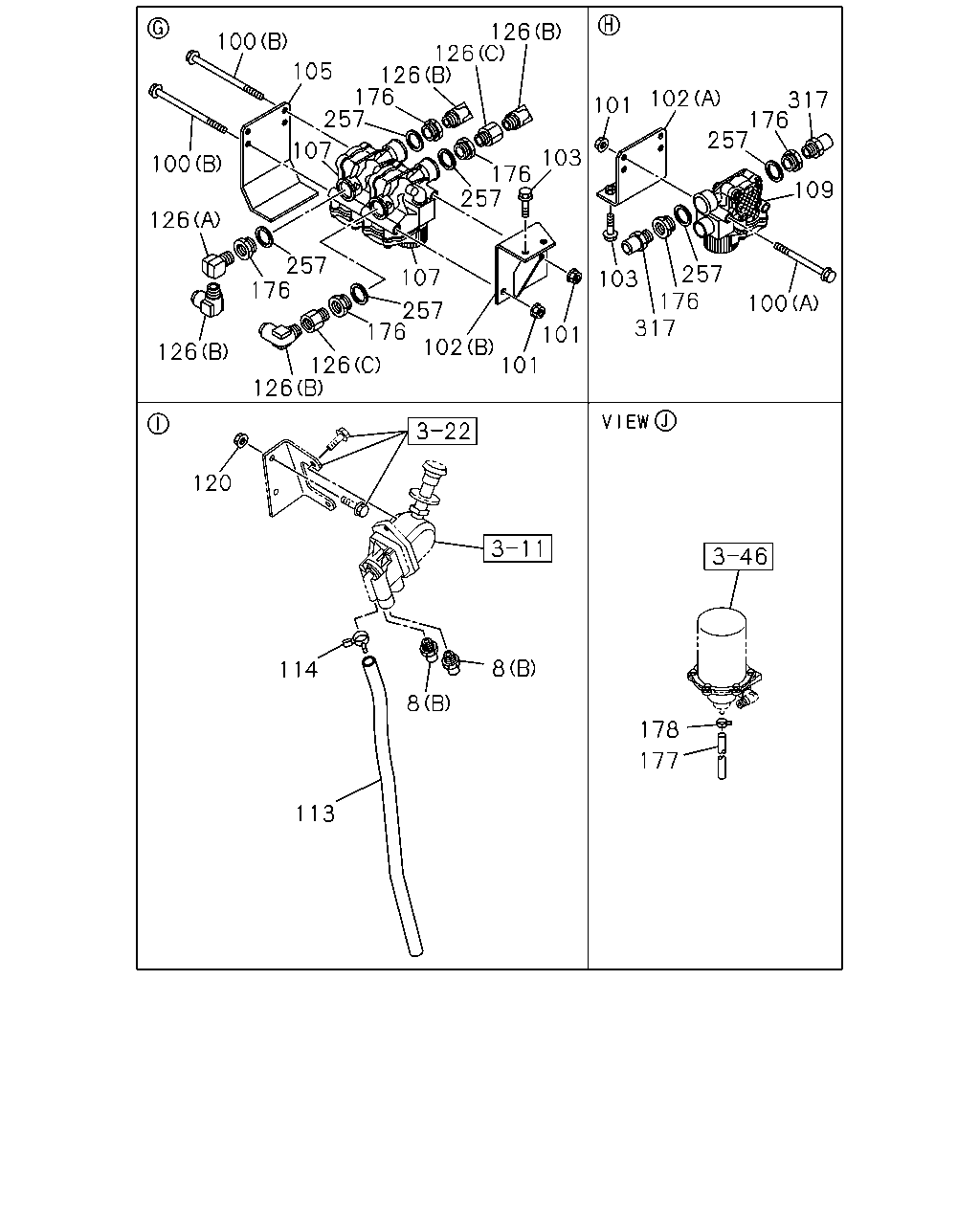

100 100 126 126 176 257 107 176 257 126 126 102 101 101 257 176 103 126 126 126 176 257 107 105 101 102 103 257 176 317 100 109 317 176 257 120 114 8 8 113 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1502-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	1311-
8	CONNECTOR; AIR TANK (B) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1311-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) M8X80 FLANGE	0-28050-880-0	04	1	1311-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) M8X140 FLANGE	0-28055-814-0	02	1	1311-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE	0-91180-108-0	06	1	1311-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-47479-239-0	02	1	1311-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98191-605-0	01	1	1311-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8X30 FLANGE	0-28650-830-0	06	1	1311-
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	1-47479-434-1	01	1	1311-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM<BFA>	8-98215-454-0	02	1	1311-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM<BFA>	8-98215-454-0	02	1	1311-
113	HOSE; VINYL,EXH L=650 SERVICED BY L=10000	9-09914-914-0	01	1	1311-
114	CLAMP; HOSE ID=16	8-94238-568-0	01	1	1311-
120	NUT; BRKT,RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1311-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) PT3/8 ELBOW	1-09660-696-0	01	1	1311-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1311-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8	1-09664-210-0	02	1	1311-
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1311-
177	HOSE; RUBBER,DRAIN L=90	9-09712-638-0	01	1	1311-
178	CLIP; HOSE ID=33.6	8-94362-518-0	01	1	1311-
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	08	1	1311-
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	1311-

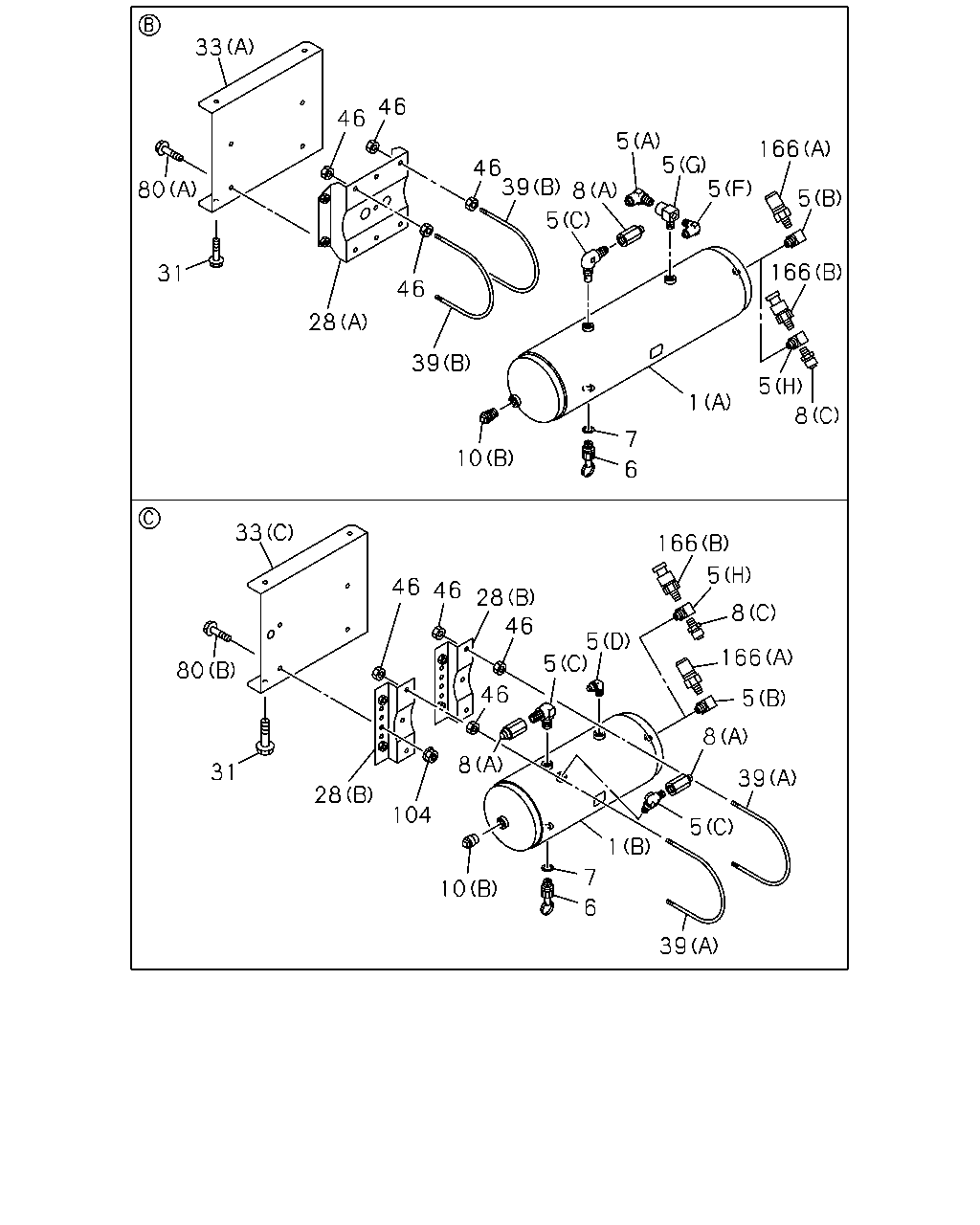

33 46 46 80 31 28 46 46 39 5 39 5 8 5 5 166 5 166 5 1 8 7 6 10 46 46 28 46 33 80 31 28 104 10 8 46 5 5 1 7 6 39 5 8 39 5 166 166 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	1311-1501
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(E13) (A)	1-48370-153-0	01	1	1502-
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	1502-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	1311-
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	1311-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1502-
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	02	1	1502-
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	03	1	1502-
5	UNION; AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	04	1	1311-
5	UNION; AIR TANK (B) PT1/4 2WAY	1-09660-693-0	03	1	1311-1501
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	01	1	1502-
5	UNION; AIR TANK (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1311-
5	UNION; AIR TANK (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1311-
5	UNION; AIR TANK (G) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK NEW ZEALAND EQUIPMENT(E13)	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	06	1	1311-1501
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK NEW ZEALAND EQUIPMENT(E13) ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1311-1501
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1502-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1502-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	1311-
8	CONNECTOR; AIR TANK (B) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1311-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	1311-1501
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(E13) (B) PT3/4	9-09204-526-0	02	1	1502-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	1502-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1311-1501
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A) PT1/4	9-99204-513-0	01	1	1502-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1502-
28	BRACKET; AIR TANK (B) L=300	1-48317-247-6	04	1	1311-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	1311-1501
28	BRACKET; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A)	1-48317-473-2	01	1	1502-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	1502-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	1311-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	1311-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	1311-
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	02	1	1311-1501
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	1502-
33	BRACKET; BRKT,AIR TANK NEW ZEALAND EQUIPMENT(E13) (A)	1-48316-081-0	01	1	1502-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1311-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1311-1501
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1502-
39	U-BOLT; AIR TANK NEW ZEALAND EQUIPMENT(E13) (B) L=210	1-48317-458-1	02	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT NEW ZEALAND EQUIPMENT(E13) M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	40	1	1311-1501
46	NUT; U-BOLT M8	0-91110-508-0	32	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT NEW ZEALAND EQUIPMENT(E13) (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	08	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	12	1	1502-
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	16	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	04	1	1502-
104	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	1311-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> (B)	8-97615-622-0	03	1	1502-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	04	1	1502-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) STAMP 5.5	8-97609-249-0	04	1	1311-1501
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	01	1	1502-

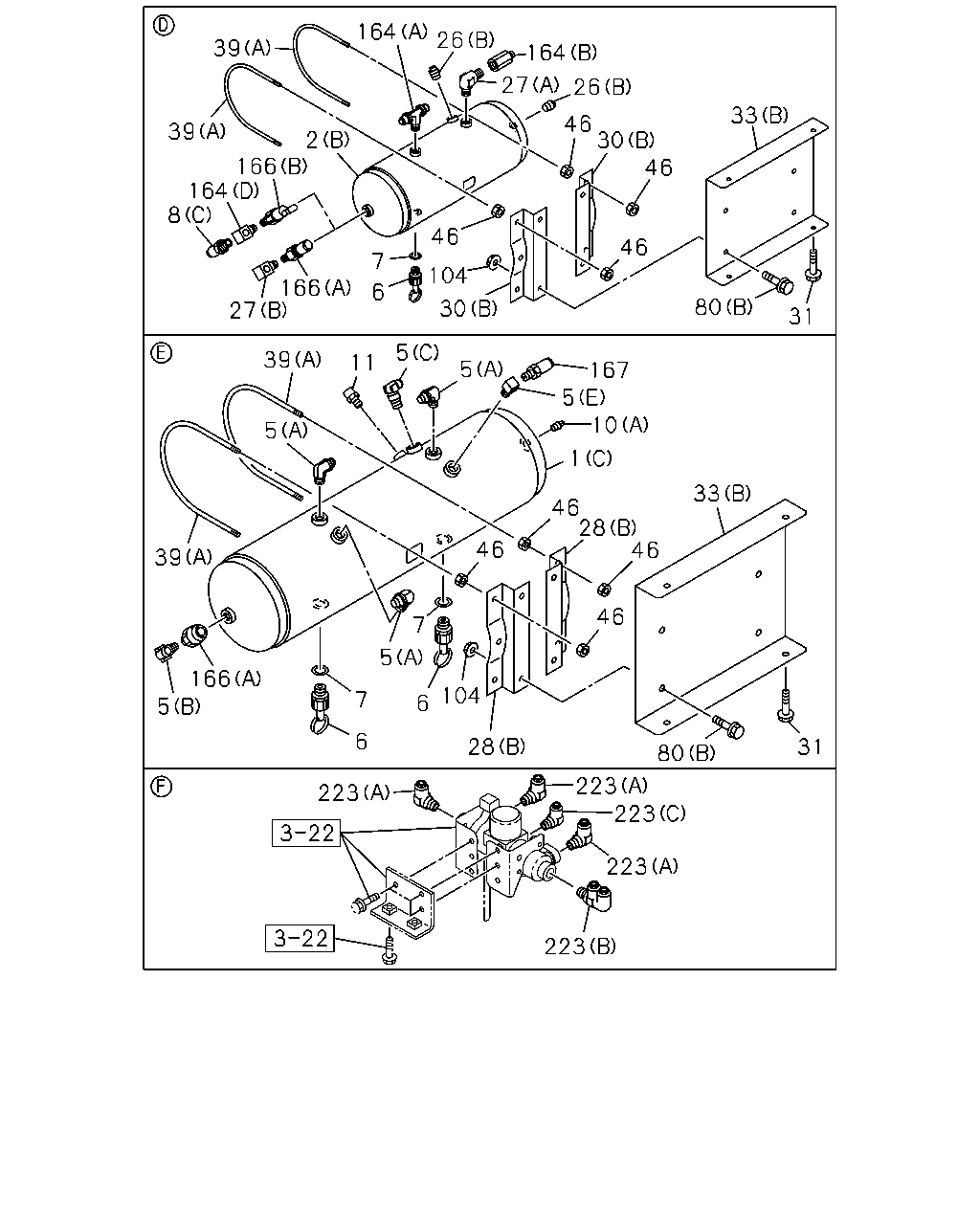

39 164 39 2 166 164 8 166 27 7 6 26 46 26 164 27 30 46 33 80 31 46 46 30 104 167 5 5 5 11 39 5 10 1 33 46 28 46 46 46 7 5 6 104 28 7 6 166 5 39 80 31 223 223 223 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	1311-1501
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(E13) (A)	1-48370-153-0	01	1	1502-
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	1502-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	1311-
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	1311-
2	TANK; AIR (A)	1-48370-153-0	01	1	1311-
2	TANK; AIR (B)	1-48371-108-0	01	1	1311-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1502-
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	02	1	1502-
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	03	1	1502-
5	UNION; AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	04	1	1311-
5	UNION; AIR TANK (B) PT1/4 2WAY	1-09660-693-0	03	1	1311-1501
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	01	1	1502-
5	UNION; AIR TANK (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1311-
5	UNION; AIR TANK (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1311-
5	UNION; AIR TANK (G) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK NEW ZEALAND EQUIPMENT(E13)	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	06	1	1311-1501
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK NEW ZEALAND EQUIPMENT(E13) ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1311-1501
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1502-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1502-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	1311-
8	CONNECTOR; AIR TANK (B) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1311-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	1311-1501
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(E13) (B) PT3/4	9-09204-526-0	02	1	1502-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	1502-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1311-1501
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A) PT1/4	9-99204-513-0	01	1	1502-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1502-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1311-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	1502-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	03	1	1311-1501
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	01	1	1502-
26	PLUG; SUB AIR TANK (A) PT1/4	9-99204-513-0	01	1	1311-
27	UNION; ELBOW,AIR TANK (A) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	1311-1501
27	UNION; ELBOW,AIR TANK (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1502-
27	UNION; ELBOW,AIR TANK (B) PT1/4 2WAY	1-09660-693-0	01	1	1311-1501
27	UNION; ELBOW,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	01	1	1502-
28	BRACKET; AIR TANK (B) L=300	1-48317-247-6	04	1	1311-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	1311-1501
28	BRACKET; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A)	1-48317-473-2	01	1	1502-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	1502-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	1311-
30	BRACKET; AIR TANK,SUB (A)	1-48317-473-2	01	1	1311-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	1311-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	1311-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	1311-
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	02	1	1311-1501
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	1502-
33	BRACKET; BRKT,AIR TANK NEW ZEALAND EQUIPMENT(E13) (A)	1-48316-081-0	01	1	1502-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1311-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1311-1501
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1502-
39	U-BOLT; AIR TANK NEW ZEALAND EQUIPMENT(E13) (B) L=210	1-48317-458-1	02	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT NEW ZEALAND EQUIPMENT(E13) M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	40	1	1311-1501
46	NUT; U-BOLT M8	0-91110-508-0	32	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT NEW ZEALAND EQUIPMENT(E13) (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	08	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	12	1	1502-
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	16	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	04	1	1502-
104	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	1311-
164	CONNECTOR; SUB AIR TANK BRAKE REGULATION ADR<TDU> (D) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1502-
164	CONNECTOR; SUB AIR TANK (A) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1311-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	1311-1501
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1502-
164	CONNECTOR; SUB AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1311-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> (B)	8-97615-622-0	03	1	1502-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	04	1	1502-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) STAMP 5.5	8-97609-249-0	04	1	1311-1501
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	01	1	1502-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE REGULATION ADR<TDU>	8-97615-622-0	01	1	1502-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1311-1501
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB EXC. BRAKE REGULATION ADR<TDU> STAMP 5.5	8-97609-249-0	01	1	1502-
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1311-
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1311-
223	UNION H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1311-

39 10 5 10 1 46 46 33 57 39 10 6 7 28 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	1311-1501
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(E13) (A)	1-48370-153-0	01	1	1502-
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	1502-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	1311-
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	1311-
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1502-
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	02	1	1502-
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	03	1	1502-
5	UNION; AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	04	1	1311-
5	UNION; AIR TANK (B) PT1/4 2WAY	1-09660-693-0	03	1	1311-1501
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4 2WAY	1-09660-693-0	01	1	1502-
5	UNION; AIR TANK (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1311-
5	UNION; AIR TANK (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1311-
5	UNION; AIR TANK (G) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK NEW ZEALAND EQUIPMENT(E13)	1-48312-015-0	01	1	1502-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	06	1	1311-1501
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK NEW ZEALAND EQUIPMENT(E13) ID=14	1-09630-145-0	01	1	1502-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	1311-1501
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1502-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	1311-1501
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(E13) (B) PT3/4	9-09204-526-0	02	1	1502-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	1502-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1311-1501
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A) PT1/4	9-99204-513-0	01	1	1502-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1502-
28	BRACKET; AIR TANK (B) L=300	1-48317-247-6	04	1	1311-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	1311-1501
28	BRACKET; AIR TANK NEW ZEALAND EQUIPMENT(E13) (A)	1-48317-473-2	01	1	1502-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	1502-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	1311-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	1311-
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	02	1	1311-1501
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	1502-
33	BRACKET; BRKT,AIR TANK NEW ZEALAND EQUIPMENT(E13) (A)	1-48316-081-0	01	1	1502-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1311-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1311-1501
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1502-
39	U-BOLT; AIR TANK NEW ZEALAND EQUIPMENT(E13) (B) L=210	1-48317-458-1	02	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT NEW ZEALAND EQUIPMENT(E13) M8	0-91110-508-0	08	1	1502-
46	NUT; U-BOLT M8	0-91110-508-0	40	1	1311-1501
46	NUT; U-BOLT M8	0-91110-508-0	32	1	1502-
57	BOLT; BRKT,AIR TANK TO FRAME NEW ZEALAND EQUIPMENT(E13) M12X30 FLANGE	0-28651-230-0	04	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT NEW ZEALAND EQUIPMENT(E13) (A) M10X30 FLANGE	0-28651-030-0	04	1	1502-
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	08	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	12	1	1502-
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	16	1	1311-1501
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	04	1	1502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
