3-08 — PARKING BRAKE (#130403) — 44 parça

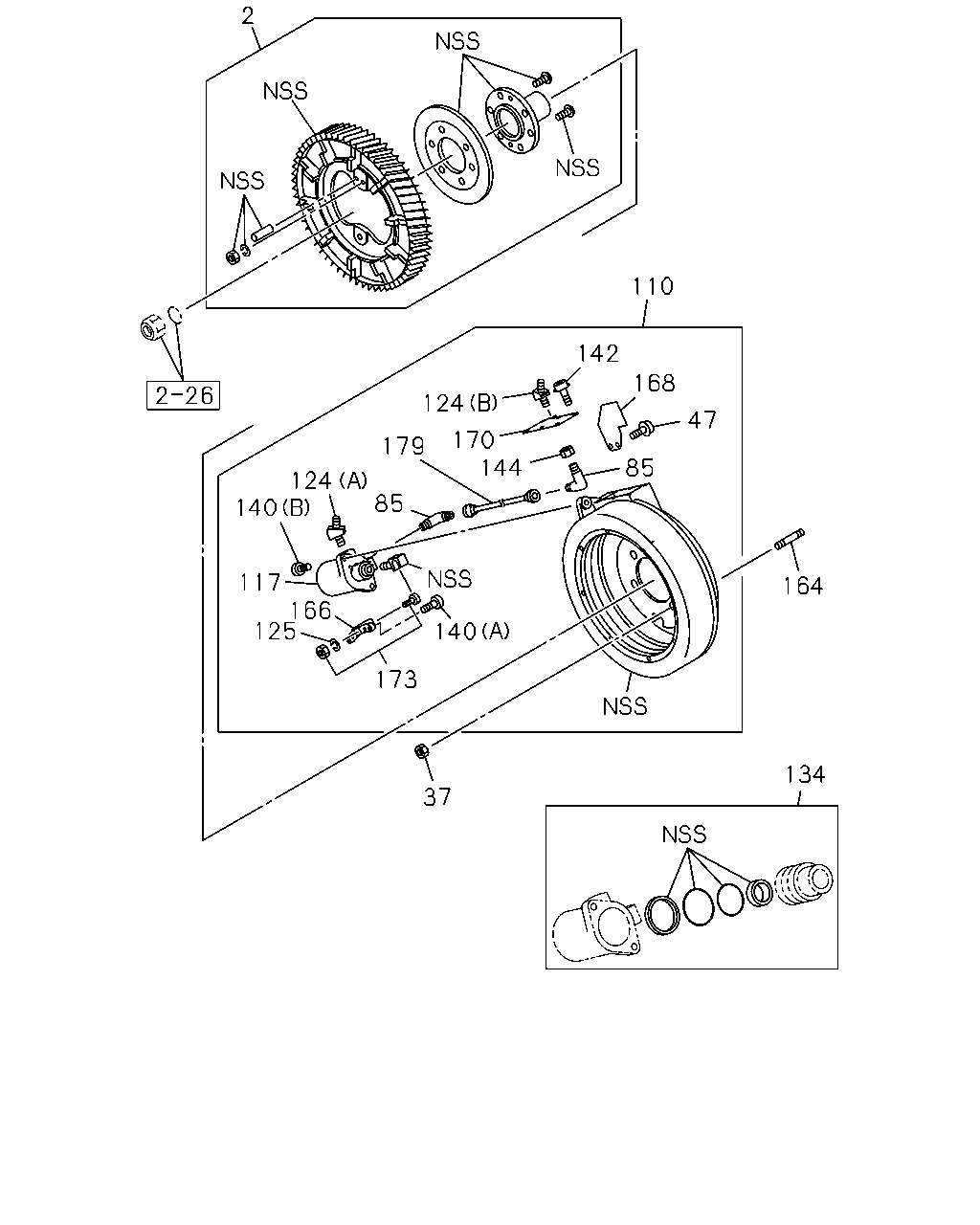

çizim 385510
2 110 142 47 168 85 164 140 173 166 117 125 140 124 85 179 170 124 144 37 134
BalonParca AdiParca NoAdetTipApplied Date
2 DRUM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		8-98173-971-0 01 1 1311-
37 NUT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M14 FLANGE 		8-97365-444-0 04 1 1311-
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 1311-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 1311-
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		8-98042-119-1 01 1 1311-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 1311-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1311-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 1311-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-606-0 01 1 1311-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 1311-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 1311-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 1311-
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 1311-
144 NUT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-244-0 01 1 1311-
164 STUD; RETARDER
BRAKE SYSTEM RETARDER<RE2> M14X22 W/DRY-ROCK 		8-98019-447-0 04 1 1311-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 1311-
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 1311-
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 1311-
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 1311-
179 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> 		1-48629-225-0 01 1 1311-

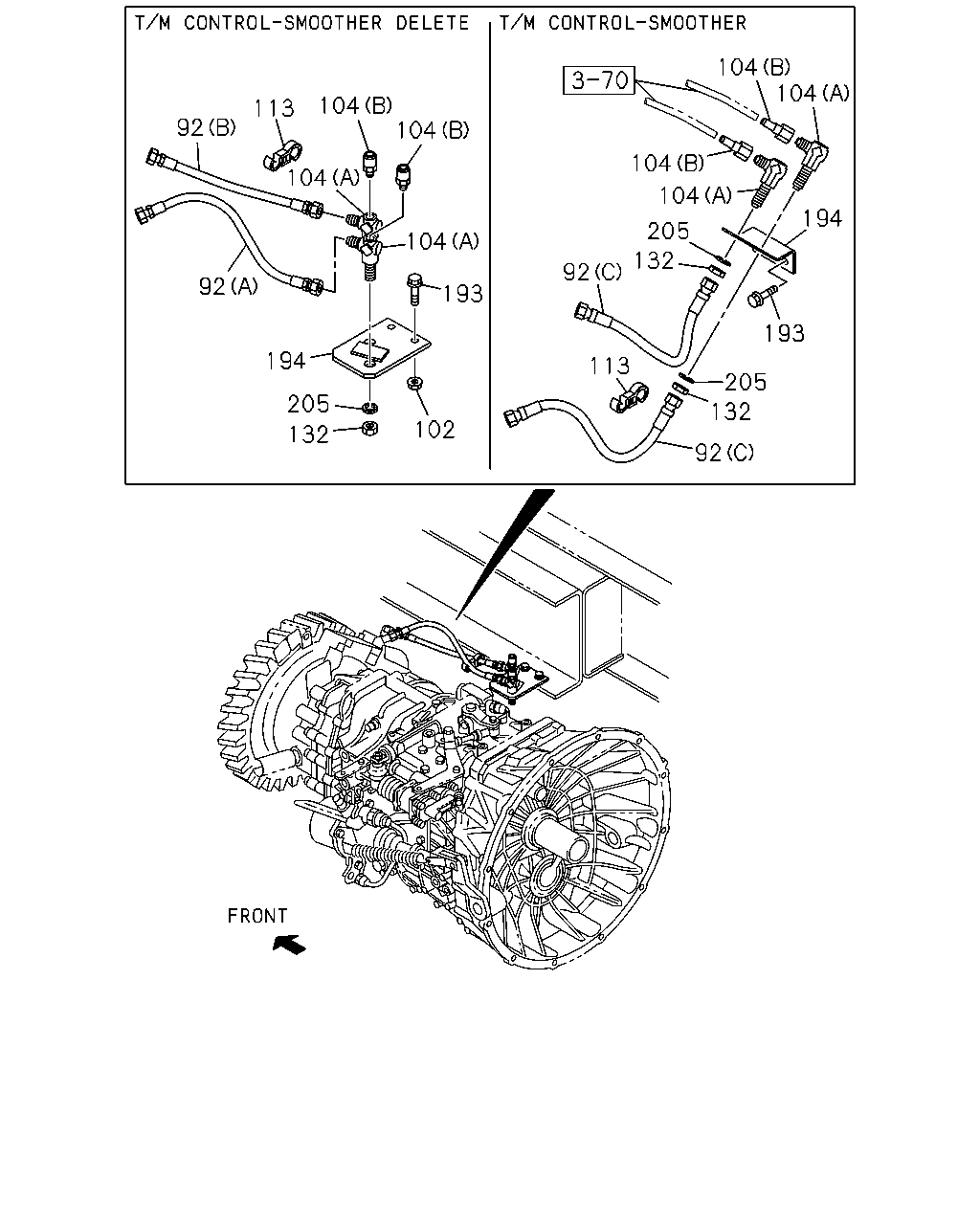

çizim 385514
92 113 104 104 104 104 193 194 92 205 132 102 113 92 132 205 104 104 104 104 194 193 205 132 92
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=270 		1-09363-687-0 02 1 1408-
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> (A) L=280 		1-09363-672-0 01 1 1311-1407
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=280 		1-09363-672-0 01 1 1408-
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> (B) L=260 		1-09363-876-0 01 1 1311-1407
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=260 		1-09363-876-0 01 1 1408-
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 1311-1407
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE 		0-91180-108-0 02 1 1408-
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M12 ELBOW 		0-92125-006-0 02 1 1408-
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 1408-
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-09654-430-0 02 1 1311-1407
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		1-09654-430-0 02 1 1408-
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-09661-481-0 02 1 1311-1407
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		1-09661-481-0 02 1 1408-
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 1311-
132 NUT; UNION
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> M12 		9-09840-280-0 02 1 1408-
132 NUT; UNION
BRAKE SYSTEM RETARDER<RE2> M12 		0-91111-512-0 02 1 1311-1407
132 NUT; UNION
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M12 		0-91111-512-0 02 1 1408-
193 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> M8X35 FLANGE 		0-28650-835-0 02 1 1408-
193 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE 		0-28650-830-0 02 1 1311-1407
193 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE 		0-28650-830-0 02 1 1408-
194 BRACKET; UNION
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98240-555-0 01 1 1408-
194 BRACKET; UNION
BRAKE SYSTEM RETARDER<RE2> 		8-98217-574-1 01 1 1311-1407
194 BRACKET; UNION
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98217-574-1 01 1 1408-
205 WASHER; SPRING
BRAKE SYSTEM RETARDER<RE2> ID=12.2 		0-91510-512-0 02 1 1311-
