Isuzu WW
▶
BUSES
▶
LT
▶
11562 - LT434-RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶

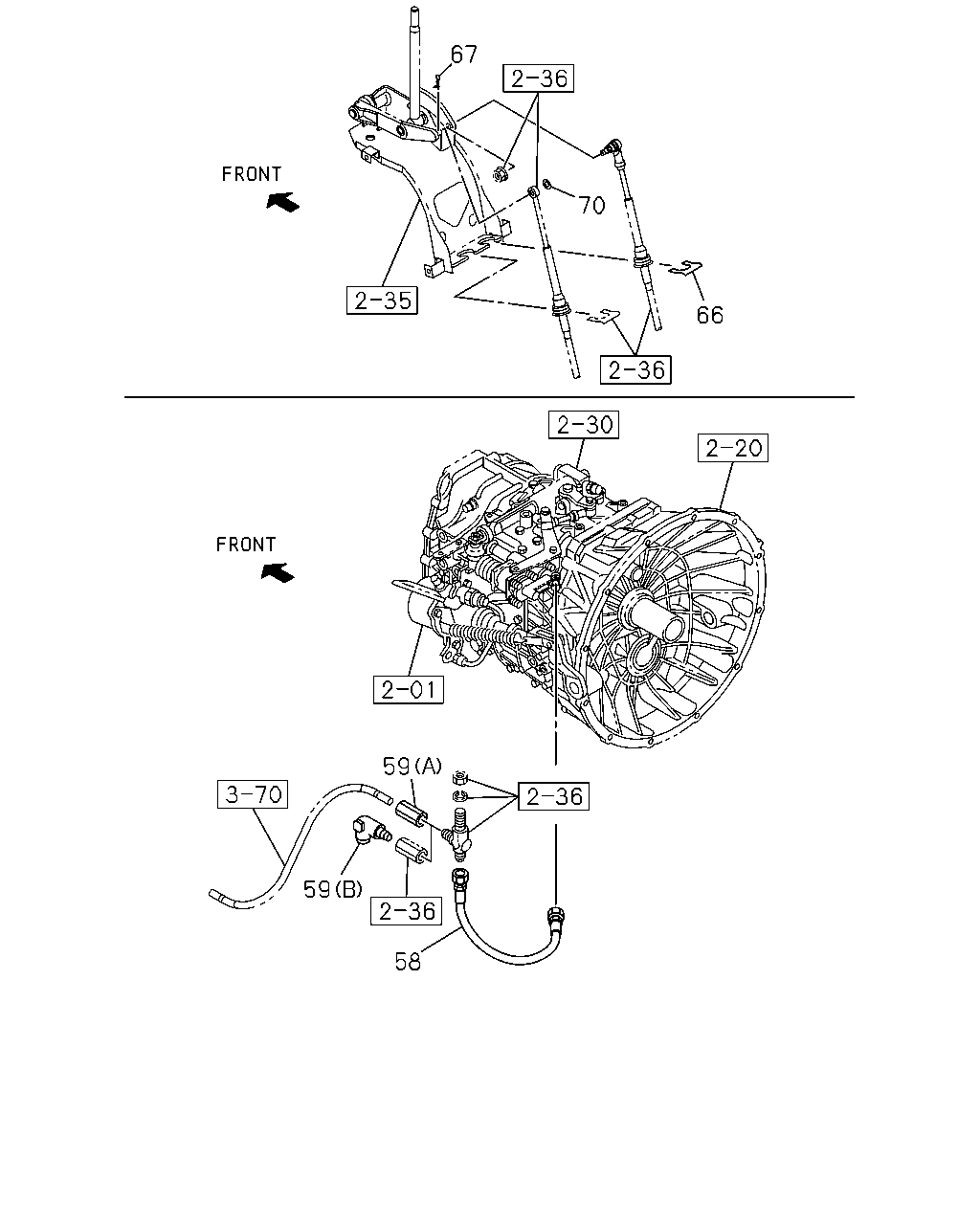

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#130399) — 11 parça
67
70
66
59
59
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
58
HOSE; FLEX,POWER ASSISTOR
L=280
1-09363-672-0
01
1
1311-1407
58
HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=280
1-09363-672-0
01
1
1408-
59
CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
(A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1311-1407
59
CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1408-1408
59
CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1409-
66
CLIP; SELECT BRKT
1-09700-966-1
01
1
1311-1407
66
CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>
1-09700-966-1
01
1
1408-
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94111-137-0
01
1
1311-1407
67
PIN; SNAP,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=27.7
8-94111-137-0
01
1
1408-
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=16
0-91614-508-0
01
1
1311-1407
70
WASHER; PL,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.4 OD=16
0-91614-508-0
01
1
1408-
