2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#130398) — 78 parça

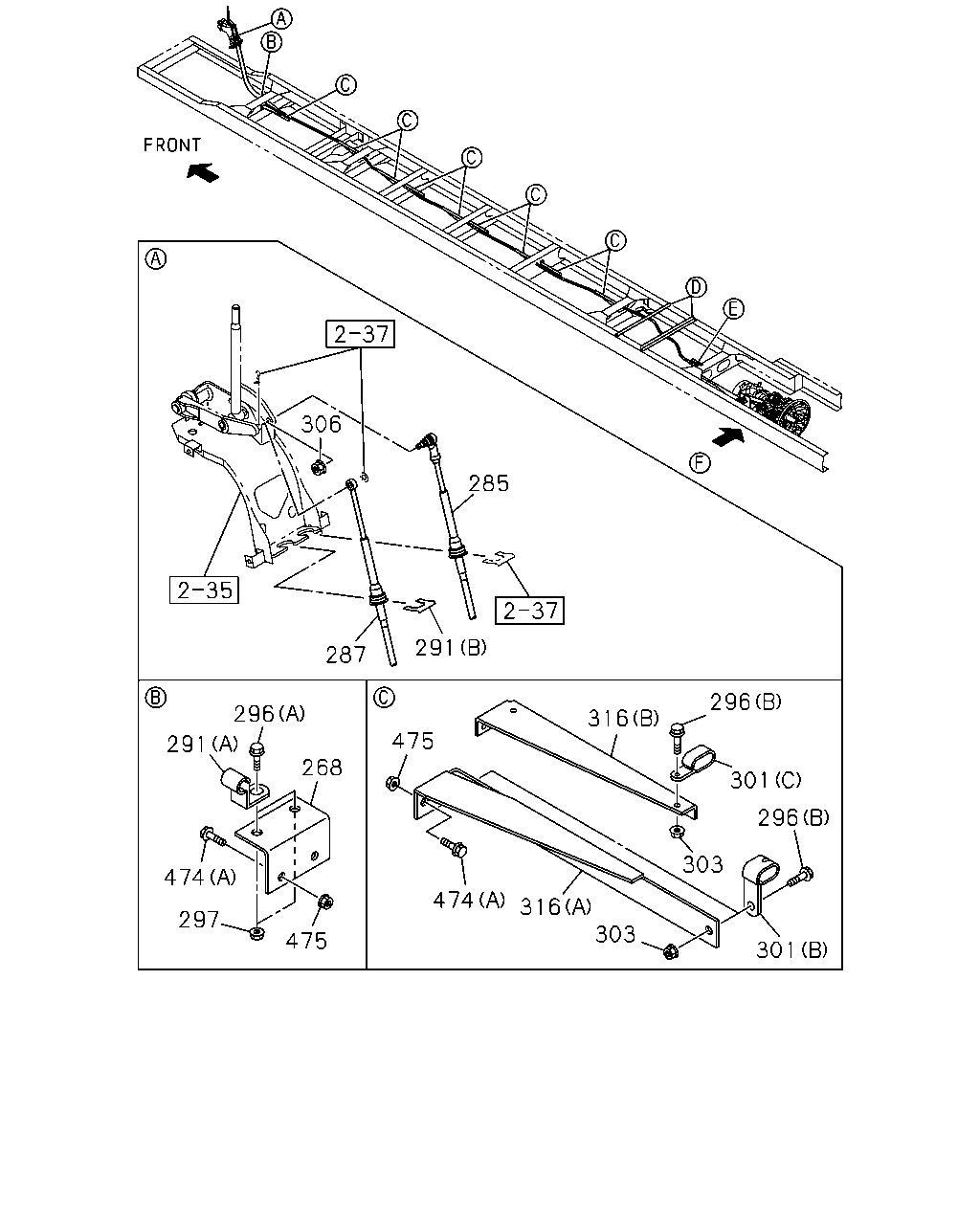

306 285 287 291 296 291 474 297 268 475 475 316 296 301 474 316 303 303 296 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
268	BRACKET; LINK ROD	1-47479-107-0	01	1	1311-1407
268	BRACKET; LINK ROD TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-47479-107-0	01	1	1408-
285	WIRE; SHIFT,TRANS CONT	8-98217-676-1	01	1	1311-1407
285	WIRE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98217-676-1	01	1	1408-
287	WIRE; SELECT,TRANS CONT	8-98217-675-1	01	1	1311-1407
287	WIRE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98217-675-1	01	1	1408-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=13 H=29 L=30	1-09700-001-0	02	1	1311-1407
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=13 H=29 L=30	1-09700-001-0	02	1	1408-
291	CLIP; SHIFT TO SELECT,FRAME (B)	1-09700-966-1	01	1	1311-1407
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	1-09700-966-1	01	1	1408-
296	BOLT; CLIP,SHIFT & SELECT (B) M8X20 FLANGE	0-28650-820-0	14	1	1311-1407
296	BOLT; CLIP,SHIFT & SELECT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M8X20 FLANGE	0-28650-820-0	14	1	1408-
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28651-020-0	02	1	1311-1407
296	BOLT; CLIP,SHIFT & SELECT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10X20 FLANGE	0-28651-020-0	02	1	1408-
297	NUT; CLIP M10 FLANGE	0-91180-210-0	02	1	1311-1407
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE	0-91180-210-0	02	1	1408-
301	CLIP; WIRE (B) ID=13X2 L=32	1-09701-245-0	14	1	1311-1402
301	CLIP; WIRE (C) ID=14X29 H=15 L=20	1-09700-744-0	14	1	1403-1403
301	CLIP; WIRE (C) ID=14X29 H=15 L=20	1-09700-744-0	16	1	1404-1407
301	CLIP; WIRE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) ID=14X29 H=15 L=20	1-09700-744-0	16	1	1408-
301	CLIP; WIRE (A) ID=13 & 13 L=20 H=21.5	8-98033-769-0	03	1	1311-1403
303	NUT; CLIP M8 FLANGE	0-91180-108-0	17	1	1311-1403
303	NUT; CLIP M8 FLANGE	0-91180-108-0	16	1	1404-1407
303	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	16	1	1408-
306	NUT; WIRE BRKT M8 FLANGE	1-09440-062-1	01	1	1311-1407
306	NUT; WIRE BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	1-09440-062-1	01	1	1408-
316	BRACKET; CLIP (A)	1-47479-729-0	09	1	1311-1402
316	BRACKET; CLIP (B)	8-98260-424-0	09	1	1403-1407
316	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-98260-424-0	09	1	1408-
474	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	20	1	1311-1407
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8X25 FLANGE	0-28650-825-0	20	1	1408-
474	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	1311-1403
474	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1404-
475	NUT; BRKT M8 FLANGE	0-91180-108-0	20	1	1311-1407
475	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	20	1	1408-

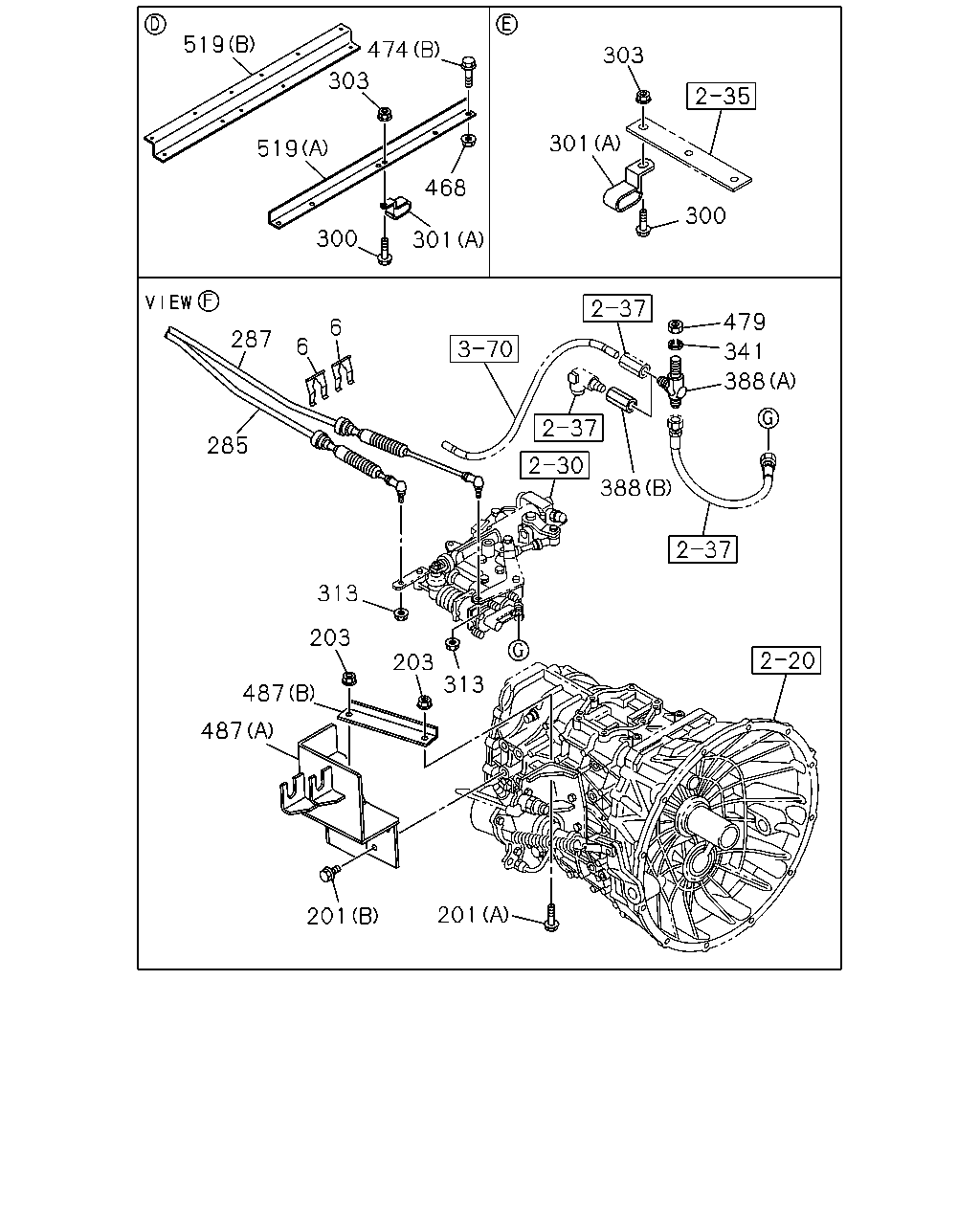

519 303 519 474 300 468 301 301 303 300 479 388 341 388 313 203 203 313 487 487 201 201 6 6 287 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	1311-1407
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=22.2	1-09701-209-1	02	1	1408-
201	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1311-1407
201	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10X30 FLANGE	0-28651-030-0	02	1	1408-
201	BOLT; BRKT (B) M14X25 FLANGE	0-28951-425-0	03	1	1311-1407
201	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M14X25 FLANGE	0-28951-425-0	03	1	1408-
203	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	02	1	1311-1407
203	NUT; BRKT FIX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE	0-91180-210-0	02	1	1408-
285	WIRE; SHIFT,TRANS CONT	8-98217-676-1	01	1	1311-1407
285	WIRE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98217-676-1	01	1	1408-
287	WIRE; SELECT,TRANS CONT	8-98217-675-1	01	1	1311-1407
287	WIRE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98217-675-1	01	1	1408-
300	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1311-1403
300	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1404-1407
300	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE	0-28650-820-0	02	1	1408-
301	CLIP; WIRE (B) ID=13X2 L=32	1-09701-245-0	14	1	1311-1402
301	CLIP; WIRE (C) ID=14X29 H=15 L=20	1-09700-744-0	14	1	1403-1403
301	CLIP; WIRE (C) ID=14X29 H=15 L=20	1-09700-744-0	16	1	1404-1407
301	CLIP; WIRE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) ID=14X29 H=15 L=20	1-09700-744-0	16	1	1408-
301	CLIP; WIRE (A) ID=13 & 13 L=20 H=21.5	8-98033-769-0	03	1	1311-1403
303	NUT; CLIP M8 FLANGE	0-91180-108-0	17	1	1311-1403
303	NUT; CLIP M8 FLANGE	0-91180-108-0	16	1	1404-1407
303	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	16	1	1408-
313	NUT; CLIP BRKT M8 FLANGE	1-09440-062-1	02	1	1311-1407
313	NUT; CLIP BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	1-09440-062-1	02	1	1408-
341	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	1311-1407
341	WASHER; LK,UNION ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1408-
388	UNION ASSISTOR SHIFT CONTROL<WX8> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	1409-
388	UNION (A) M12 2WAY	1-09654-059-2	01	1	1311-1407
388	UNION ASSISTOR SHIFT CONTROL<WX8> (A) M12 2WAY	1-09654-059-2	01	1	1408-
468	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1311-
474	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	20	1	1311-1407
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8X25 FLANGE	0-28650-825-0	20	1	1408-
474	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	1311-1403
474	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1404-
479	NUT; UNION M12	0-91111-512-0	01	1	1311-1407
479	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> M12	0-91111-512-0	01	1	1408-
487	BRACKET; CONT CABLE (A)	8-98217-671-1	01	1	1311-1407
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-98217-671-1	01	1	1408-
487	BRACKET; CONT CABLE (B)	8-98217-674-0	01	1	1311-1407
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-98217-674-0	01	1	1408-
519	BRACKET; FRAME (A)	1-47479-486-0	02	1	1311-1403
519	BRACKET; FRAME (B)	8-98191-555-1	02	1	1404-
