2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#130397) — 92 parça

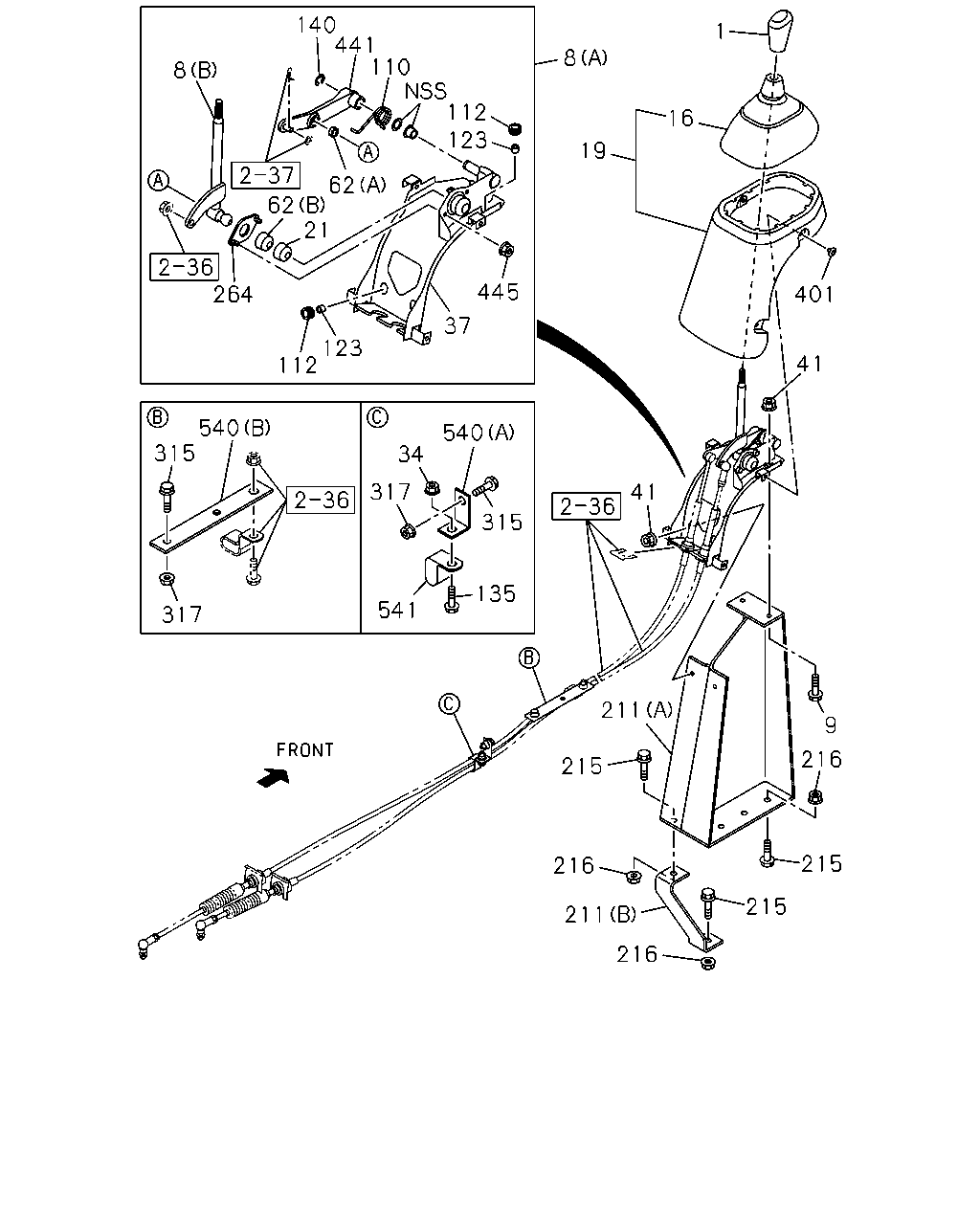

çizim 386430
1 16 8 19 401 41 41 9 216 215 215 216 211 216 215 211 135 315 540 34 317 541 317 315 540 112 123 37 445 123 112 110 441 140 62 21 62 8 264
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 1311-1407
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-33611-070-1 01 1 1408-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) DARK GRAY 		8-97429-026-0 01 1 1408-1408
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) DARK GRAY 		8-97465-737-1 01 1 1409-
8 LEVER; CHANGE
(B) 		8-98093-452-0 01 1 1311-1407
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98093-452-0 01 1 1408-
8 LEVER; CHANGE
(A) 		8-98249-077-0 01 1 1311-1407
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98249-077-0 01 1 1408-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE 		0-28650-825-0 04 1 1408-
9 BOLT; CHANGE LEVER
M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1311-1407
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1408-
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 1311-1407
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-79998-913-1 01 1 1408-
19 COVER; CHANGE LEVER 1-79996-415-1 01 1 1311-1407
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-79996-415-1 01 1 1408-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1311-1407
21 SEAT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-33619-429-0 01 1 1408-
34 NUT
M8 FLANGE 		0-91180-108-0 01 1 1311-1407
34 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE 		0-91180-108-0 01 1 1408-
37 BRACKET; CHANGE LEVER SUPPORT 8-98093-441-0 01 1 1311-1407
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98093-441-0 01 1 1408-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1311-
62 SEAT; BALL,CHANGE LEVER
(B) 		1-33619-427-0 01 1 1311-1407
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		1-33619-427-0 01 1 1408-
62 SEAT; BALL,CHANGE LEVER
(A) 		8-97049-147-0 01 1 1311-1407
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-97049-147-0 01 1 1408-
110 SPRING; RETURN,CHANGE LEVER 8-98257-480-0 01 1 1311-1407
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98257-480-0 01 1 1408-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1311-1407
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-33619-442-0 04 1 1408-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1311-1407
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-33619-443-0 04 1 1408-
135 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 1311-1407
135 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X20 FLANGE 		0-28650-820-0 01 1 1408-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1311-1407
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10 		0-91805-510-0 01 1 1408-
211 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-98274-474-0 01 1 1408-
211 BRACKET; CHANGE LEVER
(A) 		8-98217-672-1 01 1 1311-1407
211 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98217-672-1 01 1 1408-
211 BRACKET; CHANGE LEVER
(B) 		8-98217-673-0 01 1 1311-1407
211 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98217-673-0 01 1 1408-
215 BOLT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE 		0-28650-825-0 02 1 1408-
215 BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE 		0-28651-240-0 05 1 1311-1312
215 BOLT; BRKT,CHANGE LEVER
M12X35 FLANGE 		0-28651-235-0 05 1 1401-1407
215 BOLT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M12X35 FLANGE 		0-28651-235-0 05 1 1408-
216 NUT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 02 1 1408-
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91180-212-0 05 1 1311-1312
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91180-212-0 04 1 1401-1407
216 NUT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M12 FLANGE 		0-91180-212-0 04 1 1408-
264 PLATE; COVER 1-33619-430-0 01 1 1311-1407
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-33619-430-0 01 1 1408-
315 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1311-1403
315 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1404-1407
315 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X25 FLANGE 		0-28650-825-0 01 1 1408-
317 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311-1403
317 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1404-1407
317 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE 		0-91180-108-0 01 1 1408-
401 CLIP; COVER
D8X13.5 		1-09987-270-0 04 1 1311-1407
401 CLIP; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> D8X13.5 		1-09987-270-0 04 1 1408-
441 LEVER; SELECT 8-98071-283-0 01 1 1311-1407
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98071-283-0 01 1 1408-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1311-1407
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M6 FLANGE 		0-91180-106-0 02 1 1408-
540 BRACKET; CLIP
(A) L=40 		1-47478-410-0 01 1 1311-1407
540 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=40 		1-47478-410-0 01 1 1408-
540 BRACKET; CLIP
(B) L=170 		1-47479-380-0 01 1 1311-1403
541 CLIP; CABLE
ID=15 		1-09700-845-1 01 1 1311-1407
541 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=15 		1-09700-845-1 01 1 1408-

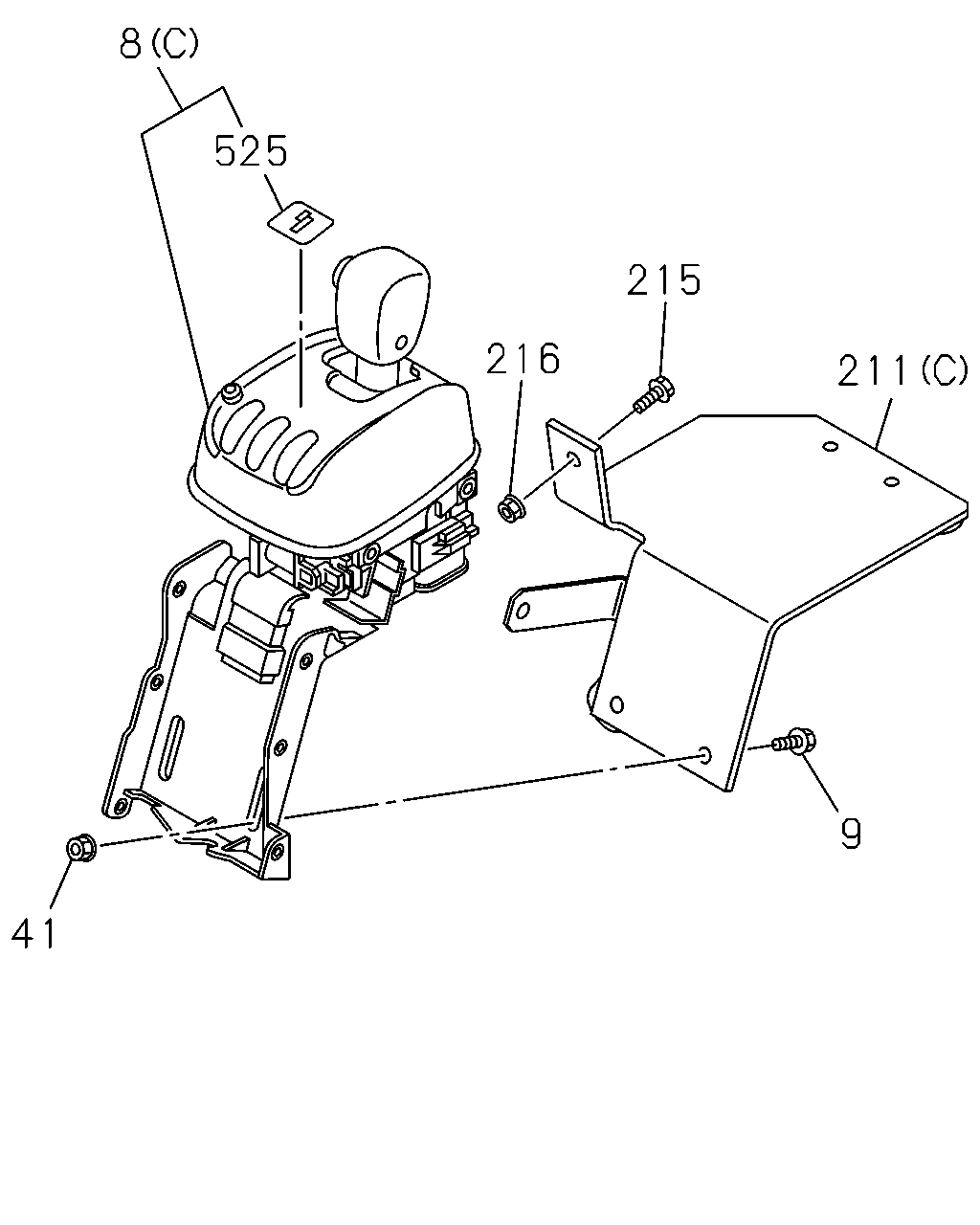

çizim 431461
8 525 215 216 211 41 9
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) DARK GRAY 		8-97429-026-0 01 1 1408-1408
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) DARK GRAY 		8-97465-737-1 01 1 1409-
8 LEVER; CHANGE
(B) 		8-98093-452-0 01 1 1311-1407
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98093-452-0 01 1 1408-
8 LEVER; CHANGE
(A) 		8-98249-077-0 01 1 1311-1407
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98249-077-0 01 1 1408-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE 		0-28650-825-0 04 1 1408-
9 BOLT; CHANGE LEVER
M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1311-1407
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1408-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1311-
211 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) 		8-98274-474-0 01 1 1408-
211 BRACKET; CHANGE LEVER
(A) 		8-98217-672-1 01 1 1311-1407
211 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-98217-672-1 01 1 1408-
211 BRACKET; CHANGE LEVER
(B) 		8-98217-673-0 01 1 1311-1407
211 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-98217-673-0 01 1 1408-
215 BOLT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X25 FLANGE 		0-28650-825-0 02 1 1408-
215 BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE 		0-28651-240-0 05 1 1311-1312
215 BOLT; BRKT,CHANGE LEVER
M12X35 FLANGE 		0-28651-235-0 05 1 1401-1407
215 BOLT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M12X35 FLANGE 		0-28651-235-0 05 1 1408-
216 NUT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 02 1 1408-
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91180-212-0 05 1 1311-1312
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91180-212-0 04 1 1401-1407
216 NUT; BRKT,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M12 FLANGE 		0-91180-212-0 04 1 1408-
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98048-480-1 01 1 1408-
