Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#130396) — 257 parça

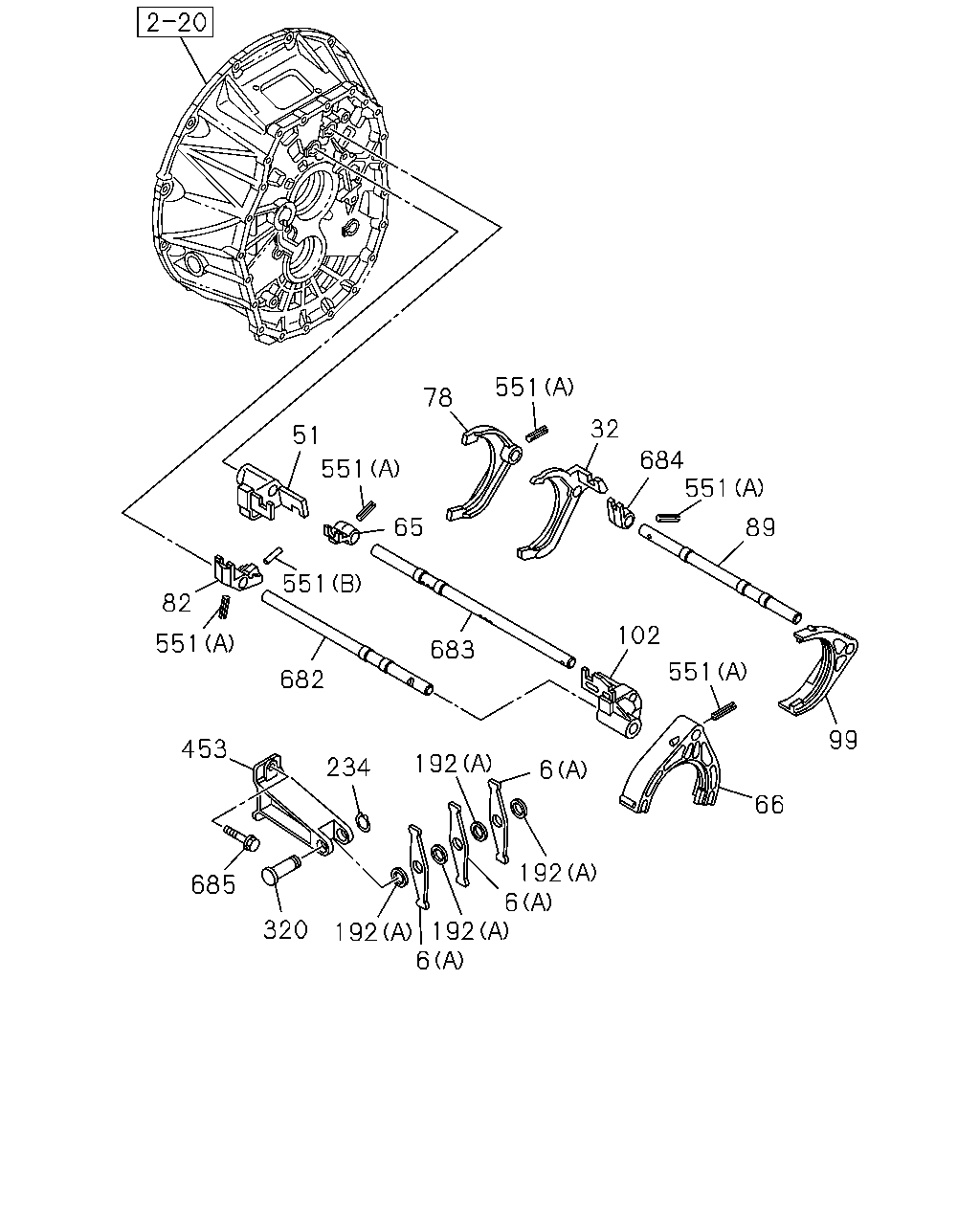

51 551 78 551 684 32 89 551 102 551 99 66 6 192 6 192 192 234 682 65 683 551 82 551 453 685 320 192 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-995-0	01	1	1408-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1311-1407
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-98022-855-0	01	1	1408-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1311-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1311-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1311-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1311-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1311-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1311-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1311-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1311-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1311-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	1-09503-280-0	01	1	1408-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1311-
192	WASHER; PL (B)	8-97305-661-0	02	1	1311-1407
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97305-661-0	02	1	1408-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1311-
320	SHAFT; LEVER	8-97377-928-0	01	1	1311-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=30 OD=4	1-09748-031-0	02	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (E) OD=5	8-97184-905-0	03	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (F)	8-97379-991-0	01	1	1408-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1311-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1311-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1311-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1311-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1311-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1311-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1311-

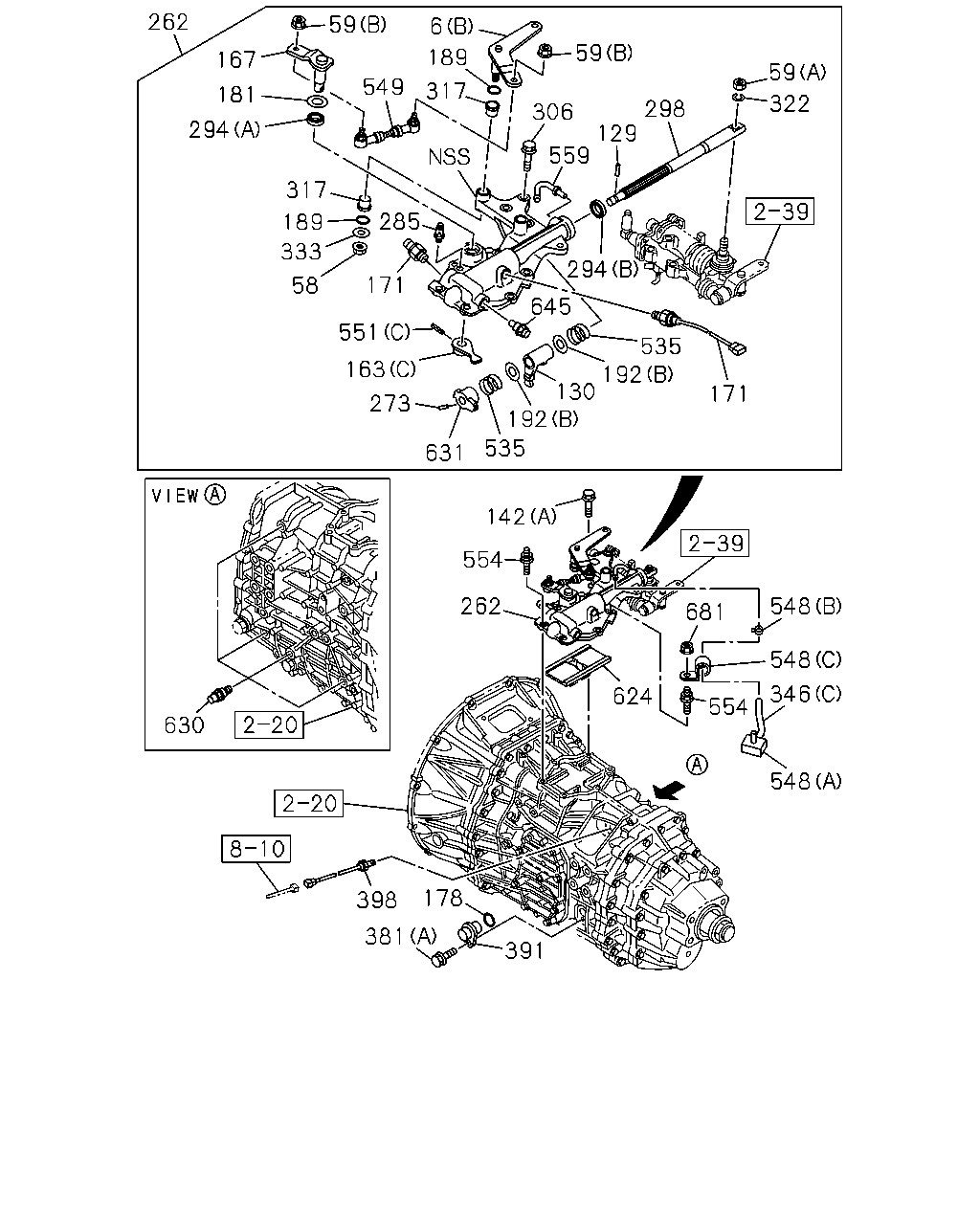

262 167 59 6 181 549 189 317 59 59 322 298 129 306 559 317 189 333 58 285 171 294 645 551 163 273 631 535 192 130 192 535 171 142 554 262 681 548 548 346 548 554 624 391 178 381 398 294 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-995-0	01	1	1408-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1311-1407
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-98022-855-0	01	1	1408-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1311-1407
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE	0-91180-110-0	01	1	1408-
59	NUT (A) M12	0-91110-512-0	01	1	1311-1407
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M12	0-91110-512-0	01	1	1408-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1311-1407
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M8 FLANGE	0-91180-108-0	02	1	1408-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1311-1407
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=30 OD=4	1-09748-031-0	01	1	1408-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1311-1407
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97306-647-0	01	1	1408-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8X35 FLANGE	8-98020-384-0	03	1	1408-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M8X75 FLANGE	8-98020-385-0	03	1	1408-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1311-1404
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	03	1	1405-1407
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8X22 FLANGE	8-97365-376-0	03	1	1408-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97379-979-0	01	1	1408-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-990-0	01	1	1408-
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	1311-1407
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C)	8-97305-663-0	01	1	1408-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-994-0	01	1	1408-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1311-1407
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98022-857-0	01	1	1408-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1311-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1311-1407
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-09567-113-0	01	1	1408-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1311-1407
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97367-327-0	01	1	1408-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1311-1407
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09623-594-0	02	1	1408-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	1-09503-280-0	01	1	1408-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1311-
192	WASHER; PL (B)	8-97305-661-0	02	1	1311-1407
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97305-661-0	02	1	1408-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98241-122-1	01	1	1408-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT	8-98249-036-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT	8-98241-015-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT	8-98276-156-1	01	1	1405-1407
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98276-156-1	01	1	1408-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98305-331-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1311-1407
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> D=4.2 L=25	8-97103-142-0	01	1	1408-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1311-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	1-09625-600-0	01	1	1408-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1311-1407
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97305-662-0	01	1	1408-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1311-1407
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97363-225-0	01	1	1408-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-978-0	01	1	1408-
298	SHAFT; SHIFT LEVER	8-97305-685-0	01	1	1311-1407
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-685-0	01	1	1408-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	1311-1407
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X50 FLANGE	0-28051-050-0	03	1	1408-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-997-0	02	1	1408-
317	BUSHING; LEVER	1-09330-119-0	02	1	1311-1407
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09330-119-0	02	1	1408-
322	WASHER; LK	8-98031-750-0	01	1	1311-1407
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98031-750-0	01	1	1408-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1311-1407
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10.5	0-91610-710-0	01	1	1408-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97309-855-0	01	1	1408-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97373-381-0	01	1	1408-
346	HOSE; AIR (C) L=200 SERVICED BY L=3000	0-04750-300-0	01	1	1405-1407
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=200 SERVICED BY L=3000	0-04750-300-0	01	1	1408-
381	BOLT TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X12 FLANGE	1-33739-842-0	04	1	1408-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1311-1407
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97300-273-1	01	1	1408-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1311-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1311-1407
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97385-713-0	02	1	1408-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-97031-674-0	01	1	1408-
548	CLIP; HOSE (B) ID=11	8-94238-570-0	01	1	1405-1407
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=11	8-94238-570-0	01	1	1408-
548	CLIP; HOSE (A)	8-97301-433-1	01	1	1405-1407
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97301-433-1	01	1	1408-
548	CLIP; HOSE (C) ID=13 H=12 L=20	8-98038-485-0	01	1	1405-1407
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) ID=13 H=12 L=20	8-98038-485-0	01	1	1408-
549	ROD; LINK	8-98022-841-0	01	1	1311-1407
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98022-841-0	01	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=30 OD=4	1-09748-031-0	02	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (E) OD=5	8-97184-905-0	03	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (F)	8-97379-991-0	01	1	1408-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1311-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1311-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1311-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1311-1404
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	03	1	1405-1407
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X15,M8X25 L=49	8-97365-378-0	03	1	1408-
559	PIPE; BREATHER	8-98020-710-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1311-
630	DETENT ASM	8-98019-536-0	04	1	1311-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-984-0	01	1	1408-
631	STOPPER; SPRING	8-97305-666-0	01	1	1311-1407
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-666-0	01	1	1408-
645	DETENT ASM	8-98019-536-0	01	1	1311-1407
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98019-536-0	01	1	1408-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE	0-91180-210-0	02	1	1408-
681	NUT; FLANGE M8 FLANGE	0-91180-108-0	01	1	1405-1407
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	01	1	1408-

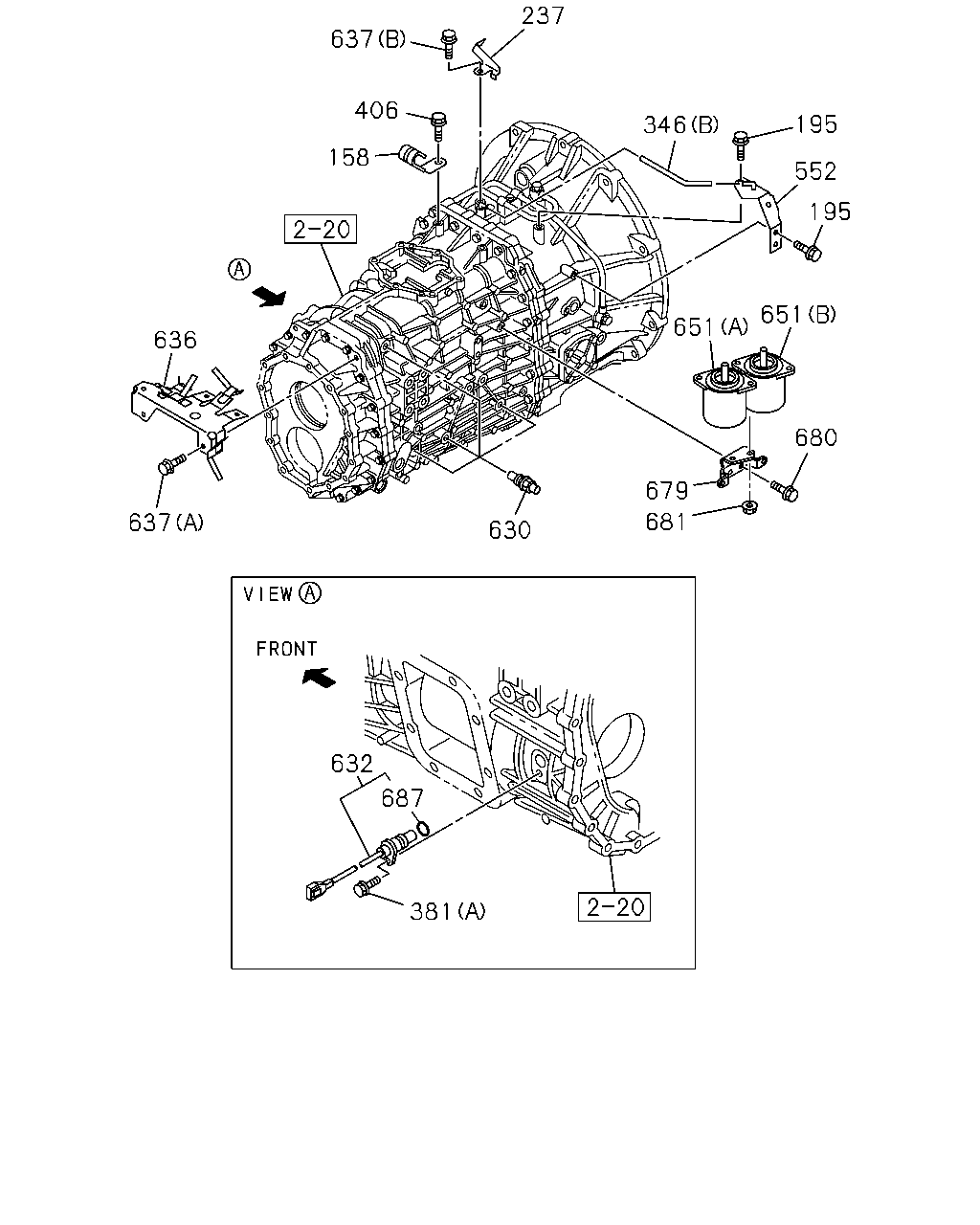

637 237 406 158 636 637 630 632 687 381 681 679 680 651 651 195 552 195 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1408-
195	BOLT TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE	0-28650-820-0	02	1	1408-
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98009-307-1	01	1	1408-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97309-855-0	01	1	1408-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97373-381-0	01	1	1408-
346	HOSE; AIR (C) L=200 SERVICED BY L=3000	0-04750-300-0	01	1	1405-1407
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=200 SERVICED BY L=3000	0-04750-300-0	01	1	1408-
381	BOLT TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X12 FLANGE	1-33739-842-0	04	1	1408-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-
406	BOLT; HARNESS CLIP TRANSMISSION CONTROL-SMOOTHER<8GF> M8X16 FLANGE	0-28050-816-0	02	1	1408-
552	BRACKET TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98005-329-1	01	1	1408-
630	DETENT ASM	8-98019-536-0	04	1	1311-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97315-604-1	01	1	1408-
636	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98243-556-0	01	1	1408-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X16 FLANGE	0-28050-816-0	02	1	1408-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8X20 FLANGE	0-28650-820-0	01	1	1408-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-98048-497-1	01	1	1408-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98048-498-1	01	1	1408-
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98005-332-0	01	1	1408-
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER<8GF> M10X20 FLANGE	0-28761-020-0	02	1	1408-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE	0-91180-210-0	02	1	1408-
681	NUT; FLANGE M8 FLANGE	0-91180-108-0	01	1	1405-1407
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	01	1	1408-
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER<8GF>	9-09567-113-0	01	1	1408-

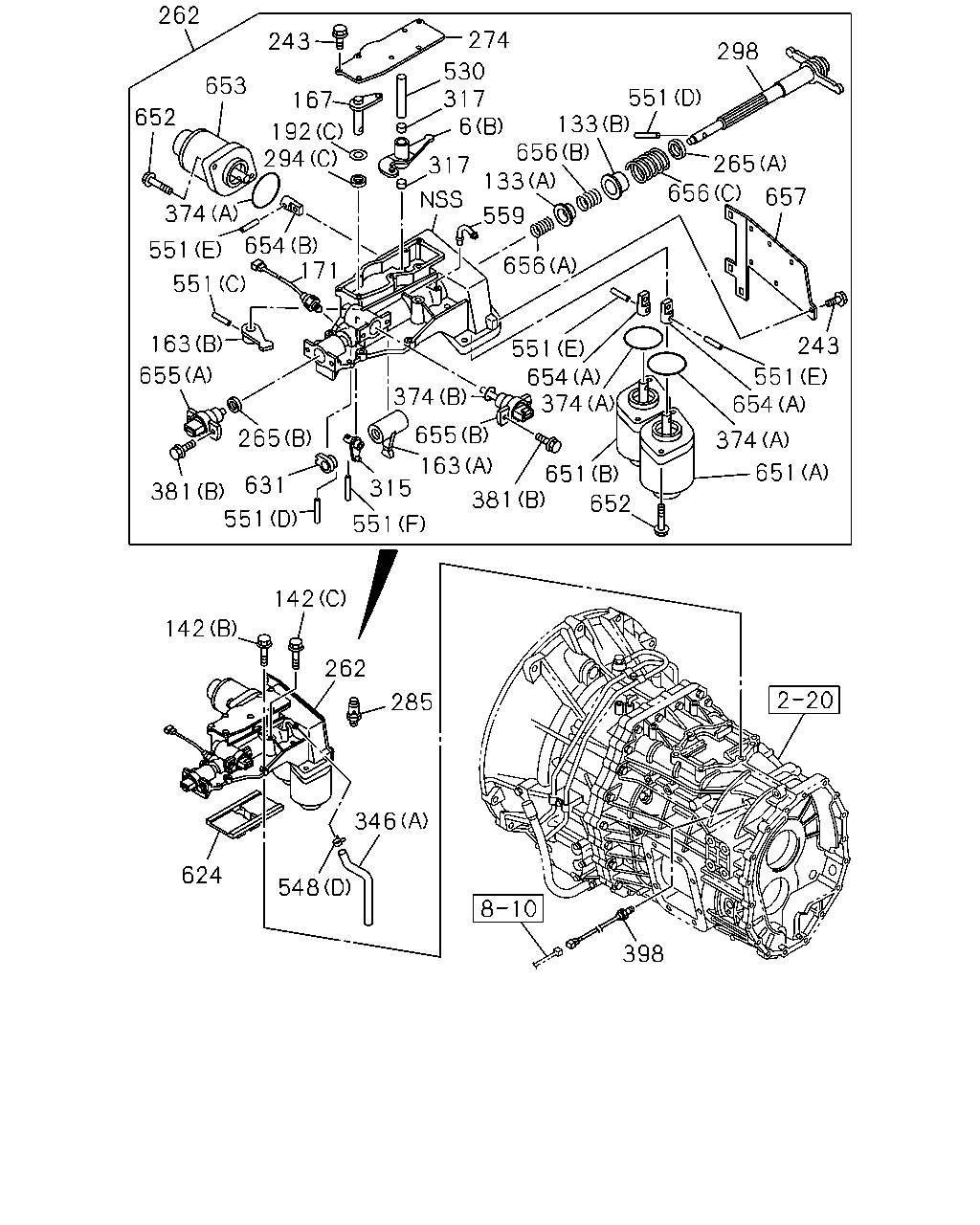

262 243 653 652 167 192 374 551 654 551 171 294 317 317 530 274 6 559 133 656 133 551 298 657 656 243 551 654 374 652 651 381 163 655 374 315 551 551 265 381 655 163 631 374 654 551 656 265 651 142 142 262 285 346 548 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-995-0	01	1	1408-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1311-1407
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-98022-855-0	01	1	1408-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97379-988-0	01	1	1408-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-989-0	01	1	1408-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8X35 FLANGE	8-98020-384-0	03	1	1408-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER<8GF> (C) M8X75 FLANGE	8-98020-385-0	03	1	1408-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1311-1404
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	03	1	1405-1407
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M8X22 FLANGE	8-97365-376-0	03	1	1408-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97379-979-0	01	1	1408-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-990-0	01	1	1408-
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	1311-1407
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C)	8-97305-663-0	01	1	1408-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-994-0	01	1	1408-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1311-1407
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98022-857-0	01	1	1408-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1311-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	1-09503-280-0	01	1	1408-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1311-
192	WASHER; PL (B)	8-97305-661-0	02	1	1311-1407
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97305-661-0	02	1	1408-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> M6X12 FLANGE	1-33739-842-0	11	1	1408-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98241-122-1	01	1	1408-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT	8-98249-036-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT	8-98241-015-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT	8-98276-156-1	01	1	1405-1407
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98276-156-1	01	1	1408-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98305-331-1	01	1	1508-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97363-225-0	01	1	1408-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-981-0	01	1	1408-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98020-711-0	01	1	1408-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1311-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	1-09625-600-0	01	1	1408-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1311-1407
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97305-662-0	01	1	1408-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1311-1407
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97363-225-0	01	1	1408-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-978-0	01	1	1408-
298	SHAFT; SHIFT LEVER	8-97305-685-0	01	1	1311-1407
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-685-0	01	1	1408-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98305-342-0	01	1	1508-
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-998-0	01	1	1408-1411
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-997-0	02	1	1408-
317	BUSHING; LEVER	1-09330-119-0	02	1	1311-1407
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09330-119-0	02	1	1408-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97309-855-0	01	1	1408-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97373-381-0	01	1	1408-
346	HOSE; AIR (C) L=200 SERVICED BY L=3000	0-04750-300-0	01	1	1405-1407
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=200 SERVICED BY L=3000	0-04750-300-0	01	1	1408-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97349-571-0	03	1	1408-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97349-573-0	01	1	1408-
381	BOLT TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X12 FLANGE	1-33739-842-0	04	1	1408-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1311-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-996-0	01	1	1408-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER<8GF> (D)	8-97031-674-0	01	1	1408-
548	CLIP; HOSE (B) ID=11	8-94238-570-0	01	1	1405-1407
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=11	8-94238-570-0	01	1	1408-
548	CLIP; HOSE (A)	8-97301-433-1	01	1	1405-1407
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-97301-433-1	01	1	1408-
548	CLIP; HOSE (C) ID=13 H=12 L=20	8-98038-485-0	01	1	1405-1407
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) ID=13 H=12 L=20	8-98038-485-0	01	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (D) L=30 OD=4	1-09748-031-0	02	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (E) OD=5	8-97184-905-0	03	1	1408-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF> (F)	8-97379-991-0	01	1	1408-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1311-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1311-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1311-
559	PIPE; BREATHER	8-98020-710-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1311-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97379-984-0	01	1	1408-
631	STOPPER; SPRING	8-97305-666-0	01	1	1311-1407
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97305-666-0	01	1	1408-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-98048-497-1	01	1	1408-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98048-498-1	01	1	1408-
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER<8GF> M10X25 FLANGE	0-28151-025-0	06	1	1408-
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98002-761-0	01	1	1408-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97349-473-0	02	1	1408-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97380-419-0	01	1	1408-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-98107-823-0	01	1	1408-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98107-824-0	01	1	1408-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97379-985-0	01	1	1408-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97379-986-0	01	1	1408-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	8-97379-987-0	01	1	1408-
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98020-712-0	01	1	1408-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
