Sayfa 2-25 - Isuzu EPC

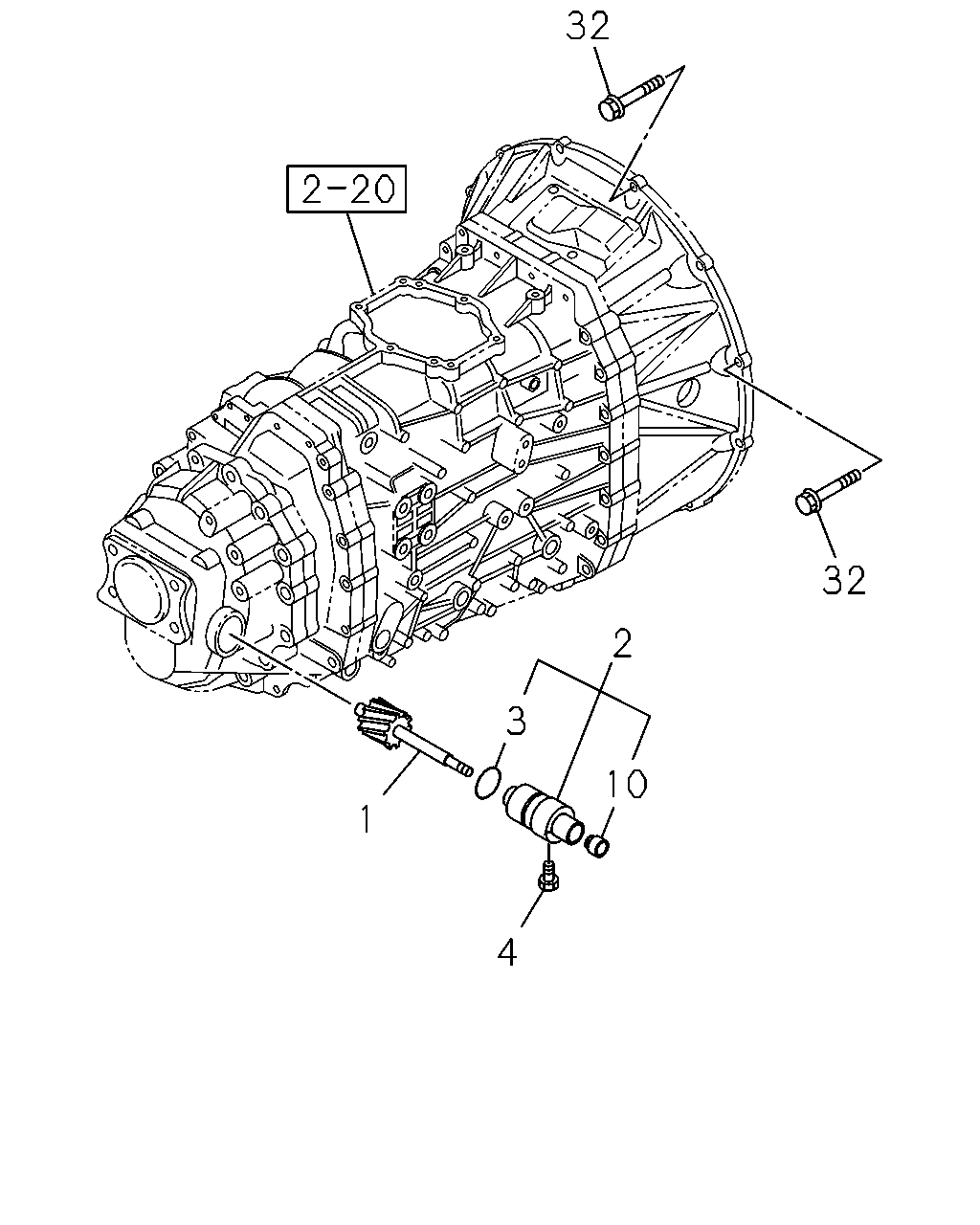

2-25 — SPEEDOMETER DRIVEN GEAR (#130394) — 7 parça

32 2 3 1 4 10 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1311-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	1311-
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	1311-
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	1311-
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1311-
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X45 FLANGE	8-98234-150-0	02	1	1311-
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28751-030-0	10	1	1311-
