2-20 — MANUAL TRANSMISSION ASM AND CASE (#130393) — 88 parça

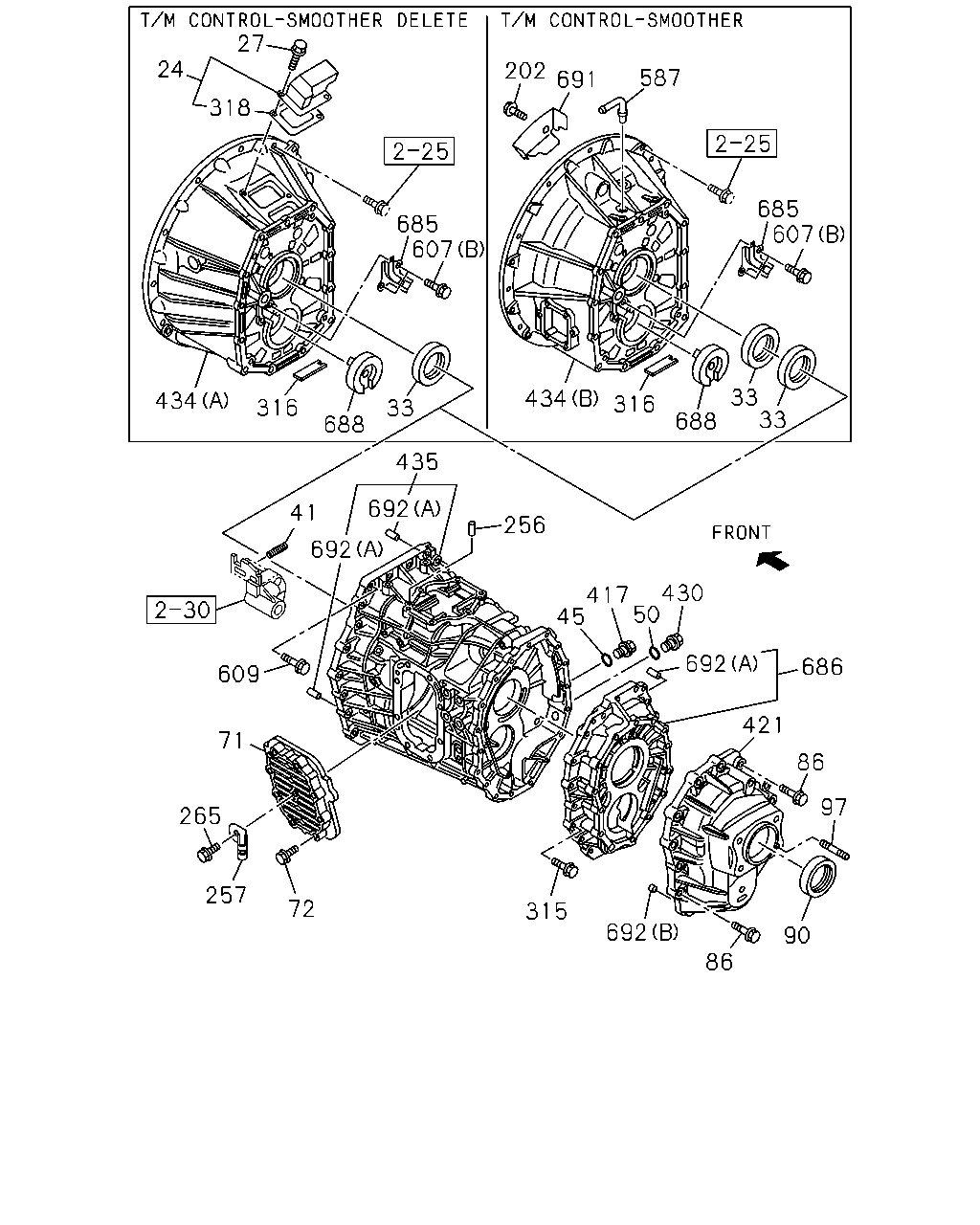

27 24 318 685 607 33 688 316 434 202 691 587 685 607 33 33 688 316 434 256 435 692 692 41 609 71 72 257 265 45 417 430 50 692 421 86 686 97 90 86 692 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1311-1407
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-31131-041-0	01	1	1408-1410
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98283-062-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1311-1407
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X12 FLANGE	0-28050-812-0	02	1	1408-1410
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-187-0	02	1	1408-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1311-1407
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97377-947-0	01	1	1408-
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98071-140-0	01	1	1408-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE	8-98122-318-0	01	1	1311-1408
71	COVER; SIDE,TRANS CASE	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER M10X50 FLANGE	1-09044-081-0	08	1	1311-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1311-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1311-
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1311-
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE	0-28650-820-0	01	1	1408-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1311-
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8	8-97329-633-0	01	1	1408-
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER<8GF> M10X16 FLANGE	0-28151-016-0	01	1	1408-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1311-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1311-
318	GASKET; COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-31139-023-0	01	1	1411-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1311-
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	8-98004-791-1	01	1	1311-
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	8-98004-790-1	01	1	1311-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1311-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98100-982-1	01	1	1408-
434	HOUSING; CLU (A)	8-98004-506-2	01	1	1311-1407
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-98004-506-2	01	1	1408-
435	CASE; TRANS	8-98186-449-0	01	1	1311-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97358-318-0	01	1	1408-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X30 FLANGE	0-28650-830-0	04	1	1408-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1311-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1311-
685	COVER; OIL PORT	8-98018-864-1	01	1	1311-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1311-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1311-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98044-428-0	01	1	1408-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1311-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1311-

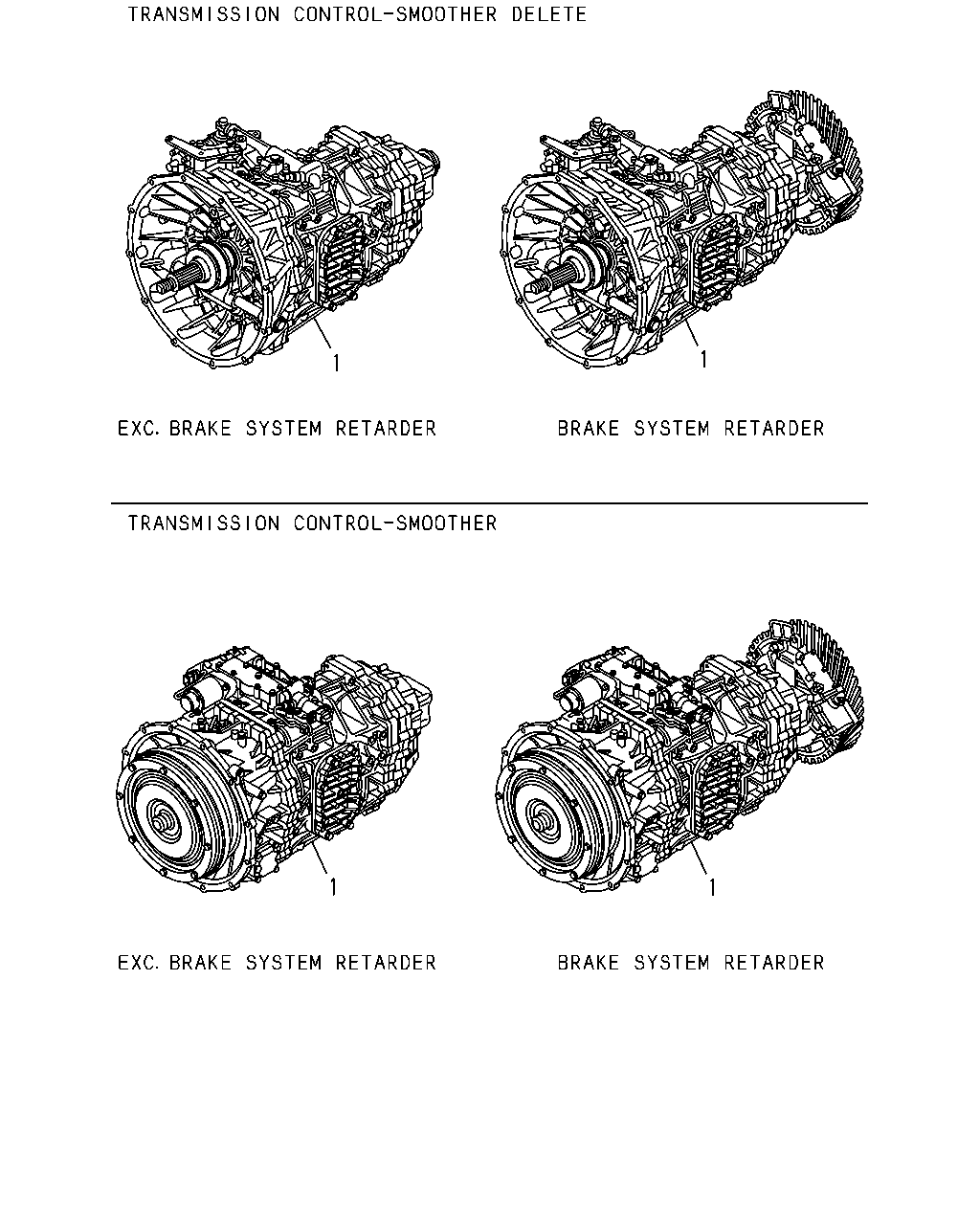

1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98275-672-0	01	1	1408-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. BRAKE SYSTEM RETARDER<RE2>	8-98275-671-0	01	1	1408-
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2>	8-98234-659-0	01	1	1311-1407
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98234-659-0	01	1	1408-
1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2>	8-98234-658-0	01	1	1311-1407
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. BRAKE SYSTEM RETARDER<RE2>	8-98234-658-0	01	1	1408-

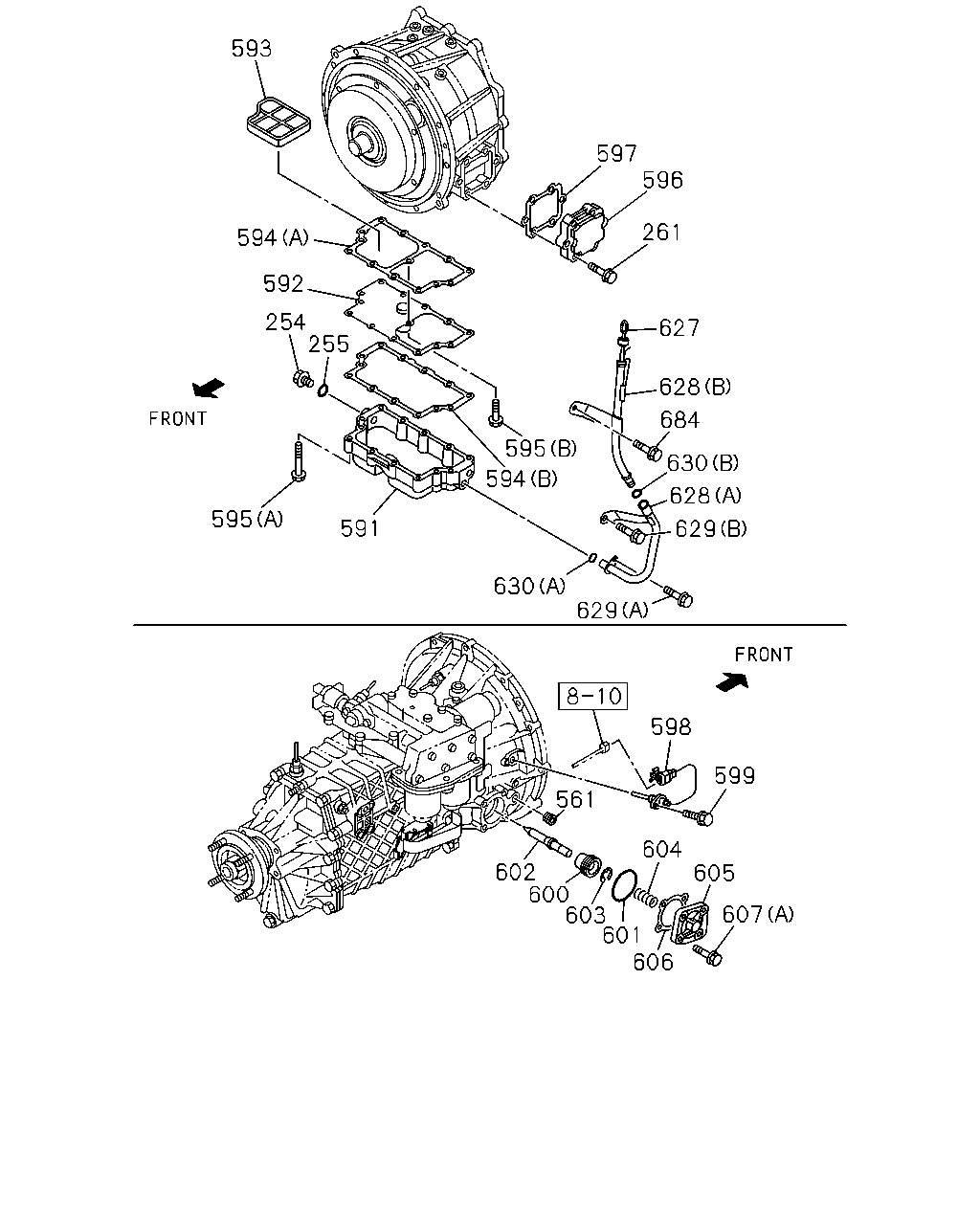

593 594 592 254 595 591 595 594 630 629 629 628 630 684 628 627 261 596 597 598 599 604 605 607 561 602 600 603 601 606 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97365-374-0	01	1	1408-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> ID=17	8-97115-712-0	01	1	1408-
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> M6X35 FLANGE	0-28650-635-0	06	1	1408-
561	PLUG TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97320-204-0	01	1	1408-
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97256-429-2	01	1	1408-
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97289-771-1	01	1	1408-
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97256-438-1	01	1	1408-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-97256-430-1	01	1	1408-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-97289-772-0	01	1	1408-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X16 FLANGE	0-28650-616-0	01	1	1408-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M6X35 FLANGE	0-28650-635-0	13	1	1408-
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97289-773-0	01	1	1408-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97289-774-0	01	1	1408-
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97316-495-1	01	1	1408-
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER<8GF> M6X16 FLANGE	0-28650-616-0	01	1	1408-
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-652-1	01	1	1408-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-755-0	01	1	1408-
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98009-306-1	01	1	1408-
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8	9-09185-008-0	01	1	1408-
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97371-467-0	01	1	1408-
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-756-0	01	1	1408-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97254-757-0	01	1	1408-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X30 FLANGE	0-28650-830-0	04	1	1408-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1311-
627	GAUGE; OIL LEVEL TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98010-240-0	01	1	1408-
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER<8GF> (A)	8-98003-673-0	01	1	1408-
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER<8GF> (B)	8-98261-293-1	01	1	1408-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M10X16 FLANGE	0-28151-016-0	01	1	1408-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M6X16 FLANGE	0-28650-616-0	01	1	1408-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=15.8	8-97305-656-0	01	1	1408-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=12.3	8-97313-558-0	01	1	1408-
684	BOLT; OIL FILLER TUBE TRANSMISSION CONTROL-SMOOTHER<8GF> M10X16 FLANGE	0-28151-016-0	01	1	1408-

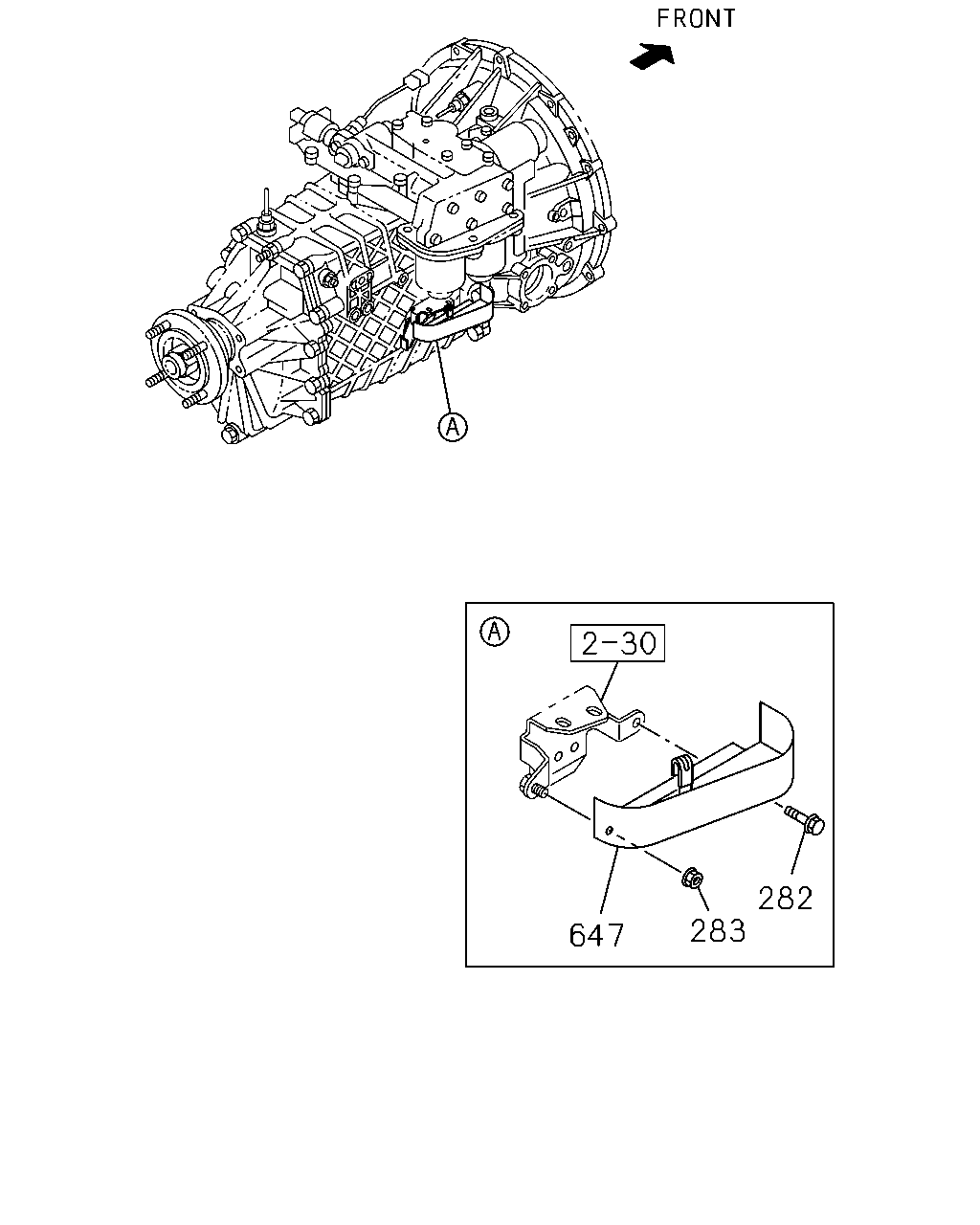

647 283 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE	0-28650-820-0	01	1	1408-
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE	0-91180-108-0	01	1	1408-
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97329-465-0	01	1	1408-
