◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11562 - LT434-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#130391) — 12 parça

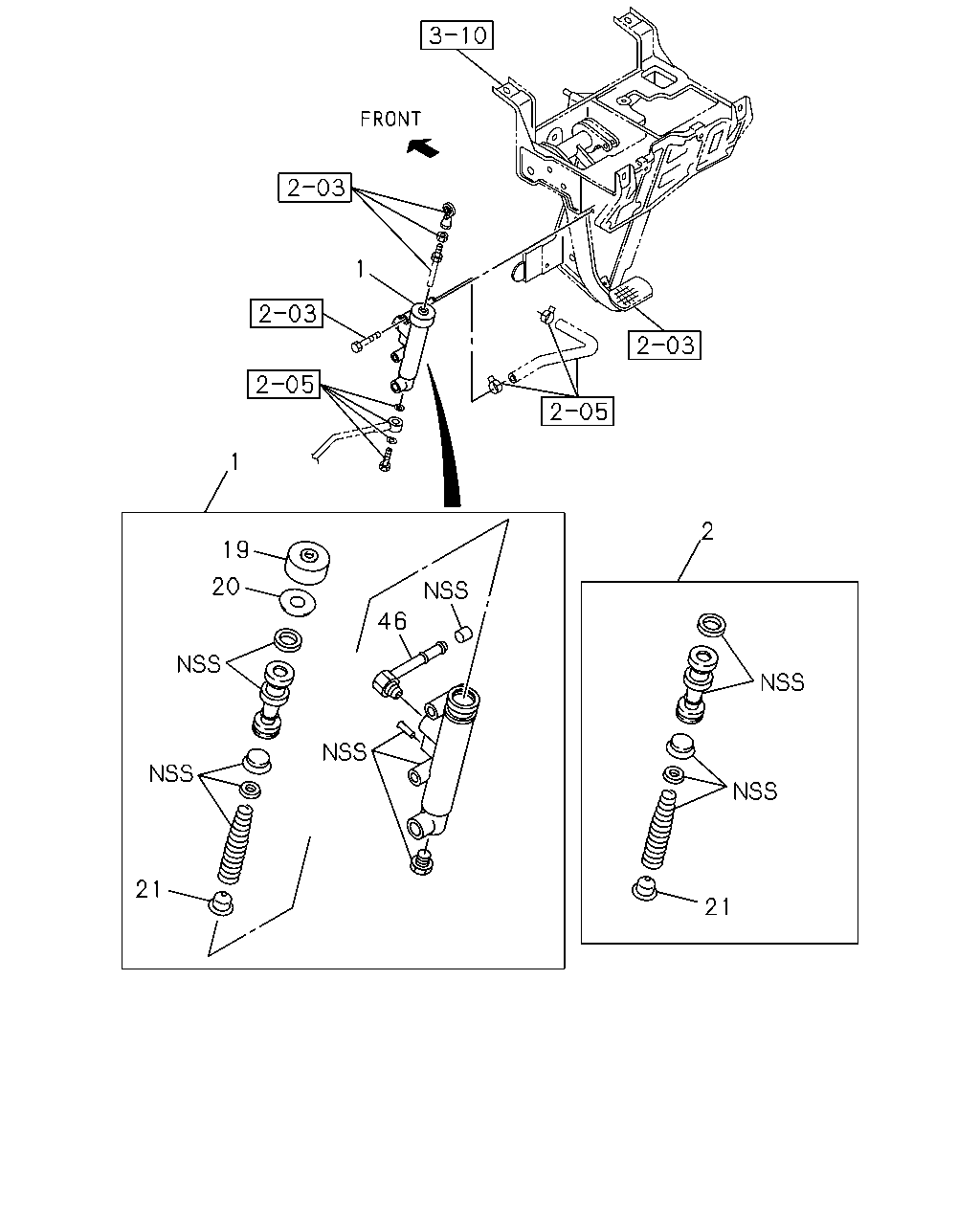

çizim 385429
2 21 21 20 19 1 46 1
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 1311-1407
1 CYLINDER ASM; CLUTCH MASTER
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-47500-232-2 01 1 1408-
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 1311-1407
2 REPAIR KIT; CLU M/CYL
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-85576-114-0 01 1 1408-
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 1311-1407
19 BOOT; CLU M/CYL
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		9-47545-032-0 01 1 1408-
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 1311-1407
20 RING; SNAP,BODY
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> OD=26.9 		9-09180-125-0 01 1 1408-
21 VALVE; CHECK 1-47565-004-0 01 1 1311-1407
21 VALVE; CHECK
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-47565-004-0 01 1 1408-
46 CONNECTOR; PIPE 1-47517-004-0 01 1 1311-1407
46 CONNECTOR; PIPE
15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-47517-004-0 01 1 1408-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
