2-05 — CLUTCH PIPING (#130389) — 165 parça

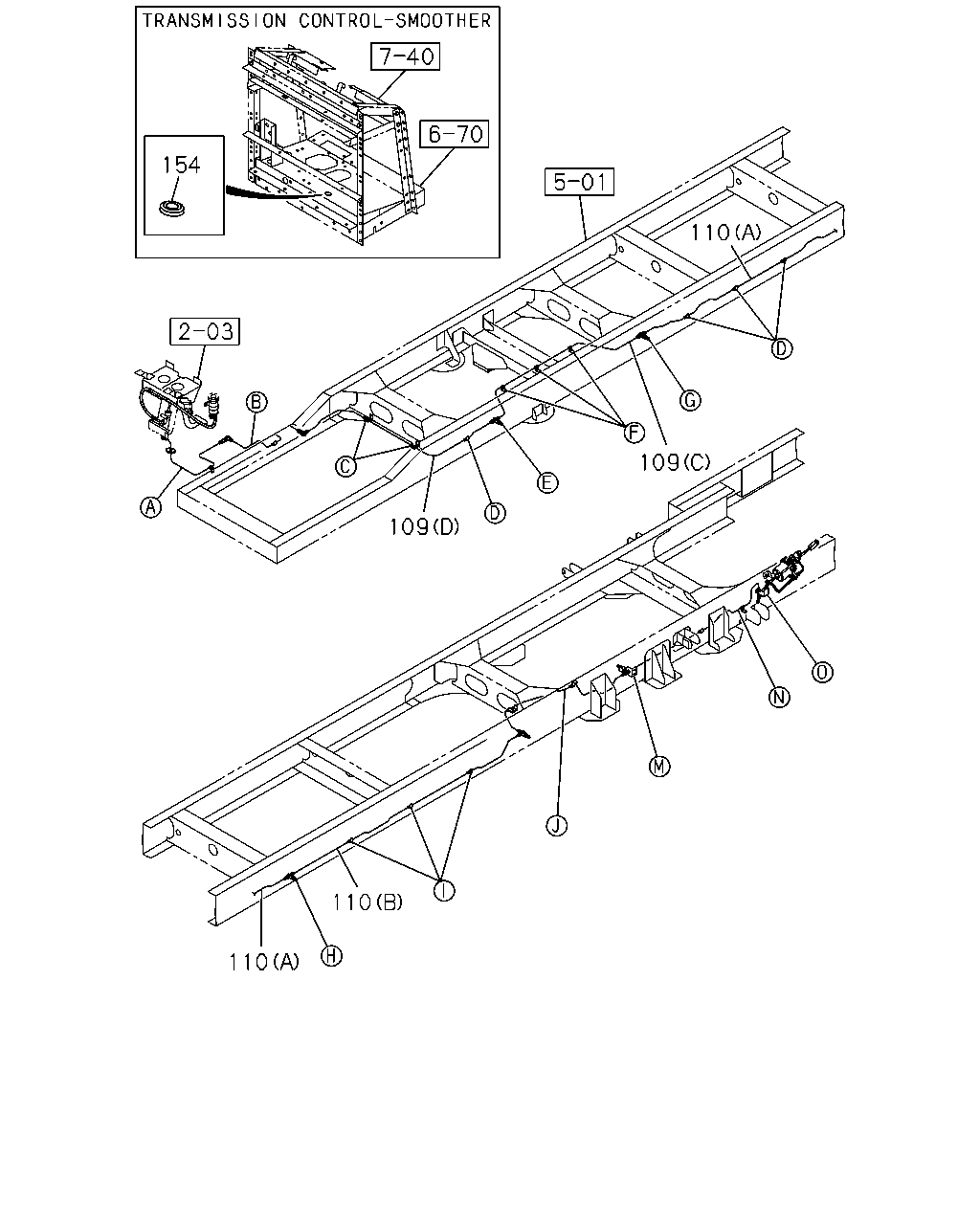

154 109 109 110 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
109	PIPE; AIR,UNION TO UNION (A) L=724 SERVICED BY L=730	1-47428-758-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=724 SERVICED BY L=730	1-47428-758-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (B) L=1130 SERVICED BY L=1250	1-47428-764-0	01	1	1311-1312
109	PIPE; AIR,UNION TO UNION (B) L=1140 SERVICED BY L=1250	1-47428-764-0	01	1	1401-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=1140 SERVICED BY L=1250	1-47428-764-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (C) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (D) L=1537 SERVICED BY L=1550	1-47428-766-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (D) L=1537 SERVICED BY L=1550	1-47428-766-0	01	1	1408-
110	PIPE; OIL,UNION TO UNION (A) L=1687 SERVICED BY L=1700	1-47428-767-0	01	1	1311-1407
110	PIPE; OIL,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=1687 SERVICED BY L=1700	1-47428-767-0	01	1	1408-
110	PIPE; OIL,UNION TO UNION (B) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	1311-1407
110	PIPE; OIL,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	1408-
154	GROMMET; CLU OIL PIPE TRANSMISSION CONTROL-SMOOTHER<8GF>	9-09575-597-0	01	1	1408-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	1311-1407
154	GROMMET; CLU OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09333-026-2	01	1	1408-

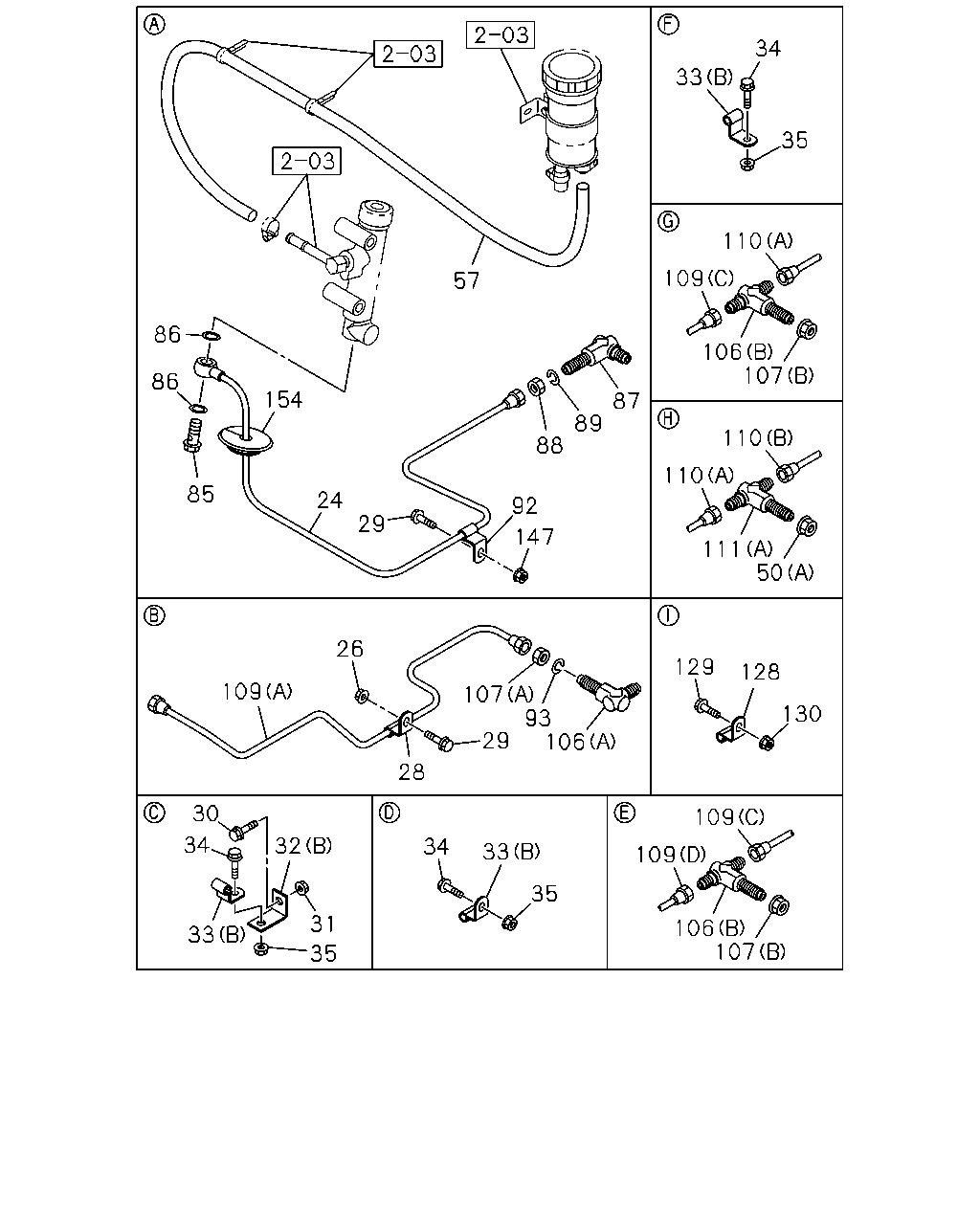

33 34 35 30 31 32 33 34 35 33 34 35 85 86 87 88 89 106 107 109 110 111 128 129 130 106 107 109 106 107 109 109 86 154 24 29 26 28 29 93 110 110 50 57 92 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49167-507-0	01	1	1311-1407
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-49167-507-0	01	1	1408-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1311-1407
26	NUT; CLIP,OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	01	1	1408-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1311-1407
28	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8 H=20 L=20	1-09700-604-0	01	1	1408-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1311-1407
29	BOLT; CLIP,OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X25 FLANGE	0-28650-825-0	02	1	1408-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1311-1407
30	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE	0-28650-830-0	02	1	1408-
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1311-1407
31	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	02	1	1408-
32	BRACKET; CLIP OIL PIPE (A)	1-47475-427-1	02	1	1311-
32	BRACKET; CLIP OIL PIPE (B) L=40	1-47478-410-0	02	1	1311-1407
32	BRACKET; CLIP OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=40	1-47478-410-0	02	1	1408-
33	CLIP; OIL PIPE (A) ID=9 L=28	0-95234-855-0	01	1	1311-1407
33	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=9 L=28	0-95234-855-0	01	1	1408-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	12	1	1311-1407
33	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=8 H=20 L=20	1-09700-604-0	12	1	1408-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	13	1	1311-1407
34	BOLT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE	0-28650-830-0	13	1	1408-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	13	1	1311-1312
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	12	1	1401-1407
35	NUT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	12	1	1408-
50	NUT; UNION (A) M12 FLANGE	0-91180-212-0	02	1	1311-1407
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M12 FLANGE	0-91180-212-0	02	1	1408-
50	NUT; UNION EXC. H.S.A SYSTEM<6EP> (B) M14	0-91111-514-0	01	1	1311-1407
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. H.S.A SYSTEM<6EP> (B) M14	0-91111-514-0	01	1	1408-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	1311-1407
57	HOSE; CLU M/CYL TO OIL TANK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=920 SERVICED BY L=1800	1-09360-320-0	01	1	1408-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	1311-1407
85	BOLT; EYE JOINT,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14X29 EYE-BOLT	9-09906-325-1	01	1	1408-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	1311-1407
86	GASKET; EYE JOINT,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2 OD=20.0	9-09571-414-0	02	1	1408-
87	UNION; OIL PIPE M14 ELBOW	0-92125-208-0	01	1	1311-1407
87	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14 ELBOW	0-92125-208-0	01	1	1408-
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	1311-1407
88	NUT; PIPE UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14	0-91111-514-0	01	1	1408-
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	1311-1407
89	WASHER; LK,PIPE UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2	0-91510-814-0	01	1	1408-
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1311-1407
92	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8 H=20 L=20	1-09700-604-0	01	1	1408-
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	01	1	1311-1407
93	WASHER; LK,UNION,OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2	0-91510-814-0	01	1	1408-
106	UNION; OIL PIPE (A) M14	0-92125-008-0	01	1	1311-1407
106	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M14	0-92125-008-0	01	1	1408-
106	UNION; OIL PIPE (B) M14 2WAY	1-09654-176-2	02	1	1311-1407
106	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M14 2WAY	1-09654-176-2	02	1	1408-
107	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1311-1407
107	NUT; UNION,OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M14	0-91111-514-0	01	1	1408-
107	NUT; UNION,OIL PIPE (B) M12 FLANGE	0-91180-212-0	02	1	1311-1407
107	NUT; UNION,OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M12 FLANGE	0-91180-212-0	02	1	1408-
109	PIPE; AIR,UNION TO UNION (A) L=724 SERVICED BY L=730	1-47428-758-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=724 SERVICED BY L=730	1-47428-758-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (B) L=1130 SERVICED BY L=1250	1-47428-764-0	01	1	1311-1312
109	PIPE; AIR,UNION TO UNION (B) L=1140 SERVICED BY L=1250	1-47428-764-0	01	1	1401-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=1140 SERVICED BY L=1250	1-47428-764-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (C) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (D) L=1537 SERVICED BY L=1550	1-47428-766-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (D) L=1537 SERVICED BY L=1550	1-47428-766-0	01	1	1408-
110	PIPE; OIL,UNION TO UNION (A) L=1687 SERVICED BY L=1700	1-47428-767-0	01	1	1311-1407
110	PIPE; OIL,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=1687 SERVICED BY L=1700	1-47428-767-0	01	1	1408-
110	PIPE; OIL,UNION TO UNION (B) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	1311-1407
110	PIPE; OIL,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	1408-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	1311-1407
111	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M14 2WAY	1-09654-176-2	01	1	1408-
111	UNION; OIL PIPE EXC. H.S.A SYSTEM<6EP> (B)	1-09656-265-0	01	1	1311-1407
111	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. H.S.A SYSTEM<6EP> (B)	1-09656-265-0	01	1	1408-
128	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	1311-1407
128	CLIP; AIR PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8 H=20 L=20	1-09700-604-0	03	1	1408-
129	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1311-1407
129	BOLT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE	0-28650-830-0	03	1	1408-
130	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1311-1407
130	NUT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	03	1	1408-
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1311-1407
147	NUT; CLIP FIX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	01	1	1408-
154	GROMMET; CLU OIL PIPE TRANSMISSION CONTROL-SMOOTHER<8GF>	9-09575-597-0	01	1	1408-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	1311-1407
154	GROMMET; CLU OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09333-026-2	01	1	1408-

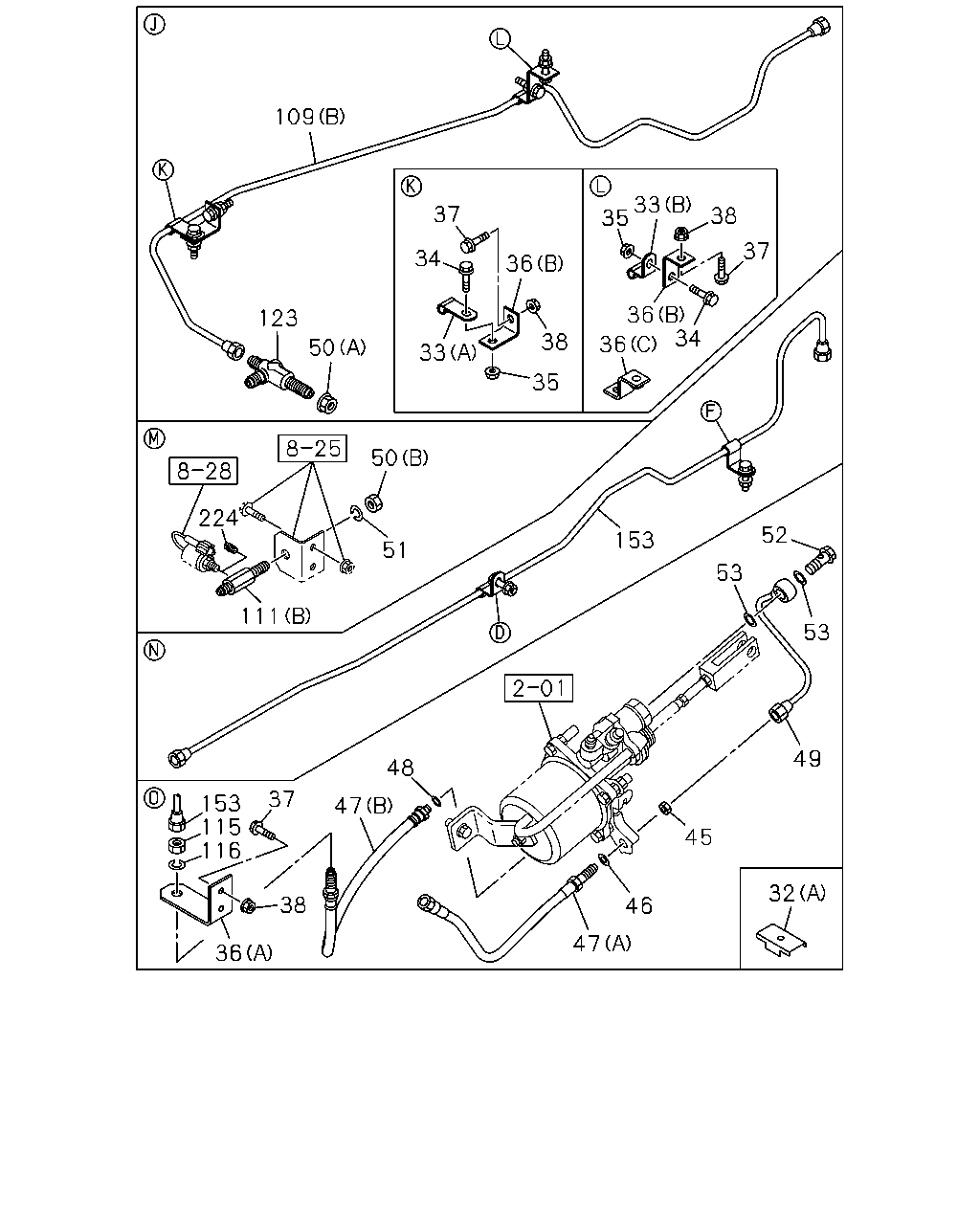

38 33 35 36 36 34 37 36 37 34 33 38 35 52 53 53 153 109 123 50 50 51 111 224 153 115 116 38 37 47 48 47 46 45 32 49 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	BRACKET; CLIP OIL PIPE (A)	1-47475-427-1	02	1	1311-
32	BRACKET; CLIP OIL PIPE (B) L=40	1-47478-410-0	02	1	1311-1407
32	BRACKET; CLIP OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=40	1-47478-410-0	02	1	1408-
33	CLIP; OIL PIPE (A) ID=9 L=28	0-95234-855-0	01	1	1311-1407
33	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=9 L=28	0-95234-855-0	01	1	1408-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	12	1	1311-1407
33	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=8 H=20 L=20	1-09700-604-0	12	1	1408-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	13	1	1311-1407
34	BOLT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE	0-28650-830-0	13	1	1408-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	13	1	1311-1312
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	12	1	1401-1407
35	NUT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	12	1	1408-
36	BRACKET; CLIP (A)	1-47477-865-0	01	1	1311-1407
36	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	1-47477-865-0	01	1	1408-
36	BRACKET; CLIP (B) L=40	1-47478-410-0	02	1	1311-1312
36	BRACKET; CLIP (B) L=40	1-47478-410-0	01	1	1401-1407
36	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=40	1-47478-410-0	01	1	1408-
36	BRACKET; CLIP (C)	8-97624-332-0	01	1	1401-1407
36	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C)	8-97624-332-0	01	1	1408-
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	1311-1407
37	BOLT; CLIP BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE	0-28650-830-0	04	1	1408-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1311-1407
38	NUT; CLIP BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE	0-91180-108-0	04	1	1408-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1311-1407
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M12	9-09840-280-0	01	1	1408-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	01	1	1311-1407
46	WASHER; LK,FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=12.2	0-91510-812-0	01	1	1408-
47	HOSE; FLEX,CLU CONT (A) L=470	1-09363-682-0	01	1	1311-1407
47	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=470	1-09363-682-0	01	1	1408-
47	HOSE; FLEX,CLU CONT (B) L=600	1-09364-705-0	01	1	1311-1407
47	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=600	1-09364-705-0	01	1	1408-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1311-1407
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10.2 OD=16.0	9-09571-410-0	01	1	1408-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239	1-49117-401-0	01	1	1311-1407
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=239	1-49117-401-0	01	1	1408-
50	NUT; UNION (A) M12 FLANGE	0-91180-212-0	02	1	1311-1407
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M12 FLANGE	0-91180-212-0	02	1	1408-
50	NUT; UNION EXC. H.S.A SYSTEM<6EP> (B) M14	0-91111-514-0	01	1	1311-1407
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. H.S.A SYSTEM<6EP> (B) M14	0-91111-514-0	01	1	1408-
51	WASHER; LK EXC. H.S.A SYSTEM<6EP> ID=14.2	0-91510-514-0	01	1	1311-1407
51	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. H.S.A SYSTEM<6EP> ID=14.2	0-91510-514-0	01	1	1408-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1311-1407
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14X27 FLANGE	1-09675-086-0	01	1	1408-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1311-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1407
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2 OD=19.2	8-98251-345-0	02	1	1408-
109	PIPE; AIR,UNION TO UNION (A) L=724 SERVICED BY L=730	1-47428-758-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=724 SERVICED BY L=730	1-47428-758-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (B) L=1130 SERVICED BY L=1250	1-47428-764-0	01	1	1311-1312
109	PIPE; AIR,UNION TO UNION (B) L=1140 SERVICED BY L=1250	1-47428-764-0	01	1	1401-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=1140 SERVICED BY L=1250	1-47428-764-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (C) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1408-
109	PIPE; AIR,UNION TO UNION (D) L=1537 SERVICED BY L=1550	1-47428-766-0	01	1	1311-1407
109	PIPE; AIR,UNION TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (D) L=1537 SERVICED BY L=1550	1-47428-766-0	01	1	1408-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	1311-1407
111	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M14 2WAY	1-09654-176-2	01	1	1408-
111	UNION; OIL PIPE EXC. H.S.A SYSTEM<6EP> (B)	1-09656-265-0	01	1	1311-1407
111	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. H.S.A SYSTEM<6EP> (B)	1-09656-265-0	01	1	1408-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1311-1407
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14	0-91111-514-0	01	1	1408-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1311-1407
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=14.2	0-91510-514-0	01	1	1408-
123	UNION; AIR PIPE M14 2WAY	1-09654-034-2	01	1	1311-1407
123	UNION; AIR PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M14 2WAY	1-09654-034-2	01	1	1408-
153	PIPE ASM; CLU,UNION TO FLEX L=1300 SERVICED BY L=1400	1-47428-765-0	01	1	1311-1407
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=1300 SERVICED BY L=1400	1-47428-765-0	01	1	1408-
224	PLUG; CONTROL VALVE EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	1311-1407
224	PLUG; CONTROL VALVE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	1408-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
