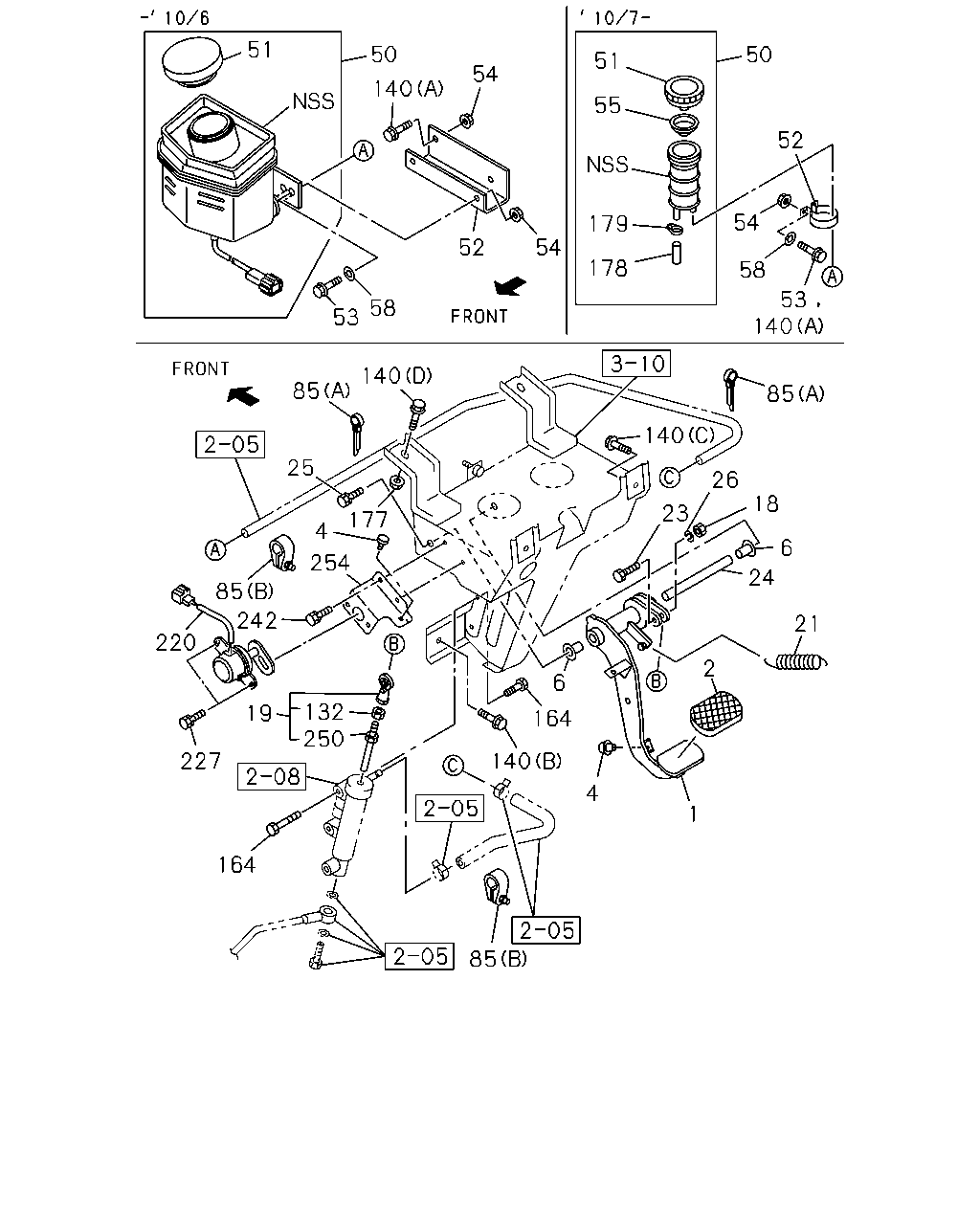

2-03 — CLUTCH PEDAL AND CONTROL (#130388) — 84 parça

51 50 140 54 52 54 58 53 51 55 179 178 50 52 54 58 53 140 220 227 242 85 19 164 85 25 140 177 4 254 132 250 85 140 26 23 2 18 6 24 21 1 4 6 164 140 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU	1-73908-171-3	01	1	1311-1407
1	PEDAL; CLU H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-73908-171-3	01	1	1408-
1	PEDAL; CLU EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-73908-171-3	01	1	1408-
2	COVER; CLU PEDAL	8-97893-618-1	01	1	1311-1407
2	COVER; CLU PEDAL H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97893-618-1	01	1	1408-
2	COVER; CLU PEDAL EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97893-618-1	01	1	1408-
4	STOPPER; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER<8GF>	1-47319-014-1	01	1	1408-
4	STOPPER; CLU PEDAL	1-47319-014-1	04	1	1311-1407
4	STOPPER; CLU PEDAL H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-47319-014-1	04	1	1408-
4	STOPPER; CLU PEDAL EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-47319-014-1	04	1	1408-
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	1311-1407
6	BUSHING; CLU PEDAL H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-09330-045-0	02	1	1408-
6	BUSHING; CLU PEDAL EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-09330-045-0	02	1	1408-
18	NUT; PUSH ROD H.S.A SYSTEM<6EP> M8	9-09110-508-0	01	1	1311-1407
18	NUT; PUSH ROD H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8	9-09110-508-0	01	1	1408-
18	NUT; PUSH ROD EXC. H.S.A SYSTEM<6EP> M8	0-91110-508-0	01	1	1311-1407
18	NUT; PUSH ROD EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> M8	0-91110-508-0	01	1	1408-
19	ROD ASM; PUSH,CLU	1-73996-144-1	01	1	1311-1407
19	ROD ASM; PUSH,CLU H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-73996-144-1	01	1	1408-
19	ROD ASM; PUSH,CLU EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-73996-144-1	01	1	1408-
21	SPRING; RETURN,CLU PEDAL	1-73908-265-0	01	1	1311-1407
21	SPRING; RETURN,CLU PEDAL H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-73908-265-0	01	1	1408-
21	SPRING; RETURN,CLU PEDAL EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-73908-265-0	01	1	1408-
23	BOLT; PUSH ROD H.S.A SYSTEM<6EP> M8X35	9-01060-835-0	01	1	1311-1407
23	BOLT; PUSH ROD H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X35	9-01060-835-0	01	1	1408-
23	BOLT; PUSH ROD EXC. H.S.A SYSTEM<6EP> M8X35	0-10960-835-0	01	1	1311-1407
23	BOLT; PUSH ROD EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> M8X35	0-10960-835-0	01	1	1408-
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	1311-1407
24	SHAFT; CLU PEDAL H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-73998-936-1	01	1	1408-
24	SHAFT; CLU PEDAL EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-73998-936-1	01	1	1408-
24	SHAFT; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER<8GF>	1-73998-936-1	01	1	1408-
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	1311-1407
25	BOLT; PEDAL H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X25 W/LK WASHER	0-50051-025-0	02	1	1408-
25	BOLT; PEDAL EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> M10X25 W/LK WASHER	0-50051-025-0	02	1	1408-
25	BOLT; PEDAL TRANSMISSION CONTROL-SMOOTHER<8GF> M10X25 W/LK WASHER	0-50051-025-0	02	1	1408-
26	WASHER; LK,PUSH ROD H.S.A SYSTEM<6EP> ID=8.2	9-09150-608-0	01	1	1311-1407
26	WASHER; LK,PUSH ROD H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.2	9-09150-608-0	01	1	1408-
26	WASHER; LK,PUSH ROD EXC. H.S.A SYSTEM<6EP> ID=8.2	0-91510-608-0	01	1	1311-1407
26	WASHER; LK,PUSH ROD EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> ID=8.2	0-91510-608-0	01	1	1408-
50	TANK; OIL,CLU	1-47530-183-1	01	1	1311-1407
50	TANK; OIL,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-47530-183-1	01	1	1408-
51	CAP; OIL TANK,CLU	9-47525-032-1	01	1	1311-1407
51	CAP; OIL TANK,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-47525-032-1	01	1	1408-
52	BRACKET; OIL TANK,CLU M/CYL	9-47537-023-1	01	1	1311-1407
52	BRACKET; OIL TANK,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-47537-023-1	01	1	1408-
53	BOLT; BRKT,OIL TANK,CLU M/CYL M5X16	0-20850-516-0	01	1	1311-1407
53	BOLT; BRKT,OIL TANK,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M5X16	0-20850-516-0	01	1	1408-
54	NUT; BRKT,OIL TANK,CLU M/CYL M5	1-09984-124-0	03	1	1311-1407
54	NUT; BRKT,OIL TANK,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M5	1-09984-124-0	03	1	1408-
55	BAFFLE; RUBBER,CLU M/CYL	9-47529-031-0	01	1	1311-1407
55	BAFFLE; RUBBER,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-47529-031-0	01	1	1408-
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ID=5.3	0-91610-505-0	02	1	1311-1407
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=5.3	0-91610-505-0	02	1	1408-
85	CLIP; HOSE TO M/CYL (B) ID=15	9-09715-098-0	02	1	1311-1407
85	CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=15	9-09715-098-0	02	1	1408-
85	CLIP; HOSE TO M/CYL (A) ID=14 L=44	9-09917-427-0	02	1	1311-1407
85	CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=14 L=44	9-09917-427-0	02	1	1408-
132	NUT; LK,PUSH ROD EXC. H.S.A SYSTEM<6EP> M8	0-91110-508-0	01	1	1311-1407
132	NUT; LK,PUSH ROD EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> M8	0-91110-508-0	01	1	1408-
140	BOLT; BRKT (A) M5X16	0-20850-516-0	02	1	1311-1407
140	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M5X16	0-20850-516-0	02	1	1408-
140	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1311-
140	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	1311-
140	BOLT; BRKT (D) M10X25 FLANGE	0-28651-025-0	02	1	1311-
164	BOLT; CLU M/CYL M10X70 FLANGE	0-28051-070-0	02	1	1311-1407
164	BOLT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X70 FLANGE	0-28051-070-0	02	1	1408-
177	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-
178	CAP; OIL TANK HOSE	1-47539-005-0	01	1	1311-1407
178	CAP; OIL TANK HOSE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-47539-005-0	01	1	1408-
179	CLIP; CAP TO OIL TANK ID=15	9-09715-098-0	01	1	1311-1407
179	CLIP; CAP TO OIL TANK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=15	9-09715-098-0	01	1	1408-
220	SENSOR; CLUTCH H.S.A SYSTEM<6EP>	1-80250-014-0	01	1	1311-1407
220	SENSOR; CLUTCH H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-80250-014-0	01	1	1408-
227	SCREW; BRKT H.S.A SYSTEM<6EP> M6X16	0-52000-616-0	02	1	1311-1407
227	SCREW; BRKT H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M6X16	0-52000-616-0	02	1	1408-
242	BOLT; BRKT,CLUTCH H.S.A SYSTEM<6EP> M6X16 W/LK WASHER	0-50040-616-0	02	1	1311-1407
242	BOLT; BRKT,CLUTCH H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M6X16 W/LK WASHER	0-50040-616-0	02	1	1408-
242	BOLT; BRKT,CLUTCH EXC. H.S.A SYSTEM<6EP> M6X16 W/LK WASHER	0-50540-616-0	02	1	1311-1407
242	BOLT; BRKT,CLUTCH EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF> M6X16 W/LK WASHER	0-50540-616-0	02	1	1408-
250	ROD; PUSH,CLU EXC. H.S.A SYSTEM<6EP>	1-73996-219-0	01	1	1311-1407
250	ROD; PUSH,CLU EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-73996-219-0	01	1	1408-
254	BRACKET; CLU SENSOR	1-73998-979-5	01	1	1311-1407
254	BRACKET; CLU SENSOR H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	1-73998-979-5	01	1	1408-
254	BRACKET; CLU SENSOR EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER<8GF>	1-73998-979-5	01	1	1408-
