◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11562 - LT434-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#130387) — 113 parça

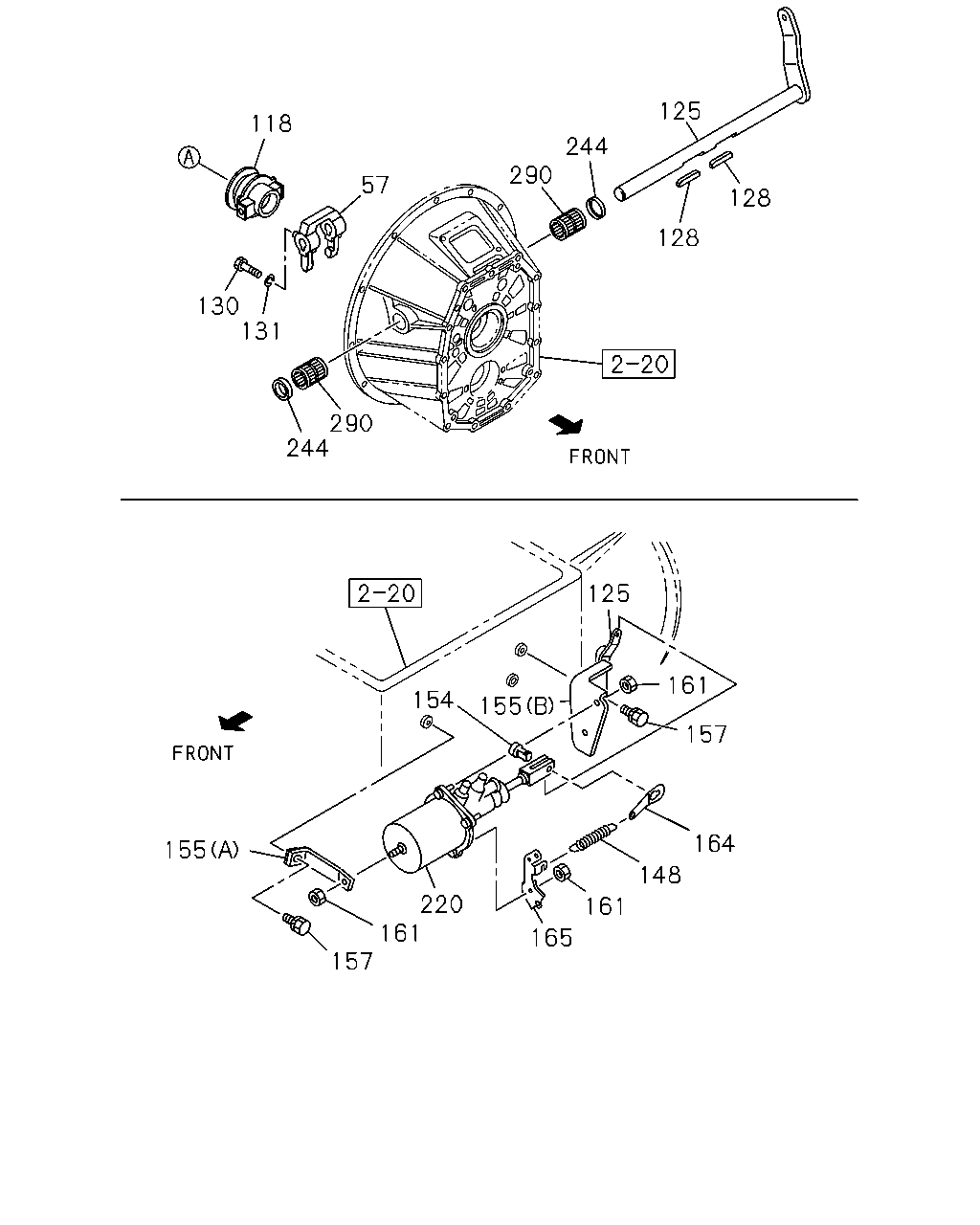

çizim 385408
118 57 130 131 290 244 290 244 125 128 128 155 157 161 220 154 155 125 161 157 164 148 161 165
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU 1-31341-048-2 01 1 1311-1407
57 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31341-048-2 01 1 1408-
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-109-0 01 1 1311-1407
118 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS 		1-87610-109-0 01 1 1408-
118 BEARING; CLU RELEASE 1-31310-026-0 01 1 1311-1407
118 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31310-026-0 01 1 1408-
125 SHAFT; CLU 1-31342-347-0 01 1 1311-1407
125 SHAFT; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31342-347-0 01 1 1408-1505
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1311-1407
128 KEY; FEATHER,CLU SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		9-09867-008-0 02 1 1408-
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 1311-1407
130 SCREW; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X14 		0-61200-814-0 01 1 1408-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1311-1407
131 WASHER; LK,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.2 		0-91510-508-0 01 1 1408-
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1311-1407
148 SPRING; CLU RETURN
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=135 		1-09583-305-0 01 1 1408-
154 PIN; JAW JOINT 1-31424-009-0 01 1 1311-1407
154 PIN; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31424-009-0 01 1 1408-
155 BRACKET; MINIPACK
(B) 		1-31429-516-0 01 1 1311-1407
155 BRACKET; MINIPACK
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		1-31429-516-0 01 1 1408-
155 BRACKET; MINIPACK
(A) 		1-31429-517-0 01 1 1311-1407
155 BRACKET; MINIPACK
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		1-31429-517-0 01 1 1408-
157 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 03 1 1311-1407
157 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X25 FLANGE 		0-28751-025-0 03 1 1408-
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 1311-1407
161 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE 		0-91180-210-0 05 1 1408-
164 EYE; SPRING 1-31426-041-0 01 1 1311-1407
164 EYE; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31426-041-0 01 1 1408-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE 1-47477-789-0 01 1 1311-1407
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-47477-789-0 01 1 1408-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 1311-1407
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS 		1-87610-088-0 01 1 1408-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-4 01 1 1311-1407
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31800-387-4 01 1 1408-
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 1311-1407
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-09625-002-0 02 1 1408-
290 BEARING; NEEDLE
NTN 		1-09811-002-1 02 1 1311-1407
290 BEARING; NEEDLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> NTN 		1-09811-002-1 02 1 1408-

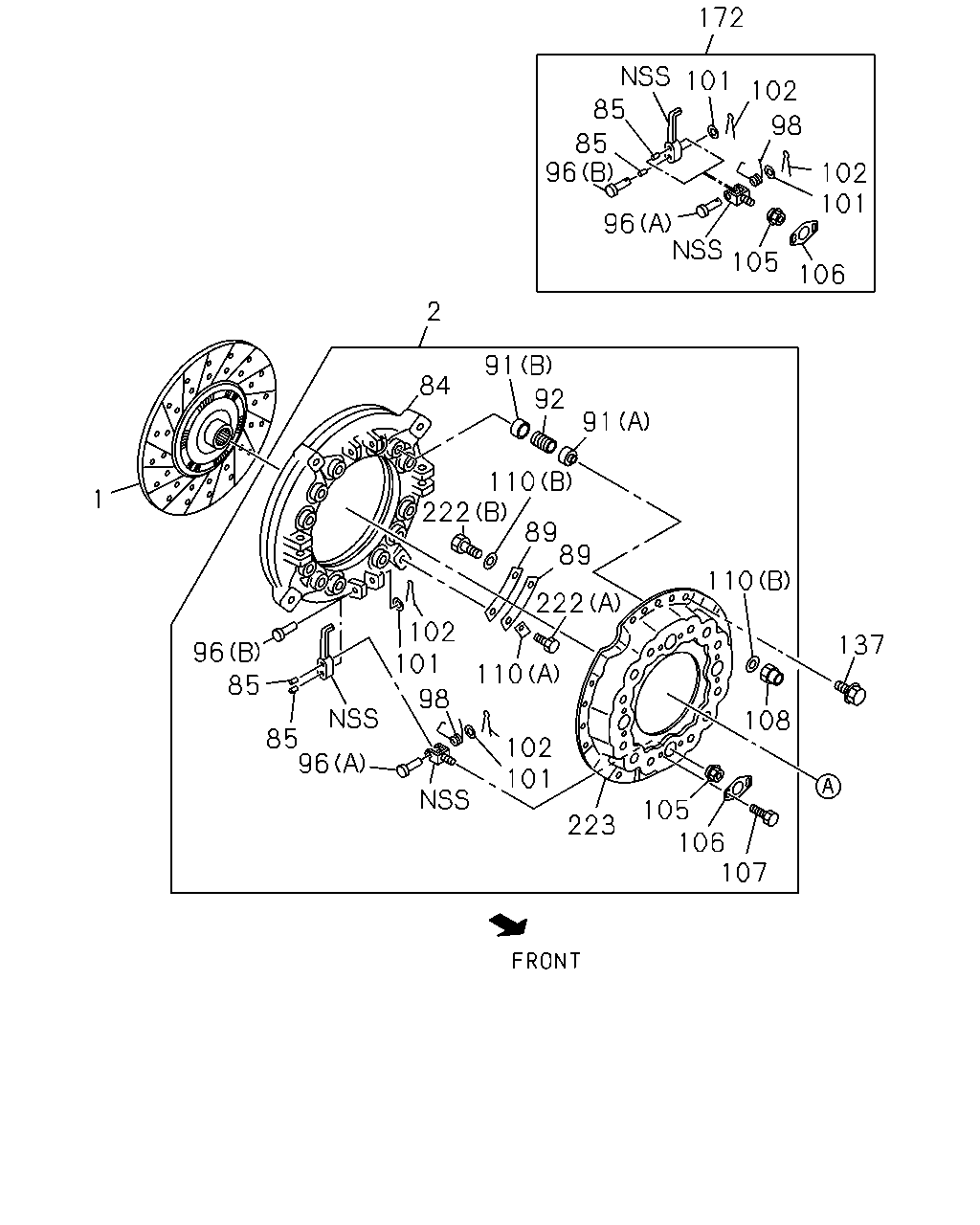

çizim 386207
137 108 105 106 107 110 223 101 110 222 89 89 91 92 91 2 84 222 110 102 96 85 85 96 102 98 101 1 106 101 102 105 96 96 85 85 172 102 98 101
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS 		1-87610-119-0 01 1 1411-
1 DISC; CLUTCH
15" 		1-31240-851-2 01 1 1311-1407
1 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 15" 		1-31240-851-2 01 1 1408-
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 1311-1407
2 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31220-377-2 01 1 1408-
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-146-0 01 1 1311-1407
2 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS 		1-87610-146-0 01 1 1408-
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 1311-1407
84 PLATE; PRESSURE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 15" 		1-31221-100-0 01 1 1408-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1311-1407
85 BUSHING; RELEASE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		9-31239-116-0 08 1 1408-
89 PLATE; STRAP 1-31229-050-0 16 1 1311-1407
89 PLATE; STRAP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31229-050-0 16 1 1408-
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1311-1407
91 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=37 H=25 		1-31219-012-0 12 1 1408-
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1311-1407
91 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=37 H=15 		1-31219-013-0 12 1 1408-
92 SPRING; CLU 1-31214-066-0 12 1 1311-1407
92 SPRING; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31214-066-0 12 1 1408-
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1311-1407
96 PIN; RELEASE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=49.0 		1-31232-005-0 04 1 1408-
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1311-1407
96 PIN; RELEASE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=57.0 		1-31232-014-0 04 1 1408-
98 SPRING; RETURN 1-31233-003-0 04 1 1311-1407
98 SPRING; RETURN
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31233-003-0 04 1 1408-
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1311-1407
101 WASHER; RELEASE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31239-058-0 08 1 1408-
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 1311-1407
102 PIN; SPLIT,RELEASE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> OD=2.7 L=22 		9-08103-022-0 08 1 1408-
105 NUT; SUPPORT 1-31235-014-0 04 1 1311-1407
105 NUT; SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31235-014-0 04 1 1408-
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 1311-1407
106 PLATE; LK,LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31239-019-0 04 1 1408-
107 BOLT; LK PLATE 1-31239-061-0 08 1 1311-1407
107 BOLT; LK PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31239-061-0 08 1 1408-
108 NUT; STRAP 1-09449-036-0 04 1 1311-1407
108 NUT; STRAP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-09449-036-0 04 1 1408-
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 1311-1407
110 WASHER; SPECIAL,STRAP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) T=1.2 		1-31229-009-0 04 1 1408-
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 1311-1407
110 WASHER; SPECIAL,STRAP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) T=3.2 		8-97374-512-0 08 1 1408-
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 1311-1407
137 BOLT; CLU COVER
15" CLUTCH(RE9) M10X20 FLANGE 		0-28151-020-0 12 1 1408-
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 1311-1407
172 LEVER KIT; RELEASE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-87831-170-1 01 1 1408-
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 1311-1407
222 BOLT; STRAP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) M10X23.2 		1-09040-042-0 04 1 1408-
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1311-1407
222 BOLT; STRAP
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1408-
223 COVER; CLU 1-31211-019-1 01 1 1311-1407
223 COVER; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		1-31211-019-1 01 1 1408-

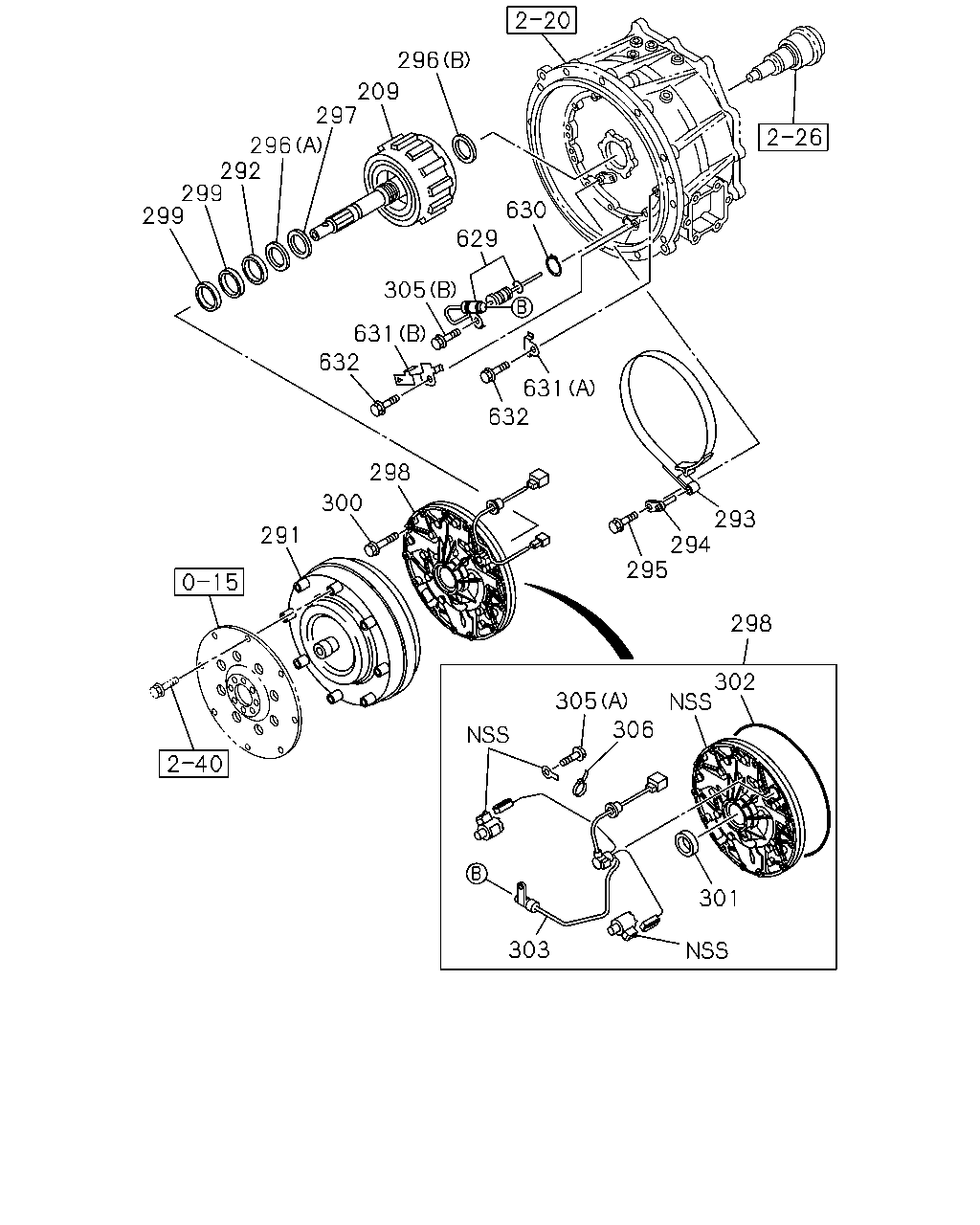

çizim 431409
293 294 298 305 306 302 301 303 298 300 291 631 632 629 630 305 631 632 297 296 292 299 299 209 296 295
BalonParca AdiParca NoAdetTipApplied Date
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98044-527-3 01 1 1408-1412
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98275-315-0 01 1 1501-
291 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98248-560-1 01 1 1408-
292 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-329-0 01 1 1408-
293 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97254-651-0 01 1 1408-
294 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-703-0 01 1 1408-
295 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE 		0-28650-820-0 01 1 1408-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-97255-688-0 01 1 1408-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-97255-689-0 01 1 1408-
297 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97300-070-0 01 1 1408-
298 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98107-925-2 01 1 1408-
299 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-330-0 02 1 1408-
300 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X45 FLANGE 		0-28050-845-0 11 1 1408-
301 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97289-811-0 01 1 1408-
302 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97255-188-0 01 1 1408-
303 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98020-613-1 01 1 1408-
305 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M6X12 FLANGE 		0-28050-612-0 01 1 1408-
305 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M6X16 FLANGE 		0-28650-616-0 01 1 1408-
306 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER<8GF> L=100 		8-94279-939-0 02 1 1408-
629 SENSOR; OIL TEMP
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98021-895-0 01 1 1408-
630 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER<8GF> ID=17.5 		9-09180-019-0 01 1 1408-
631 PLATE; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98021-285-0 02 1 1408-
631 PLATE; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98023-254-0 01 1 1408-
632 BOLT; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X20 FLANGE 		0-28650-820-0 03 1 1408-
