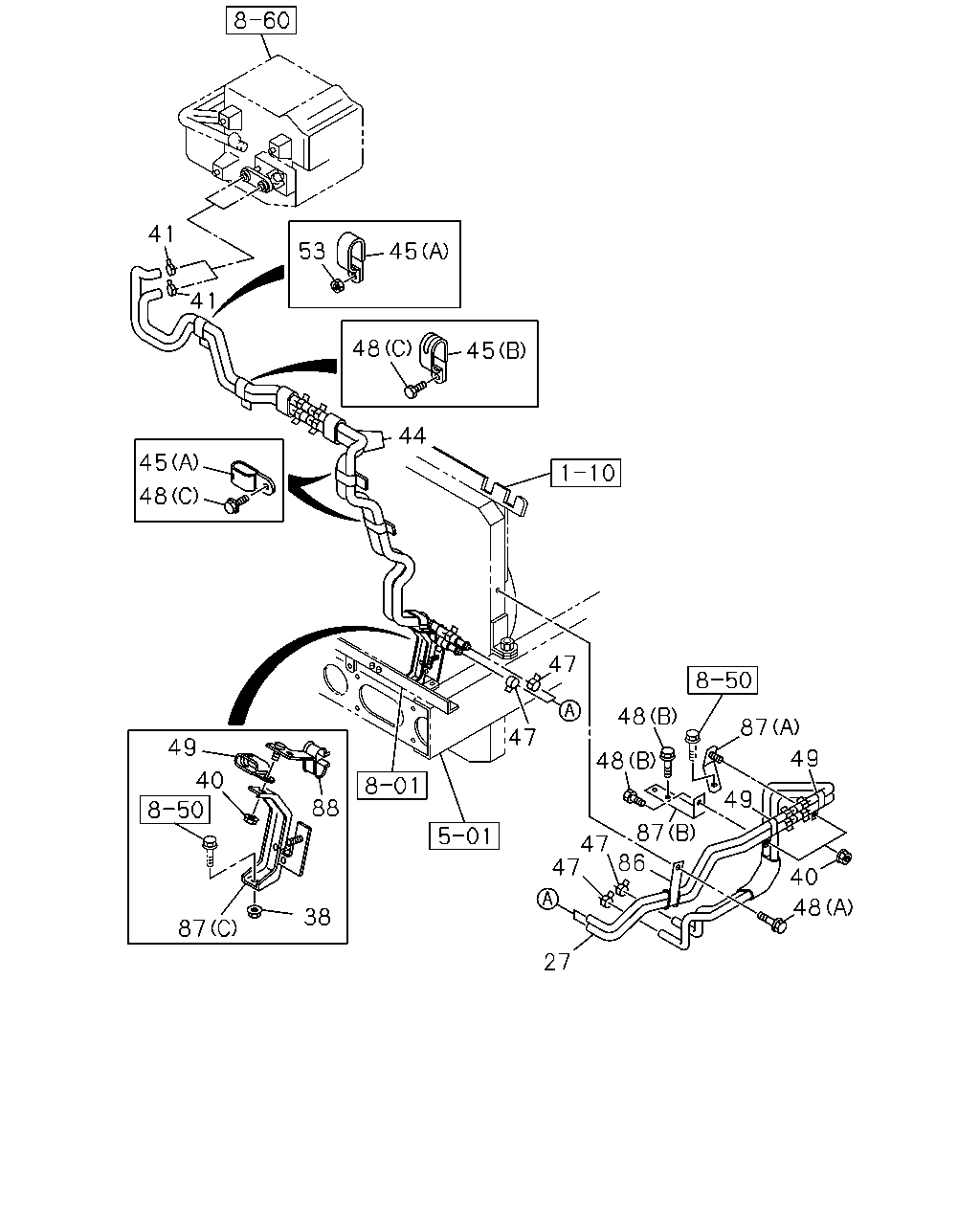

8-45 — HEATER PIPING
(#13038) — 26 parça
41
53
45
41
48
45
44
45
48
47
48
87
47
49
49
48
40
49
88
87
47
47
86
40
48
38
87
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-839-1
01
1
0611-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0611-0611
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0611-
41
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
02
1
0611-0611
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
0612-
44
HOSE; WATER,HTR,INL
8-98030-617-1
01
1
0611-0612
44
HOSE; WATER,HTR,INL
8-98052-678-2
01
1
0701-
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
0611-
45
CLIP; WATER PIPE
(A)
1-09701-238-0
03
1
0611-0612
45
CLIP; WATER PIPE
(A)
1-09701-238-0
02
1
0701-
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0611-0611
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
0611-0611
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
0611-
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
02
1
0611-0611
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
02
1
0611-
48
BOLT; CLIP FIX
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0611-0612
48
BOLT; CLIP FIX
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0701-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
0611-
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
0611-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
0611-
87
BRACKET; HTR HOSE CLIP
(B)
1-82699-208-1
01
1
0611-0905
87
BRACKET; HTR HOSE CLIP
(B)
1-82698-358-0
01
1
0906-
87
BRACKET; HTR HOSE CLIP
(A)
1-83573-251-1
01
1
0611-
87
BRACKET; HTR HOSE CLIP
(C)
1-83573-316-0
01
1
0611-
88
STAY; WATER HOSE
1-83573-291-1
01
1
0611-
