11562 - LT434-RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#130379) — 65 parça
◀

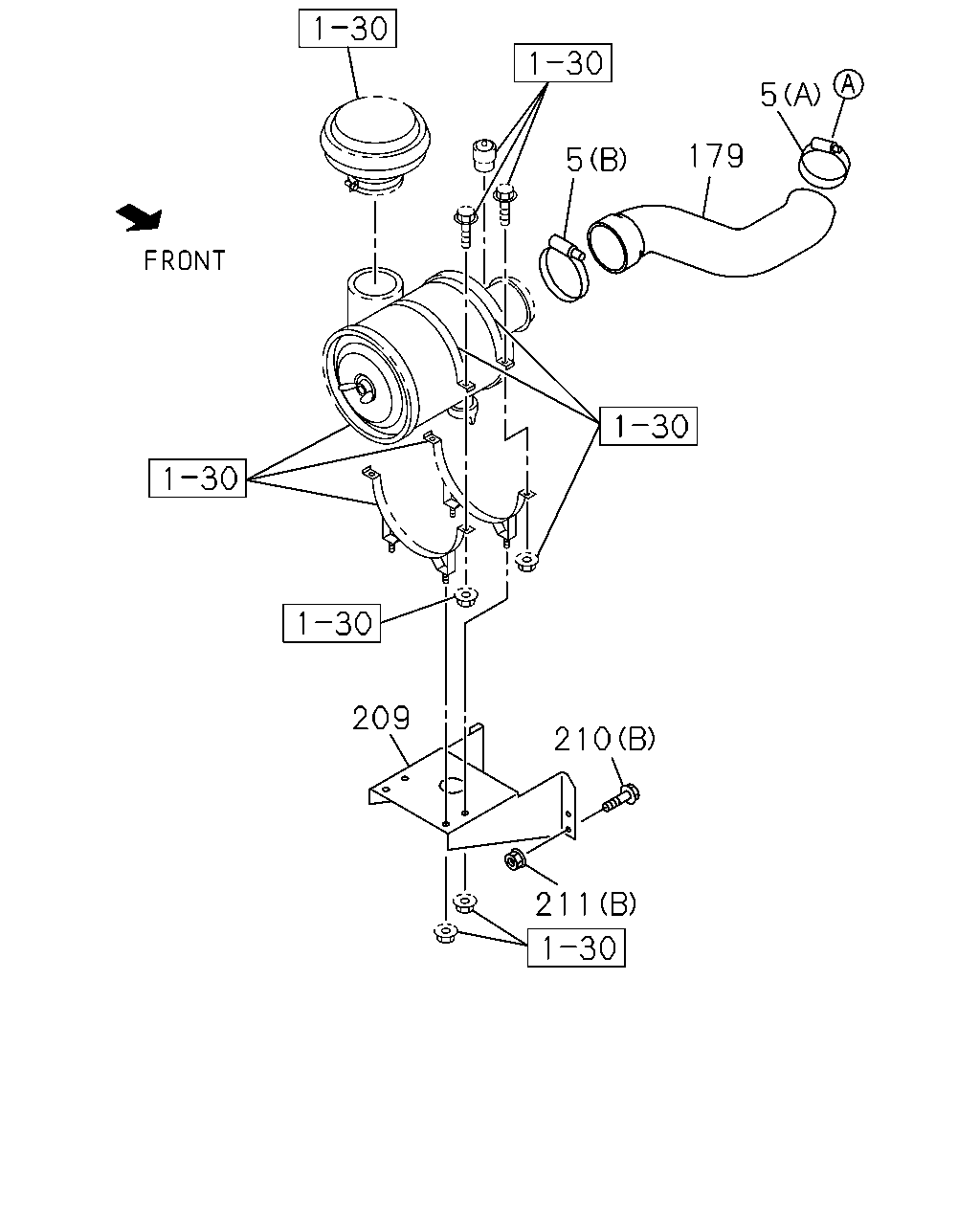

[131A] NO.1 (10 parça)

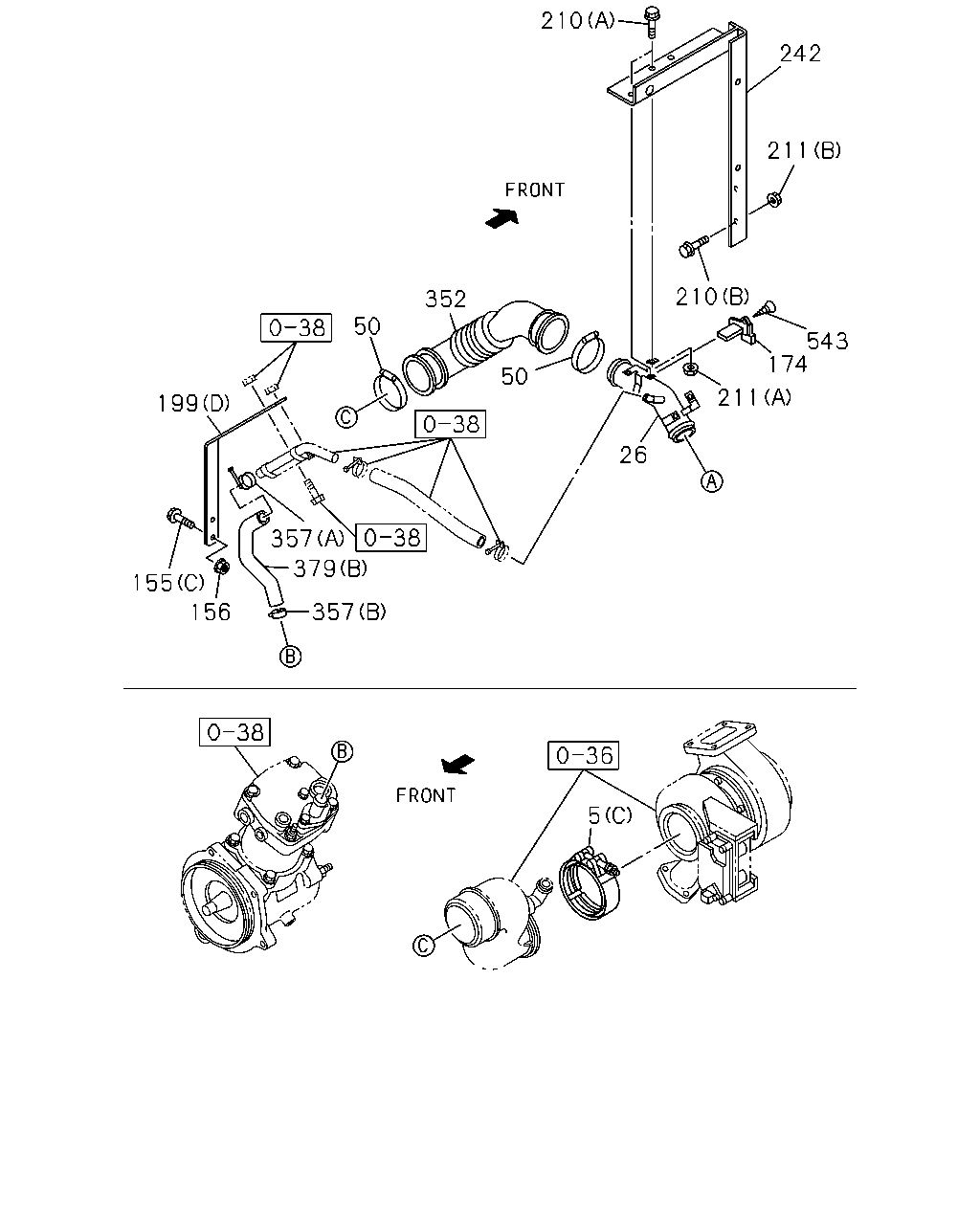

[131A] NO.2 (29 parça)

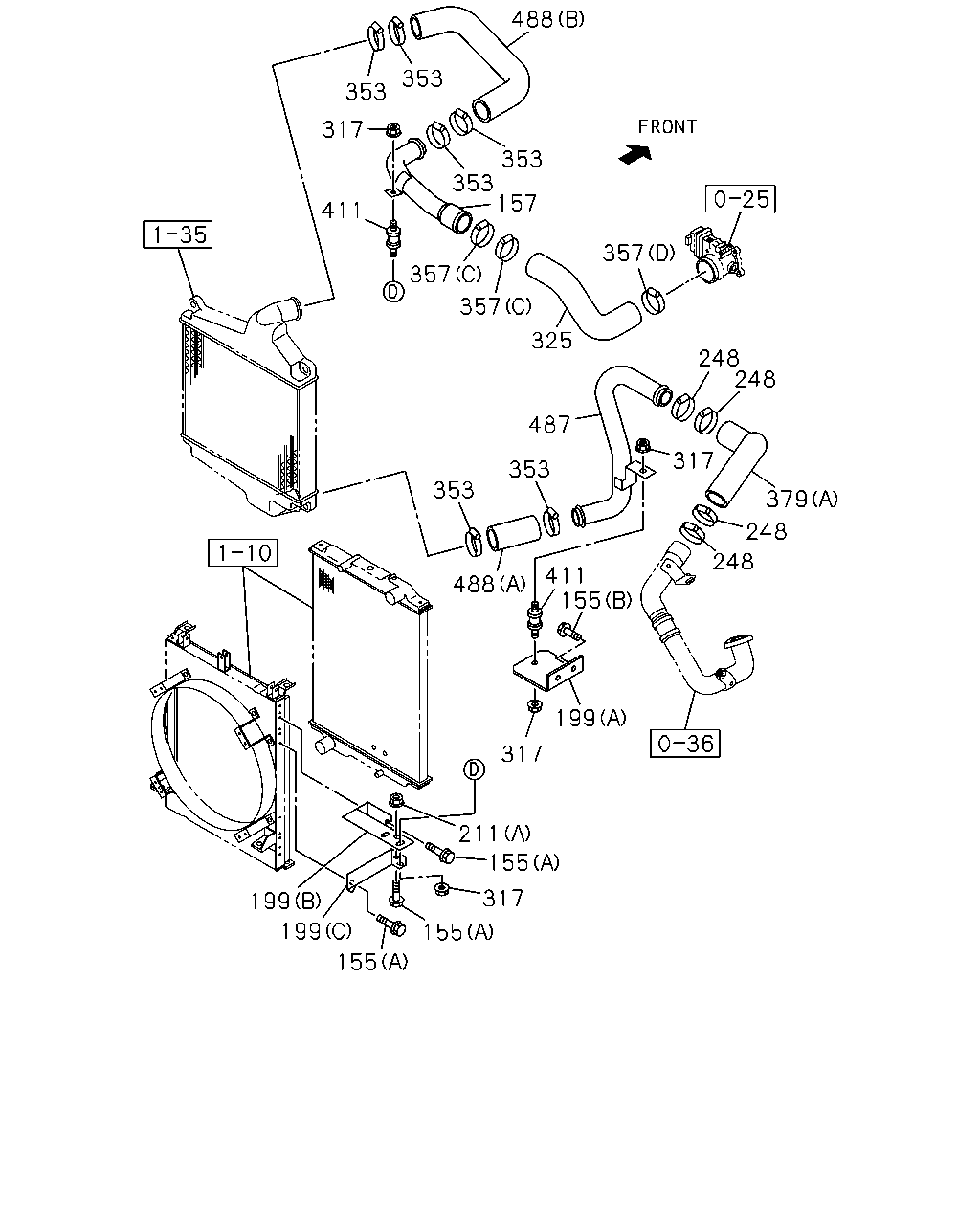

[131A] NO.3 (26 parça)
▶
5
179
5
209
210
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1311-
5
CLIP; AIR DUCT
(C) ID=114
8-15178-030-0
01
1
1311-
5
CLIP; AIR DUCT
(B) ID=130-169
8-98155-950-0
01
1
1311-
179
HOSE; AIR INT
8-98217-683-1
01
1
1311-
209
BRACKET; ACL
8-98249-264-1
01
1
1311-
210
BOLT; ACL BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1311-
210
BOLT; ACL BRKT
(B) M10X30 FLANGE
0-28651-030-0
06
1
1311-1311
210
BOLT; ACL BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1312-
211
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1311-
211
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
06
1
1311-
210
242
211
210
543
174
211
26
50
352
50
199
155
156
357
379
357
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1311-
5
CLIP; AIR DUCT
(C) ID=114
8-15178-030-0
01
1
1311-
5
CLIP; AIR DUCT
(B) ID=130-169
8-98155-950-0
01
1
1311-
26
DUCT; AIR INT
8-98030-607-3
01
1
1311-
50
CLIP; JOINT HOSE
ID=104-142
1-09707-139-0
02
1
1311-
155
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
1311-
155
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
02
1
1311-
155
BOLT; BRKT
(C) M10X30 FLANGE
0-28651-030-0
02
1
1311-
156
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1311-1312
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1311-
199
BRACKET; PIPE
(B)
1-14239-272-1
01
1
1311-
199
BRACKET; PIPE
(C)
1-14239-273-2
01
1
1311-
199
BRACKET; PIPE
(D)
8-98217-677-1
01
1
1311-
199
BRACKET; PIPE
(A)
8-98217-678-0
01
1
1311-
210
BOLT; ACL BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1311-
210
BOLT; ACL BRKT
(B) M10X30 FLANGE
0-28651-030-0
06
1
1311-1311
210
BOLT; ACL BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1312-
211
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1311-
211
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
06
1
1311-
242
BRACKET; AIR DUCT
8-98217-679-0
01
1
1311-
352
HOSE; RUBBER,AIR DUCT TO ENG
8-98004-246-0
01
1
1311-
357
CLIP; RUBBER HOSE
(A) ID=36
1-09704-094-0
01
1
1311-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1311-
357
CLIP; RUBBER HOSE
(D) ID=87-116
1-09707-138-0
01
1
1311-
357
CLIP; RUBBER HOSE
(C) ID=77-99
1-09707-141-0
02
1
1311-
379
HOSE; RUBBER
(B)
8-98049-144-0
01
1
1311-
379
HOSE; RUBBER
(A)
1-09360-998-0
01
1
1311-1408
379
HOSE; RUBBER
(A)
8-98245-236-0
01
1
1409-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1311-
353
353
317
411
353
353
157
357
357
357
487
325
248
317
379
248
248
155
411
488
199
317
211
155
317
155
155
199
199
353
353
488
248
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
155
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
1311-
155
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
02
1
1311-
155
BOLT; BRKT
(C) M10X30 FLANGE
0-28651-030-0
02
1
1311-
157
PIPE; AIR
8-98217-684-1
01
1
1311-
199
BRACKET; PIPE
(B)
1-14239-272-1
01
1
1311-
199
BRACKET; PIPE
(C)
1-14239-273-2
01
1
1311-
199
BRACKET; PIPE
(D)
8-98217-677-1
01
1
1311-
199
BRACKET; PIPE
(A)
8-98217-678-0
01
1
1311-
211
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1311-
211
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
06
1
1311-
248
CLIP; RUBBER HOSE
ID=68-85
8-98096-592-0
04
1
1311-
317
NUT; CUSHION RUBBER
M8 FLANGE
0-91180-108-0
04
1
1311-
325
HOSE; RUBBER,ENG TO PIPE
1-09361-149-0
01
1
1311-
353
CLIP; RUBBER HOSE
ID=68-85
8-98096-592-0
06
1
1311-
357
CLIP; RUBBER HOSE
(A) ID=36
1-09704-094-0
01
1
1311-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1311-
357
CLIP; RUBBER HOSE
(D) ID=87-116
1-09707-138-0
01
1
1311-
357
CLIP; RUBBER HOSE
(C) ID=77-99
1-09707-141-0
02
1
1311-
379
HOSE; RUBBER
(B)
8-98049-144-0
01
1
1311-
379
HOSE; RUBBER
(A)
1-09360-998-0
01
1
1311-1408
379
HOSE; RUBBER
(A)
8-98245-236-0
01
1
1409-
411
RUBBER; CUSHION
8-98148-109-0
02
1
1311-
487
PIPE; TURBO TO CHARGE AIR COOLER
8-98217-685-2
01
1
1311-
488
HOSE; RUBBER,PIPE
(B)
1-09361-002-0
01
1
1311-
488
HOSE; RUBBER,PIPE
(A)
8-98105-423-0
01
1
1311-1408
488
HOSE; RUBBER,PIPE
(A)
8-98251-411-0
01
1
1409-
