0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#130371) — 98 parça

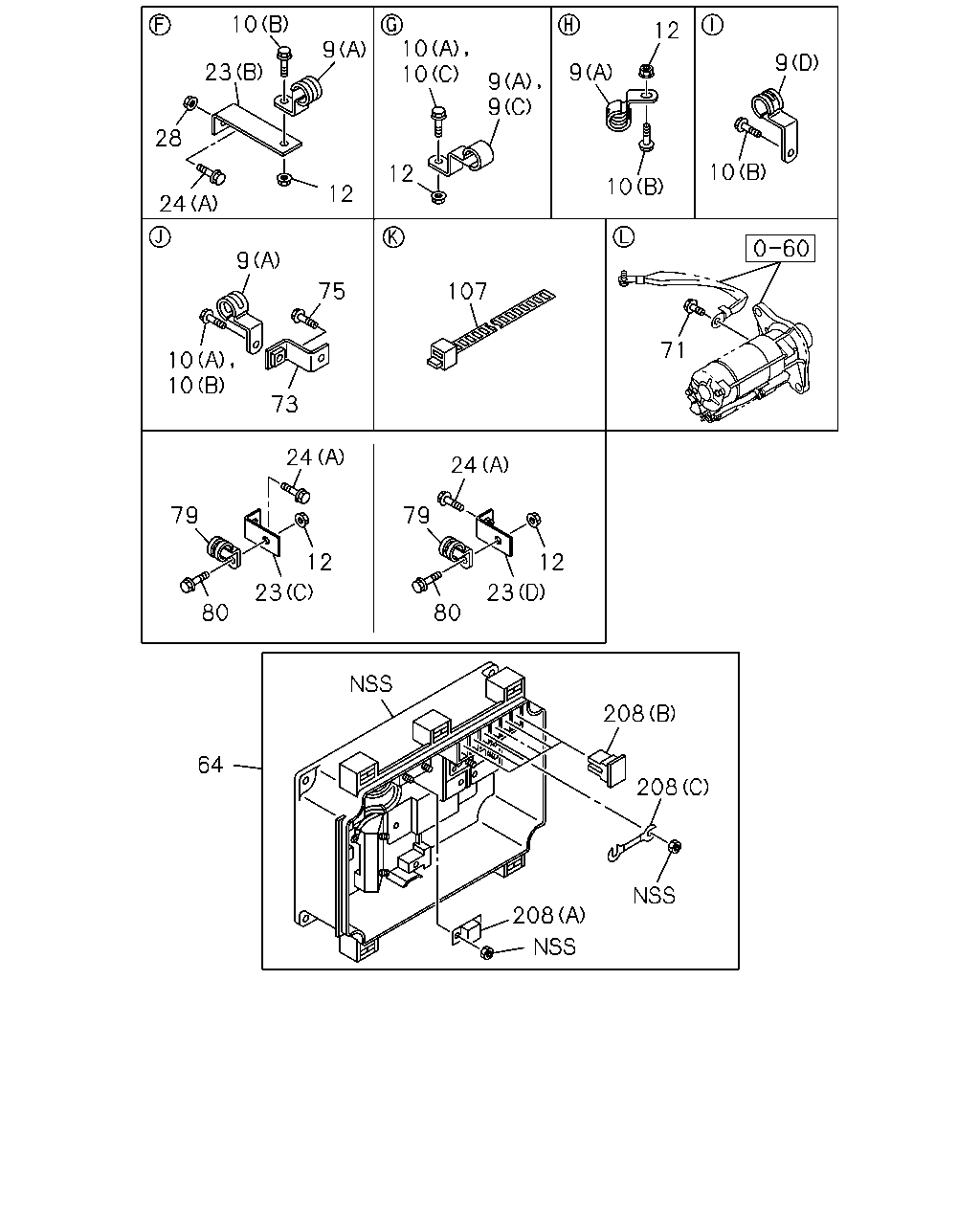

çizim 385274
10 23 28 24 12 9 12 10 10 9 9 9 12 10 10 9 9 75 10 10 73 107 71 79 80 23 12 24 79 24 80 23 12 64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 04 1 1311-1403
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 10 1 1404-
9 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1311-1403
9 CLIP; BATTERY CABLE
(C) ID=19 L=50 H=33 		1-09701-279-0 01 1 1311-1403
9 CLIP; BATTERY CABLE
(D) ID=25 H=40 L=50 		8-98073-275-0 01 1 1311-
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1311-1311
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1312-1401
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1402-
10 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 05 1 1311-1401
10 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 09 1 1402-
10 BOLT; BATTERY CABLE CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1311-1403
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 05 1 1311-1403
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 11 1 1404-1409
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 10 1 1410-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=120 H=35 		1-82698-088-0 01 1 1311-1403
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-97645-628-0 01 1 1404-1409
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98285-563-0 01 1 1410-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 1311-
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1311-
24 BOLT; BRKT TO FRAME
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1311-1403
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1404-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1311-1401
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 1402-1403
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1404-
64 BOX; BATTERY RELAY
TRANSMISSION CONTROL-SMOOTHER<8GF> 		1-82510-652-0 01 1 1408-
64 BOX; BATTERY RELAY 1-82510-651-0 01 1 1311-1407
64 BOX; BATTERY RELAY
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		1-82510-651-0 01 1 1408-
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 1311-
73 BRACKET; BATTERY CABLE 8-97624-332-0 01 1 1311-
75 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1311-1311
75 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1312-
79 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 02 1 1404-
80 BOLT; BATTERY CABLE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1404-
107 CLIP; BAND
L=350 		1-09707-183-0 08 1 1311-1403
107 CLIP; BAND
L=350 		1-09707-183-0 06 1 1404-
208 FUSE
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 40A GREEN 		8-94468-662-0 05 1 1408-
208 FUSE
(A) 80A 		1-82516-031-0 01 1 1311-
208 FUSE
(B) 40A GREEN 		8-94468-662-0 05 1 1311-1407
208 FUSE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 40A GREEN 		8-94468-662-0 06 1 1408-
208 FUSE
(C) 125A 		9-82941-130-1 01 1 1311-

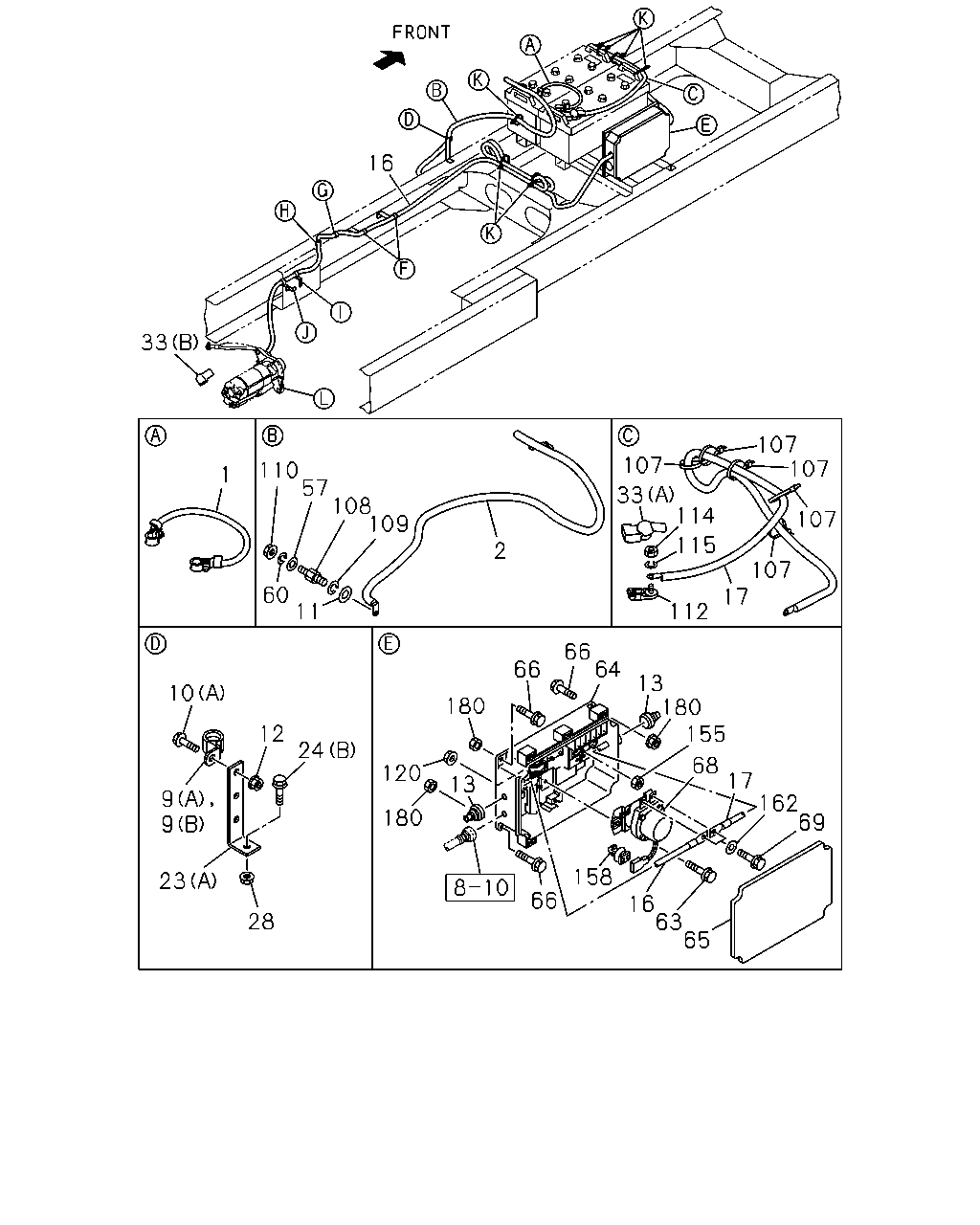

çizim 386230
16 33 110 1 11 60 2 109 108 57 112 115 33 107 114 17 107 107 107 107 66 66 180 64 13 180 155 68 17 162 69 16 63 65 158 66 180 120 24 12 10 9 9 23 28 13
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=450 		1-82650-389-1 01 1 1311-
2 CABLE; BATTERY
L=1400 		8-98219-188-0 01 1 1311-1403
2 CABLE; BATTERY 8-98269-429-0 01 1 1404-
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 04 1 1311-1403
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 10 1 1404-
9 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1311-1403
9 CLIP; BATTERY CABLE
(C) ID=19 L=50 H=33 		1-09701-279-0 01 1 1311-1403
9 CLIP; BATTERY CABLE
(D) ID=25 H=40 L=50 		8-98073-275-0 01 1 1311-
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1311-1311
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1312-1401
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1402-
10 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 05 1 1311-1401
10 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 09 1 1402-
10 BOLT; BATTERY CABLE CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1311-1403
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1311-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 05 1 1311-1403
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 11 1 1404-1409
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 10 1 1410-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1311-
16 CABLE; STARTER TO RELAY
L=4970 		8-98234-204-0 01 1 1311-1403
16 CABLE; STARTER TO RELAY 8-98268-635-0 01 1 1404-
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 1311-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=120 H=35 		1-82698-088-0 01 1 1311-1403
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-97645-628-0 01 1 1404-1409
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98285-563-0 01 1 1410-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 1311-
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1311-
24 BOLT; BRKT TO FRAME
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1311-1403
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1404-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1311-1401
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 1402-1403
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1404-
33 CAP; INSULATOR
(A) BLACK 		1-82699-106-0 01 1 1311-
33 CAP; INSULATOR
(B) 		1-82699-431-0 01 1 1311-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1311-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1311-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1311-
64 BOX; BATTERY RELAY
TRANSMISSION CONTROL-SMOOTHER<8GF> 		1-82510-652-0 01 1 1408-
64 BOX; BATTERY RELAY 1-82510-651-0 01 1 1311-1407
64 BOX; BATTERY RELAY
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		1-82510-651-0 01 1 1408-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1311-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 04 1 1311-
68 RELAY; BATTERY 1-82550-313-0 01 1 1311-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1311-
107 CLIP; BAND
L=350 		1-09707-183-0 08 1 1311-1403
107 CLIP; BAND
L=350 		1-09707-183-0 06 1 1404-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1311-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1311-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1311-
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 1311-
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 1311-
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 1311-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1311-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1311-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1311-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1311-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1311-1403
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1404-
