0-60 — ENGINE ELECTRICAL CONTROL PARTS (#130370) — 75 parça

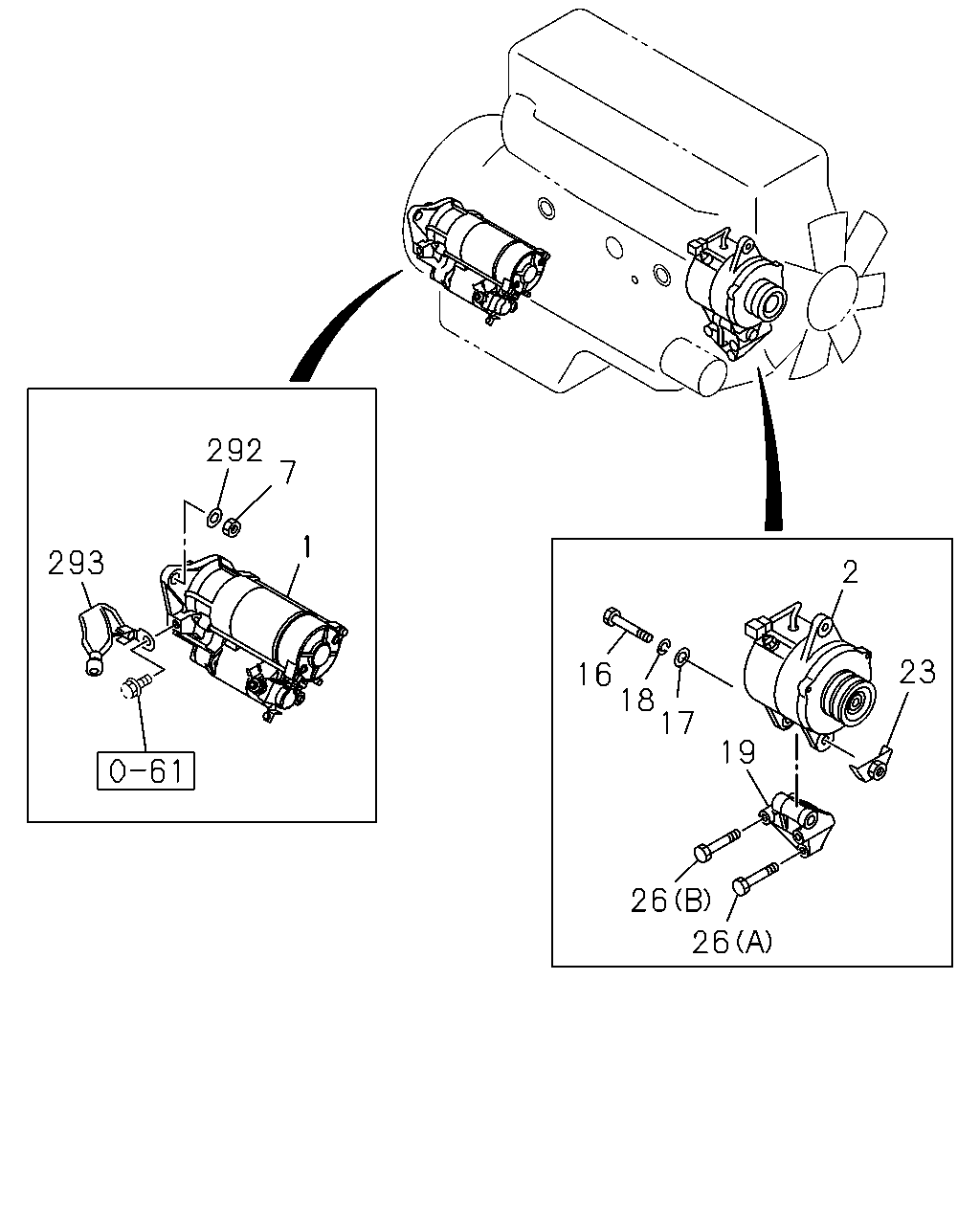

çizim 385254
292 293 7 1 16 18 17 19 26 26 23 2
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1311-1409
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 120A MITSUBISHI 		8-98020-154-2 01 1 1311-
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1311-
16 BOLT; GEN
M14X157 		1-09000-071-1 01 1 1311-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1311-
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1311-
19 BRACKET; GEN 8-94399-351-0 01 1 1311-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 1311-
26 BOLT; GEN BRKT
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1311-
26 BOLT; GEN BRKT
(B) M10X120 FLANGE 		0-28156-012-0 02 1 1311-
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 1311-
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 1311-

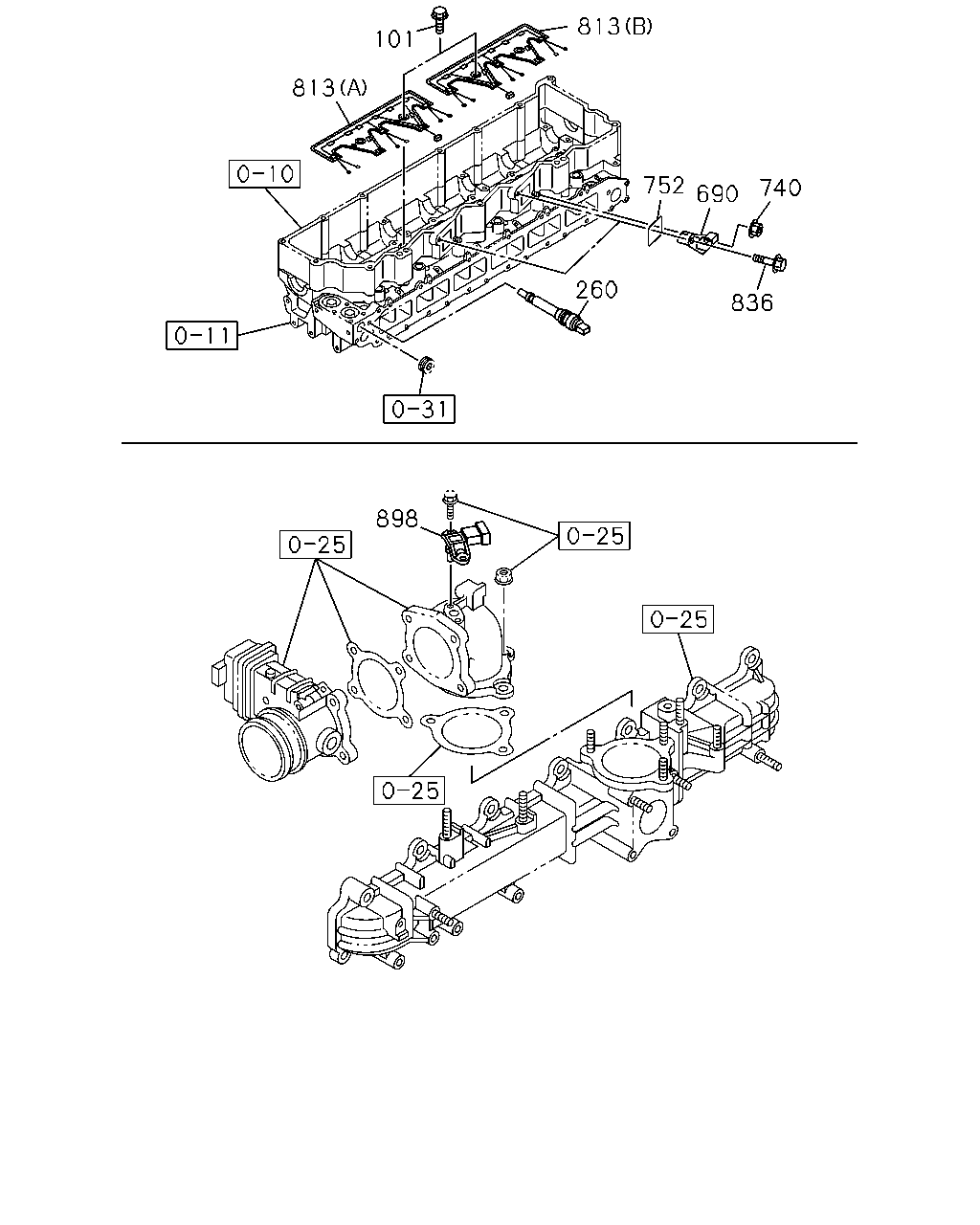

çizim 385255
101 813 813 752 740 690 260 898 836
BalonParca AdiParca NoAdetTipApplied Date
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1311-
260 SENSOR; WATER TEMP
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1311-
690 CONNECTOR 8-94390-858-1 02 1 1311-
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1311-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1311-
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1311-
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1311-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1311-
898 SENSOR; BOOST 8-98009-418-0 01 1 1311-

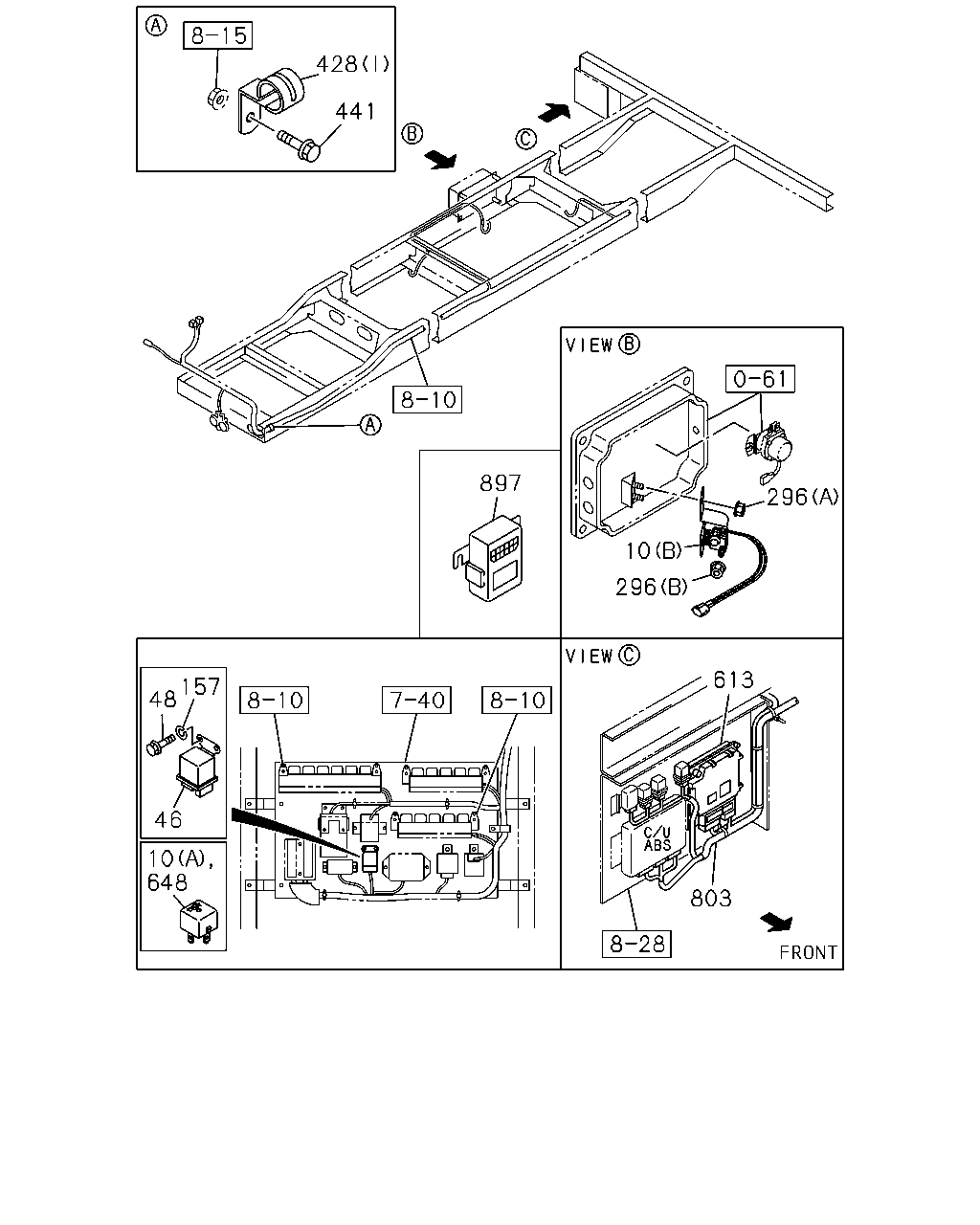

çizim 385258
428 441 897 296 10 296 613 803 157 48 46 10 648
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(B) 		1-81171-100-1 01 1 1311-
10 RELAY; STARTER
(A) 24V 12.5A PANASONIC 		8-98168-240-0 01 1 1311-
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 1311-
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28650-616-0 02 1 1311-
157 WASHER; LK
H.S.A SYSTEM<6EP> ID=5.1 		0-91510-505-0 02 1 1311-1407
157 WASHER; LK
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> ID=5.1 		0-91510-505-0 02 1 1408-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1311-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1311-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (F) L=350 		1-09707-183-0 06 1 1408-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (J) L=213.5 		8-98000-506-1 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=28 L=58 		1-09700-400-0 02 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=28 L=58 		1-09700-400-0 03 1 1411-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 1408-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 1411-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=25 L=75 		1-09701-275-0 03 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=13-18 L=14.5 		1-09709-290-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (H) ID=8 L=38 		9-09917-424-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (H) ID=8 L=38 		9-09917-424-0 02 1 1411-
428 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1311-
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1311-
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(B14) SPEED LIMITER 70KM<ECY> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98236-376-2 01 1 1408-
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(B14) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98236-378-0 01 1 1408-1501
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(B14),NEW ZEALAND EQUIPMENT(E13) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98236-378-2 01 1 1502-
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> INJ PUMP Q SET STD(T1B) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98236-374-2 01 1 1408-
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(B14) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98236-377-4 01 1 1311-1407
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(B14) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98236-377-4 01 1 1408-
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(B14) SPEED LIMITER 70KM<ECY> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98236-375-2 01 1 1311-1407
613 CONTROL UNIT; ENG
HONG KONG EQUIPMENT(B14) SPEED LIMITER 70KM<ECY> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98236-375-2 01 1 1408-
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> INJ PUMP Q SET STD(T1B) SINGAPORE EQUIPMENT(2G0) 		8-98236-373-2 01 1 1311-1407
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> INJ PUMP Q SET STD(T1B) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98236-373-2 01 1 1408-
648 RELAY; ENG STOPPER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1311-
803 HARNESS; GOVERNOR
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98273-974-0 01 1 1408-1410
803 HARNESS; GOVERNOR
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98292-449-0 01 1 1411-
803 HARNESS; GOVERNOR 8-98234-200-0 01 1 1311-1407
803 HARNESS; GOVERNOR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98234-200-0 01 1 1408-1410
803 HARNESS; GOVERNOR
EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98292-450-0 01 1 1411-
897 DRM 8-98013-144-8 01 1 1311-1401
897 DRM 8-98260-912-1 01 1 1402-
çizim 431556
428 428 428 428 428 428 428 428 428 428
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (F) L=350 		1-09707-183-0 06 1 1408-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (J) L=213.5 		8-98000-506-1 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=28 L=58 		1-09700-400-0 02 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) ID=28 L=58 		1-09700-400-0 03 1 1411-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 1408-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 1411-
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=25 L=75 		1-09701-275-0 03 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (G) ID=13-18 L=14.5 		1-09709-290-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (H) ID=8 L=38 		9-09917-424-0 01 1 1408-1410
428 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER<8GF> (H) ID=8 L=38 		9-09917-424-0 02 1 1411-
428 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1311-
