0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#130362) — 30 parça

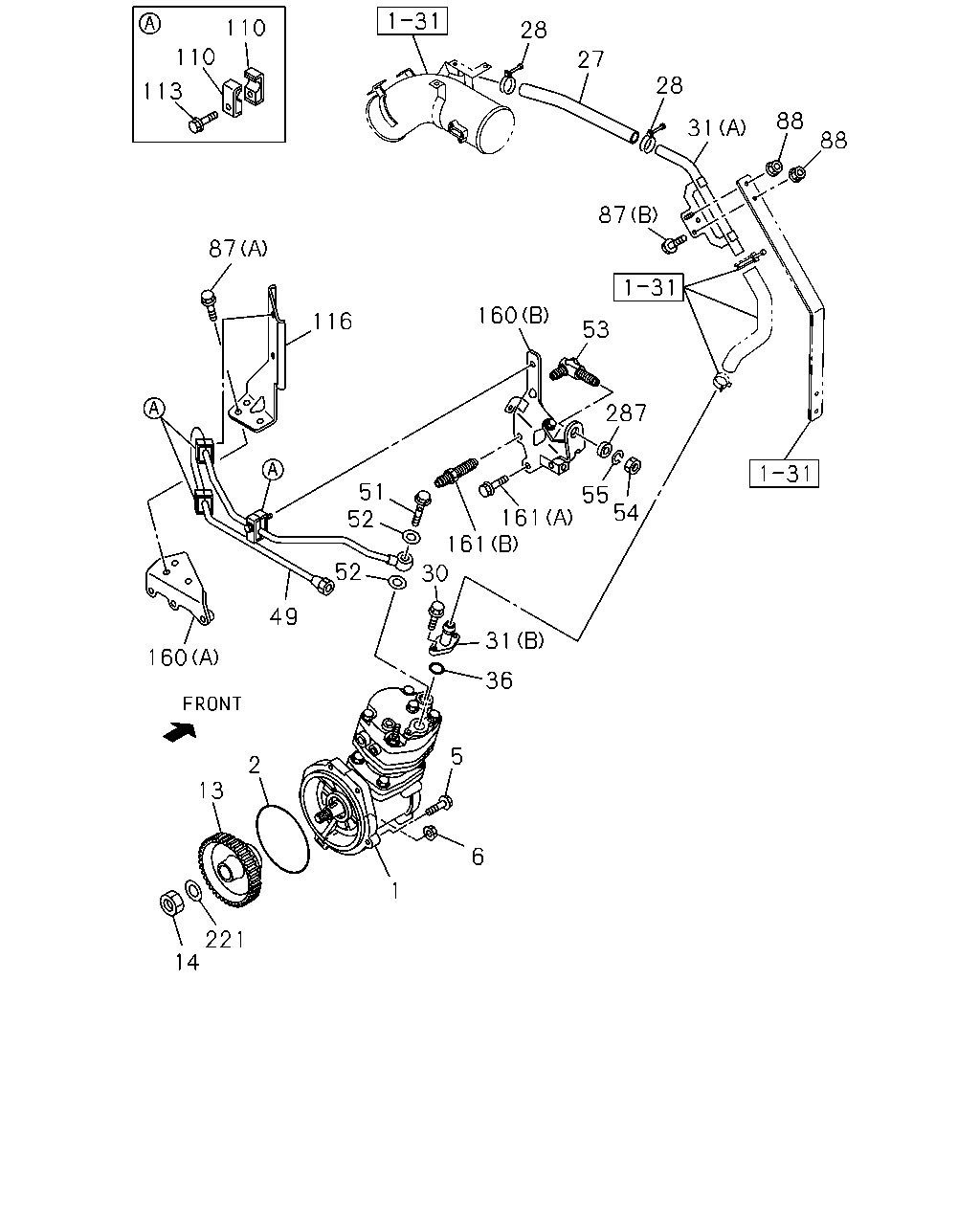

çizim 386335
28 27 28 31 88 88 87 160 53 287 55 54 161 161 31 36 30 5 6 1 2 221 14 13 160 49 52 52 51 116 87 113 110 110
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-98187-304-1 01 1 1311-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162 		1-09623-570-0 01 1 1311-
5 BOLT; AIR CMPR FIX
M12X70 FLANGE 		0-28151-270-0 03 1 1311-
6 NUT; AIR CMPR
M12 FLANGE 		0-91180-212-0 01 1 1311-
13 GEAR; AIR CMPR DRIVE
Z=49 		8-94394-511-4 01 1 1311-
14 NUT; GEAR
M20 		0-91110-520-0 01 1 1311-
27 HOSE; AIR CMPR,SUCTION 8-98043-670-0 01 1 1311-
28 CLIP; HOSE,AIR CMPR
ID=36 		1-09704-094-0 02 1 1311-
30 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1311-
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		8-98043-368-1 01 1 1311-
31 PIPE; AIR,AIR CMPR SUCTION
(B) 		8-98049-089-0 01 1 1311-
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 1311-
49 PIPE; AIR,CHARGE 8-98052-612-0 01 1 1311-
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1311-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 1311-
53 UNION; CHARGE PIPE
M22 & M26 ELBOW 		8-98008-887-2 01 1 1311-
54 NUT; PIPE UNION
M26 		8-98049-390-0 01 1 1311-
55 WASHER; LK,PIPE UNION
ID=27.5 		0-91510-527-0 01 1 1311-
87 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28050-820-0 03 1 1311-
87 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1311-
88 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1311-
110 CLIP; AIR PIPE
ID=17 L=17 		1-09701-284-0 06 1 1311-
113 BOLT; CLIP,AIR PIPE
M8X45 FLANGE 		0-28050-845-0 03 1 1311-
116 BRACKET; AIR PIPE 8-97614-183-1 01 1 1311-
160 BRACKET; AIR PIPE
(A) 		8-97614-182-2 01 1 1311-
160 BRACKET; AIR PIPE
(B) 		8-97615-888-3 01 1 1311-
161 BOLT; BRKT,AIR PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1311-
161 BOLT; BRKT,AIR PIPE
(B) M8X14,M8X14 L=33 		1-09300-058-1 01 1 1311-
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 1311-
287 SPACER 8-98049-065-1 01 1 1311-
