11562 - LT434-RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

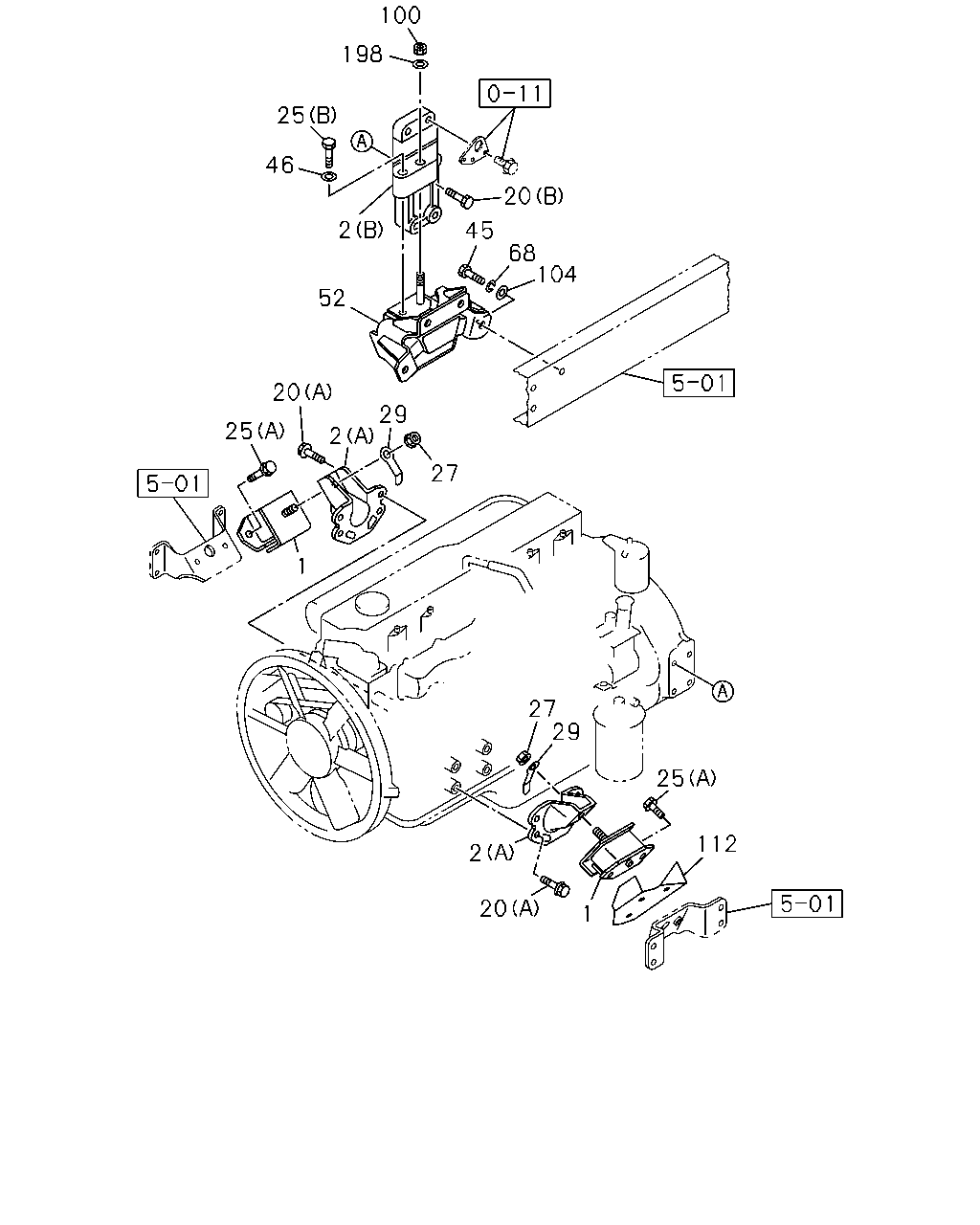

0-22 — ENGINE MOUNTING
(#130353) — 19 parça
100
198
25
46
2
20
45
104
52
20
25
29
2
27
1
27
29
25
112
2
20
68
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1311-
2
FOOT; ENG
(A)
8-94393-491-1
02
1
1311-
2
FOOT; ENG
(B)
8-97611-990-0
01
1
1311-
2
FOOT; ENG
(B)
8-97611-991-0
01
1
1311-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1311-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
1311-
25
BOLT; CUSHION RUBBER TO BRKT
(B) M16X60
0-10956-660-0
02
1
1311-
25
BOLT; CUSHION RUBBER TO BRKT
(A) M12X35 FLANGE
0-28651-235-0
04
1
1311-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1311-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1311-
45
BOLT; CUSHION RUBBER TO FRAME
M14X40
0-20951-440-0
08
1
1311-1401
45
BOLT; CUSHION RUBBER TO FRAME
M14X35 FLANGE
0-28661-435-0
08
1
1402-
46
WASHER; PL,CUSHION TO ENG,RR
ID=17
0-91614-516-0
02
1
1311-
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-022-1
02
1
1311-
68
WASHER; LK,CUSHION RUBBER
ID=14.2
0-91510-814-0
08
1
1311-1401
100
NUT; CUSHION RUBBER
M16
0-91110-516-0
02
1
1311-
104
WASHER; PL,CUSHION RUBBER
ID=15
8-98010-627-1
08
1
1311-1401
112
PROTECTOR; HEAT
8-98171-701-0
01
1
1311-
198
WASHER; PL,CUSHION TO BRKT,RR
ID=17
0-91614-516-0
02
1
1311-
