0-12 — CYLINDER BLOCK (#130348) — 53 parça

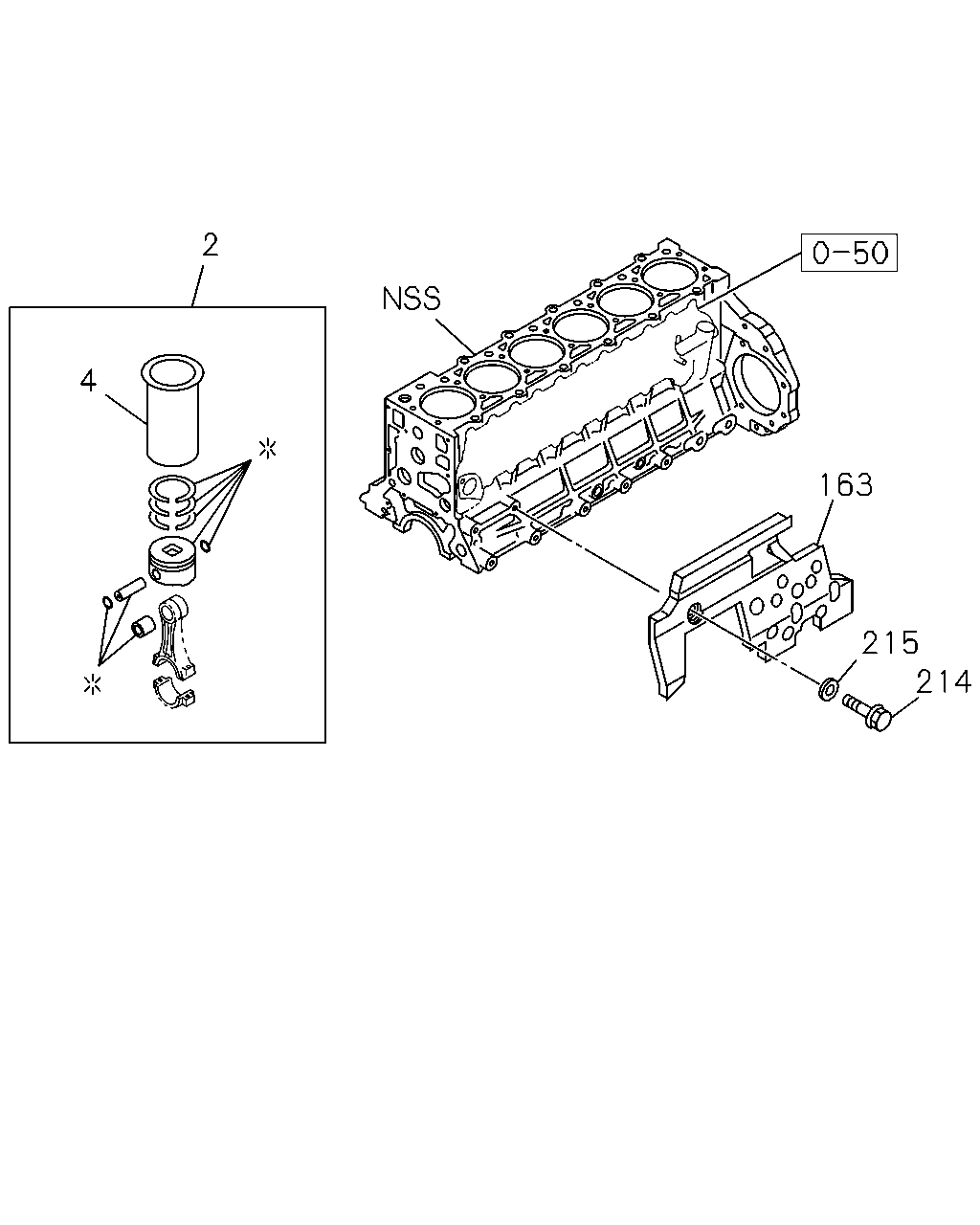

163 215 214 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1311-
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1311-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1311-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1311-
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	1311-
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	02	1	1311-
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	01	1	1311-

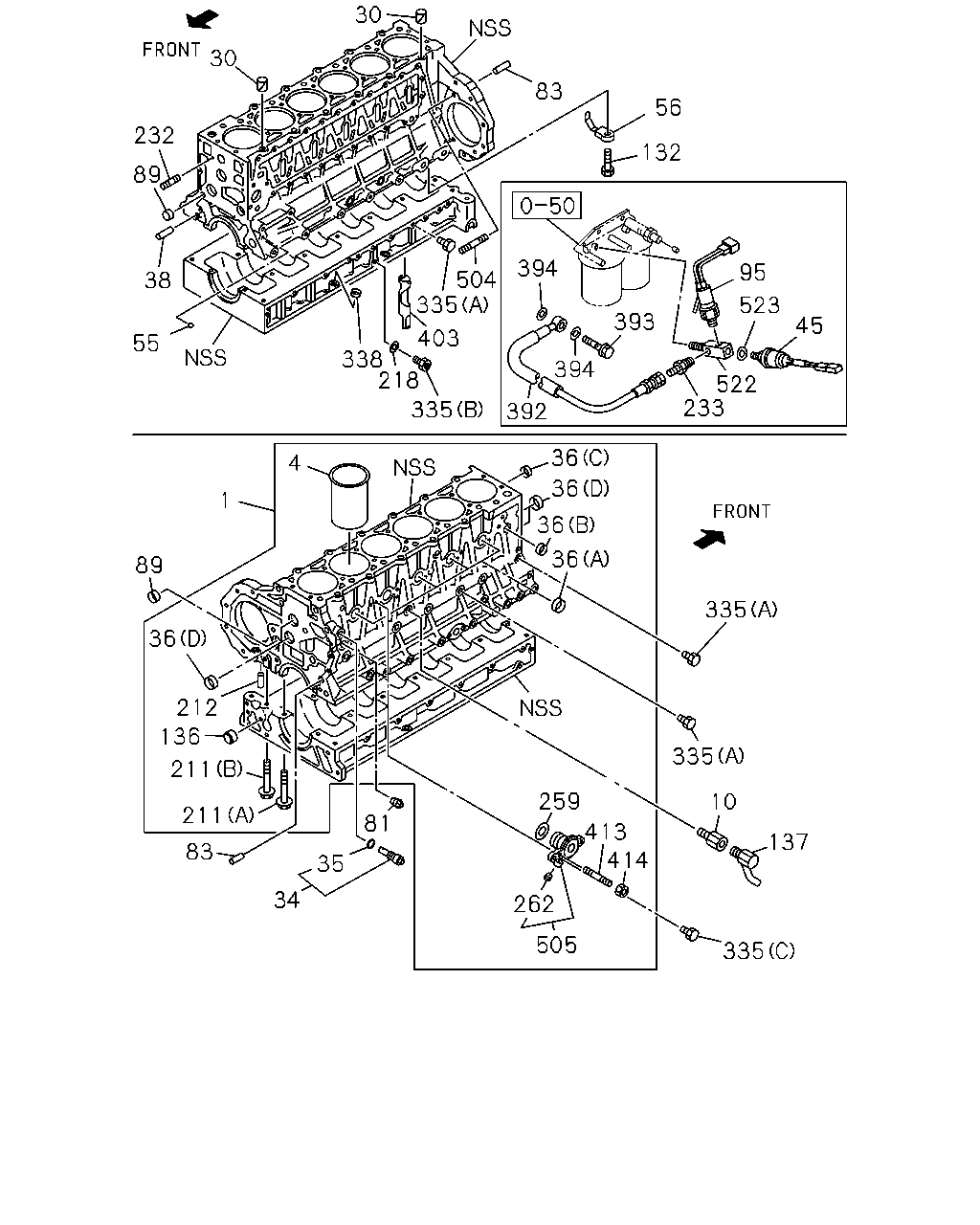

335 137 10 335 335 413 414 259 262 505 36 36 36 36 4 1 89 36 212 136 211 211 83 34 81 35 335 392 394 393 523 522 233 394 335 338 83 56 132 30 30 232 89 38 55 218 403 504 45 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1311-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1311-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1311-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1311-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1311-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1311-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1311-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1311-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1311-
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1311-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1311-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1311-
45	SWITCH; OIL PRESSURE	8-98057-620-0	01	1	1311-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1311-
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1311-
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1311-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1311-
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1311-
95	PRESSURE UNIT; OIL	1-82410-170-1	01	1	1311-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1311-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1311-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1311-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1311-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1311-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1311-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	1311-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1311-
233	STUD; BODY TO STEP MOTOR M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	1311-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1311-
262	PLUG; ADAPTER	1-13163-002-0	01	1	1311-
335	PLUG; C/BL,SIDE (B) M12X10	5-13265-001-0	01	1	1311-
335	PLUG; C/BL,SIDE (C) M14	8-94399-225-0	01	1	1311-
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	03	1	1311-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1311-
392	HOSE; FLEX,OIL PRESS UNIT	8-98246-241-0	01	1	1311-
393	BOLT; EYE,FLEX HOSE M14X30 EYE-BOLT	8-98037-827-0	01	1	1311-
394	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1311-1312
394	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
403	GUIDE; GALLERY	8-94395-351-1	01	1	1311-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1311-
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1311-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1311-
505	ADAPTER; WATER FEED	8-98145-412-1	01	1	1311-
522	UNION M10 & PT1/4 & PT1/8 STRAIGHT	8-98052-976-0	01	1	1311-
523	GASKET ID=10.2 OD=15.2	1-09630-083-0	01	1	1311-
