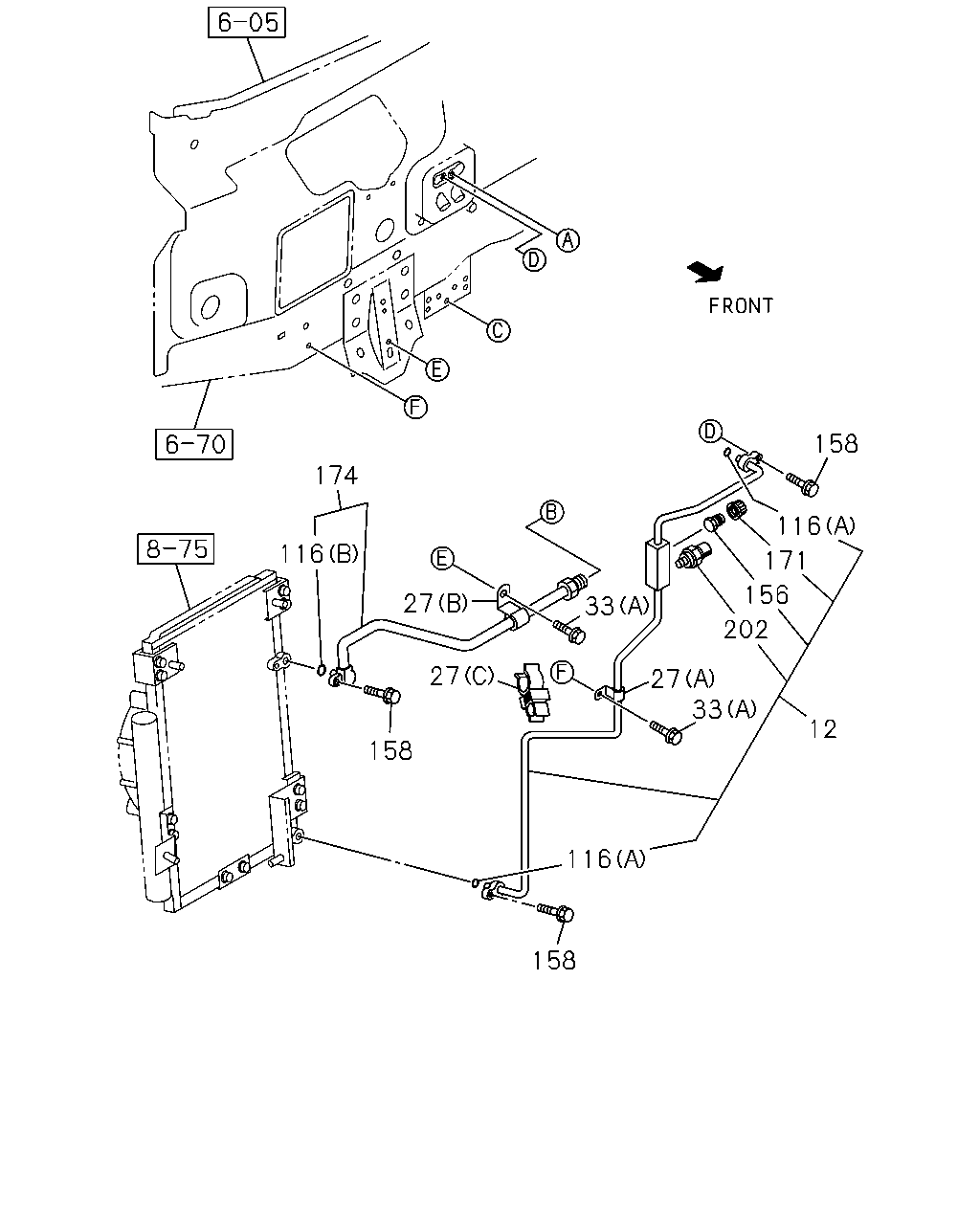

8-52 — PIPING; AIR CONDITIONING (#130335) — 32 parça

40 216 150 23 21 162 19 34 34 91 162 34 43 40 43 50 147 91 67 148 150 50 67 150 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98116-948-0	01	1	1311-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE	0-28650-616-0	02	1	1311-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	1311-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98183-121-0	01	1	1311-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1311-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1311-	●	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98183-120-0	01	1	1311-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	1311-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1311-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1311-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-264-0	01	1	1311-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98052-857-0	01	1	1311-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1311-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●

158 116 12 33 27 202 156 171 116 158 33 27 27 158 116 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98062-772-0	01	1	1311-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1311-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1311-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1311-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE	0-28650-616-0	02	1	1311-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1311-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	1311-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	1311-	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1311-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1311-	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98062-774-0	01	1	1311-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	1311-	●	●
