8-50 — AIR CONDITIONING SYSTEM; FRONT (#130334) — 7 parça

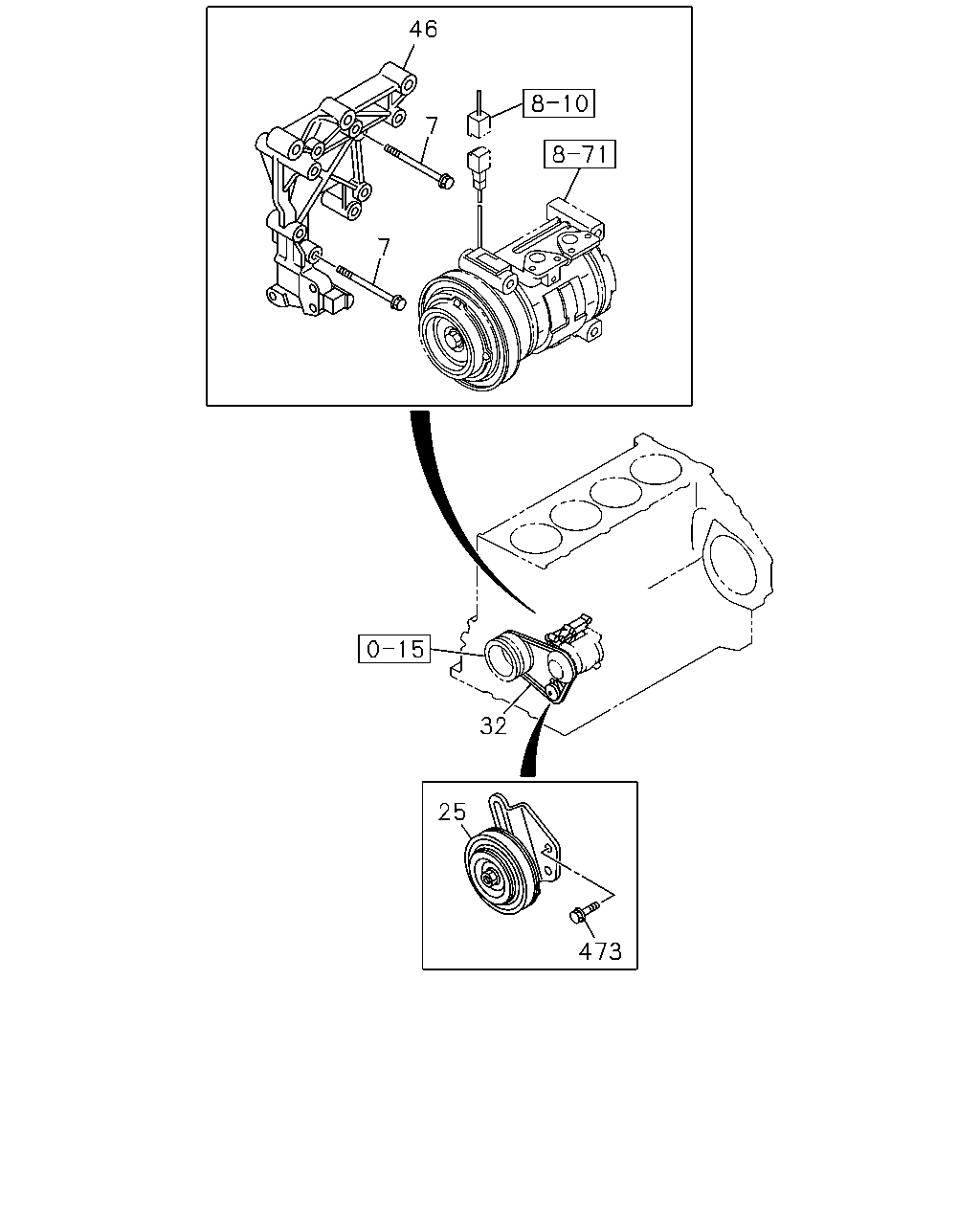

çizim 385947

46 7 7 473 25 32

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	7	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10X80 FLANGE	0-28151-080-0	04	1	1311-	●	●
	25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98083-026-1	01	1	1311-	●	●
	32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1054	8-98083-671-0	01	1	1311-	●	●
	46	BRACKET; CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98194-091-0	01	1	1311-	●	●
	473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	03	1	1311-	●	●

çizim 386906

378 378

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98204-846-0	01	1	1311-	●	●
	378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98062-954-0	01	1	1311-	●	●
