8-10 — WIRING HARNESS AND FUSE (#130324) — 409 parça

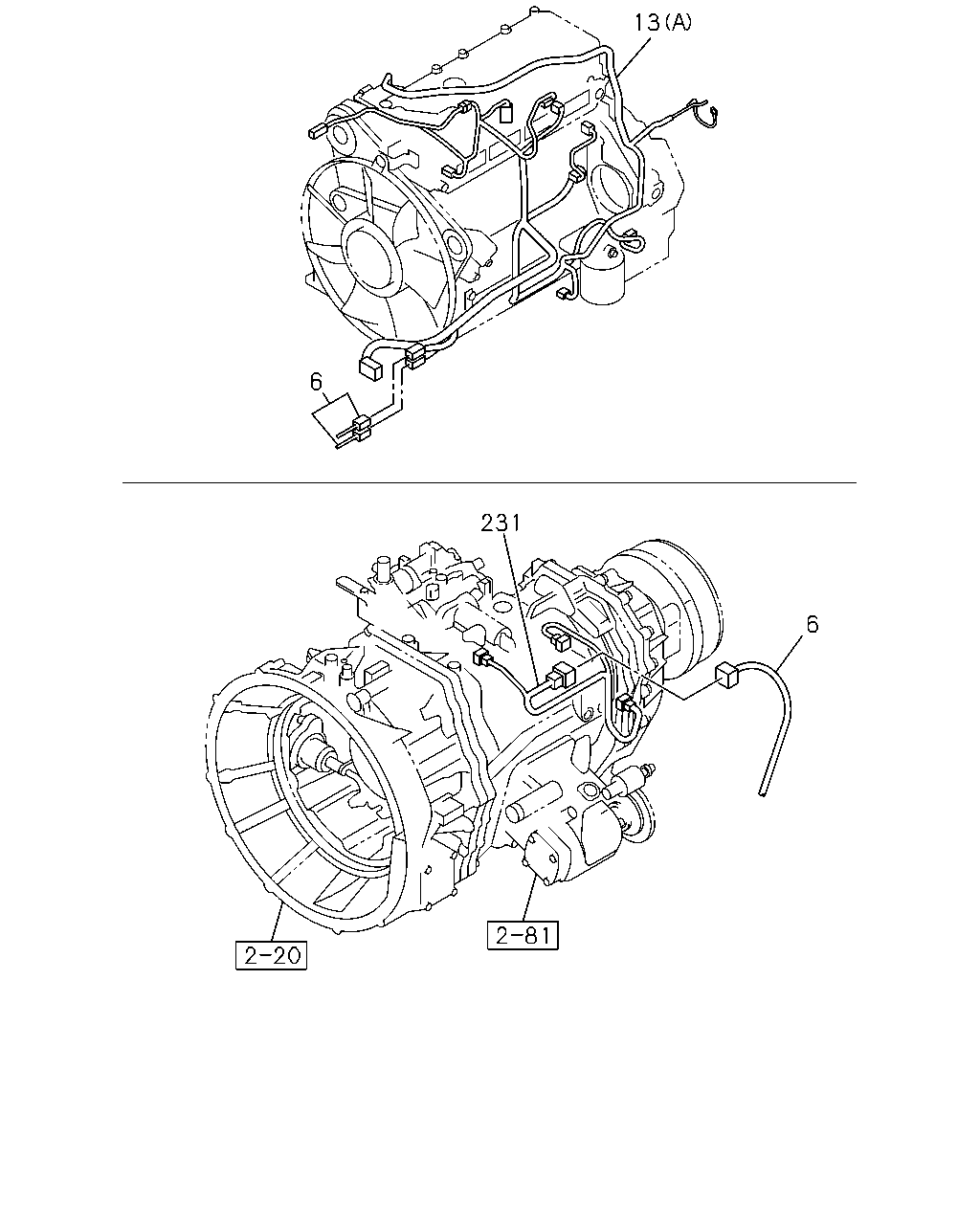

çizim 385881
6 231 6 13
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-855-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-854-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-859-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-858-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-853-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-852-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-857-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-856-4 01 1 1311- ●
13 HARNESS; ENG
(B) 		8-98120-924-0 01 1 1311- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98201-487-4 01 1 1311- ● ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98201-488-4 01 1 1311- ● ●
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-728-1 01 1 1311- ● ●
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 1311- ● ●

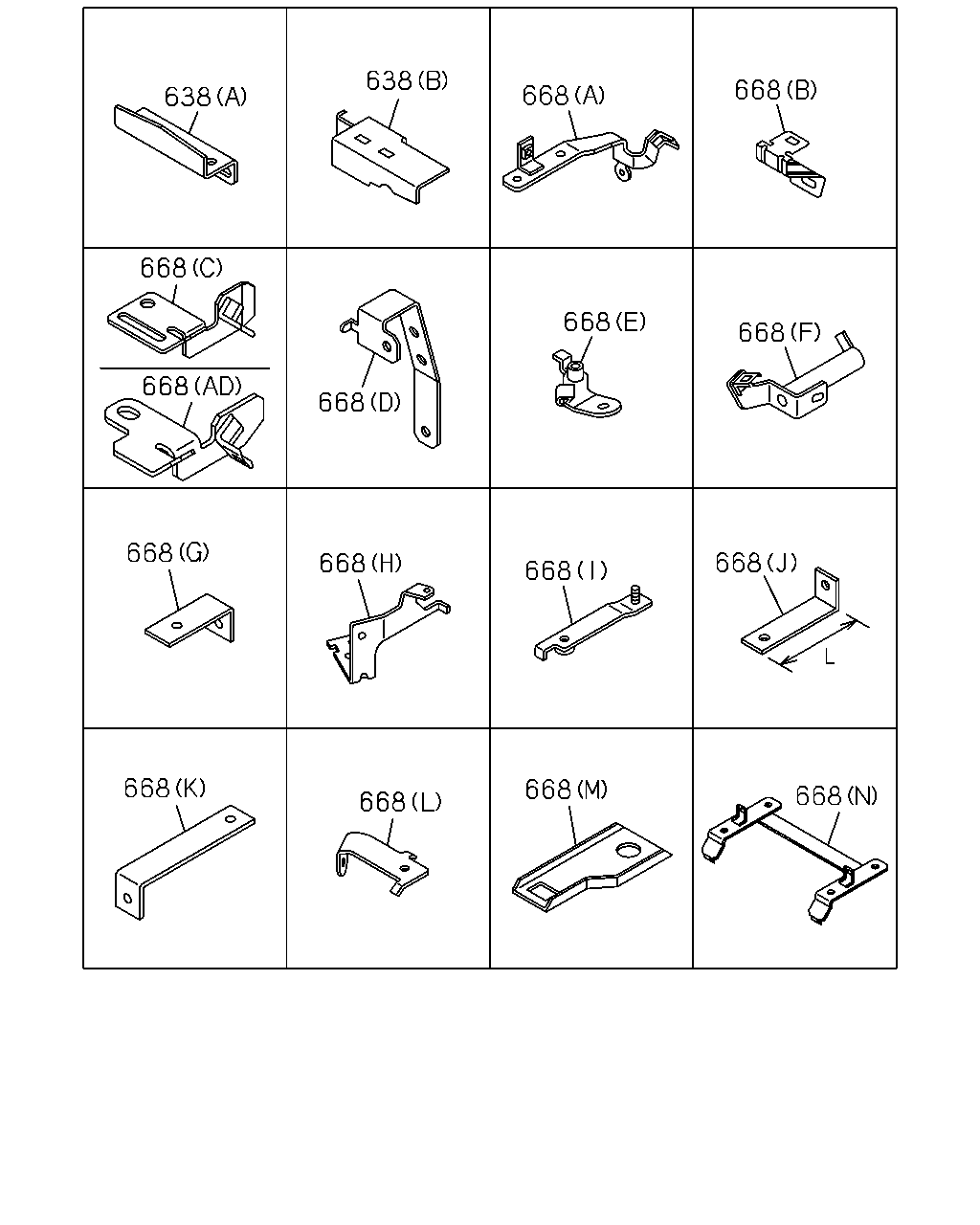

çizim 385886
638 638 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
638 BRACKET; SPD SENSOR
(B) 		8-98012-540-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(B) 		8-98012-539-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(A) 		8-98012-580-1 02 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(J) L=95 		1-82699-085-0 01 1 1311- ●
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1311-1502 ● ●
668 BRACKET; HARNESS
(AD) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(L) 		8-98147-490-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(W) 		8-98150-855-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(X) 		8-98161-100-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(Y) 		8-98164-831-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(V) 		8-98207-041-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(Z) 		8-98236-735-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AA) 		8-98236-736-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AB) 		8-98242-475-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AC) 		8-98249-358-0 01 1 1311- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) L=55 		1-47475-304-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98216-631-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) 		8-98216-632-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		8-98216-633-0 01 1 1311- ●

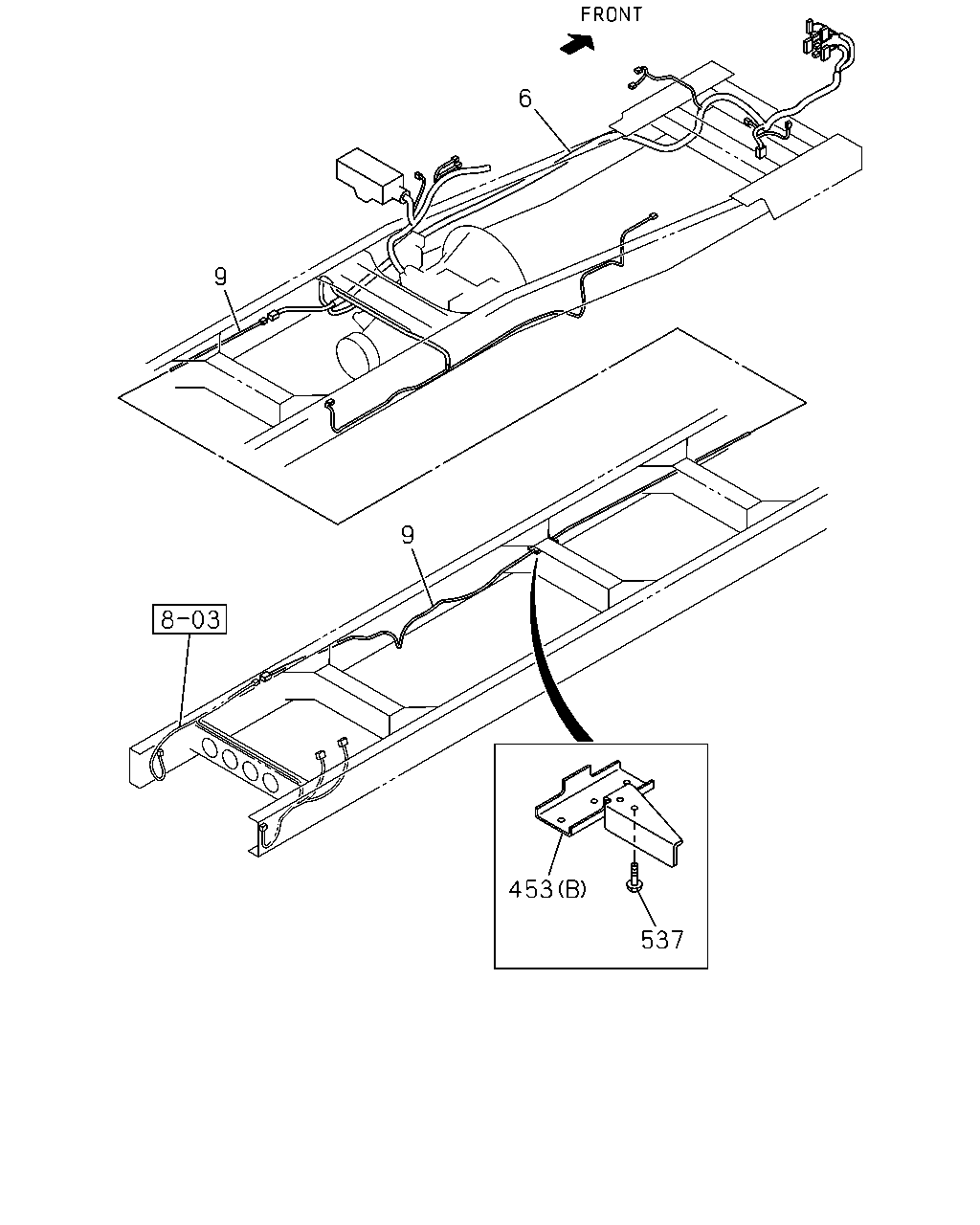

çizim 386116
6 9 9 537 453
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-855-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-854-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-859-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-858-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-853-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-852-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-857-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-856-4 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98223-770-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98223-768-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98223-765-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98223-769-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) DIFF LOCK<C3N> 		8-98223-766-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) EXC. DIFF LOCK<C3N> 		8-98224-006-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) DIFF LOCK<C3N> 		8-98223-767-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) EXC. DIFF LOCK<C3N> 		8-98224-008-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) DIFF LOCK<C3N> 		8-98223-761-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) EXC. DIFF LOCK<C3N> 		8-98224-010-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) DIFF LOCK<C3N> 		8-98223-762-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) EXC. DIFF LOCK<C3N> 		8-98224-011-0 01 1 1311- ●
453 PROTECTOR; HARNESS
(B) 		8-98042-155-0 01 1 1311- ●
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 02 1 1311- ● ●
537 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●

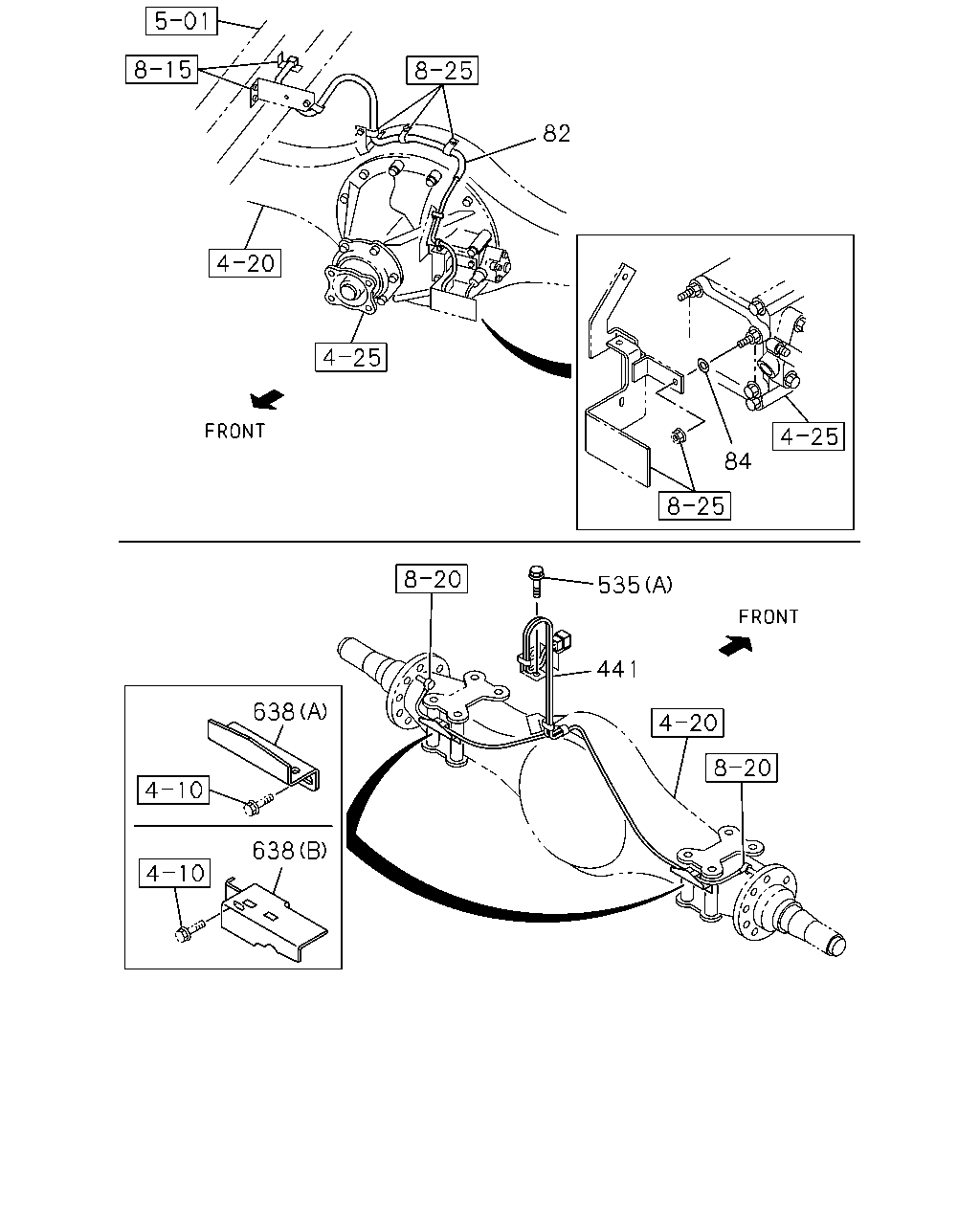

çizim 386177
82 638 638 441 535 84
BalonParca AdiParca NoAdetTipApplied Date A B
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> 		8-98215-660-0 01 1 1311- ●
84 WASHER; LK
DIFF LOCK<C3N> ID=6.4 		0-91614-506-0 03 1 1311- ●
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
535 BOLT; BRKT FIX
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1311- ●
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(E) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(F) M14X35 FLANGE 		0-28851-435-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1311- ● ●
638 BRACKET; SPD SENSOR
(B) 		8-98012-540-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(B) 		8-98012-539-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(A) 		8-98012-580-1 02 1 1311- ●

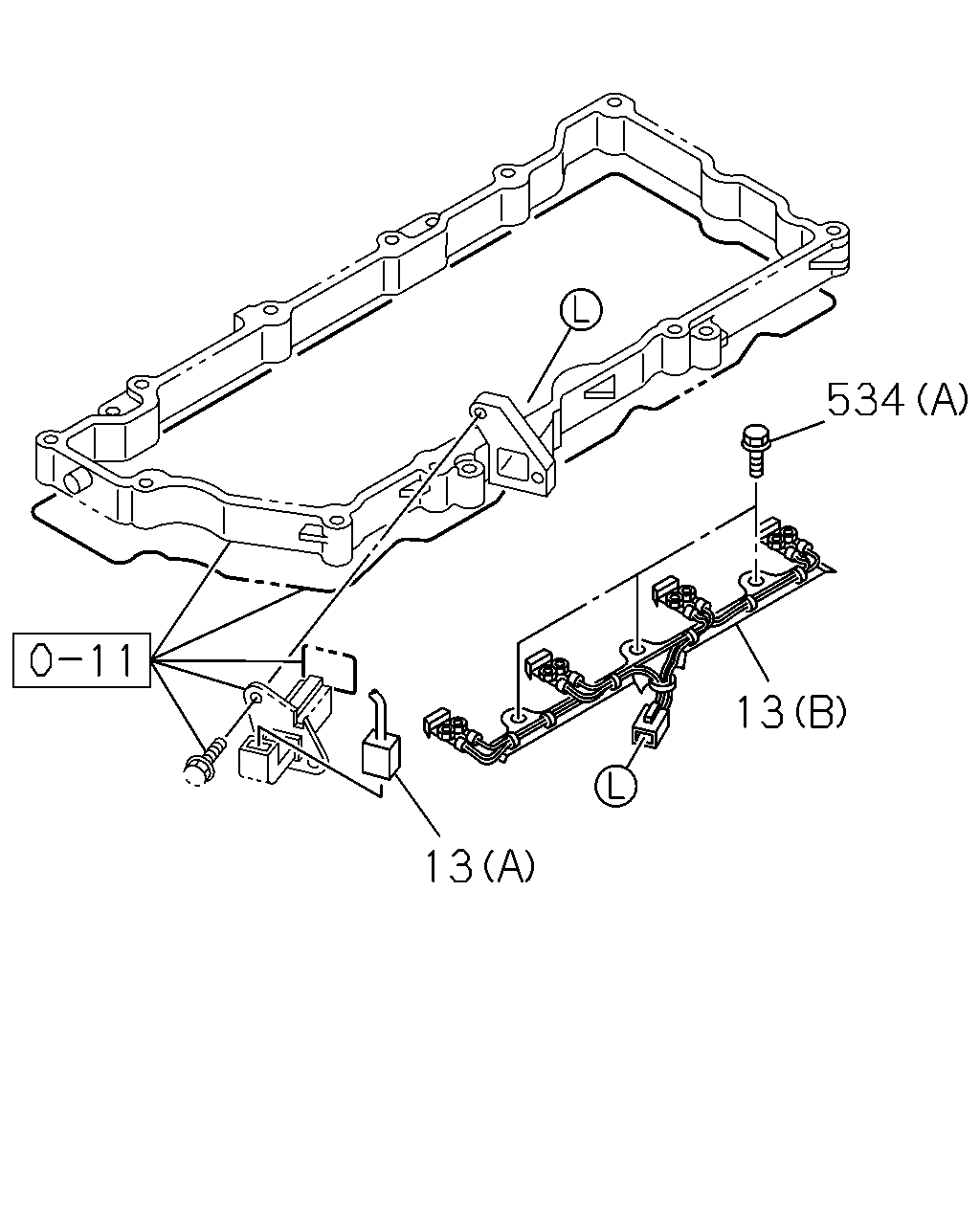

çizim 386321
13 13 534
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-98120-924-0 01 1 1311- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98201-487-4 01 1 1311- ● ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98201-488-4 01 1 1311- ● ●
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1311- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1311- ● ●

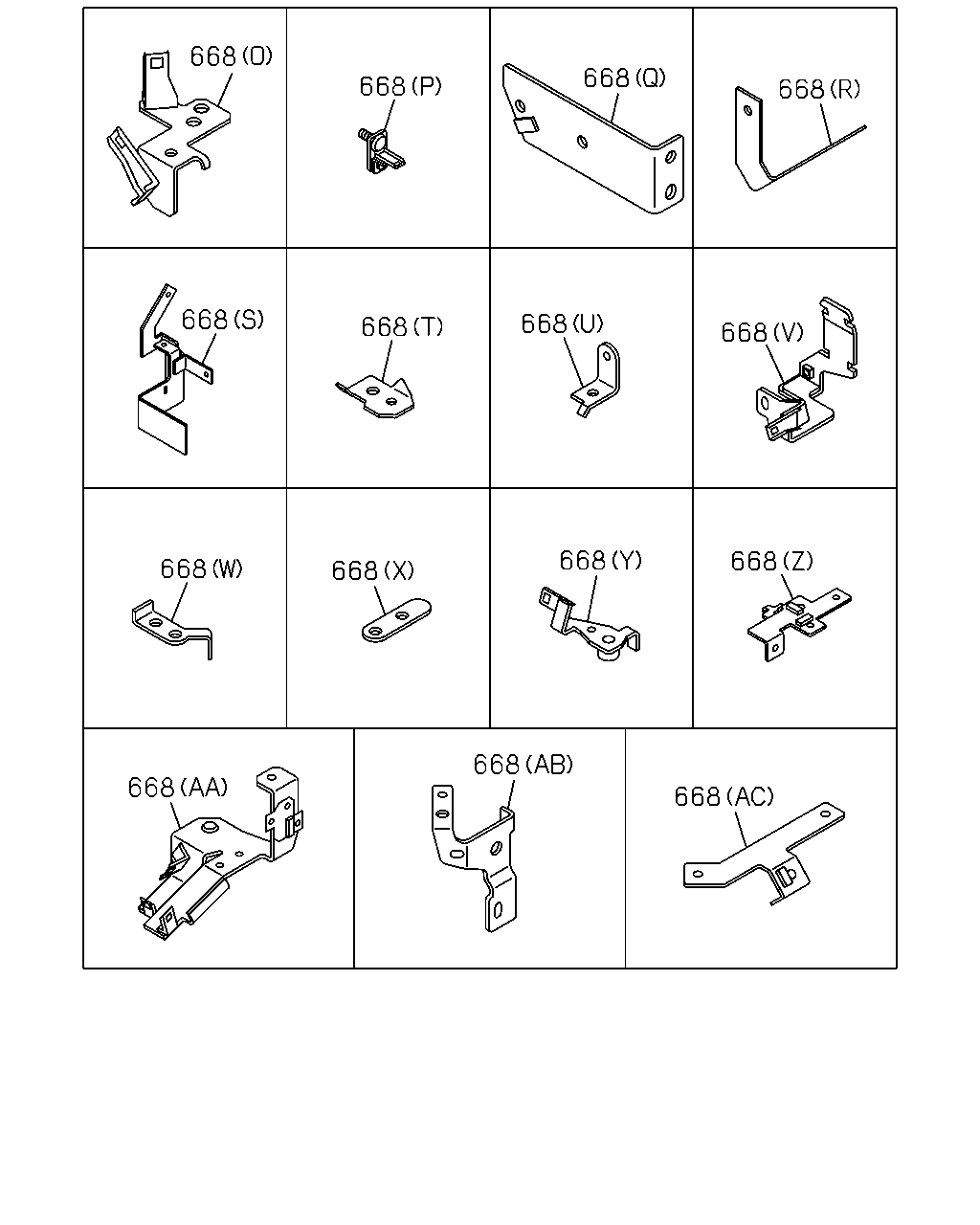

çizim 386616
668 668 668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(J) L=95 		1-82699-085-0 01 1 1311- ●
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1311-1502 ● ●
668 BRACKET; HARNESS
(AD) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(L) 		8-98147-490-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(W) 		8-98150-855-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(X) 		8-98161-100-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(Y) 		8-98164-831-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(V) 		8-98207-041-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(Z) 		8-98236-735-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AA) 		8-98236-736-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AB) 		8-98242-475-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AC) 		8-98249-358-0 01 1 1311- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) L=55 		1-47475-304-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98216-631-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) 		8-98216-632-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		8-98216-633-0 01 1 1311- ●

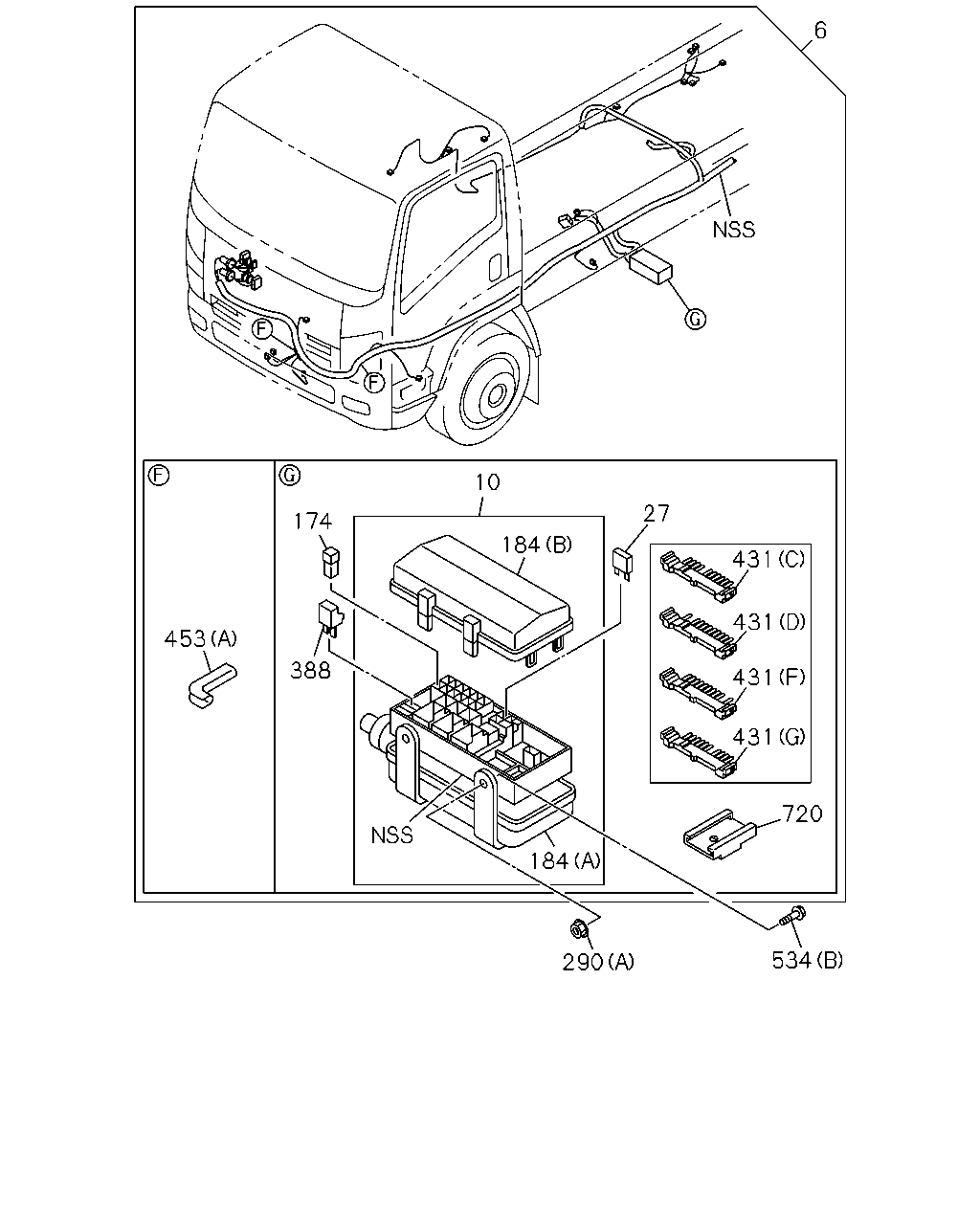

çizim 386640
720 534 431 431 431 431 27 10 184 174 388 184 290 453 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-855-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-854-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-859-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-858-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-853-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-852-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-857-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-856-4 01 1 1311- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1311- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1311- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1311- ● ●
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 01 1 1311- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1311- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1311- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1311- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1311- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1311- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1311- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1311- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1311- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
290 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (C) M6 FLANGE 		0-91180-106-0 03 1 1311- ●
290 NUT; BRKT
DIFF LOCK<C3N> (C) M8 FLANGE 		0-91180-108-0 03 1 1311- ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1311- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1311- ● ●
453 PROTECTOR; HARNESS
(B) 		8-98042-155-0 01 1 1311- ●
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 02 1 1311- ● ●
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1311- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1311- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1311- ● ●
çizim 386642
479 431 431 431 431 431 431 431 431 479
BalonParca AdiParca NoAdetTipApplied Date A B
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1311- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1311- ● ●
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) 		1-82691-191-0 01 1 1311- ● ●
479 CAP; CONNECTOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1311- ● ●

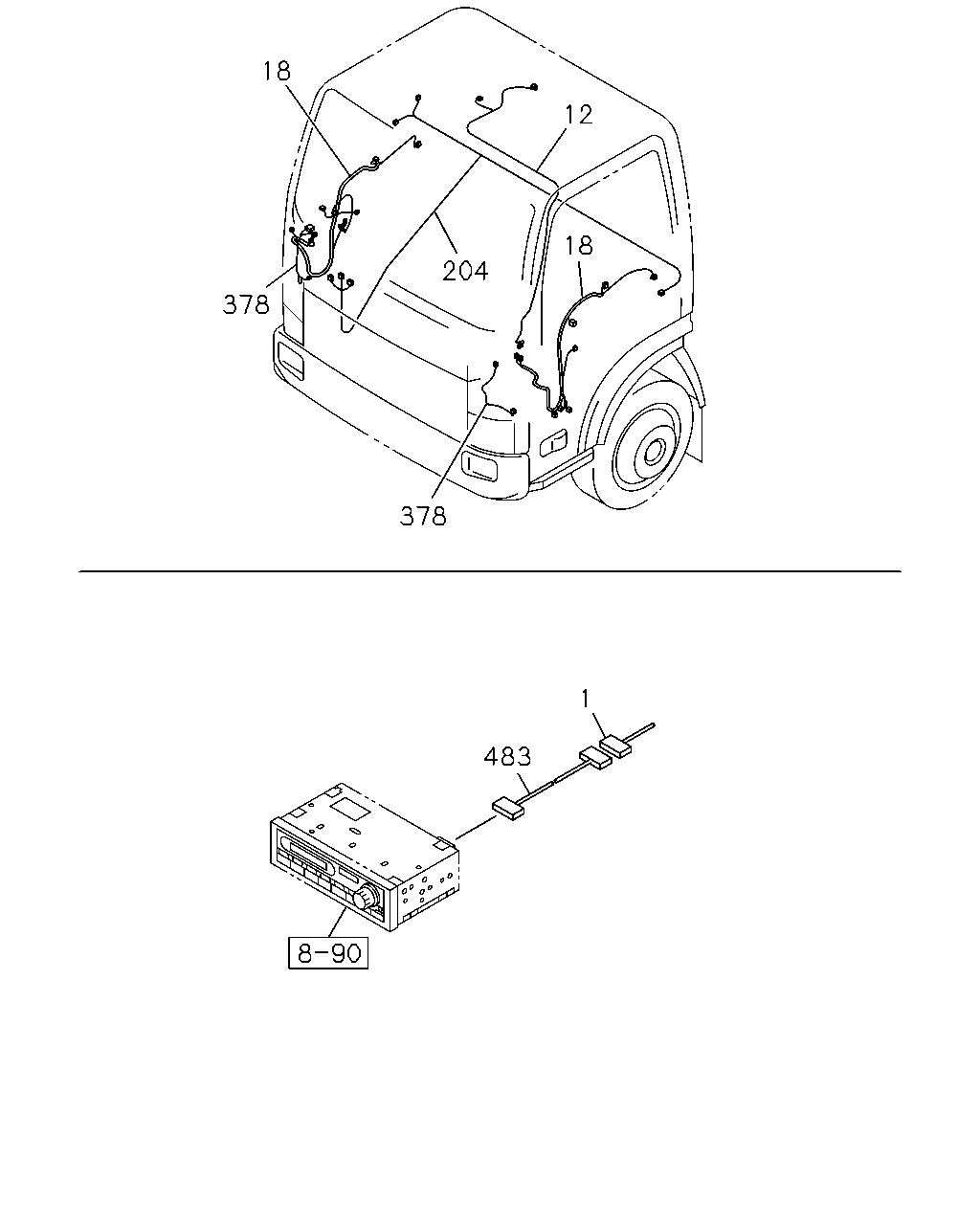

çizim 386737
378 378 204 18 12 18 1 483
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-015-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-017-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-014-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-016-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-011-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-013-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-010-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-012-3 01 1 1311- ●
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98079-073-2 01 1 1311- ● ●
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98084-249-1 01 1 1311- ● ●
18 HARNESS; DOOR 8-98080-127-3 01 1 1311- ● ●
18 HARNESS; DOOR 8-98080-128-3 01 1 1311- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-223-2 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-501-0 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-220-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-500-0 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-222-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-227-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-219-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-225-1 01 1 1311- ●
378 HARNESS; EXT,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. ISRAEL COUNTRY(CV4) 		8-98125-654-0 02 1 1311- ● ●
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. ISRAEL COUNTRY(CV4) 		8-98125-653-0 02 1 1311- ● ●
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 1311- ● ●

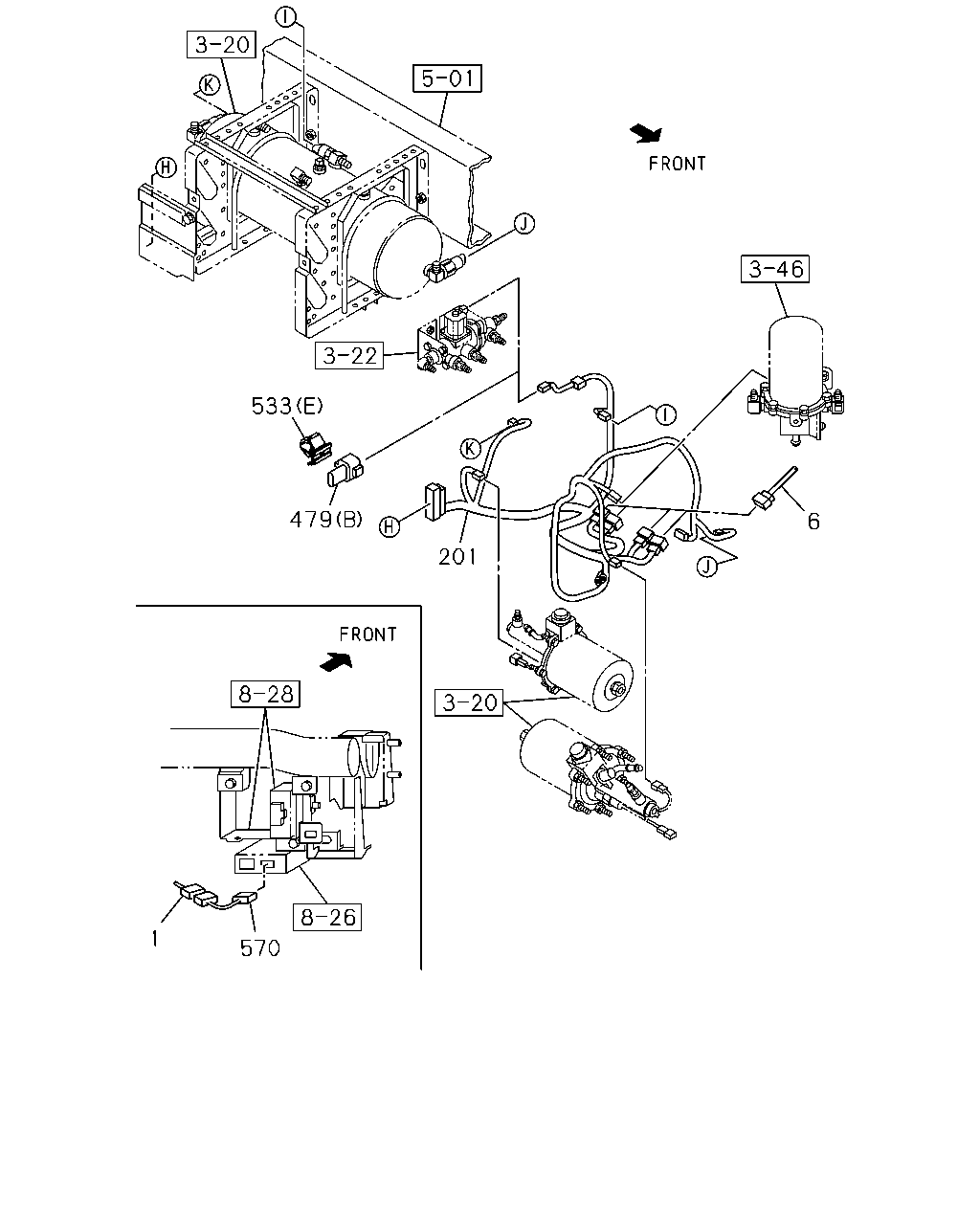

çizim 386792
201 6 533 570 1 479
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-015-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-017-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-014-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-016-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-011-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-013-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-010-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-012-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-855-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-854-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-859-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-858-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-853-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-852-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-857-4 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-856-4 01 1 1311- ●
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1311- ● ●
201 HARNESS; AIR TANK
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1311- ● ●
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) 		1-82691-191-0 01 1 1311- ● ●
479 CAP; CONNECTOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1311- ● ●
533 CLIP
(U) L=112 		8-94232-618-0 04 1 1311- ● ●
533 CLIP
(N) ID=11 L=20 		0-95235-035-0 02 1 1311- ●
533 CLIP
(Q) ID=19 L=28 		0-95235-856-0 02 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 02 1 1311- ●
533 CLIP
(R) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(C) ID=21 L=24 		8-94176-807-1 03 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (A) ID=11 L=41 		1-09700-403-0 01 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (K) L=250 		5-09707-030-1 01 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (B) ID=20 L=50 		9-09917-430-0 09 1 1311- ●
533 CLIP
WHEEL BASE 4300MM(43W) (B) ID=20 L=50 		9-09917-430-0 13 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W) (B) ID=20 L=50 		9-09917-430-0 15 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 02 1 1311- ●
533 CLIP
WHEEL BASE 5300MM(53W) (B) ID=20 L=50 		9-09917-430-0 16 1 1311- ●
533 CLIP
(O) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1311- ● ●
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1311- ● ●
533 CLIP
(D) L=350 		1-09707-183-0 02 1 1311- ● ●
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 01 1 1311- ● ●
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 02 1 1311- ● ●
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 01 1 1311- ● ●
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1311- ● ●
533 CLIP
DIFF LOCK<C3N> (M) ID=14 L=44 		9-09917-427-0 01 1 1311- ●
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1311- ● ●
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1311- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1311- ● ●
533 CLIP
DIFF LOCK<C3N> (A) ID=11 L=41 		1-09700-403-0 06 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (I) ID=14.5 L=20 		1-09701-012-0 02 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (S) ID=4.8 		1-09701-218-0 01 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (G) OD=8.95 H=6.25 		8-97375-754-0 01 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (T) ID=21 L=24 		8-98019-191-0 02 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50 		1-09701-055-1 01 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (M) ID=14 L=44 		9-09917-427-0 09 1 1311- ●
533 CLIP
WHEEL BASE 4300MM(43W) (M) ID=14 L=44 		9-09917-427-0 13 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1311- ●
533 CLIP
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 18 1 1311- ●
570 HARNESS; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98058-327-1 01 1 1311- ● ●
570 HARNESS; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 		8-98058-327-1 01 1 1311- ● ●
570 HARNESS; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98091-562-0 01 1 1311- ● ●

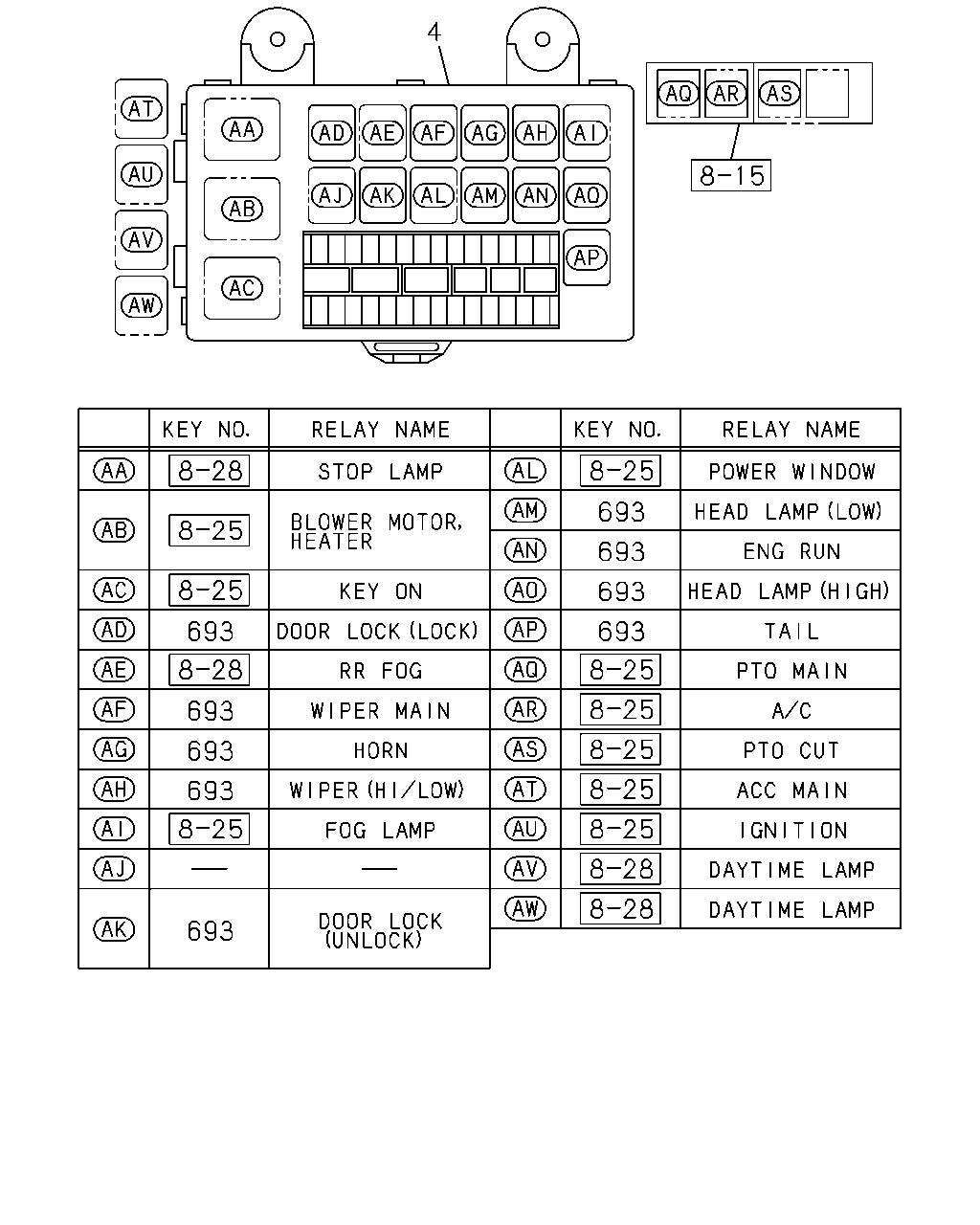

çizim 386836
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1311- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ●

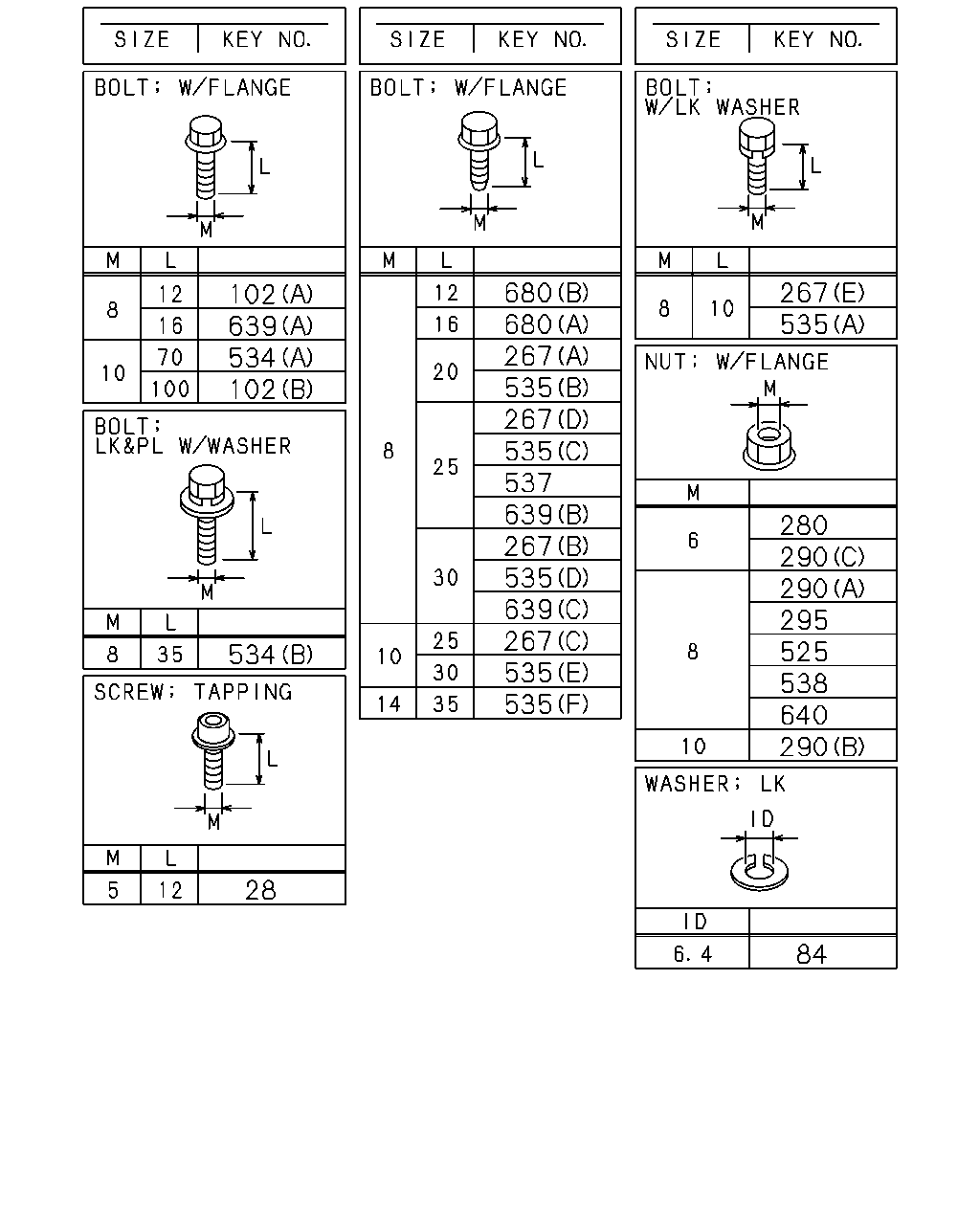

çizim 386875
102 639 534 102 680 680 267 535 267 535 537 639 267 535 639 267 535 535 267 535 280 290 290 295 525 538 640 290 84 28 534
BalonParca AdiParca NoAdetTipApplied Date A B
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1311- ● ●
84 WASHER; LK
DIFF LOCK<C3N> ID=6.4 		0-91614-506-0 03 1 1311- ●
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1311- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M10X100 FLANGE 		0-28151-000-0 01 1 1311- ● ●
267 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1311- ●
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ●
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1311- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (E) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1311- ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1311- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1311- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
290 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (C) M6 FLANGE 		0-91180-106-0 03 1 1311- ●
290 NUT; BRKT
DIFF LOCK<C3N> (C) M8 FLANGE 		0-91180-108-0 03 1 1311- ●
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1311- ●
525 NUT; CLIP
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1311- ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1311- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1311- ● ●
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
535 BOLT; BRKT FIX
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1311- ●
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(E) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(F) M14X35 FLANGE 		0-28851-435-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1311- ● ●
537 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
538 NUT
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 05 1 1311- ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
639 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1311- ● ●
639 BOLT; CLIP
DIFF LOCK<C3N> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1311- ●
640 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1311- ●
680 BOLT; ENG HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1311-1311 ● ●
680 BOLT; ENG HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ●
680 BOLT; ENG HARNESS
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ● ●
680 BOLT; ENG HARNESS
GENERATOR 24V90A(K44) (B) M8X12 FLANGE 		0-28050-812-0 01 1 1311- ● ●

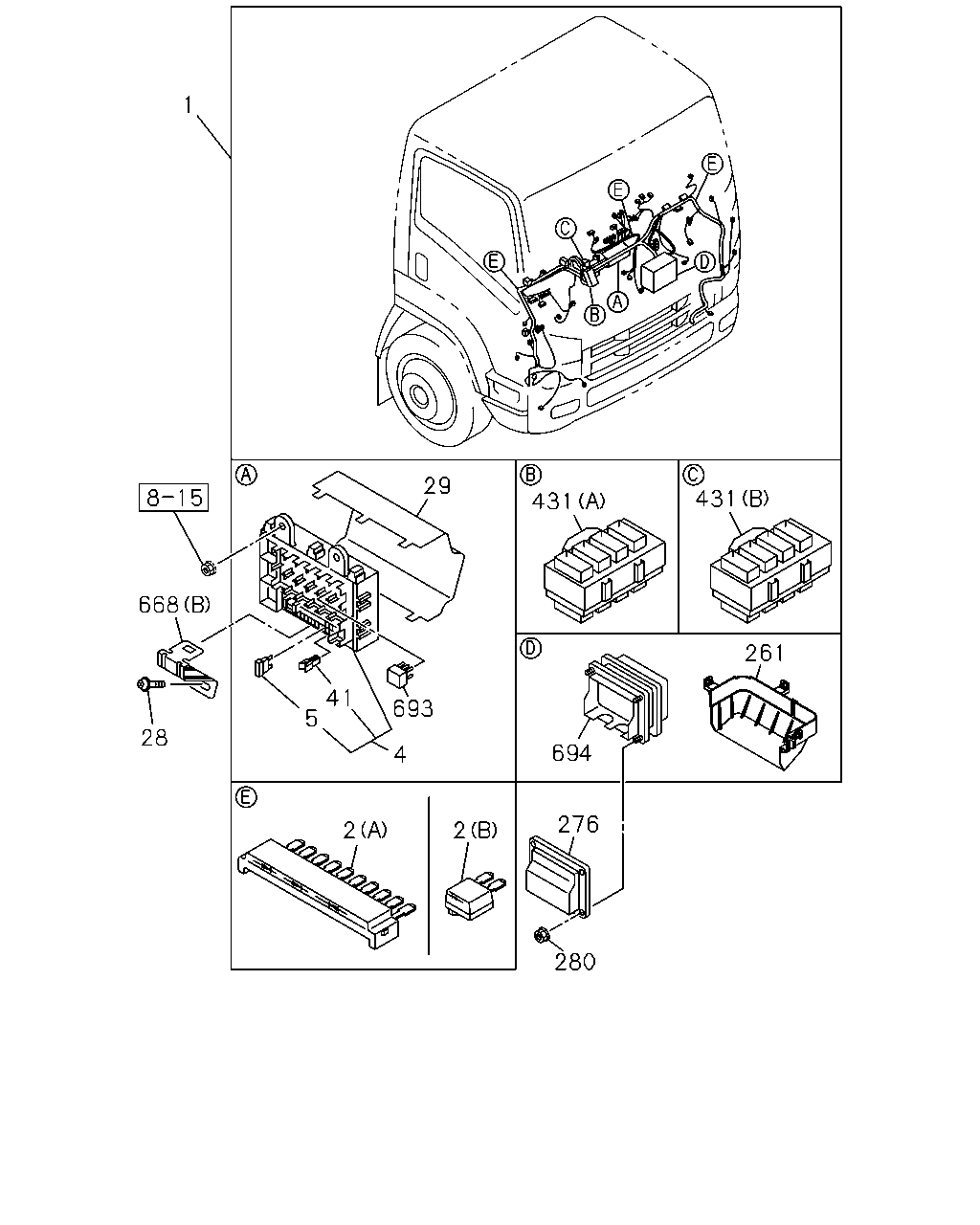

çizim 386894
1 668 28 41 5 4 29 693 431 694 431 261 280 276 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-015-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-017-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-014-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-016-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-011-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-013-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-010-3 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-012-3 01 1 1311- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1311- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 1311- ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1311- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1311- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1311- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1311- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1311- ● ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1311- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1311- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1311- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1311- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1311- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1311- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(J) L=95 		1-82699-085-0 01 1 1311- ●
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1311-1502 ● ●
668 BRACKET; HARNESS
(AD) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(L) 		8-98147-490-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(W) 		8-98150-855-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(X) 		8-98161-100-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(Y) 		8-98164-831-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(V) 		8-98207-041-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(Z) 		8-98236-735-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AA) 		8-98236-736-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AB) 		8-98242-475-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(AC) 		8-98249-358-0 01 1 1311- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) L=55 		1-47475-304-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98216-631-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) 		8-98216-632-0 01 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		8-98216-633-0 01 1 1311- ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1311- ● ●

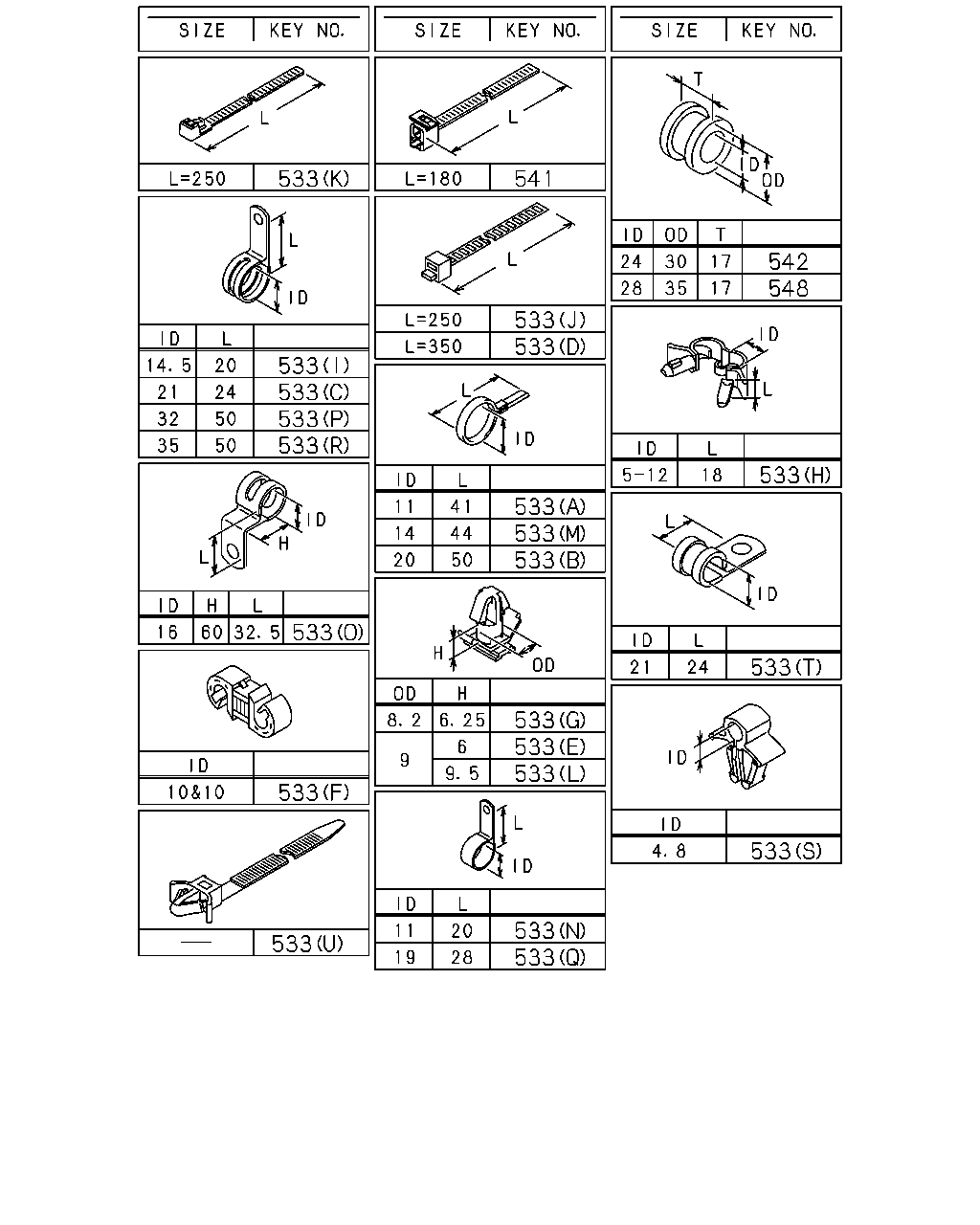

çizim 386897
533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 542 548 533 533 533 541
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
(U) L=112 		8-94232-618-0 04 1 1311- ● ●
533 CLIP
(N) ID=11 L=20 		0-95235-035-0 02 1 1311- ●
533 CLIP
(Q) ID=19 L=28 		0-95235-856-0 02 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 02 1 1311- ●
533 CLIP
(R) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(C) ID=21 L=24 		8-94176-807-1 03 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (A) ID=11 L=41 		1-09700-403-0 01 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (K) L=250 		5-09707-030-1 01 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (B) ID=20 L=50 		9-09917-430-0 09 1 1311- ●
533 CLIP
WHEEL BASE 4300MM(43W) (B) ID=20 L=50 		9-09917-430-0 13 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W) (B) ID=20 L=50 		9-09917-430-0 15 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 02 1 1311- ●
533 CLIP
WHEEL BASE 5300MM(53W) (B) ID=20 L=50 		9-09917-430-0 16 1 1311- ●
533 CLIP
(O) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1311- ● ●
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1311- ● ●
533 CLIP
(D) L=350 		1-09707-183-0 02 1 1311- ● ●
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 01 1 1311- ● ●
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 02 1 1311- ● ●
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 01 1 1311- ● ●
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1311- ● ●
533 CLIP
DIFF LOCK<C3N> (M) ID=14 L=44 		9-09917-427-0 01 1 1311- ●
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1311- ● ●
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1311- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1311- ● ●
533 CLIP
DIFF LOCK<C3N> (A) ID=11 L=41 		1-09700-403-0 06 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (I) ID=14.5 L=20 		1-09701-012-0 02 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (S) ID=4.8 		1-09701-218-0 01 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (G) OD=8.95 H=6.25 		8-97375-754-0 01 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (T) ID=21 L=24 		8-98019-191-0 02 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50 		1-09701-055-1 01 1 1311- ●
533 CLIP
WHEEL BASE 3700MM(37W) (M) ID=14 L=44 		9-09917-427-0 09 1 1311- ●
533 CLIP
WHEEL BASE 4300MM(43W) (M) ID=14 L=44 		9-09917-427-0 13 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1311- ●
533 CLIP
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 18 1 1311- ●
541 CLIP
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>, TACHOGRAPHDIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180 		1-09707-162-1 01 1 1311- ● ●
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1311- ● ●
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 03 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
