◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#130319) — 21 parça
çizim 386684
88 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1311- ● ●
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 01 1 1311- ● ●

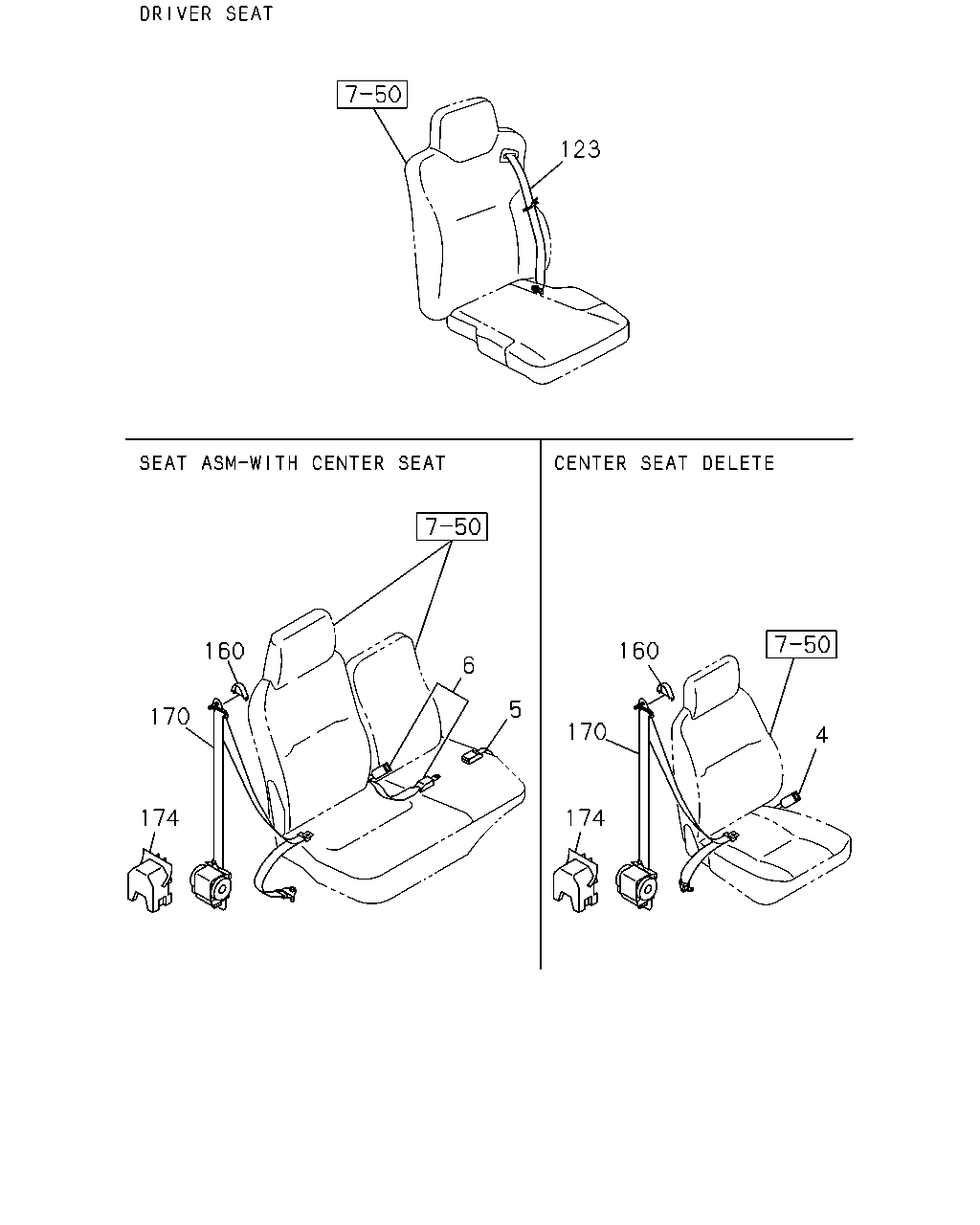

çizim 386932
123 160 170 174 6 5 170 174 160 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97409-769-1 01 1 1311- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FLEET USER PACKAGE<6SX> SEAT ASM - WITH CENTER SEAT<7BC> 		8-97466-332-1 01 1 1501- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1311-1412 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-377-1 01 1 1501- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FLEET USER PACKAGE<6SX> SEAT ASM - WITH CENTER SEAT<7BC> 		8-97466-331-1 01 1 1501- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1311-1412 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-660-1 01 1 1501- ● ●
123 BELT ASM; SEAT 8-98097-970-0 01 1 1311-1412 ● ●
123 BELT ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-970-0 01 1 1501- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1311- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) FLEET USER PACKAGE<6SX> 		8-97466-335-0 01 1 1501- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) FLEET USER PACKAGE<6SX> 		8-97466-329-0 01 1 1501- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1311-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408-1412 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97428-394-0 01 1 1501- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) GRAY 		8-97423-516-1 01 1 1311-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) GRAY 		8-97428-435-0 01 1 1408-1412 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97428-435-0 01 1 1501- ● ●
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
