◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#130318) — 167 parça

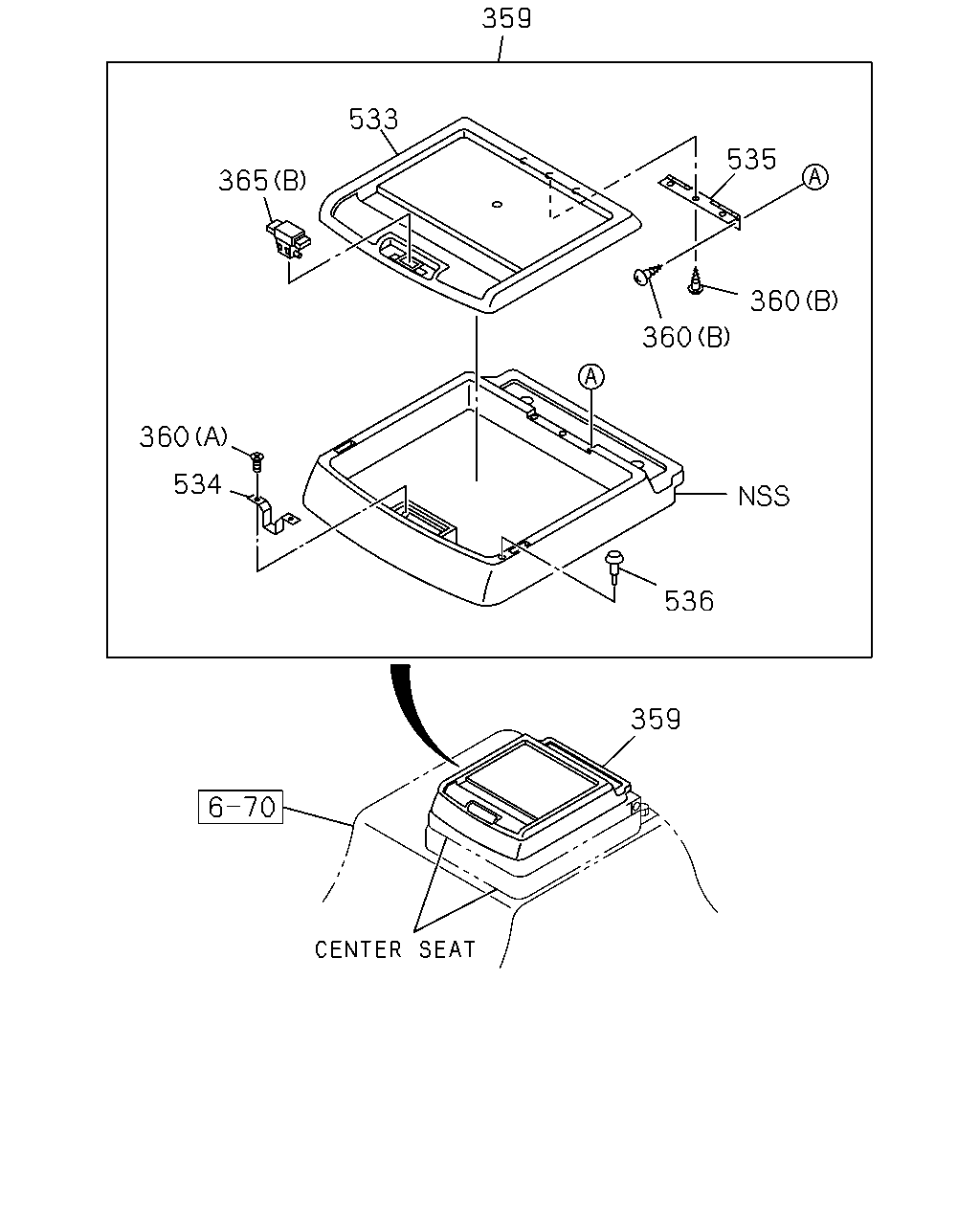

çizim 386386
359 533 365 360 534 535 360 360 536 359
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1311- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1311- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1311- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1311- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1311-1412 ● ●
365 LOCK ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1501- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1311- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1311- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1311- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1311- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1311- ● ●

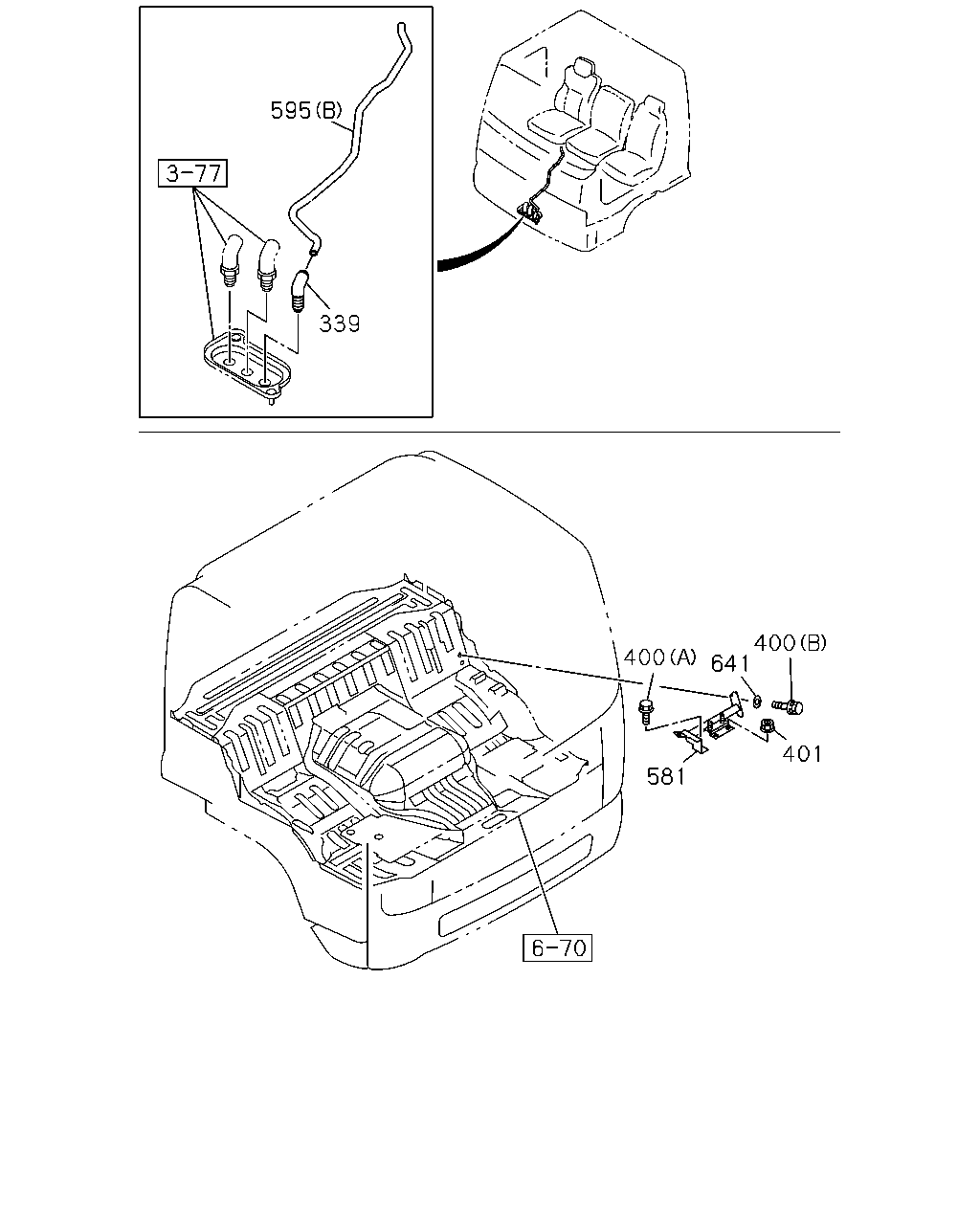

çizim 386611
595 339 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1311- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1311- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1311- ● ●
581 PIPE; SEAT 8-98049-531-3 01 1 1311- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1311- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1311-1412 ● ●
595 TUBE; NYLON
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1501- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1311- ● ●

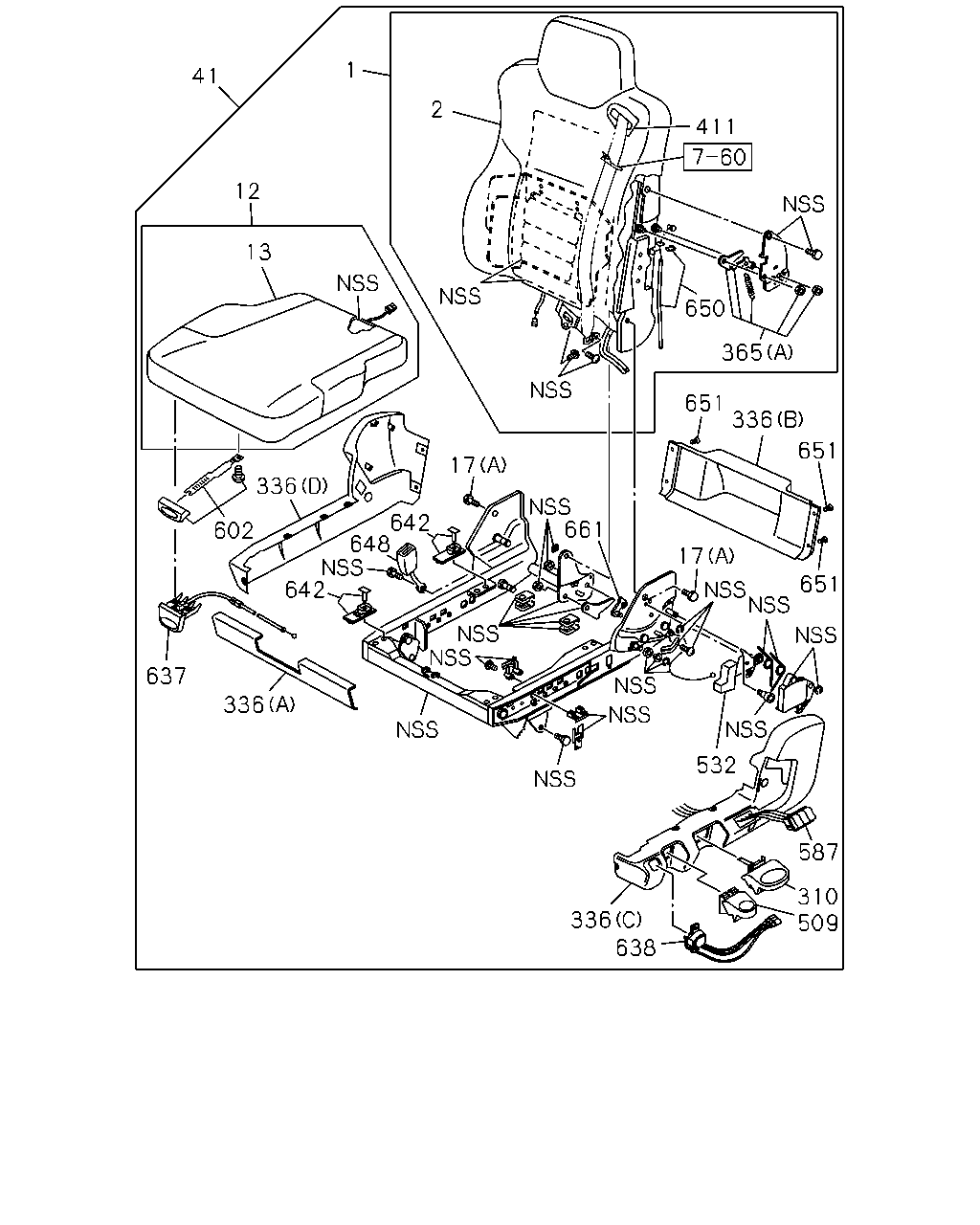

çizim 386716
411 365 651 651 336 650 2 1 41 12 13 602 642 336 648 642 17 637 336 661 17 651 532 336 638 587 310 509
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT 8-98097-962-0 01 1 1311-1412 ● ●
1 BACK ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-962-0 01 1 1501- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-352-0 01 1 1311-1412 ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FLEET USER PACKAGE<6SX> 		8-98232-352-0 01 1 1501- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1311-1412 ● ●
12 CUSHION; SEAT,FRT
EXC. FLEET USER PACKAGE<6SX> 		8-98098-006-0 01 1 1501- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1311-1412 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FLEET USER PACKAGE<6SX> 		8-98098-007-0 01 1 1501- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1311- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1311-1412 ● ●
17 BOLT; RECLINING
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-974-0 02 1 1501- ● ●
41 SEAT ASM; DRIVER 8-98195-065-0 01 1 1311-1412 ● ●
41 SEAT ASM; DRIVER
EXC. FLEET USER PACKAGE<6SX> 		8-98195-065-1 01 1 1501- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-991-0 01 1 1311-1412 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-991-0 01 1 1501- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-977-0 01 1 1311-1412 ● ●
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (D) 		8-98097-977-0 01 1 1501-1508 ● ●
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (D) 		8-98333-916-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-983-0 01 1 1311-1412 ● ●
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-983-0 01 1 1501- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1311-1412 ● ●
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-995-0 01 1 1501- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1311-1412 ● ●
336 COVER; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98097-996-0 01 1 1501- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1311-1412 ● ●
365 LOCK ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1501- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1311- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1311-1412 ● ●
411 GUIDE; SEAT BELT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-967-0 01 1 1501- ● ●
509 LEVER; DAMPER 8-98097-987-0 01 1 1311-1412 ● ●
509 LEVER; DAMPER
EXC. FLEET USER PACKAGE<6SX> 		8-98097-987-0 01 1 1501- ● ●
532 LEVER ASM; TILT 8-98097-981-0 01 1 1311-1412 ● ●
532 LEVER ASM; TILT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-981-0 01 1 1501- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-985-0 01 1 1311-1412 ● ●
587 VALVE; LUMBAR SUPPORT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-985-0 01 1 1501- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1311-1412 ● ●
602 KNOB; ADJ,SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98098-008-0 01 1 1501- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1311-1412 ● ●
637 LEVER; SLOPE ADJ
EXC. FLEET USER PACKAGE<6SX> 		8-98097-989-0 01 1 1501- ● ●
638 VALVE; LOWERING 8-98097-993-0 01 1 1311-1412 ● ●
638 VALVE; LOWERING
EXC. FLEET USER PACKAGE<6SX> 		8-98097-993-0 01 1 1501- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1311-1412 ● ●
642 SLIDER; CUSHION
EXC. FLEET USER PACKAGE<6SX> 		8-98192-932-0 04 1 1501- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1311-1412 ● ●
648 BUCKLE; SEAT BELT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-976-0 01 1 1501- ● ●
650 CABLE 8-98232-354-0 01 1 1311-1412 ● ●
650 CABLE
EXC. FLEET USER PACKAGE<6SX> 		8-98232-354-0 01 1 1501- ● ●
651 RIVET 8-98194-075-0 04 1 1311-1412 ● ●
651 RIVET
EXC. FLEET USER PACKAGE<6SX> 		8-98194-075-0 04 1 1501- ● ●
661 LOCK ASM; RECLINING 8-98097-979-0 01 1 1311-1412 ● ●
661 LOCK ASM; RECLINING
EXC. FLEET USER PACKAGE<6SX> 		8-98097-979-0 01 1 1501- ● ●

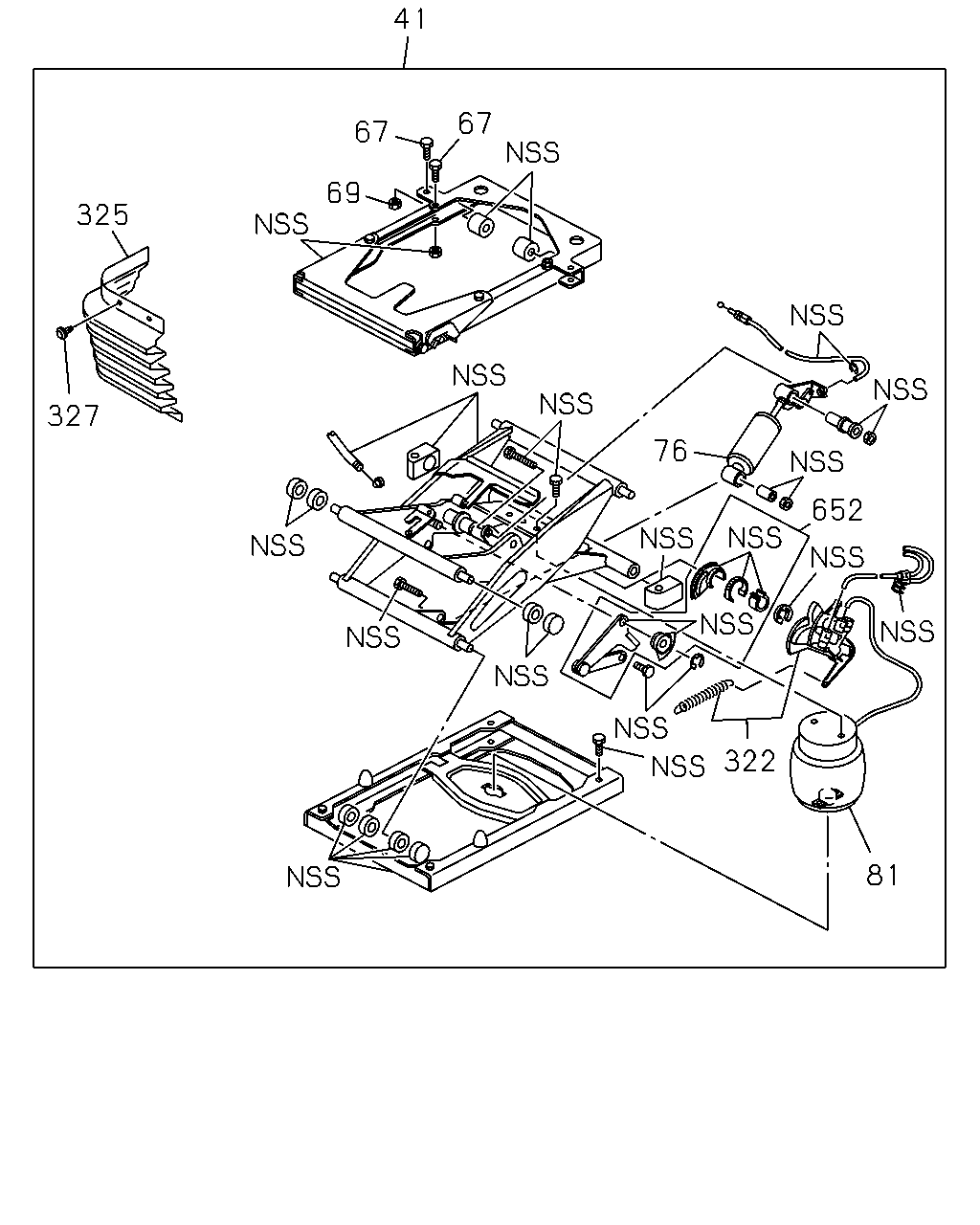

çizim 386772
41 67 67 69 325 327 76 322 81 652
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-065-0 01 1 1311-1412 ● ●
41 SEAT ASM; DRIVER
EXC. FLEET USER PACKAGE<6SX> 		8-98195-065-1 01 1 1501- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1311- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1311- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1311-1412 ● ●
76 DAMPER; AIR SUSP
EXC. FLEET USER PACKAGE<6SX> 		8-98097-999-0 01 1 1501- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1311-1412 ● ●
81 SPRING; AIR
EXC. FLEET USER PACKAGE<6SX> 		8-98098-000-0 01 1 1501- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1311-1412 ● ●
322 VALVE; AIR SPRING
EXC. FLEET USER PACKAGE<6SX> 		8-98098-001-0 01 1 1501-1508 ● ●
322 VALVE; AIR SPRING
EXC. FLEET USER PACKAGE<6SX> 		8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1311-1412 ● ●
325 COVER; SUSPENSION DEVICE
EXC. FLEET USER PACKAGE<6SX> 		8-98098-003-0 01 1 1501- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1311-1412 ● ●
327 CLIP; COVER
EXC. FLEET USER PACKAGE<6SX> 		8-98098-004-0 01 1 1501- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1311-1412 ● ●
652 LOCK ASM; HEIGHT
EXC. FLEET USER PACKAGE<6SX> 		8-98098-002-0 01 1 1501- ● ●

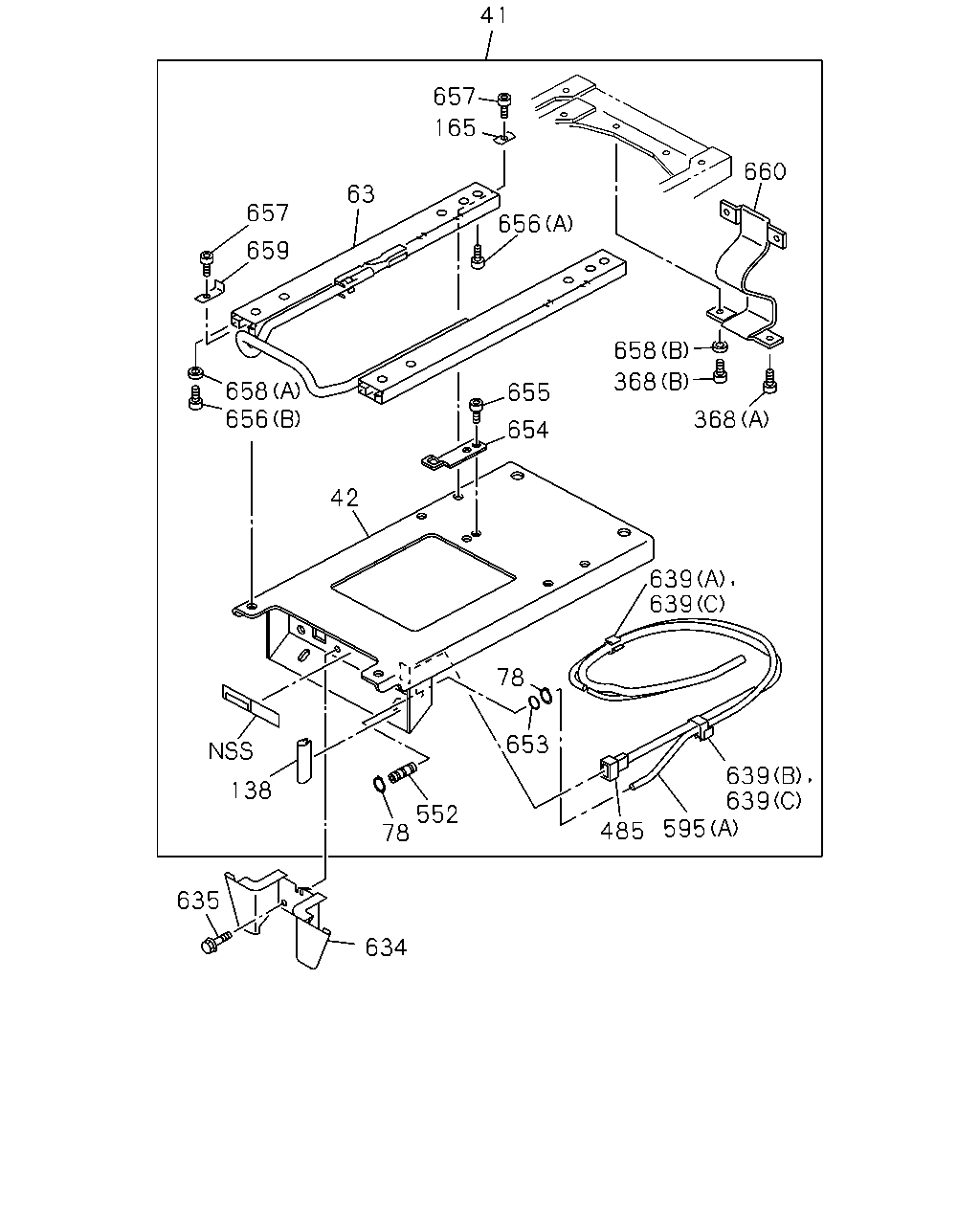

çizim 386830
41 657 63 165 657 658 659 656 655 658 654 368 368 660 639 639 639 639 595 485 653 78 42 552 78 634 635 138 656
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-065-0 01 1 1311-1412 ● ●
41 SEAT ASM; DRIVER
EXC. FLEET USER PACKAGE<6SX> 		8-98195-065-1 01 1 1501- ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1311-1412 ● ●
42 STAND; DRIVER SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98106-346-0 01 1 1501- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1311-1412 ● ●
63 ADJUSTER; SEAT SLIDE
EXC. FLEET USER PACKAGE<6SX> 		8-98098-005-0 01 1 1501- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1311-1412 ● ●
78 RING; SNAP
EXC. FLEET USER PACKAGE<6SX> 		8-98101-900-0 02 1 1501- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1311-1412 ● ●
138 PROTECTOR; SEAT STAND
EXC. FLEET USER PACKAGE<6SX> 		8-98106-351-0 01 1 1501- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1311-1412 ● ●
165 WASHER; PL
EXC. FLEET USER PACKAGE<6SX> 		1-75590-086-0 04 1 1501- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1311-1412 ● ●
368 BOLT; SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-353-0 03 1 1501- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1311-1412 ● ●
368 BOLT; SEAT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-358-0 01 1 1501- ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1311-1412 ● ●
485 HARNESS; FRT SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98106-360-0 01 1 1501- ● ●
552 CONNECTOR 8-98101-902-0 01 1 1311-1412 ● ●
552 CONNECTOR
EXC. FLEET USER PACKAGE<6SX> 		8-98101-902-0 01 1 1501-1508 ● ●
552 CONNECTOR
EXC. FLEET USER PACKAGE<6SX> 		8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1311- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1311-1412 ● ●
595 TUBE; NYLON
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1501- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1311- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1311- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1311-1412 ● ●
639 CLIP; SEAT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-350-0 01 1 1501-1508 ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1311-1412 ● ●
639 CLIP; SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-349-0 01 1 1501-1508 ● ●
639 CLIP; SEAT
EXC. FLEET USER PACKAGE<6SX> (C) 		8-98308-100-0 02 1 1509- ● ●
653 GASKET 8-98101-901-0 01 1 1311-1412 ● ●
653 GASKET
EXC. FLEET USER PACKAGE<6SX> 		8-98101-901-0 01 1 1501- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1311-1412 ● ●
654 HOOK; STOPPER
EXC. FLEET USER PACKAGE<6SX> 		8-98106-352-0 01 1 1501- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1311-1412 ● ●
655 BOLT; HOOK
EXC. FLEET USER PACKAGE<6SX> 		8-98106-353-0 02 1 1501- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1311-1412 ● ●
656 BOLT; SLIDER TO SEAT
EXC. FLEET USER PACKAGE<6SX> (A) 		1-75590-085-0 04 1 1501- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1311-1412 ● ●
656 BOLT; SLIDER TO SEAT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-354-0 02 1 1501- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1311-1412 ● ●
657 BOLT; SLIDER TO STAND
EXC. FLEET USER PACKAGE<6SX> 		1-75590-085-0 06 1 1501- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1311-1412 ● ●
658 SPACER; BOLT
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-355-0 02 1 1501- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1311-1412 ● ●
658 SPACER; BOLT
EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-359-0 01 1 1501- ● ●
659 STOPPER 8-98106-356-0 02 1 1311-1412 ● ●
659 STOPPER
EXC. FLEET USER PACKAGE<6SX> 		8-98106-356-0 02 1 1501- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1311-1412 ● ●
660 BELT; TETHER
EXC. FLEET USER PACKAGE<6SX> 		8-98106-357-0 01 1 1501- ● ●

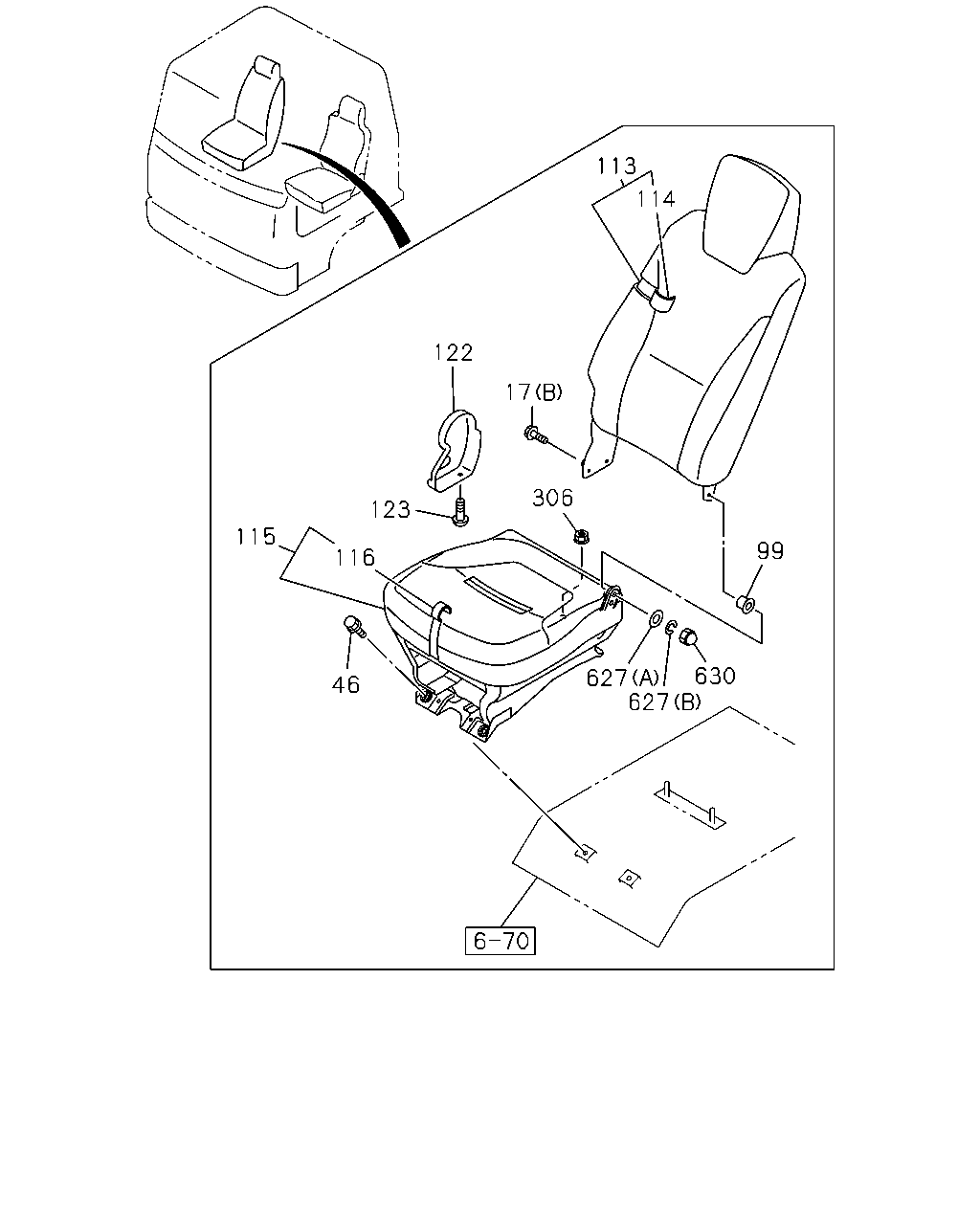

çizim 386874
113 99 17 122 306 123 116 115 46 627 627 630 114
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1311- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1311-1412 ● ●
17 BOLT; RECLINING
EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-974-0 02 1 1501- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1311- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1311- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-423-0 01 1 1311- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-425-0 01 1 1311- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-419-1 01 1 1311- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-421-0 01 1 1311- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 1311- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1311- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1311- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1311- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1311- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1311- ● ●

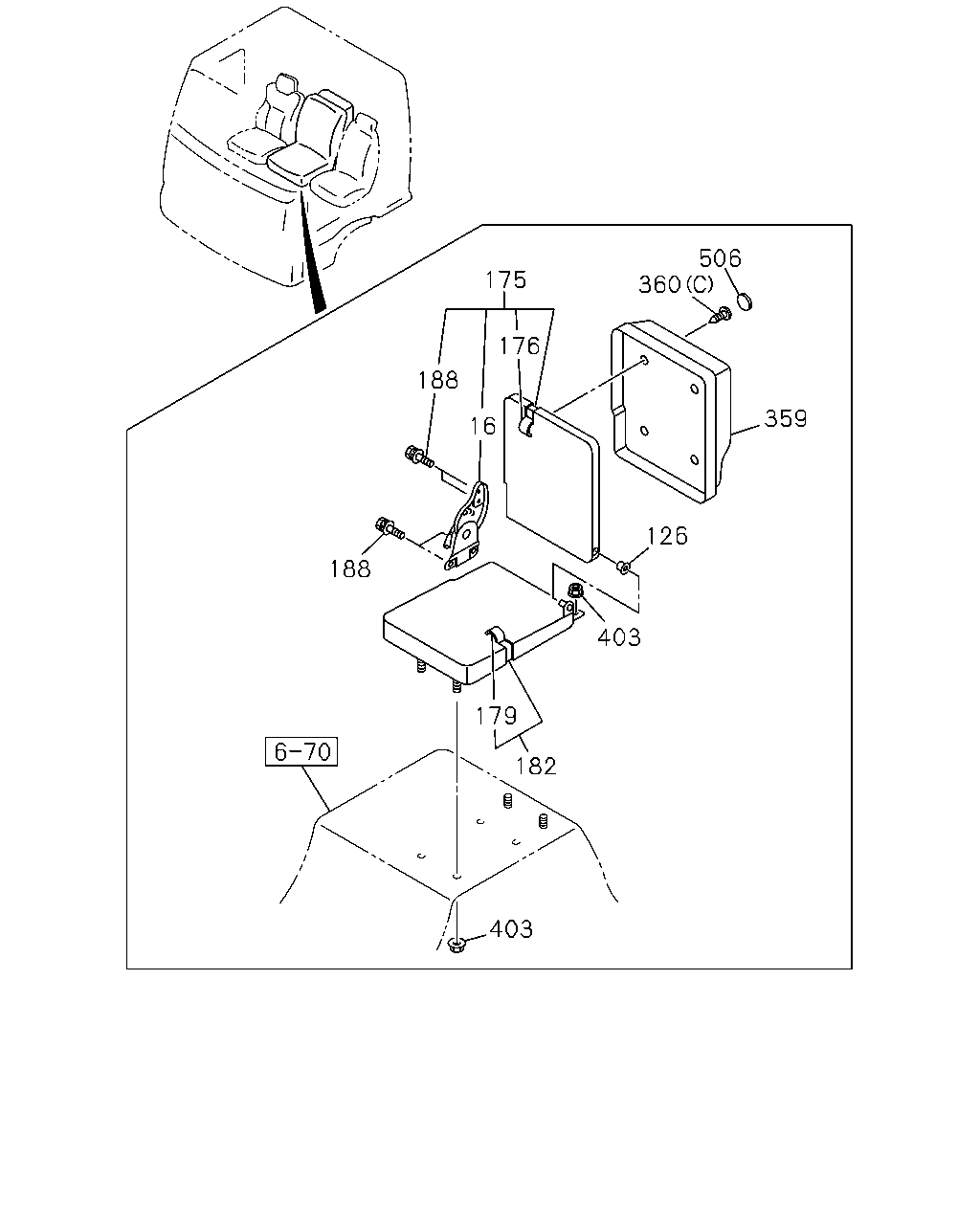

çizim 386912
175 188 188 176 16 360 506 359 126 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1311- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1311- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1311- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1311- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-433-1 01 1 1311- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-431-3 01 1 1311- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1311- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1311- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1311- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1311- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1311- ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1311- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
