◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#130316) — 64 parça

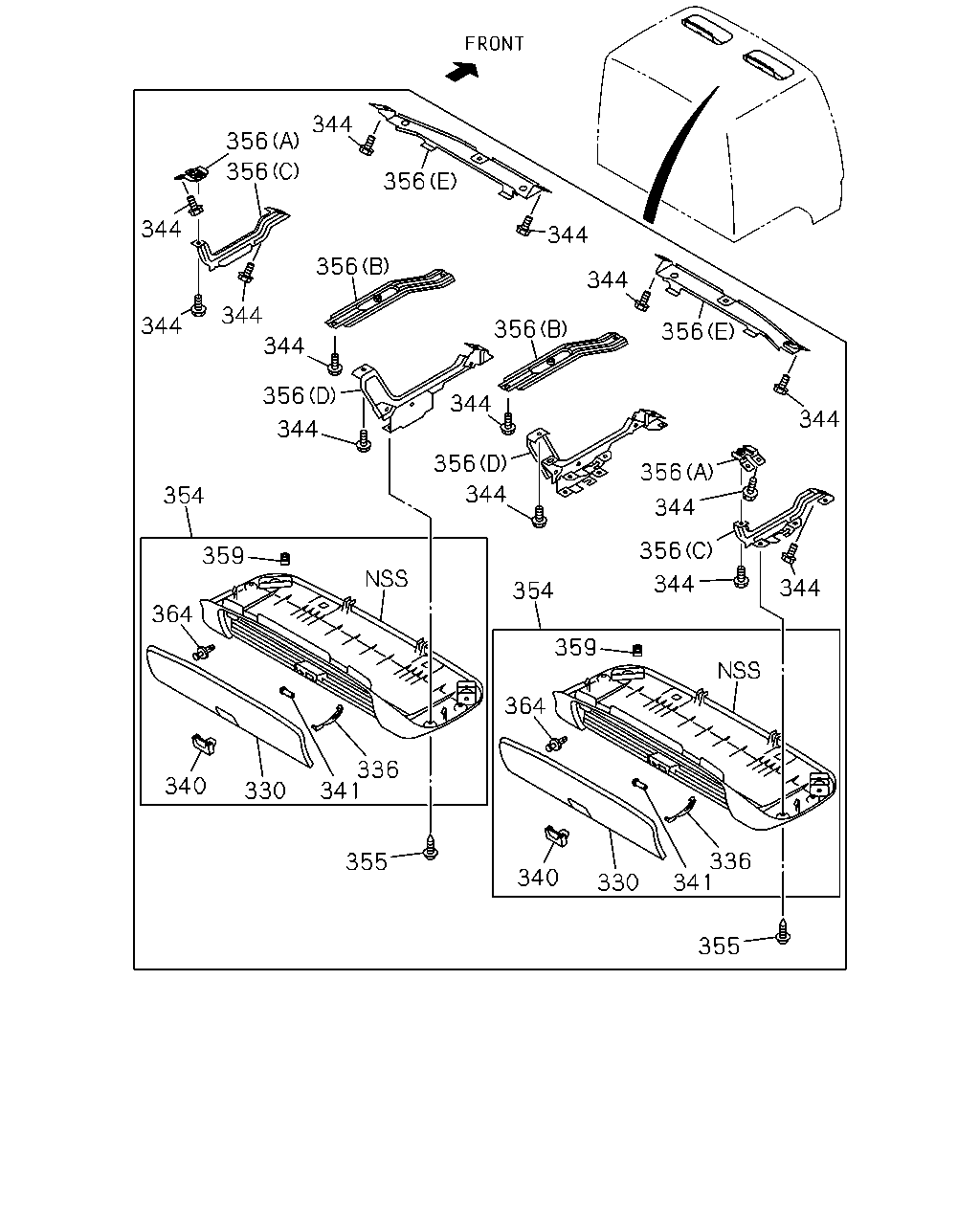

çizim 386401
344 356 356 344 344 344 344 356 344 354 359 364 340 330 341 355 336 354 359 364 340 330 341 355 336 344 344 356 344 356 344 356 344 344 356 356 356 344 356 344
BalonParca AdiParca NoAdetTipApplied Date A B
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1311- ● ●
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1311- ● ●
336 STAY; LID 1-72448-379-3 02 1 1311- ● ●
336 STAY; LID 1-72448-379-3 02 1 1311- ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1311- ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1311- ● ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1311- ● ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1311- ● ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 20 1 1311- ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 1311-1401 ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 1311-1401 ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402- ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402- ● ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1311- ● ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1311- ● ●
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 02 1 1311- ● ●
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 02 1 1311- ● ●
356 BRACKET; ROOF OUTER
(C) 		8-98016-871-3 01 1 1311- ● ●
356 BRACKET; ROOF OUTER
(D) 		8-98042-009-2 01 1 1311- ● ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-016-3 01 1 1311- ● ●
356 BRACKET; ROOF OUTER
(C) 		8-98014-088-3 01 1 1311- ● ●
356 BRACKET; ROOF OUTER
(D) 		8-98023-257-2 01 1 1311- ● ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 1311- ● ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1311- ● ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1311- ● ●
364 STOPPER; LID 8-98010-867-1 03 1 1311- ● ●
364 STOPPER; LID 8-98010-867-1 03 1 1311- ● ●

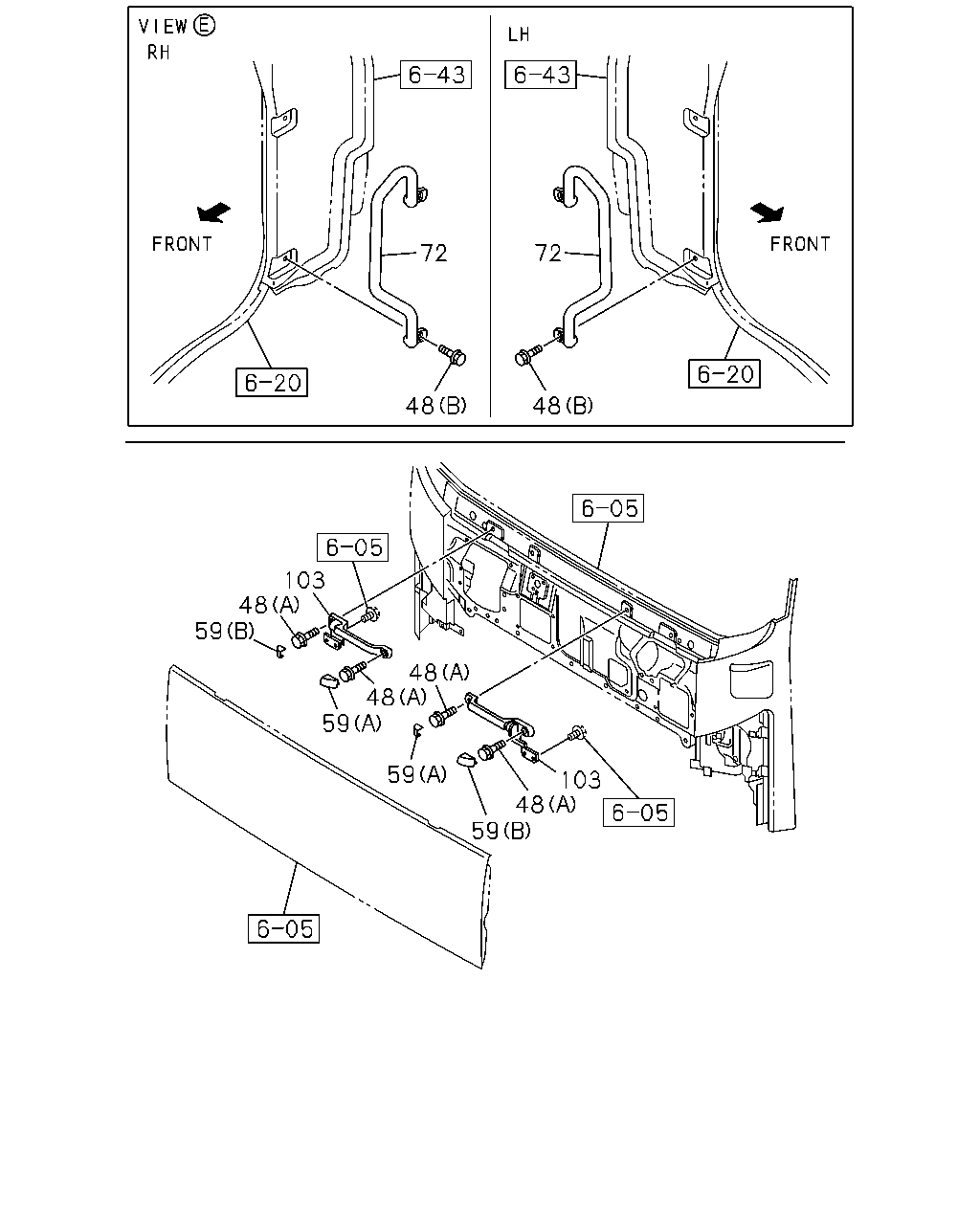

çizim 386609
72 48 72 48 103 48 59 48 48 59 59 103 48 59
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1311- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1311- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1311- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1311- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1311- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98084-137-1 01 1 1311- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98084-136-1 01 1 1311- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1311- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1311- ● ●

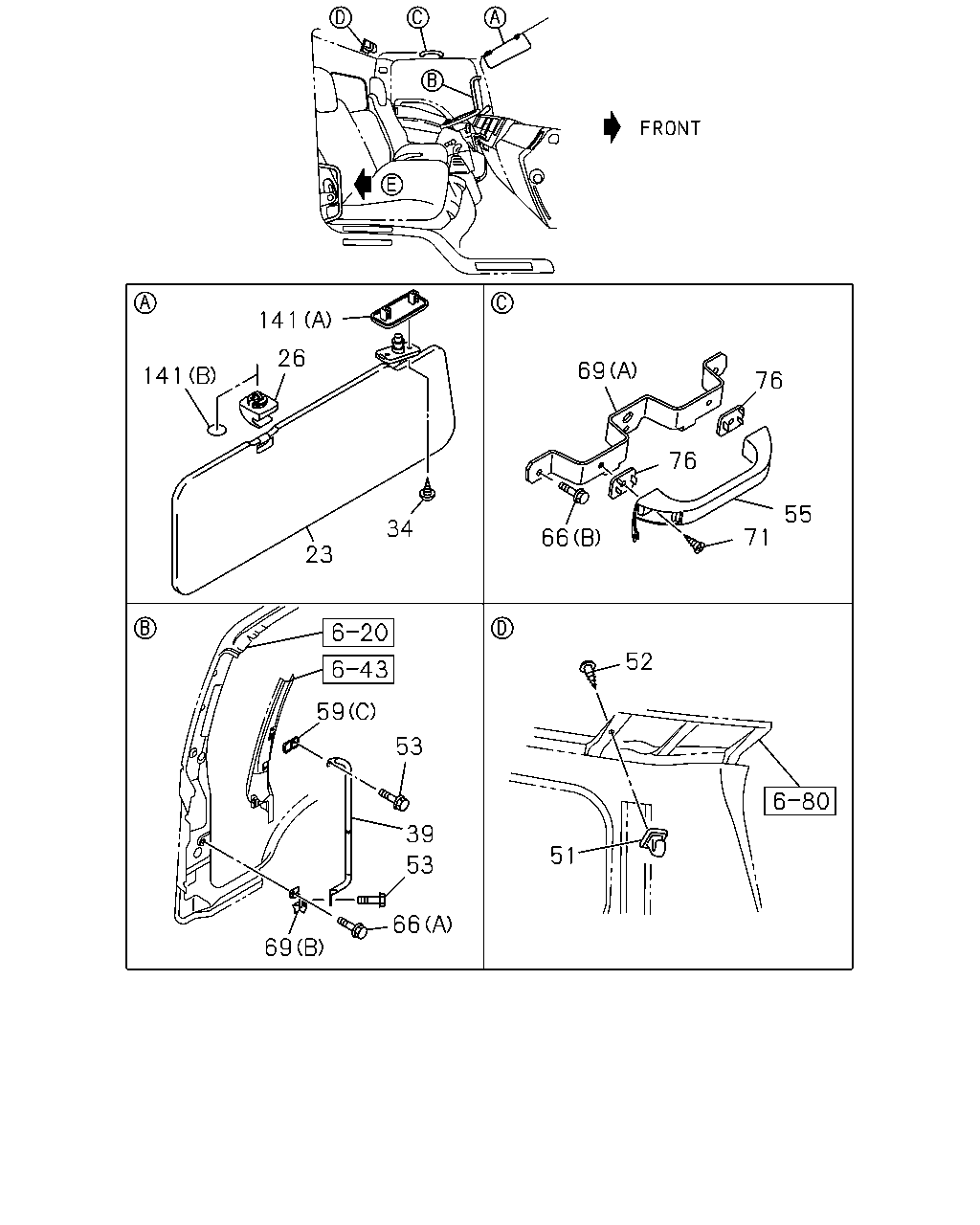

çizim 386873
141 26 141 23 34 66 69 76 76 71 55 52 51 69 66 53 39 53 59
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
DARK GRAY 		8-97427-612-0 01 1 1311- ● ●
23 SUN VISOR
DARK GRAY 		8-97407-373-2 01 1 1311- ● ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1311- ● ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1311- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1311- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1311- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-924-1 01 1 1311- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-923-1 01 1 1311- ● ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1311- ● ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 1311- ● ●
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 1311- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1311- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1311- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1311- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1311- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 1311- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 1311- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-974-3 01 1 1311- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-973-3 01 1 1311- ● ●
71 SCREW
M6X28 		8-98004-344-0 02 1 1311- ● ●
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 1311- ● ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1311- ● ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1311- ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1311-1401 ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1311-1401 ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402- ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
