7-20 — MIRROR AND MIRROR STAY (#130312) — 117 parça

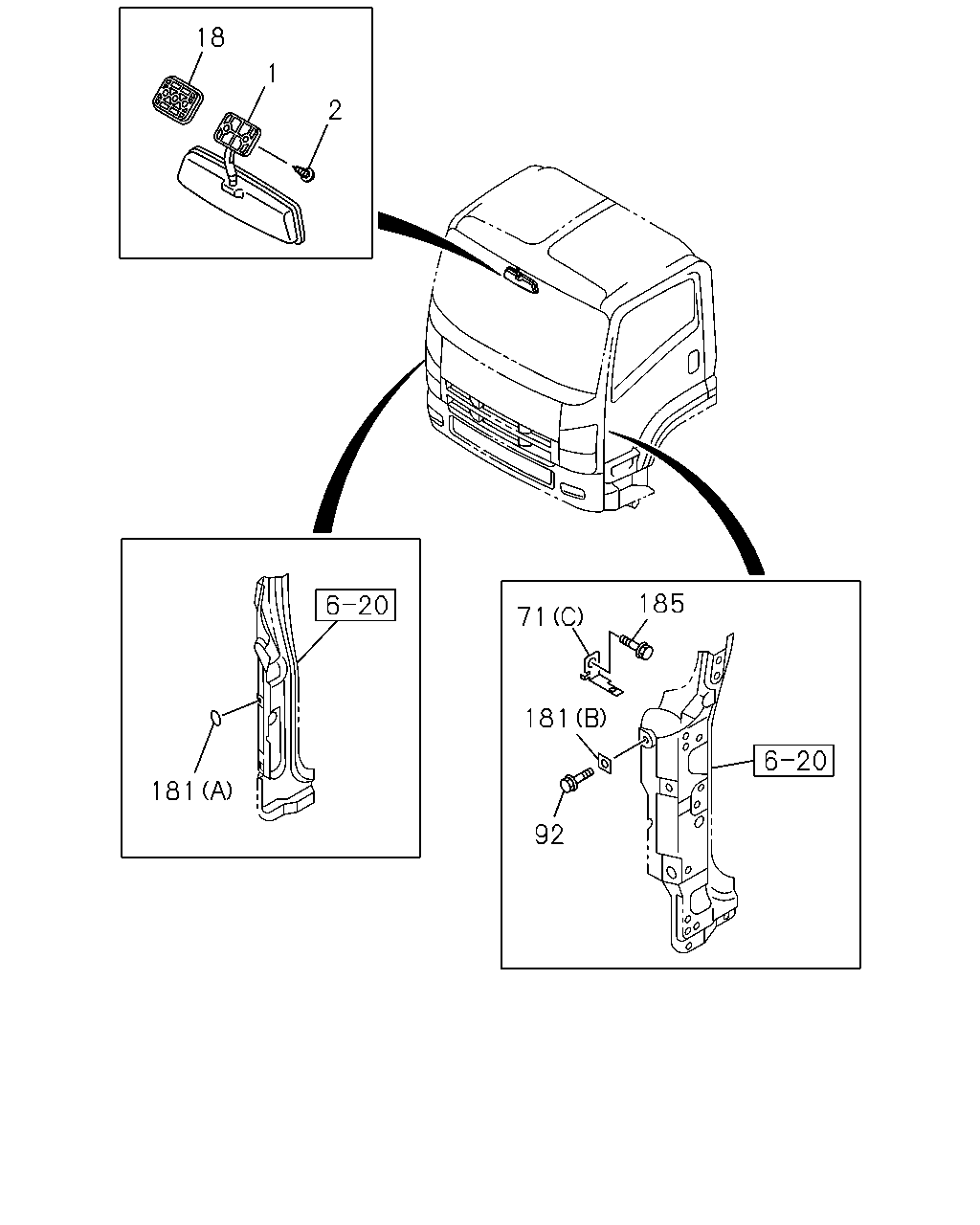

çizim 386152
18 2 1 181 71 181 92 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 1311- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 1311- ● ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1311- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1311- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 1311- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1311- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1311- ● ●

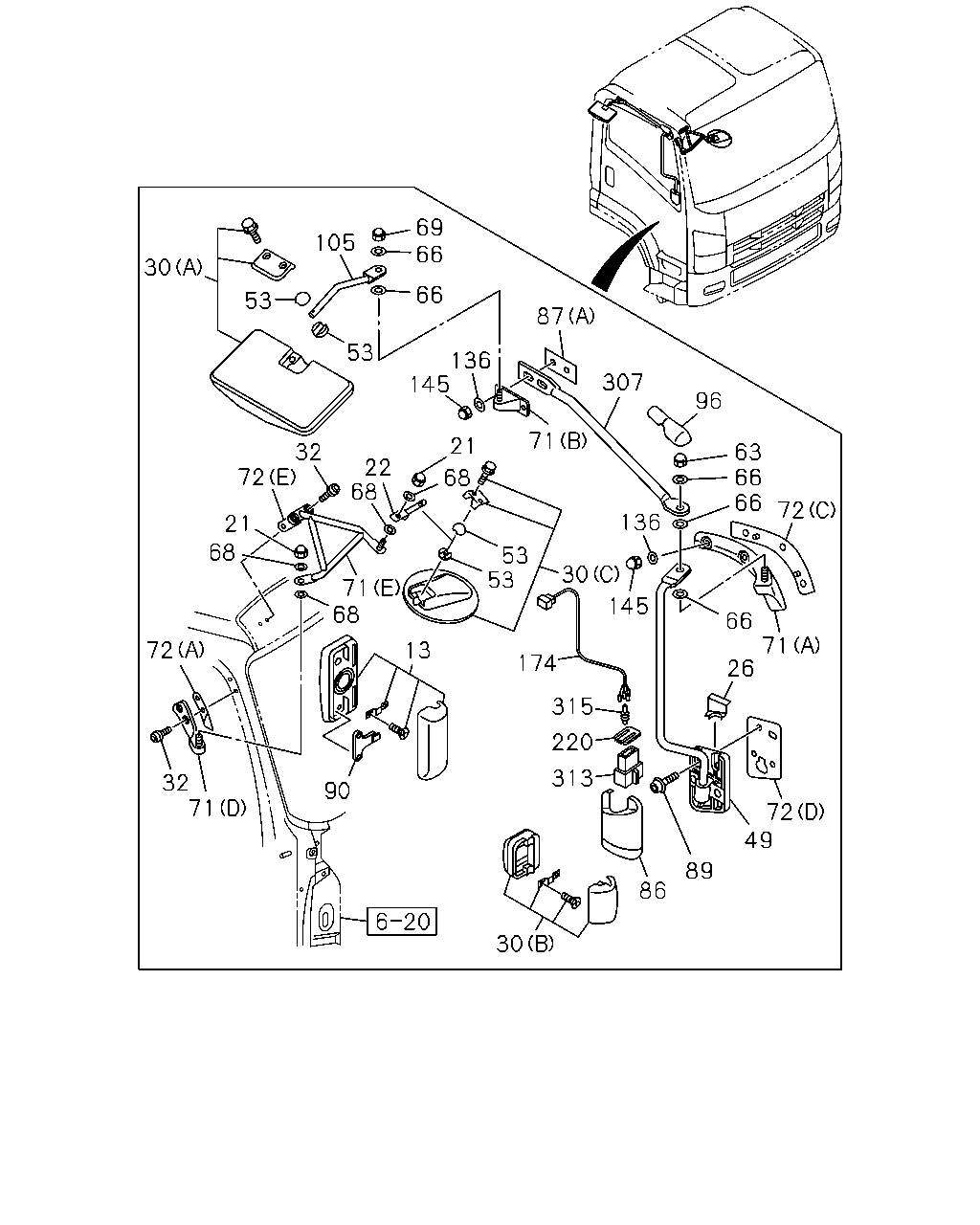

çizim 386358
96 63 66 66 72 71 72 26 66 145 315 220 313 86 49 89 30 174 30 136 307 87 71 21 53 53 13 68 68 22 68 71 68 72 32 71 90 21 72 32 145 136 66 66 69 53 53 30 105
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1311- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1311- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1311- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1311- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1311- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1311- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1311-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1311- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1311- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1311- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1311- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1311- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1311- ● ●
72 SHEET
(B) 		8-98031-797-0 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1311- ● ●
72 SHEET
(C) 		8-98031-796-0 01 1 1311- ● ●
72 SHEET
(E) 		8-98060-225-1 01 1 1311- ● ●
72 SHEET
(A) 		8-98064-773-0 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1311- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1311- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1311- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1311- ● ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) 		8-98129-822-0 02 1 1311-1505 ● ●
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1311- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1311- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1311- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1311- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 1311- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1311- ● ●
220 HOLDER; CONNECTOR
ISRAEL COUNTRY(CV4) 		8-94447-536-0 02 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1311- ● ●
313 CONNECTOR; MIRROR
ISRAEL COUNTRY(CV4) 		8-94447-532-0 02 1 1311- ● ●
315 RUBBER ASM; CONNECTOR
ISRAEL COUNTRY(CV4) 		1-82691-026-0 02 1 1311- ● ●

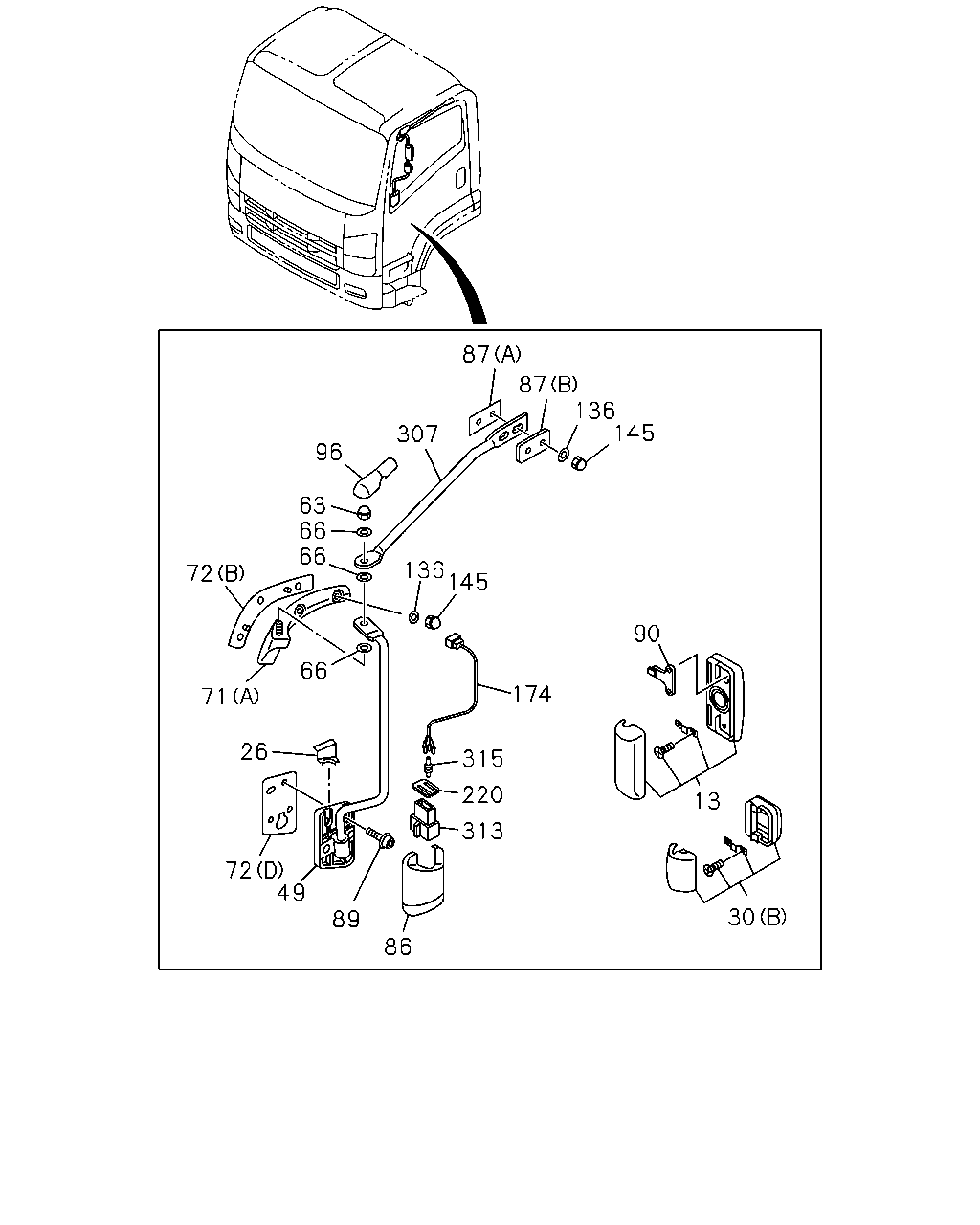

çizim 386564
145 90 13 30 174 315 220 313 86 89 49 72 26 66 145 136 66 71 72 66 63 96 307 87 136 87
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1311- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1311- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1311- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1311- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1311-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1311- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-491-3 01 1 1311- ● ●
72 SHEET
(B) 		8-98031-797-0 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1311- ● ●
72 SHEET
(C) 		8-98031-796-0 01 1 1311- ● ●
72 SHEET
(E) 		8-98060-225-1 01 1 1311- ● ●
72 SHEET
(A) 		8-98064-773-0 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1311- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1311- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1311- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1311- ● ●
90 BRACKET; MIRROR STAY
ISRAEL COUNTRY(CV4) 		8-98129-822-0 02 1 1311-1505 ● ●
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1311- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1311- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1311- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 1311- ● ●
174 HARNESS; MIRROR
ISRAEL COUNTRY(CV4) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1311- ● ●
220 HOLDER; CONNECTOR
ISRAEL COUNTRY(CV4) 		8-94447-536-0 02 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1311- ● ●
313 CONNECTOR; MIRROR
ISRAEL COUNTRY(CV4) 		8-94447-532-0 02 1 1311- ● ●
315 RUBBER ASM; CONNECTOR
ISRAEL COUNTRY(CV4) 		1-82691-026-0 02 1 1311- ● ●
