◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#130311) — 16 parça

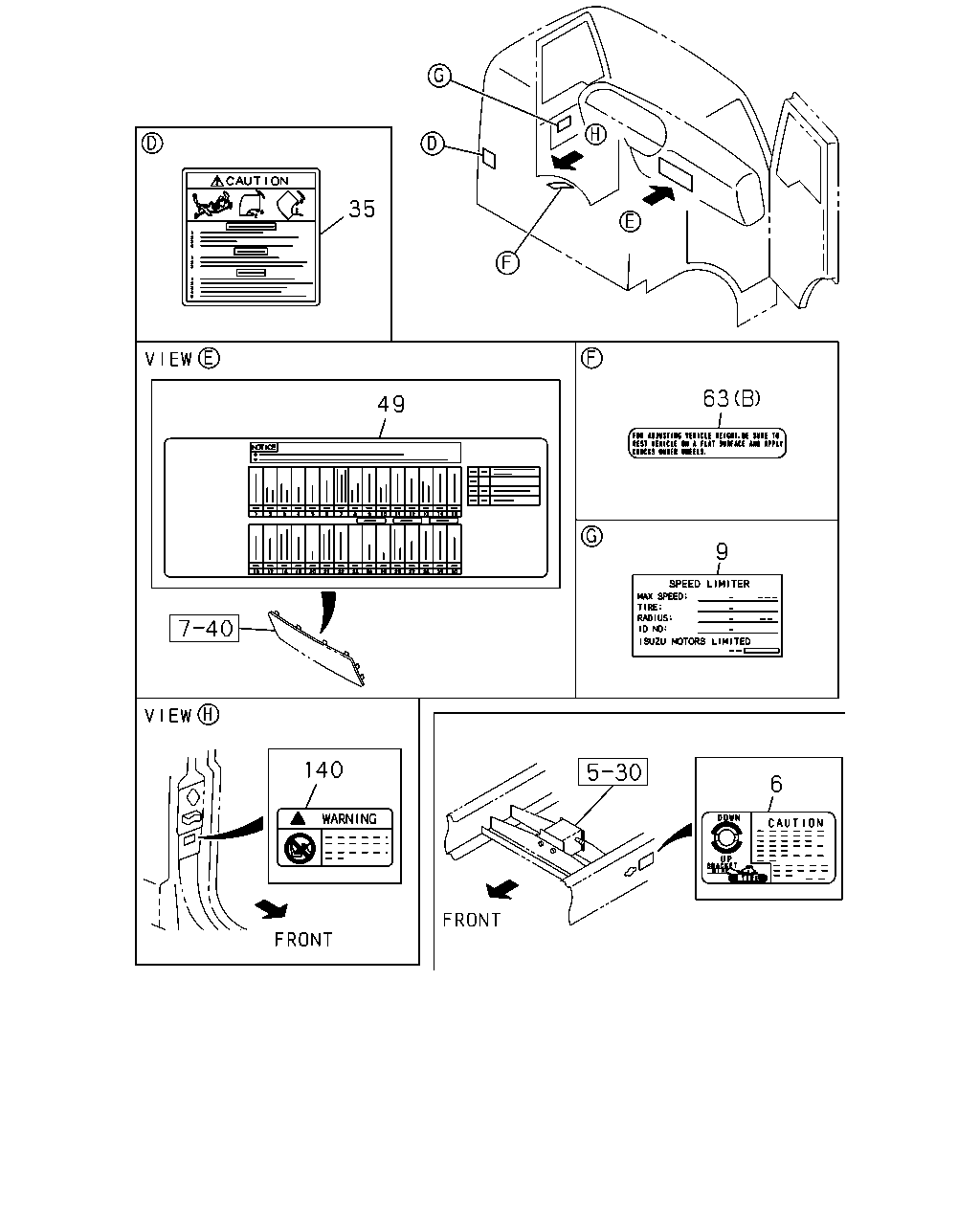

çizim 385910
49 140 6 9 63 35
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1311- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 1311- ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-338-0 01 1 1311- ● ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-339-0 01 1 1311- ● ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1311- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98223-112-0 01 1 1311- ● ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 1311- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 1311- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1311- ● ●

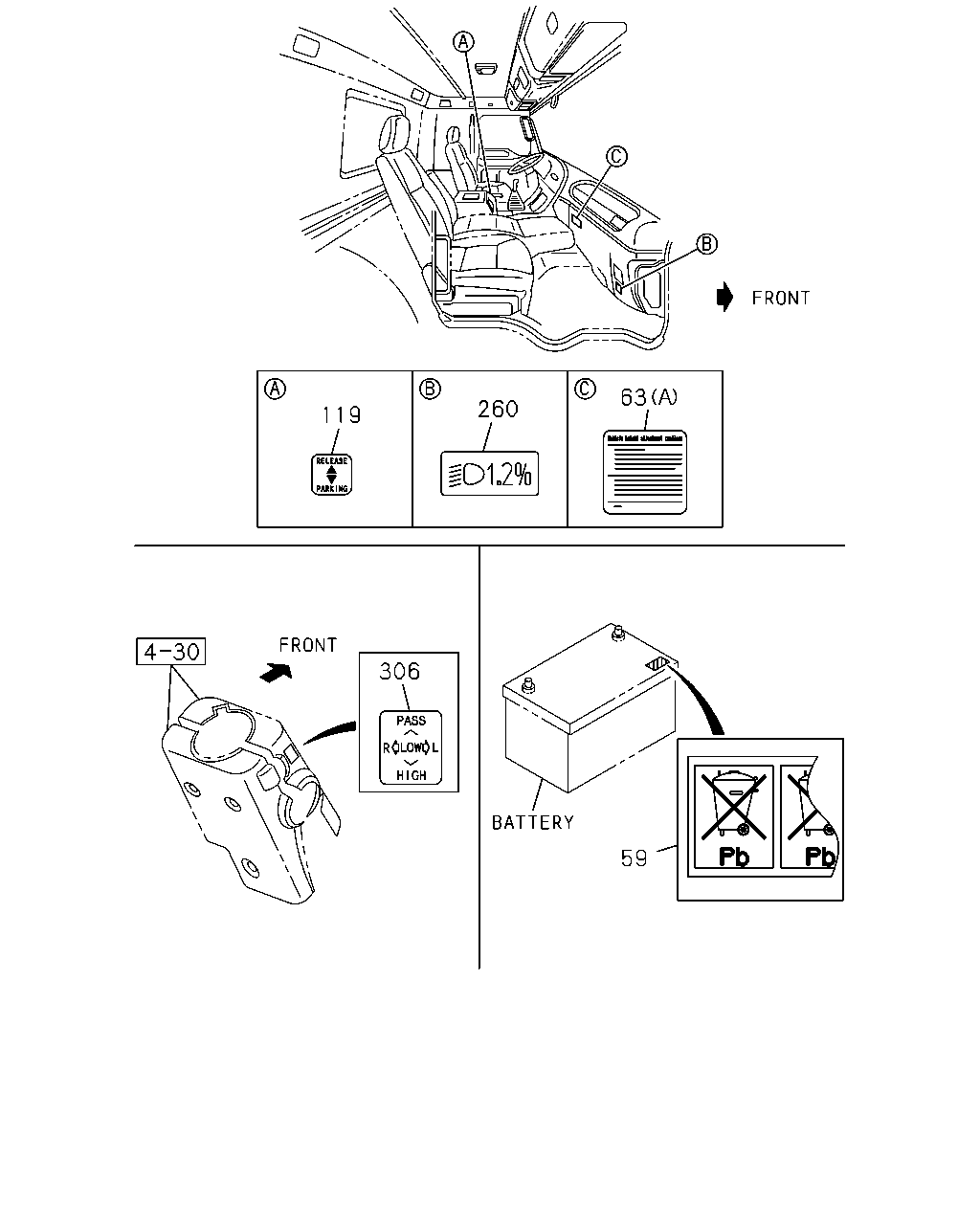

çizim 386045
306 59 119 260 63
BalonParca AdiParca NoAdetTipApplied Date A B
59 PLATE; CAUTION,BATTERY
EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET 		8-97116-760-0 02 1 1311- ● ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 1311- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 1311- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1311- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1311- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1311- ● ●

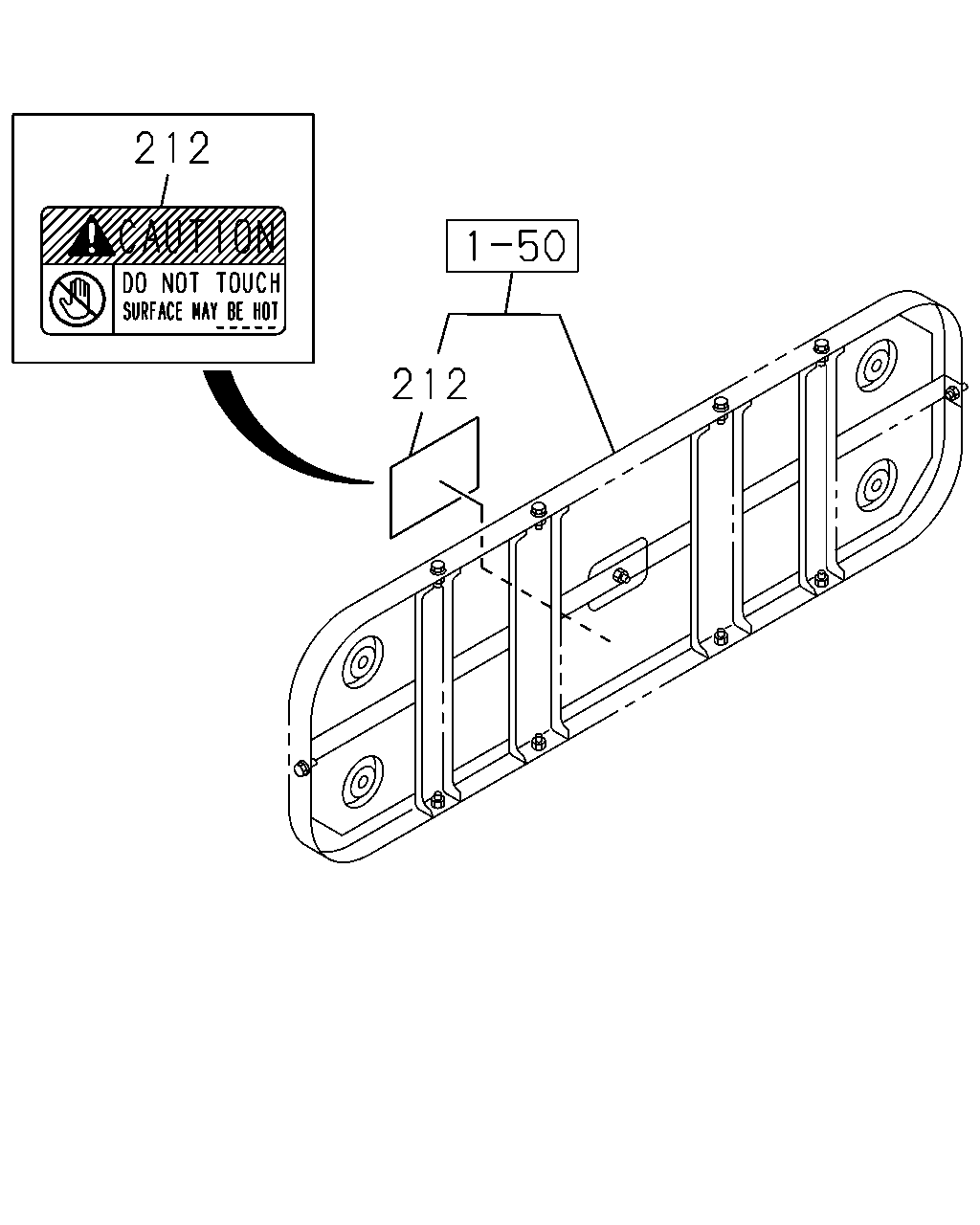

çizim 498516
212 212
BalonParca AdiParca NoAdetTipApplied Date A B
212 LABEL; SAFETY 8-98236-285-0 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
