Sayfa 8-15 - Isuzu EPC

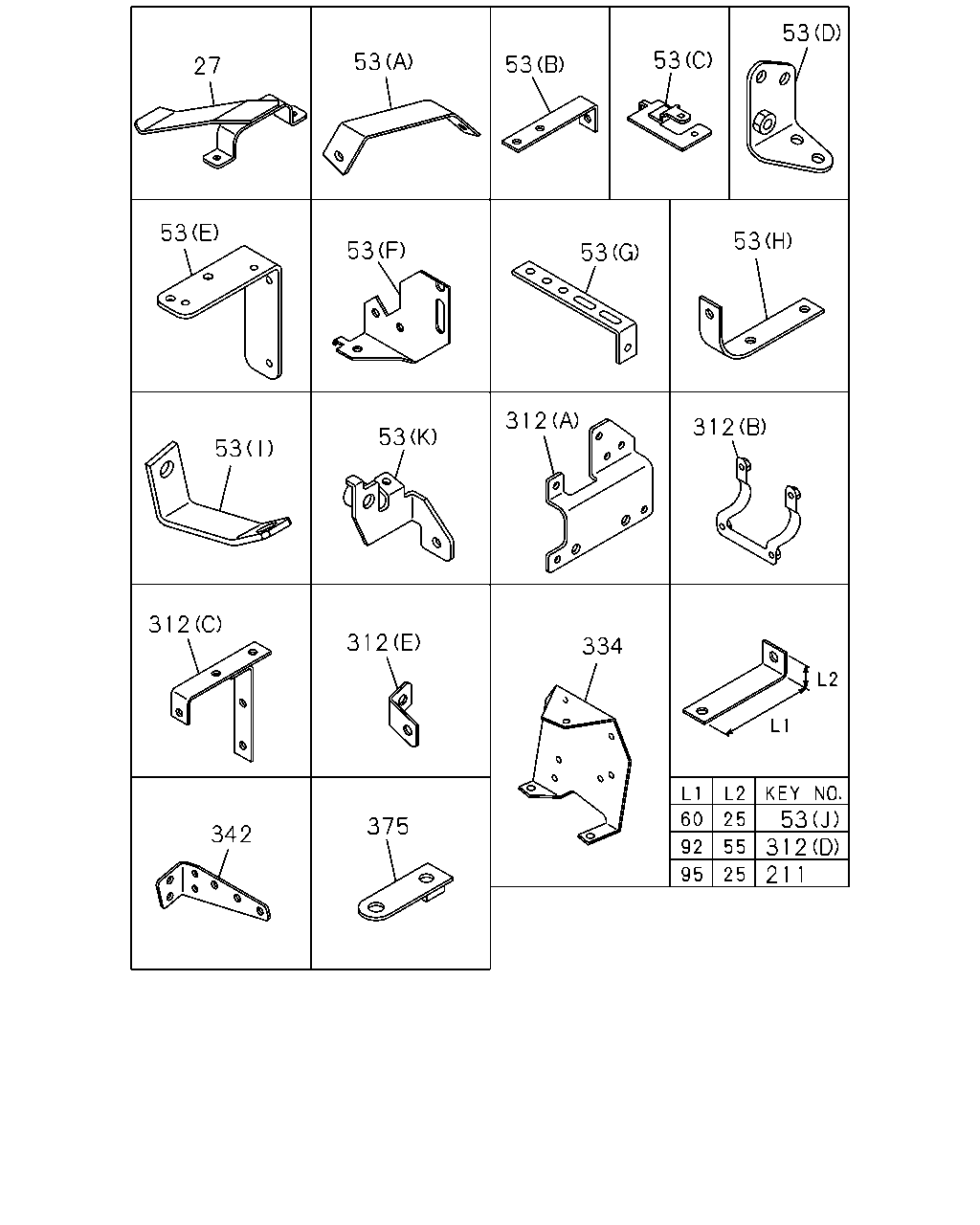

8-15 — FIXING PARTS; WIRING HARNESS (#13031) — 405 parça

53 53 53 53 27 53 53 53 53 312 312 53 53 334 312 312 375 342 53 312 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PROTECTOR; EDGE	8-97618-028-0	01	1	0701-
53	BRACKET; HARNESS (K)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (J) L=60	1-47475-455-0	01	1	0611-
53	BRACKET; HARNESS (F)	8-97617-970-0	01	1	0611-
53	BRACKET; HARNESS (H)	1-47479-342-0	01	1	0611-
53	BRACKET; HARNESS (A)	1-47479-537-0	04	1	0611-
53	BRACKET; HARNESS (I)	1-47479-537-0	05	1	0611-
53	BRACKET; HARNESS (G) L=160 H=30	1-47479-759-0	01	1	0611-
53	BRACKET; HARNESS (B)	1-82698-382-0	01	1	0611-
53	BRACKET; HARNESS (C)	1-82698-495-2	01	1	0611-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	0611-
53	BRACKET; HARNESS (E)	8-97610-340-1	01	1	0611-
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	0611-
312	BRACKET; CLIP HARNESS (B)	1-82698-476-0	01	1	0611-
312	BRACKET; CLIP HARNESS (C)	1-82698-479-0	01	1	0611-
312	BRACKET; CLIP HARNESS (A)	1-82698-648-0	01	1	0611-
312	BRACKET; CLIP HARNESS (D)	1-21464-481-0	01	1	0611-
312	BRACKET; CLIP HARNESS (E)	1-82699-199-0	01	1	0611-
334	BRACKET	1-53458-709-1	01	1	0611-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0611-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0611-

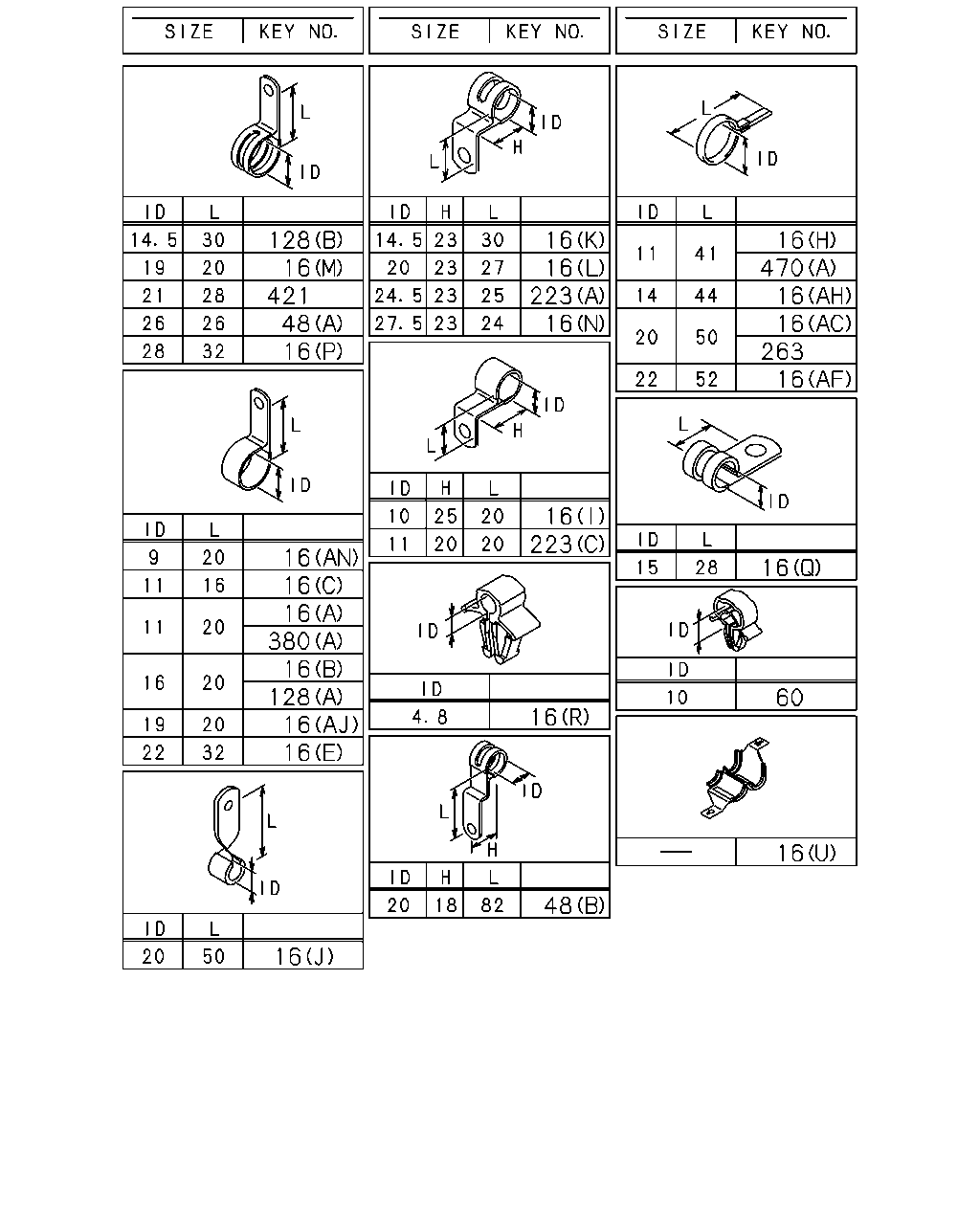

128 16 421 48 16 16 16 223 16 16 470 16 16 263 16 16 223 16 16 16 380 16 128 16 16 16 60 16 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AN) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AG) ID=15 L=35	1-09700-507-0	01	1	0807-
16	CLIP; HARNESS (AM) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (AB) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (D) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (X) ID=18-24 L=22	1-09709-295-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Z)	8-98040-124-0	03	1	0611-0611
16	CLIP; HARNESS (AI) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-
16	CLIP; HARNESS (AJ) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	05	1	0611-
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	0611-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0611-1105
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0611-
16	CLIP; HARNESS (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0611-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0611-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0611-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0611-0611
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0611-0702
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	0703-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	0611-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0611-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (P) ID=28 L=32	1-09701-107-1	02	1	0611-1002
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0611-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	10	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0611-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	01	1	0611-0611
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	08	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	06	1	0611-
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	0611-
16	CLIP; HARNESS (F) ID=5-12 L=26	1-09709-289-0	01	1	0611-0611
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0702
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	03	1	0611-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	03	1	0611-
16	CLIP; HARNESS (AE) ID=18 L=44	8-94225-185-0	05	1	0611-0801
16	CLIP; HARNESS (AE) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (O) ID=7-10	8-94472-578-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	8-97368-793-0	01	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-0611
16	CLIP; HARNESS (AK) L=140	5-09707-031-1	05	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	05	1	0611-0611
16	CLIP; HARNESS (AL) ID=14-20	8-97061-603-0	03	1	0611-
16	CLIP; HARNESS (AC) ID=20 L=50	9-09917-430-0	07	1	0611-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (H) ID=11 L=41	1-09700-403-0	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0611-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	04	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0611-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0611-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	0611-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0611-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0611-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0611-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0611-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0611-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0611-
380	CLIP; EARTH HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	0611-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	0611-
421	CLIP; FLOOR HARNESS ID=21 L=28	1-09700-673-1	02	1	0611-1202
421	CLIP; FLOOR HARNESS KD ENGINE<KDA> ID=21 L=28	1-09700-673-1	02	1	1203-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0611-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0611-

224 1 1 1 224 1 530 530 510 178 178 178 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0611-
1	SLEEVE; RUBBER (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	0611-0611
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50	5-09360-835-0	01	1	0611-1108
1	SLEEVE; RUBBER (B) ID=38.1 L=50	5-09360-835-0	01	1	1109-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0611-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	0611-
178	GROMMET; HARNESS (F) ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	0611-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0611-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	0611-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	0611-
178	GROMMET; HARNESS INSPECTION LAMP<T95> (G) ID=19 OD=23 T=18	9-09956-130-1	01	1	0611-
224	SLEEVE; RUBBER,HARNESS (B) ID=23 OD=27 L=40	1-09337-015-0	01	1	1109-
224	SLEEVE; RUBBER,HARNESS (A) ID=6 L=30	5-09360-352-0	01	1	0611-
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	0611-1202
510	GROMMET; SCREW KD ENGINE<KDA> D=9.7X9.7 L=8	8-94222-314-0	02	1	1203-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	04	1	0611-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	08	1	0611-
530	SEAL; HARNESS (B) 100X40	1-72498-022-1	01	1	0611-

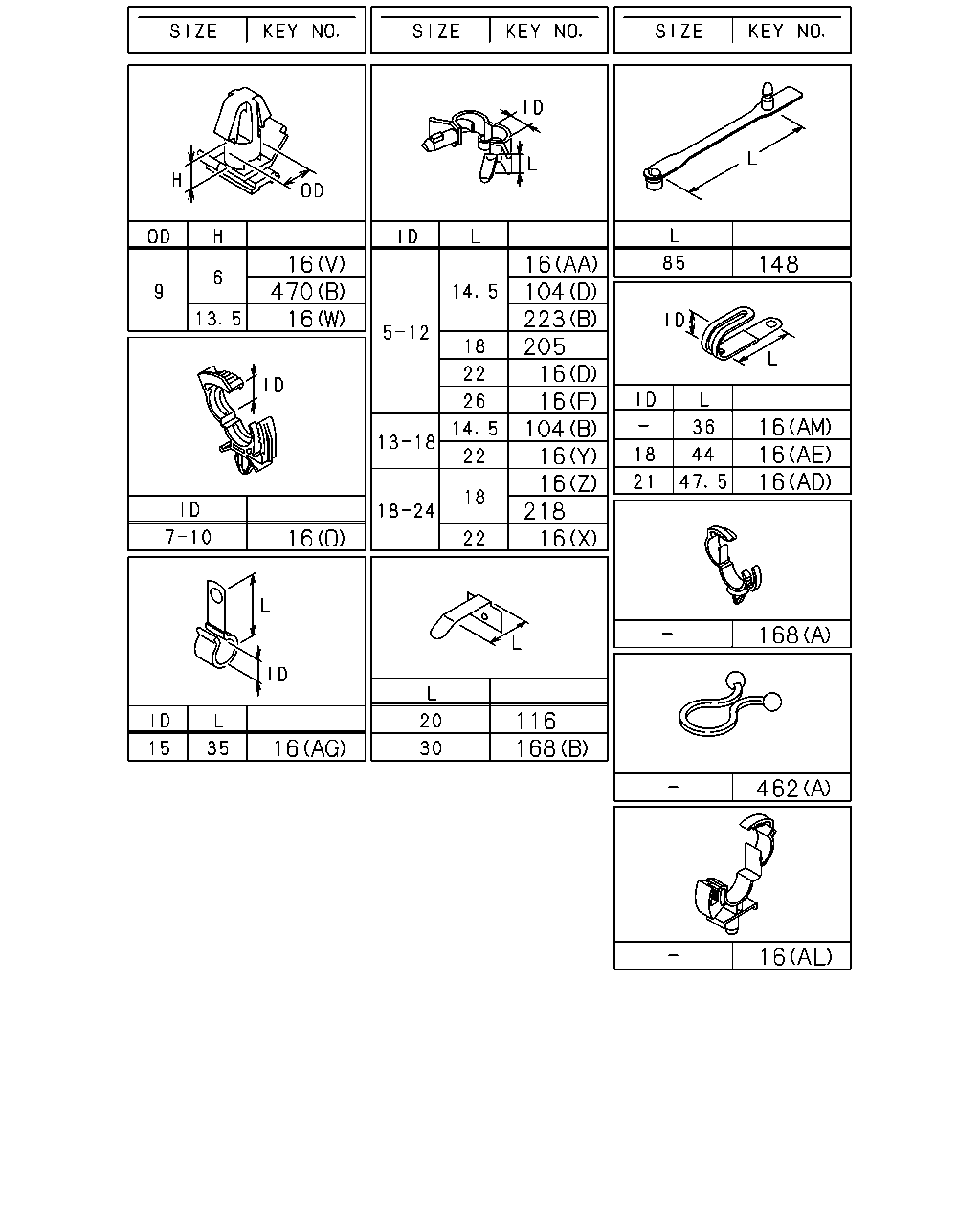

16 470 16 16 104 223 205 16 16 104 16 16 218 16 148 16 16 16 16 168 116 168 16 462 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AN) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AG) ID=15 L=35	1-09700-507-0	01	1	0807-
16	CLIP; HARNESS (AM) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (AB) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (D) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (X) ID=18-24 L=22	1-09709-295-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Z)	8-98040-124-0	03	1	0611-0611
16	CLIP; HARNESS (AI) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-
16	CLIP; HARNESS (AJ) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	05	1	0611-
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	0611-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0611-1105
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0611-
16	CLIP; HARNESS (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0611-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0611-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0611-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0611-0611
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0611-0702
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	0703-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	0611-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0611-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (P) ID=28 L=32	1-09701-107-1	02	1	0611-1002
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0611-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	10	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0611-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	01	1	0611-0611
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	08	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	06	1	0611-
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	0611-
16	CLIP; HARNESS (F) ID=5-12 L=26	1-09709-289-0	01	1	0611-0611
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0702
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	03	1	0611-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	03	1	0611-
16	CLIP; HARNESS (AE) ID=18 L=44	8-94225-185-0	05	1	0611-0801
16	CLIP; HARNESS (AE) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (O) ID=7-10	8-94472-578-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	8-97368-793-0	01	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-0611
16	CLIP; HARNESS (AK) L=140	5-09707-031-1	05	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	05	1	0611-0611
16	CLIP; HARNESS (AL) ID=14-20	8-97061-603-0	03	1	0611-
16	CLIP; HARNESS (AC) ID=20 L=50	9-09917-430-0	07	1	0611-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (H) ID=11 L=41	1-09700-403-0	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5	1-09709-290-0	06	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) L=140	5-09707-031-1	02	1	0611-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0611-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	0611-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	0611-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0611-
205	CLIP; BACK LAMP HARNESS ID=5-12 L=18	1-09709-287-0	01	1	0611-
218	CLIP; BAND,RR COMB ID=18-24 L=18	1-09709-294-0	04	1	0611-0611
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0611-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0611-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0611-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0611-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0611-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0611-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0611-

516 19 119 524 24 219 294 340 515 552 515 88 358 239 139 242 64 38 313 139 86 313 38 480 386 38 38 38 313 242 38 242 38 150 139 242 133 88 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0701-0904
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	02	1	0611-0611
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	01	1	0611-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	02	1	0611-0702
38	BOLT; CLIP,HARNESS (F) M8X18 FLANGE	0-28080-818-0	01	1	0703-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0611-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0611-0702
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0703-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0703-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	0611-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	06	1	0611-0806
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0807-1001
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	06	1	1002-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0611-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0611-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0611-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0611-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	0611-
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	1-09044-079-0	01	1	0611-1105
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	0-28051-216-0	01	1	1106-
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	0611-1202
64	SCREW; CLIP KD ENGINE<KDA> M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	1203-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0611-
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0611-1007
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0611-1007
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1008-
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	0611-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0611-
139	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0611-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0611-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0611-
150	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	13	1	0611-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0611-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0611-
219	NUT M8 FLANGE	0-91180-108-0	07	1	0611-
219	NUT M8 FLANGE	0-91180-108-0	10	1	0611-0806
219	NUT M8 FLANGE	0-91180-108-0	09	1	0807-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0611-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (B) M8X18 FLANGE	0-28080-818-0	02	1	0611-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0611-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	03	1	0611-
242	BOLT; BRKT,HARNESS (D) M10X25 FLANGE	0-28651-025-0	02	1	0611-0611
294	NUT M8 FLANGE	0-91180-108-0	03	1	0611-
294	NUT M8 FLANGE	0-91180-108-0	08	1	0611-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0611-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0611-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	04	1	0611-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0611-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	01	1	0611-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0611-
386	BOLT; GRAND HARNESS M8X20 FLANGE	0-28650-820-0	02	1	0611-0611
386	BOLT; GRAND HARNESS M8X20 FLANGE	0-28650-820-0	01	1	0611-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0611-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0611-
515	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	0611-0611
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0611-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	0611-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	0611-

14 16 51 81 104 171 194 212 305 462 16 104 142 171 194 212 228 305 380 14 14 16 48 194 208 212 16 51 142 194 16 16 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0611-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	03	1	0611-
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	01	1	0611-
16	CLIP; HARNESS (AN) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AG) ID=15 L=35	1-09700-507-0	01	1	0807-
16	CLIP; HARNESS (AM) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (AB) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (D) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (X) ID=18-24 L=22	1-09709-295-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Z)	8-98040-124-0	03	1	0611-0611
16	CLIP; HARNESS (AI) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-
16	CLIP; HARNESS (AJ) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	05	1	0611-
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	0611-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0611-1105
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0611-
16	CLIP; HARNESS (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0611-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0611-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0611-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0611-0611
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0611-0702
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	0703-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	0611-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0611-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (P) ID=28 L=32	1-09701-107-1	02	1	0611-1002
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0611-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	10	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (G) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0611-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	01	1	0611-0611
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	08	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	06	1	0611-
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	0611-
16	CLIP; HARNESS (F) ID=5-12 L=26	1-09709-289-0	01	1	0611-0611
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0702
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	03	1	0611-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	03	1	0611-
16	CLIP; HARNESS (AE) ID=18 L=44	8-94225-185-0	05	1	0611-0801
16	CLIP; HARNESS (AE) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (O) ID=7-10	8-94472-578-0	01	1	0611-
16	CLIP; HARNESS (V) OD=9 H=6	8-97368-793-0	01	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0611-0611
16	CLIP; HARNESS (AK) L=140	5-09707-031-1	05	1	0611-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	05	1	0611-0611
16	CLIP; HARNESS (AL) ID=14-20	8-97061-603-0	03	1	0611-
16	CLIP; HARNESS (AC) ID=20 L=50	9-09917-430-0	07	1	0611-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (H) ID=11 L=41	1-09700-403-0	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0611-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	04	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0611-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0611-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	0611-1108
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1109-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0611-1108
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1109-
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5	1-09709-290-0	06	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) L=140	5-09707-031-1	02	1	0611-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0611-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0611-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	05	1	0611-
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	08	1	0611-
194	CLIP; BAND (B) L=180	1-09707-162-1	01	1	0611-1001
194	CLIP; BAND (C) L=350	1-09707-183-0	11	1	0611-1202
194	CLIP; BAND (C) L=350	1-09707-183-0	12	1	1203-
194	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0611-
194	CLIP; BAND (A) L=250	5-09707-030-1	05	1	0611-0611
194	CLIP; BAND (D) L=140	5-09707-031-1	01	1	0611-0611
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0611-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0905-
212	CLIP; HORN HARNESS (A) L=350	1-09707-183-0	02	1	0611-
212	CLIP; HORN HARNESS (B) L=250	5-09707-030-1	02	1	0611-
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	02	1	0611-1112
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1201-
305	CLIP; ENG HARNESS (A) L=382	1-09707-196-0	01	1	1109-
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	03	1	0611-
380	CLIP; EARTH HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	0611-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	0611-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0611-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
