◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#130302) — 59 parça

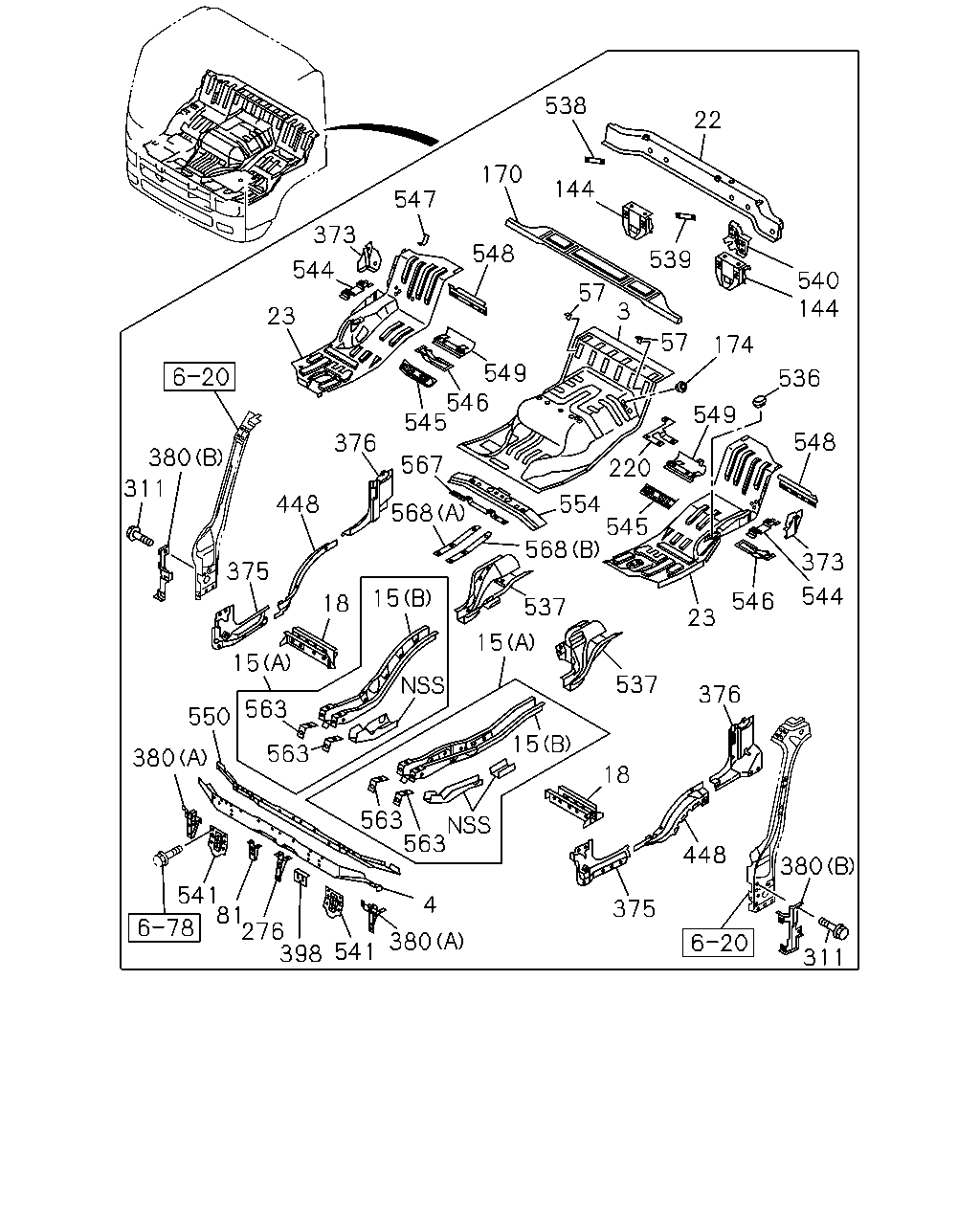

çizim 386387
380 448 311 375 15 550 380 541 81 276 398 541 380 4 563 563 15 15 537 568 554 220 549 536 548 373 544 546 23 545 537 376 18 375 448 380 311 170 538 144 539 22 540 144 174 57 3 57 549 548 546 545 567 568 15 376 23 544 373 547 18 563 563
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-362-4 01 1 1311- ● ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-819-4 01 1 1311- ● ●
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 1311- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1311- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1311- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1311- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1311- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1311- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 1311- ● ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1311- ● ●
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 1311- ● ●
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 1311- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1311- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1311- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1311- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1311- ● ●
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1311- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1311- ● ●
220 PATCH 8-97589-704-0 01 1 1311- ● ●
276 BRACKET; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98253-712-0 01 1 1412- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1311-1411 ● ●
276 BRACKET; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> 		8-97589-596-3 01 1 1412- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1311- ● ●
373 REINFORCEMENT; SEAT BELT 8-97584-367-2 01 1 1311- ● ●
373 REINFORCEMENT; SEAT BELT 8-97584-375-2 01 1 1311- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1311- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1311- ● ●
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1311- ● ●
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1311- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1311- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1311- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1311- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1311- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1311- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1311- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1311- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1311- ● ●
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1311- ● ●
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1311- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1311- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1311- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1311- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1311- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1311- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1311- ● ●
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1311- ● ●
545 BRACKET; SEAT FRT 8-98050-188-0 01 1 1311- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1311- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1311- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1311- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1311- ● ●
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1311- ● ●
549 BRACKET; SEAT RR 8-98050-189-1 01 1 1311- ● ●
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 1311- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98203-489-0 01 1 1311- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1311- ● ●
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1311- ● ●
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1311- ● ●
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
